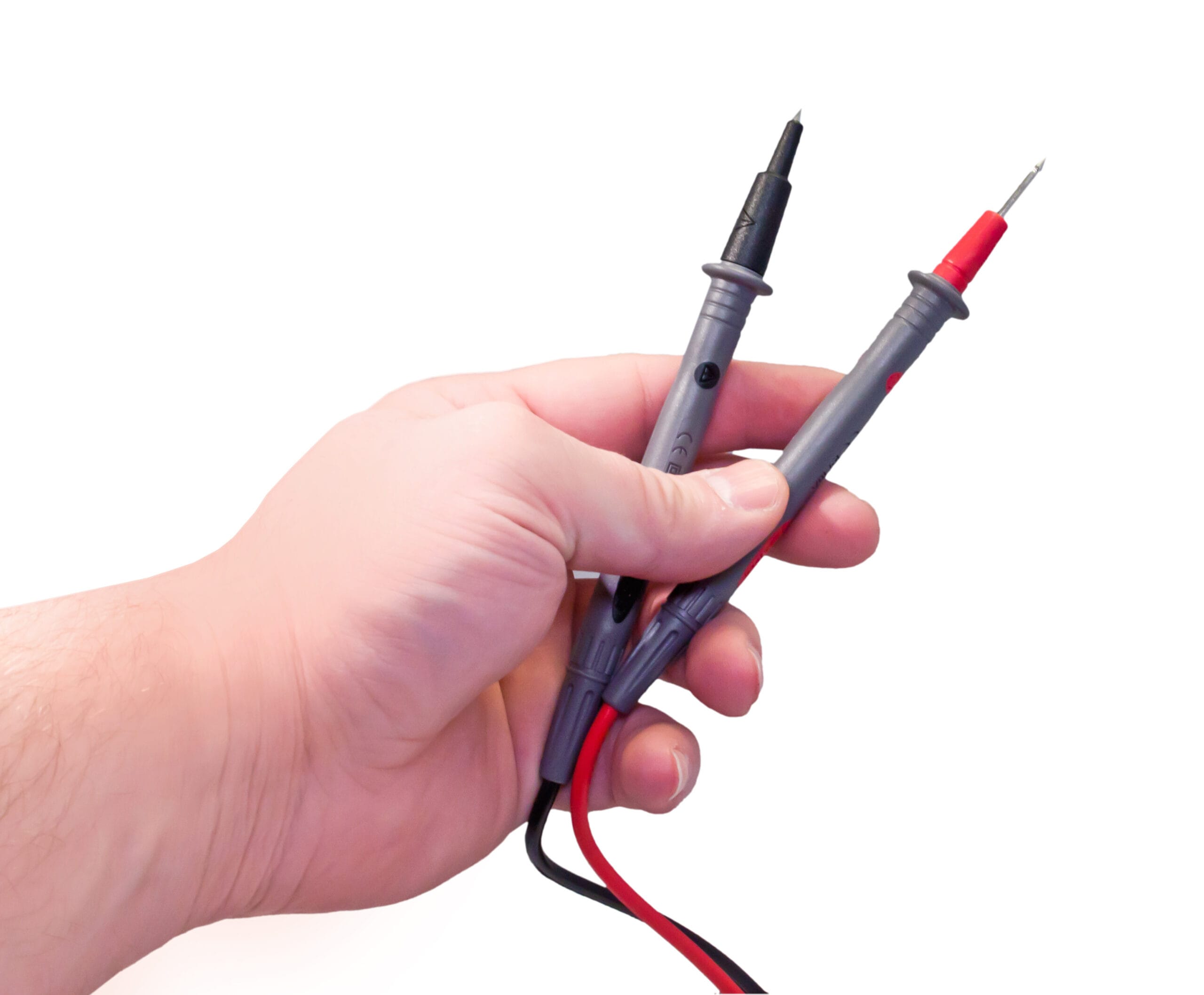

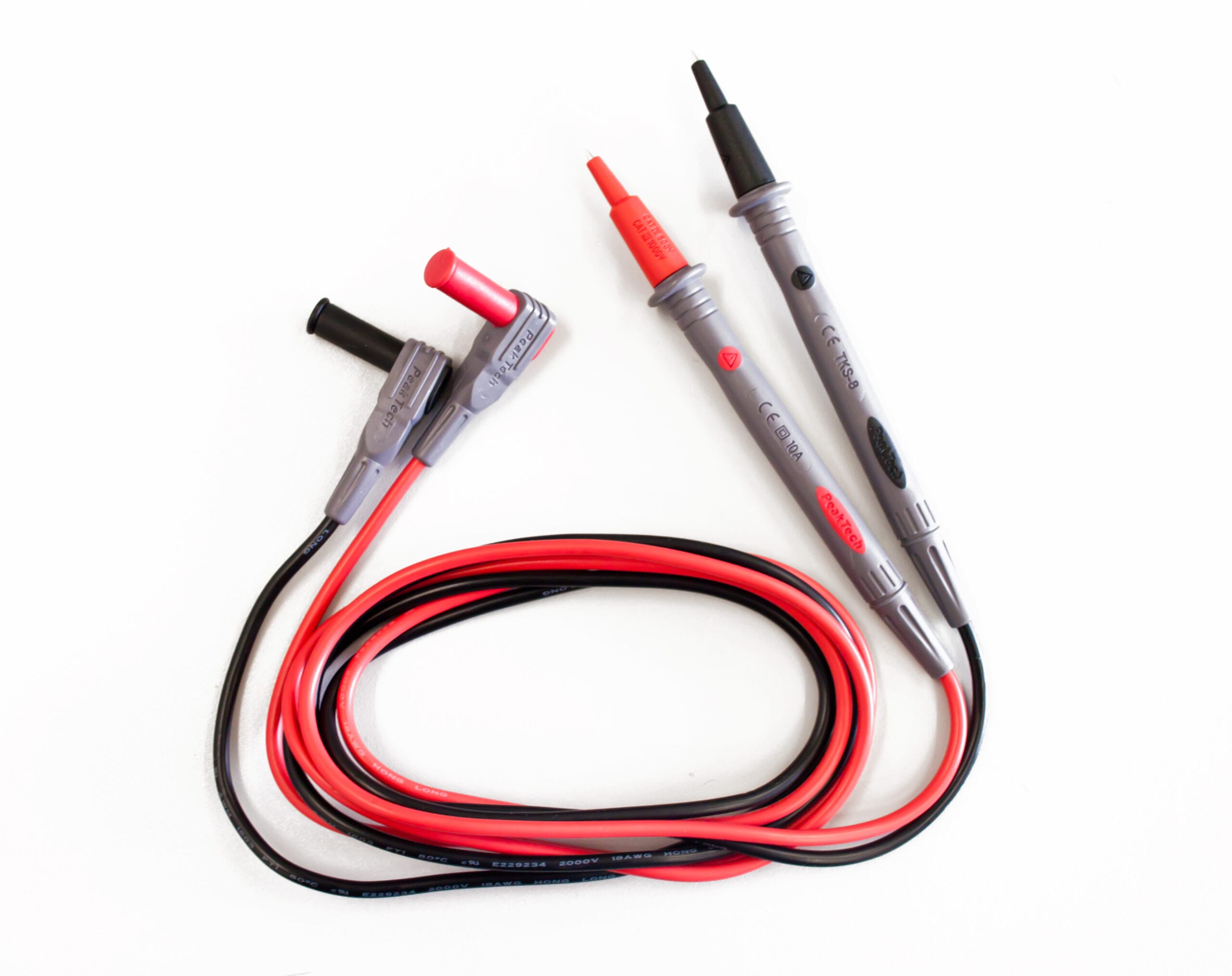

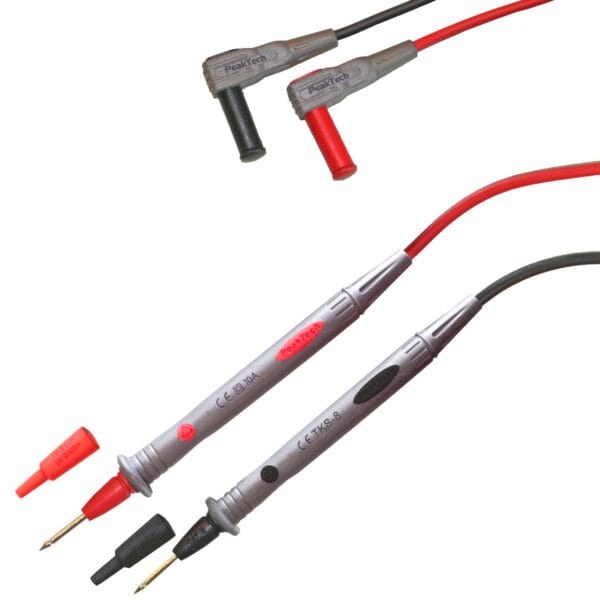

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 2mm diameter test probes of the TKS-8 cables are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.
| Cable Length: | ca. 120cm |
|---|---|
| Contains: | Test leads |
| Double isolated: | ■ |
| Input connector: | Test probe |
| Nominal current (A): | 10 A |
| Output Connection: | 4 mm Plug |
| Over voltage category: | CAT III 1000 V |
| Removable sleeves: | ■ |
| Touch guard: | ■ |
