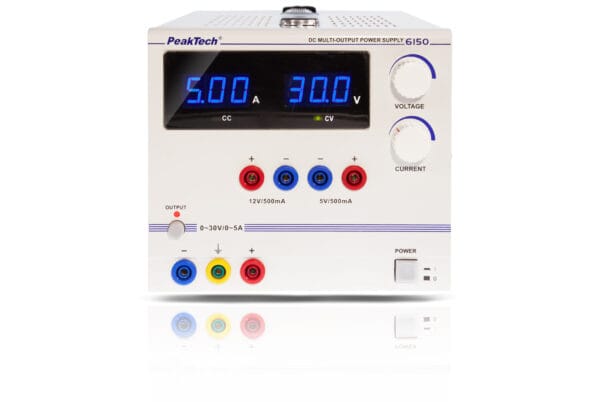

The PeakTech 6150 has two fixed and one adjustable voltage output. The fixed voltage outputs have an output of 12 volts and 5 volts, which is used for many low-voltage test setups. Both have a maximum current output of 500 mA. The adjustable voltage output has a range from 0 to 30V DC and a maximum rated current of 5 A. The voltage and current values can be infinitely adjusted and set using the rotary control. Not only the main switch but also a separate output switch is integrated in the front of the laboratory power supply, which enables the user to set the voltages and currents before the outputs are switched on.
| Auxillary output: | 5 V DC, 12 V DC |
|---|---|
| Channels: | 1 CH |
| Cooling: | Active |
| Display Type: | Segment |
| Input voltage: | 100 – 240 VAC 50/60 Hz |
| Output Current: | 0 – 5 A |
| Output Voltage: | 0 – 30 V DC |
| SELV: | ■ |
