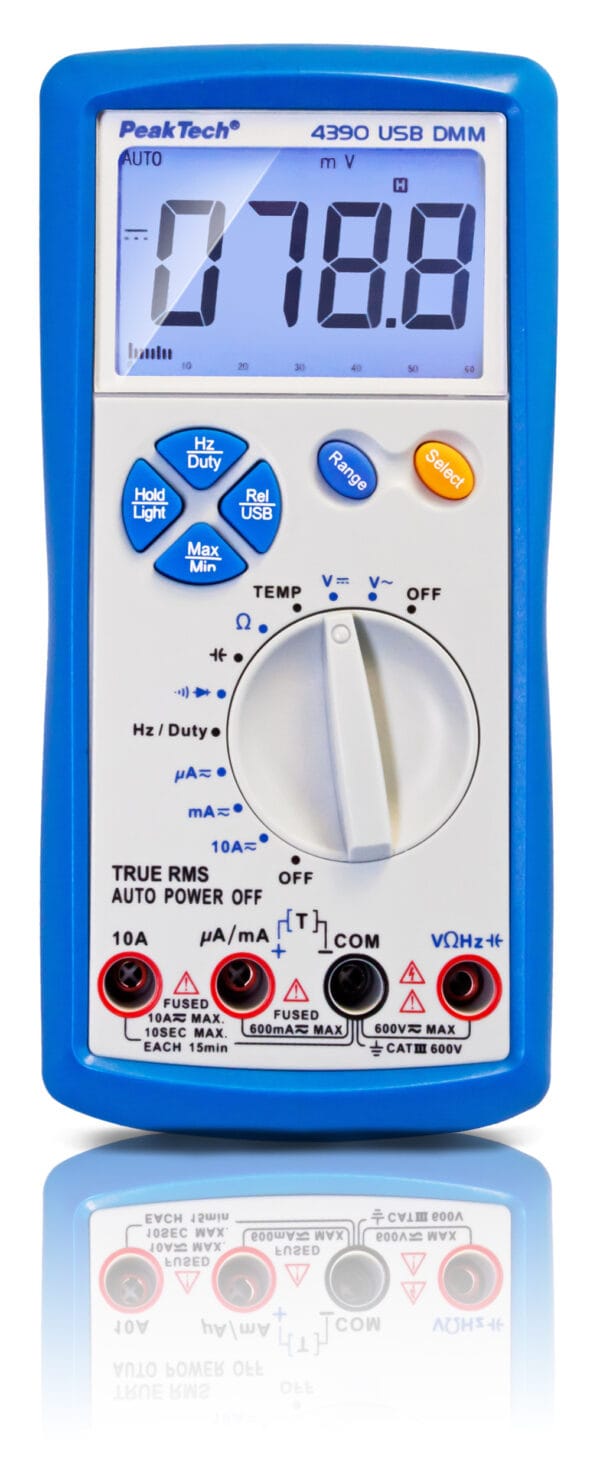

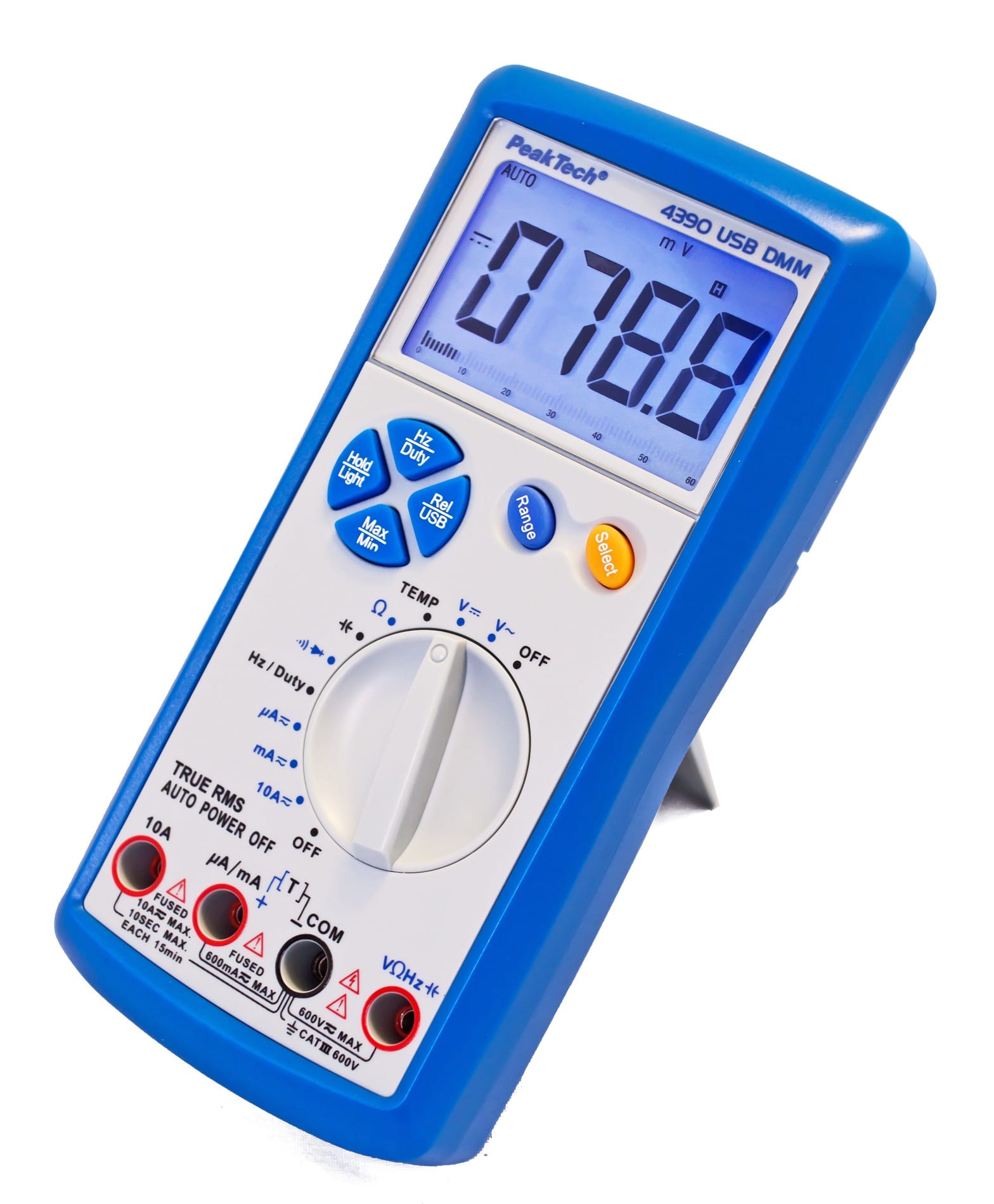

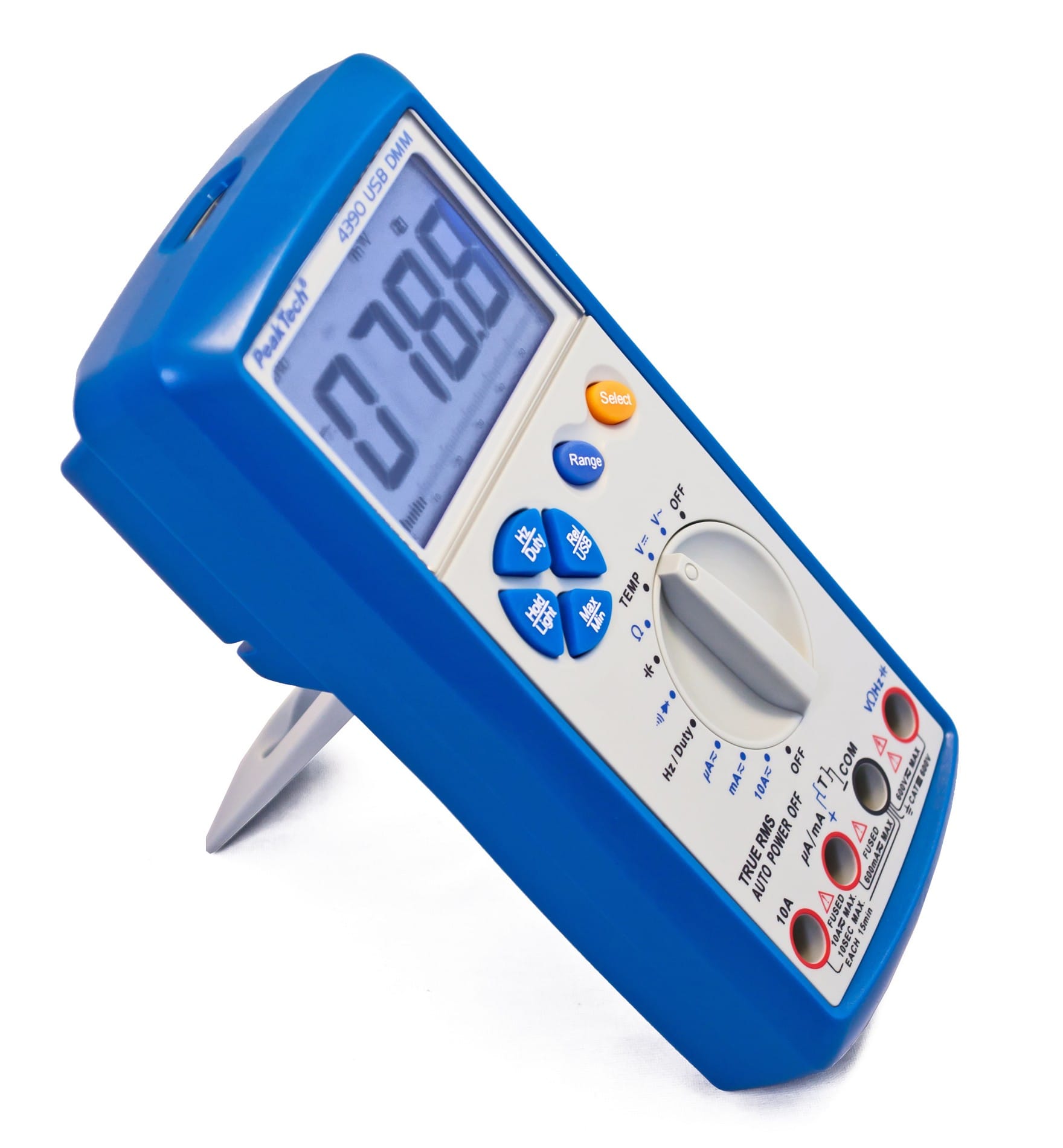

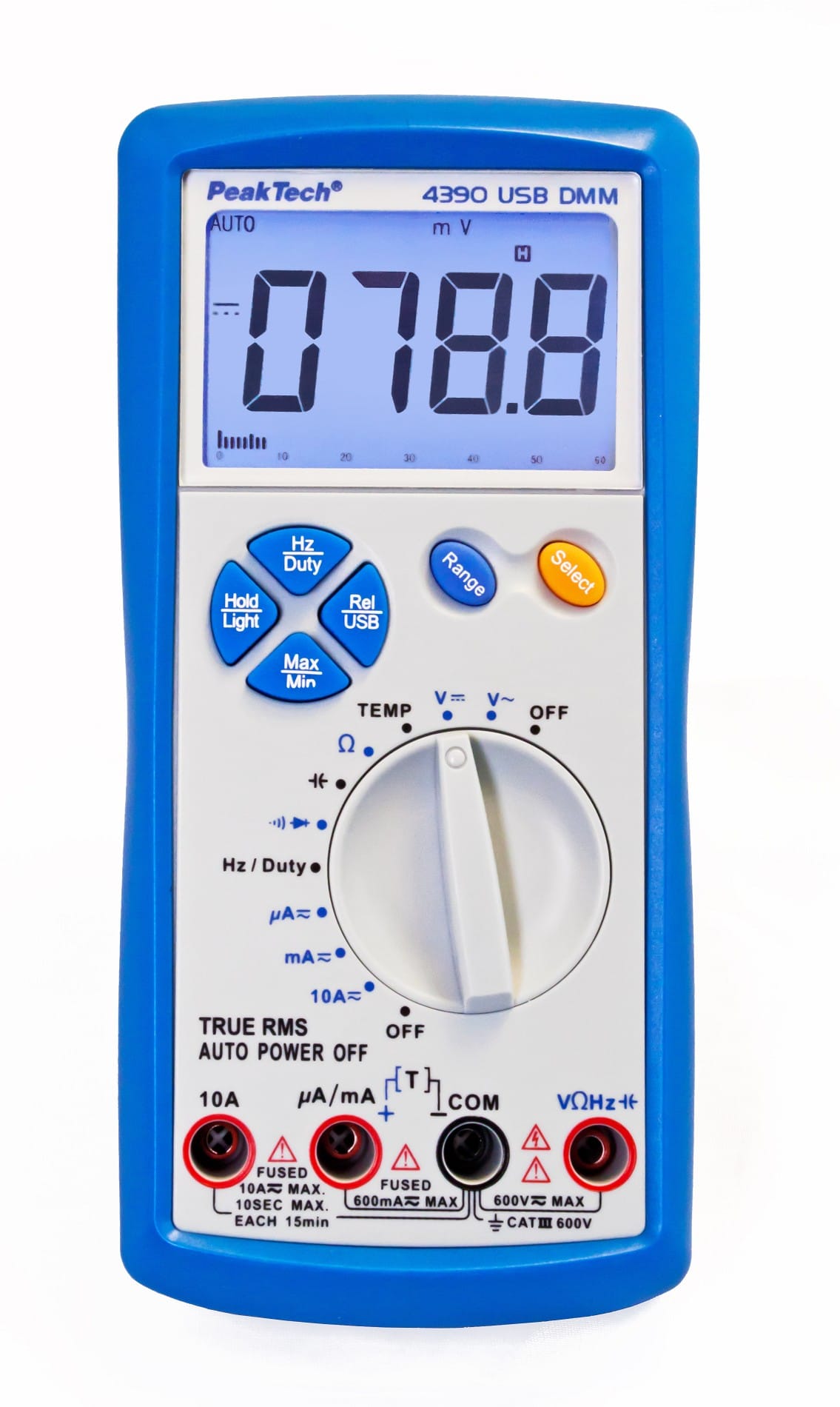

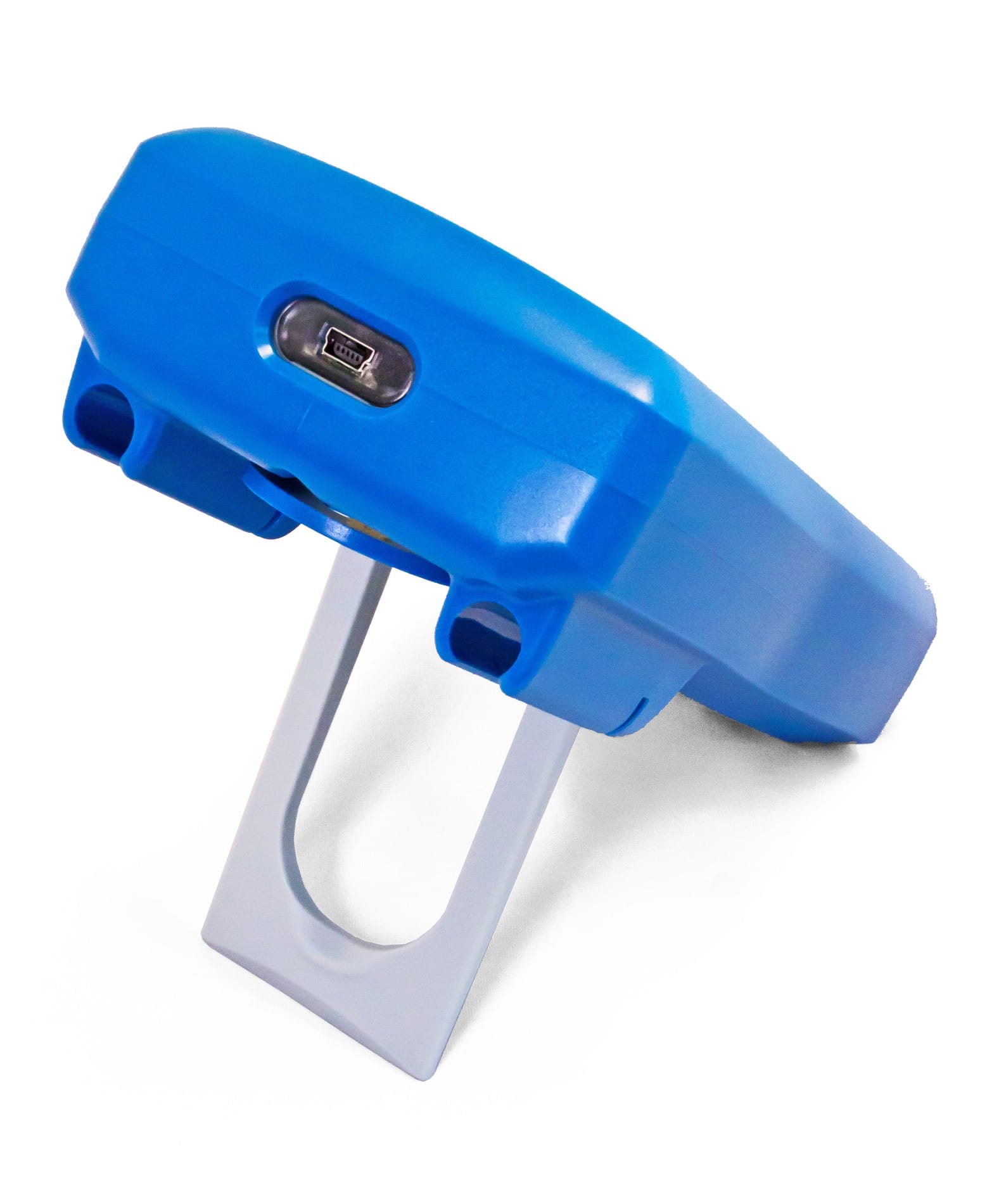

Compact digital multimeter with 3 5/6-digit LCD multifunction display (max. 6000), 63-segment analog bar graph and integrated USB interface for logging the measurement data on a PC. In addition to the measuring functions for current and voltage, this multimeter can also measure capacitance, frequency, resistance and temperature. Direct and alternating currents can also be recorded with high precision in the measuring ranges µA, mA and A.

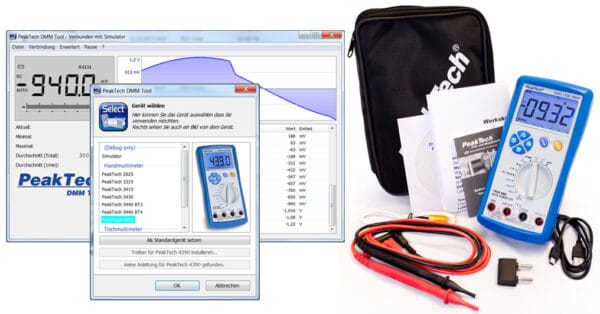

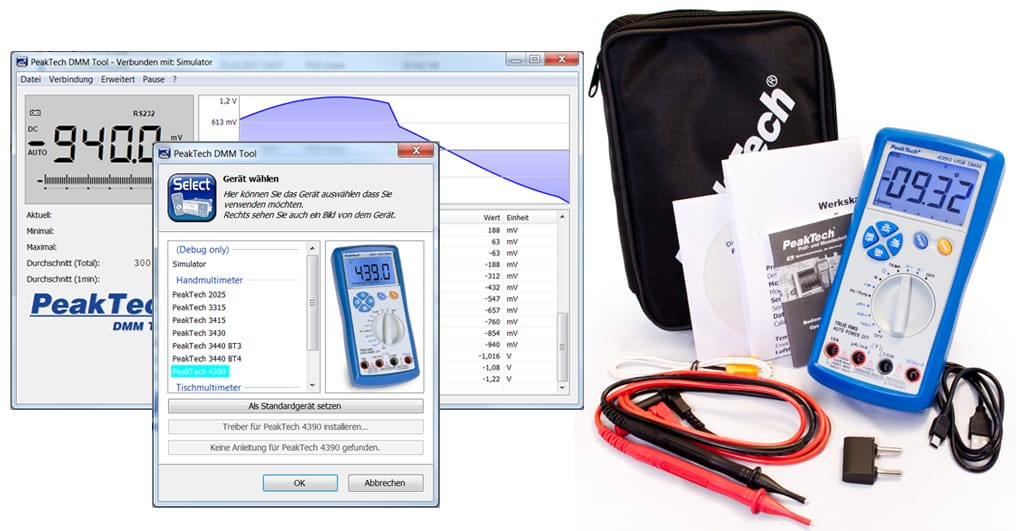

Software: DMM Tool compatible – download in the service area
| USB: | ■ |
|---|---|
| Basic Accuracy DC: | +/- 0,5% |
| Battery: | 9V Block |
| Capacitance max.: | 1000 µF |
| Display Type: | LCD |
| Over voltage category: | CAT III 600 V |
| Range selection: | Auto |
| True RMS: | ■ |
| V DC max.: | 600V |
| A AC max.: | 10A |
| Hz max.: | 10 MHz |
| OHM max.: | 60 MΩ |
| Temp. max.: | 1000 °C |
| Temp. min.: | -20 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 6000 µA |
| V AC max.: | 600 V |
| A DC max.: | 10A |
| mA AC max.: | 600 mA |
| µA AC max.: | 6000 µA |
