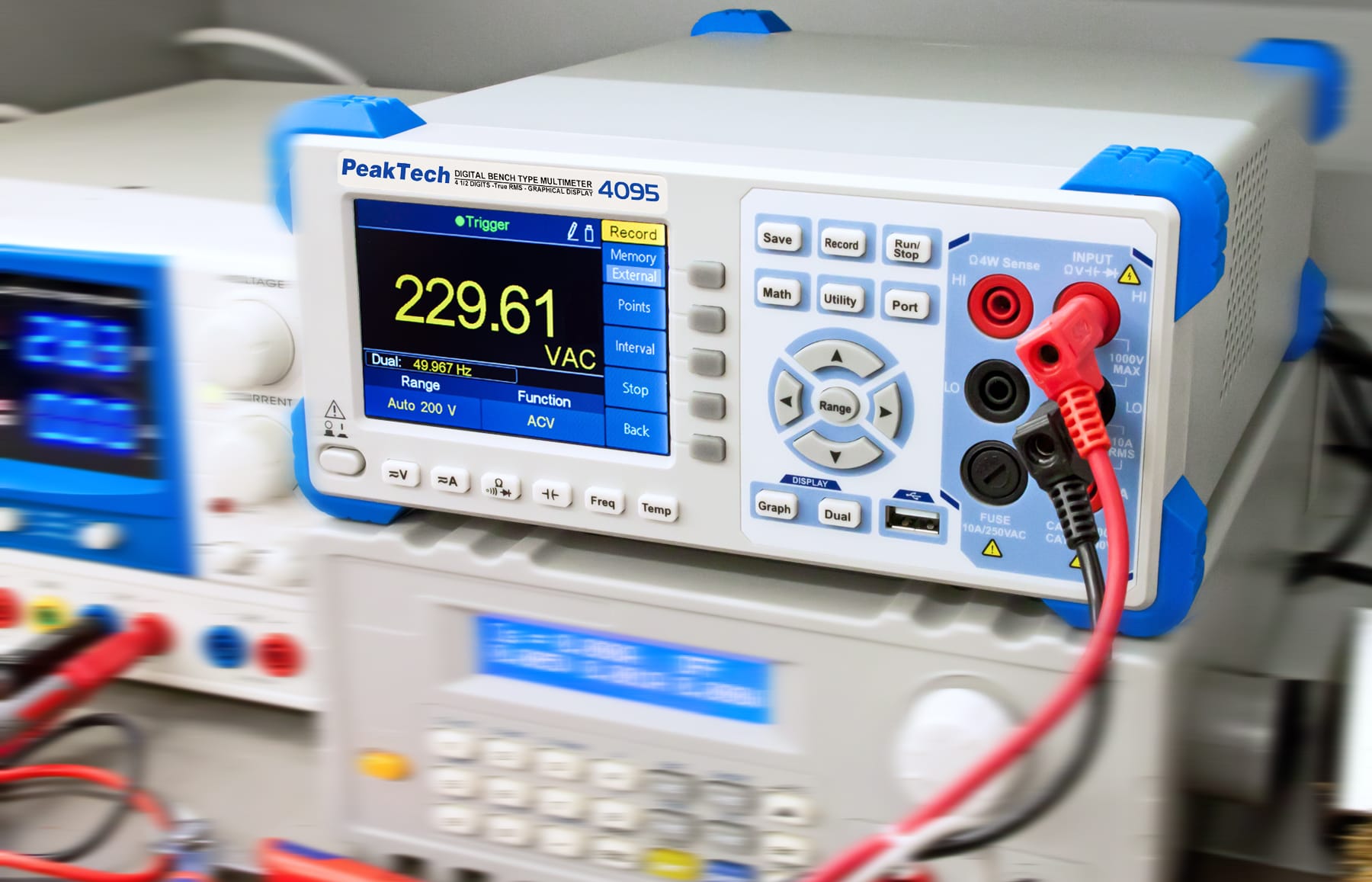

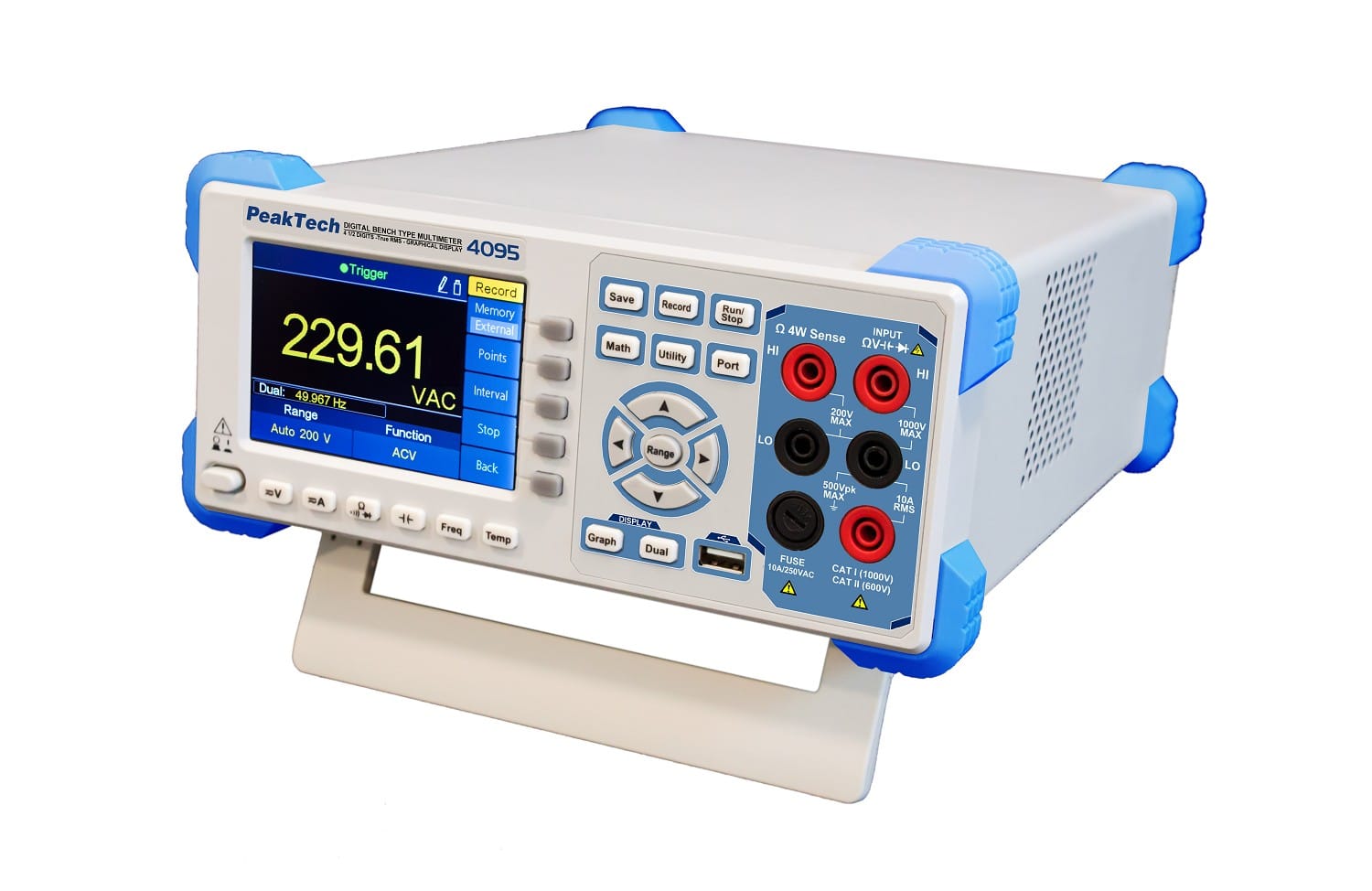

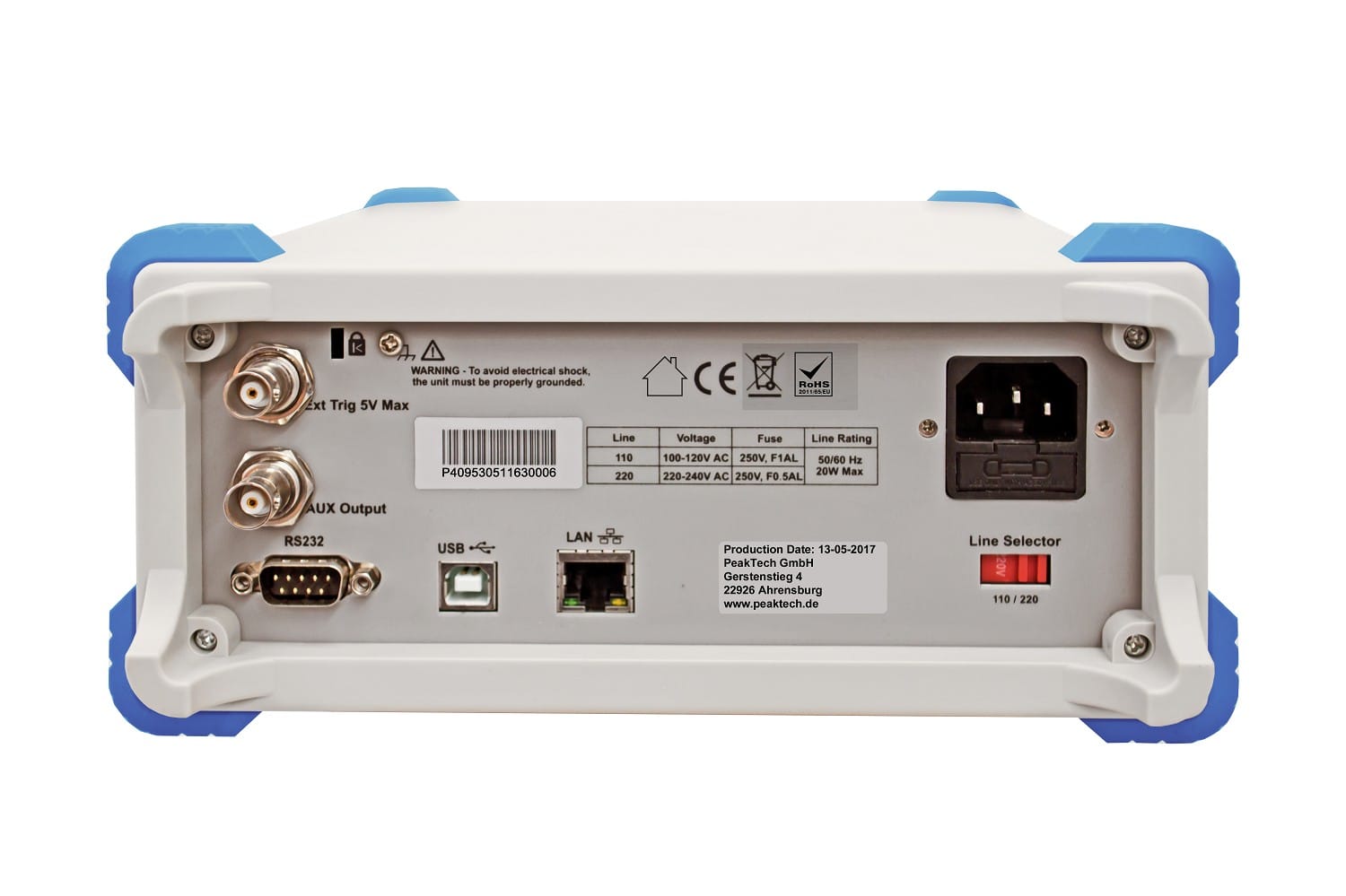

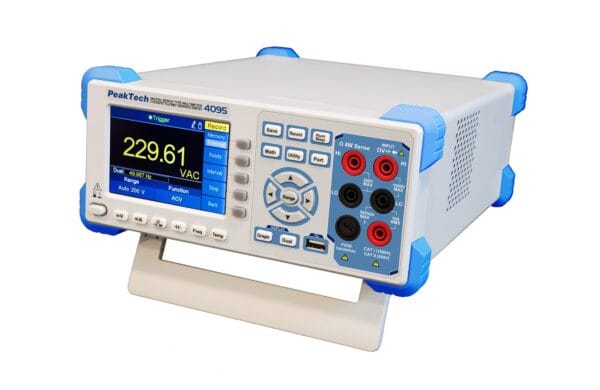

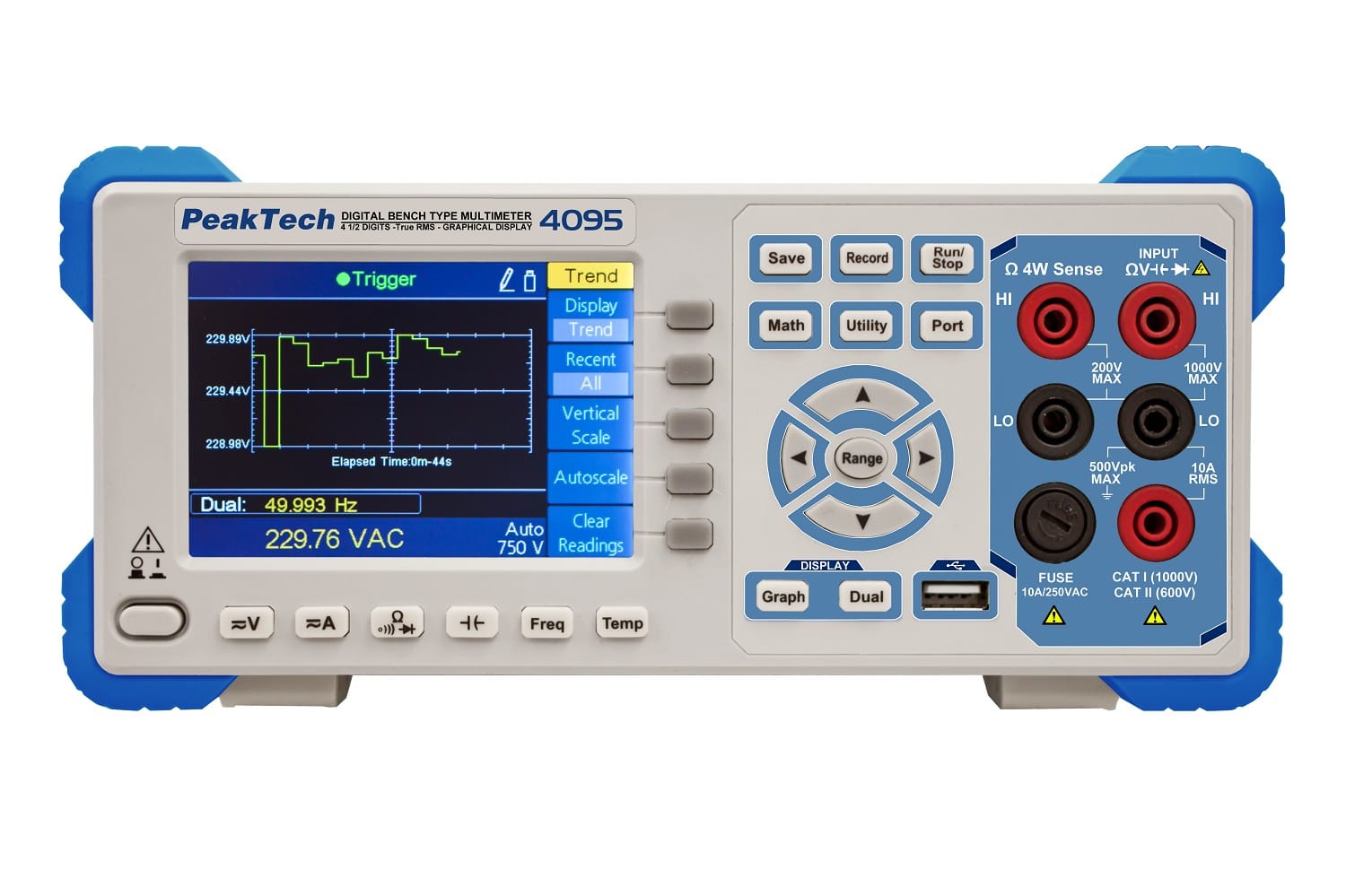

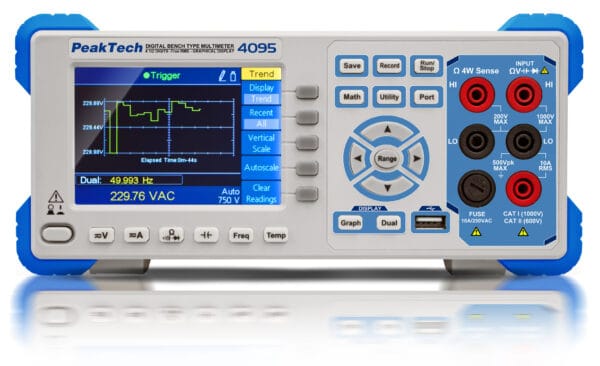

Newly developed precision bench multimeter with TFT graphic display for a high-resolution display of the measured values, curve, function graphics and much more, with up to 150 measurements / second. This model is equipped according to the latest technical standards and has a variety of special functions, such as the dual measurement of two different measurement functions, an internal and external data logger, histogram, dB, pass / fail, thermal resistor or thermocouple measurements, History curves, function graphics, average acquisitions or bar graphics. The versatile functions are completed by the True RMS (TrueRMS) measurements up to 100kHz. To control the PeakTech 4095 via the software or via SCPI protocol, the model has an USB port, RS-232 or a LAN interface for network integration.
| USB: | ■ |
|---|---|
| Basic Accuracy DC: | +/- 0,02% |
| Capacitance max.: | 10000 µF |
| Digital counts: | 60.000 |
| Display Type: | Color-TFT |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Over voltage category: | CAT I 1000 V, CAT II 600 V |
| RS-232: | ■ |
| V DC max.: | 1000V |
| A AC max.: | 10A |
| Hz max.: | 1 MHz |
| OHM max.: | 100 MΩ |
| Temp. max.: | 1350 °C |
| Temp. min.: | -20 °C, -200 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 600 µA |
| V AC max.: | 750 V |
| mV AC max.: | 600 mV |
| A DC max.: | 10A |
| mA AC max.: | 600 mA |
