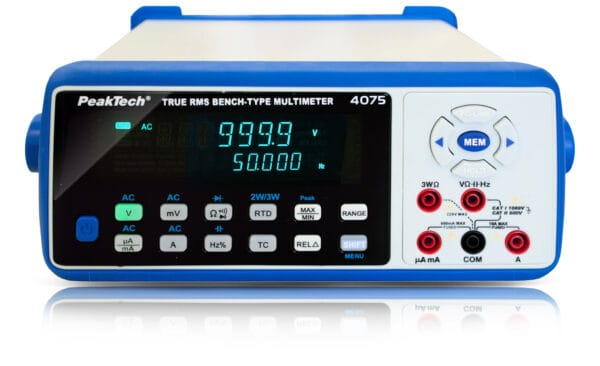

High-precision digital bench multimeter according to the latest technical standards equipped with a 4 5/6-digit dual display (max. 63000). The versatile functions are completed by the true rms measurement, the temperature and the 3-wire resistance thermocouple measurement. The PC software for data queryand control, integrated data logger function via the internal memory, USB stick or an external SD memory card, wireless Bluetooth connection to the PC, integration into the company network via the LAN network connection, as well as the USB connection enable versatile applications.
Software: DMM Tool compatible – download in the service area
| USB: | ■ |
|---|---|
| Basic Accuracy DC: | +/- 0,03% |
| Bluetooth: | ■ |
| Capacitance max.: | 60 mF |
| Digital counts: | 60.000 |
| Display Type: | Segment |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Over voltage category: | CAT I 1000 V, CAT II 600 V |
| RS-232: | ■ |
| SD-Slot: | ■ |
| True RMS: | ■ |
| V DC max.: | 1000V |
| A AC max.: | 10A |
| Hz max.: | 60 MHz |
| OHM max.: | 60 MΩ |
| Temp. max.: | 1350 °C |
| Temp. min.: | -200 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 6000 µA |
| V AC max.: | 1000V |
| mV AC max.: | 600 mV |
| A DC max.: | 10A |
| mA AC max.: | 600 mA |
| µA AC max.: | 6000 µA |
