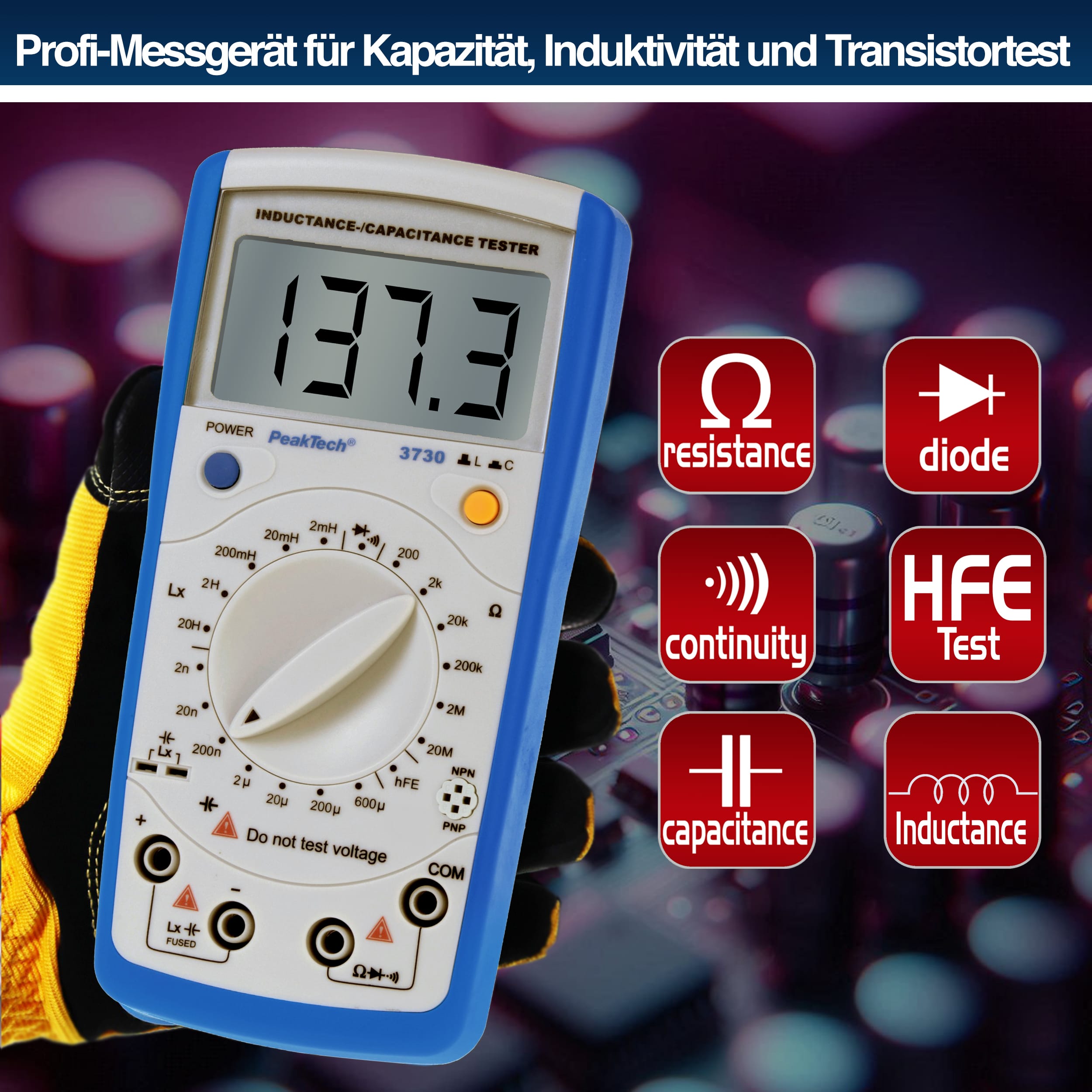

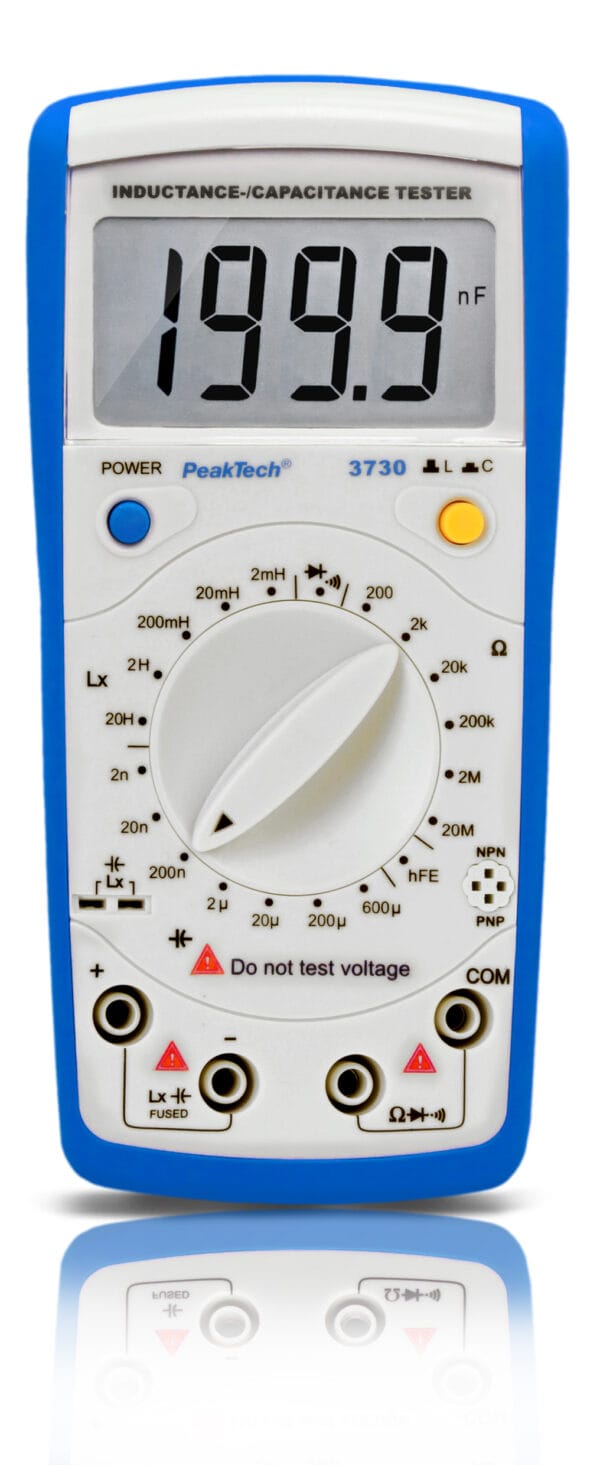

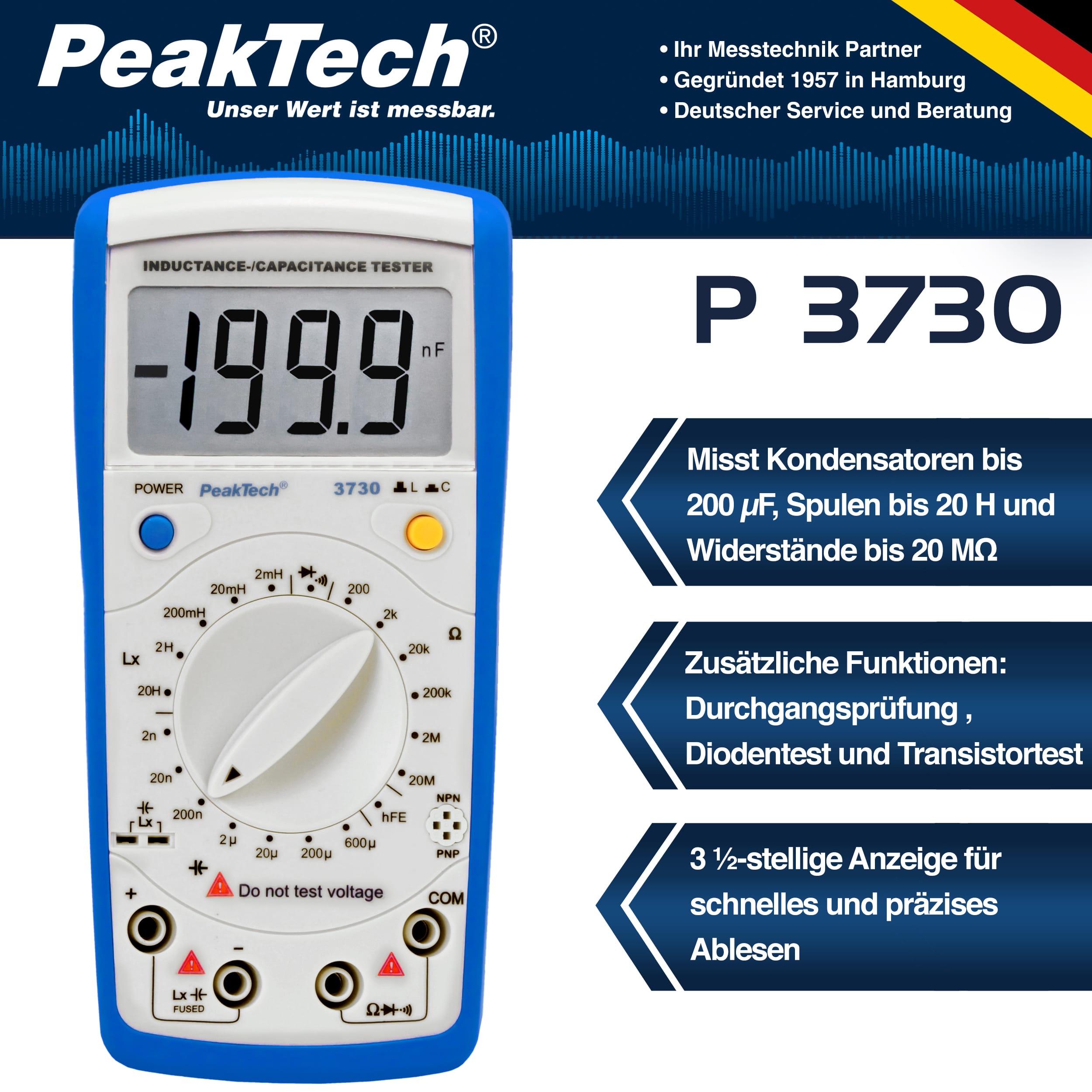

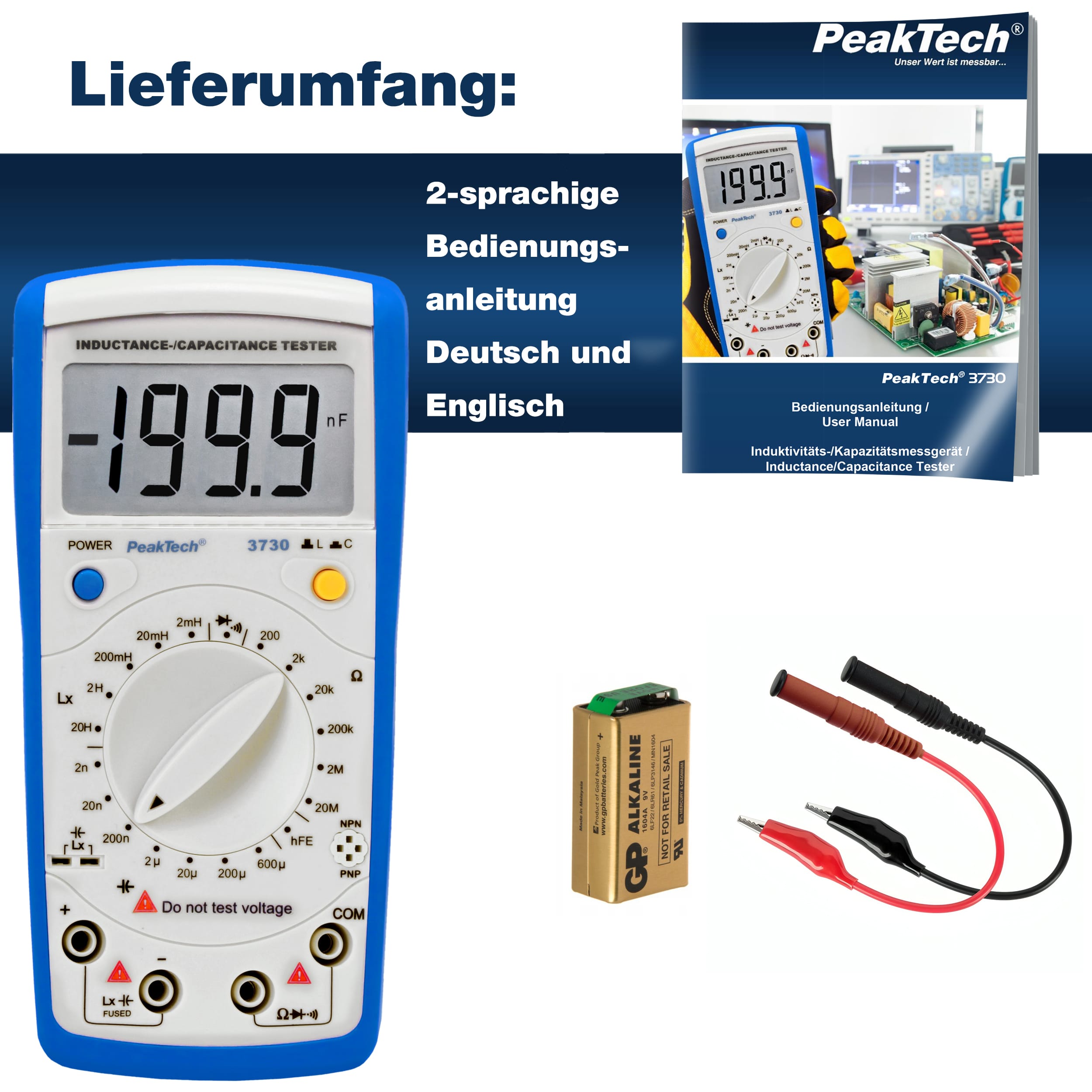

The PeakTech 3730 is suitable for testing capacitors in the range 2 nF to 200 µF, coils from 2 mH to 20 H and resistors from 200 Ω to 20 MΩ. The 3 ½ digit, 21 mm LCD display (max 1999) enables the user to read the values quickly and precisely. Furthermore, this combination device also has a diode test, continuity test and transistor test function. The capacitors to be measured can be plugged directly into the terminal socket or with the test leads which are provided.
| Capacitance max.: | 200 µF |
|---|---|
| Digital counts: | 2.000 |
| Display Type: | LCD |
| Inductance max.: | 20 H |
| LCR functions: | C, L, R |
| Range selection: | Manual |
| Test freq.: | Non-selectable |
| hFE: | ■ |
| OHM max.: | 20 MΩ |
