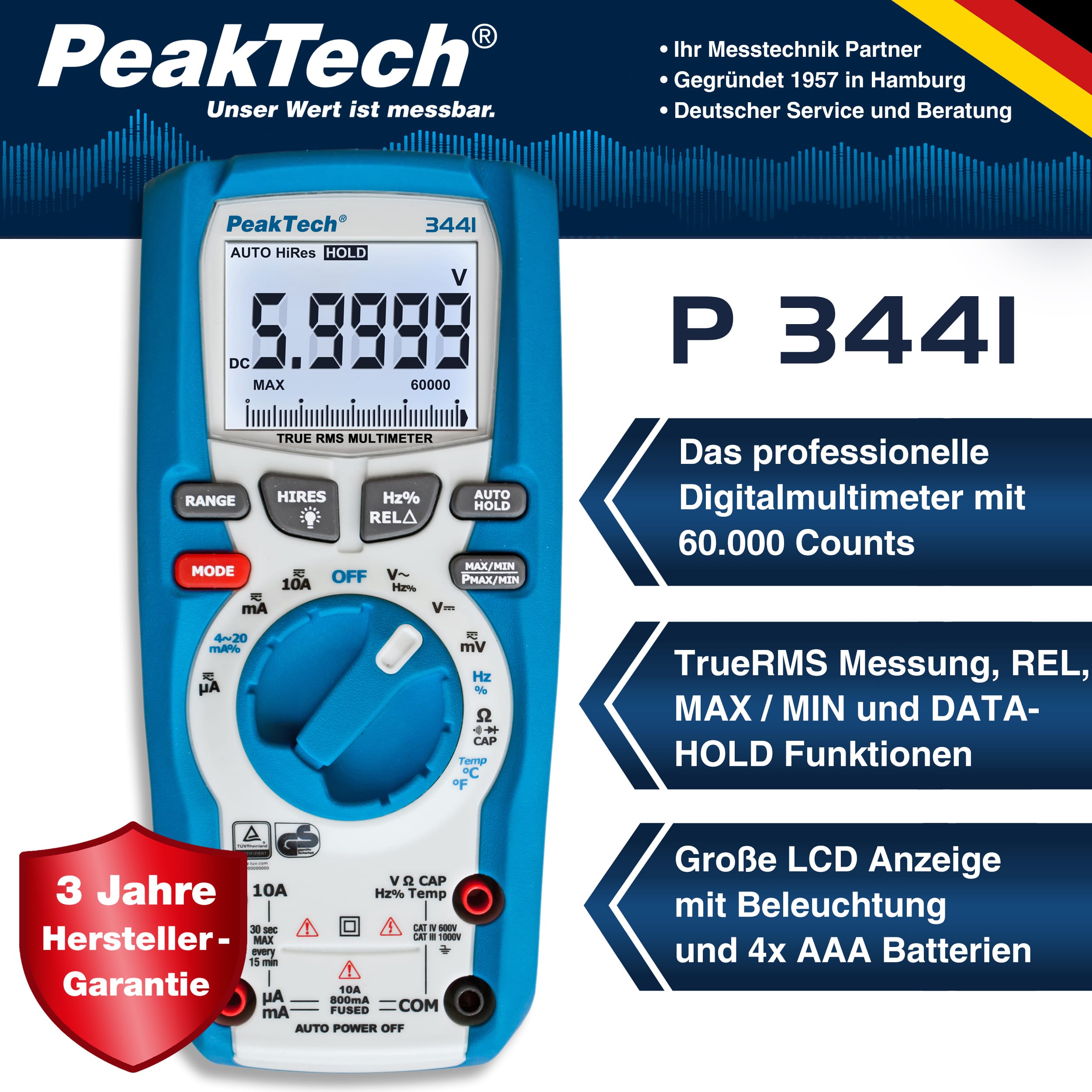

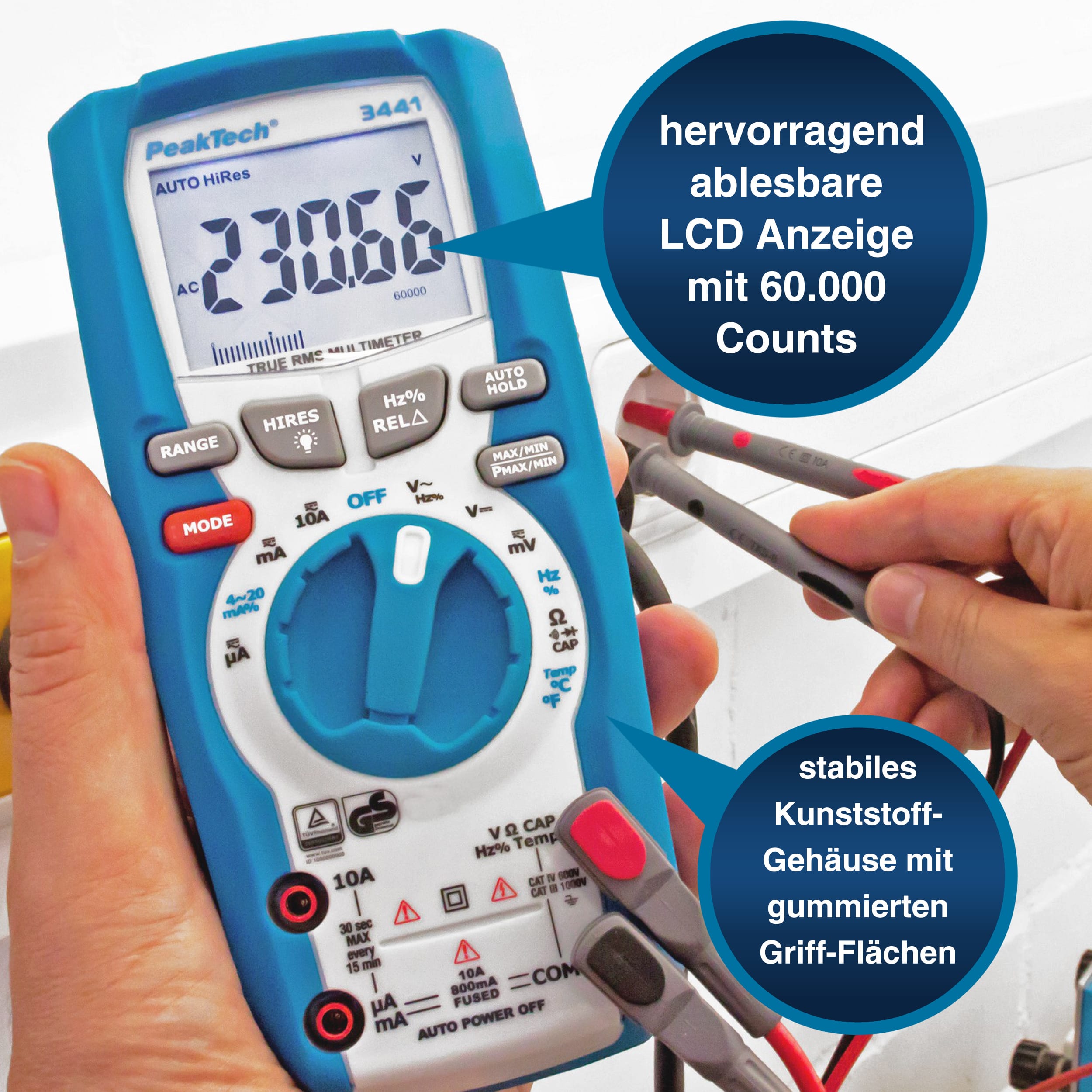

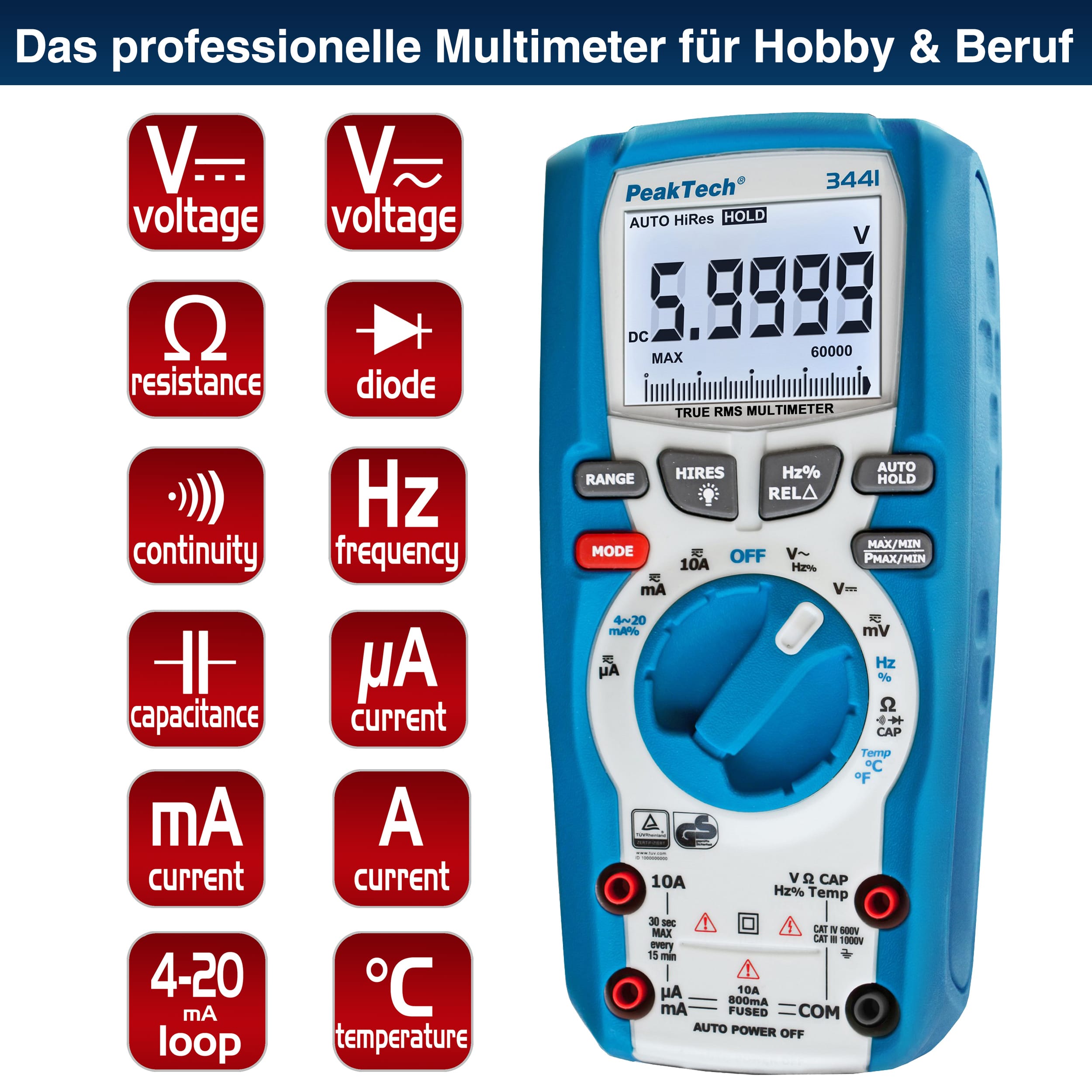

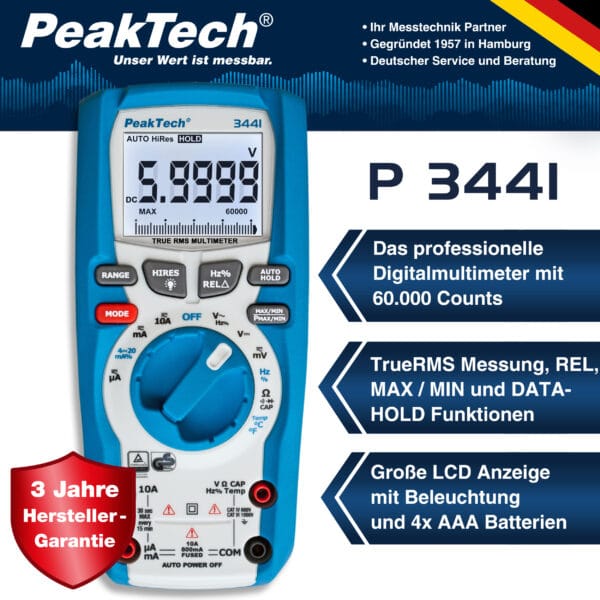

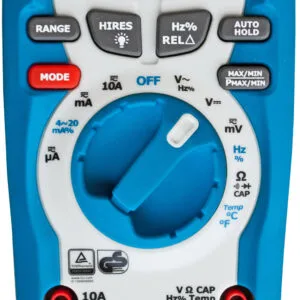

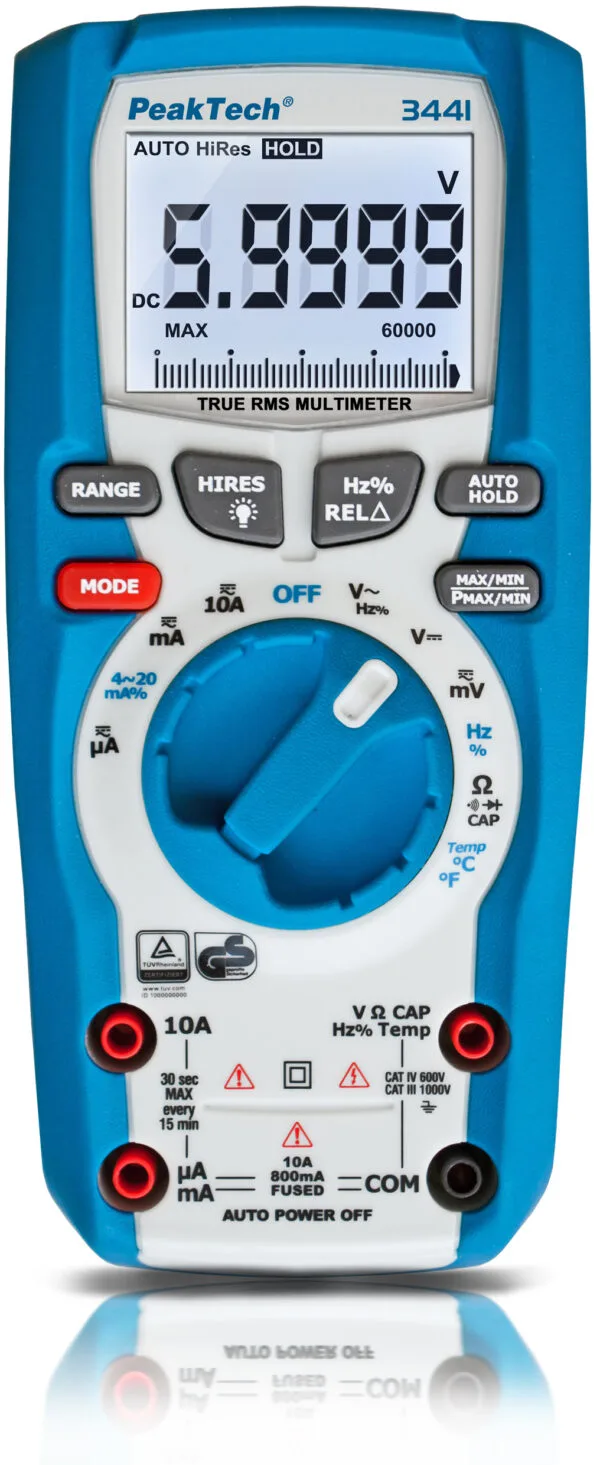

The PeakTech 3441 is a digital multimeter for heavy-duty use in heavy-duty design with a variety of useful measurement functions. The measurement display of the device can be switched between a 6,000-digit LCD and a high-resolution 60,000-digit LCD display, where all measurements being recorded as true rms values. In addition to the extensive measurement functions for current, voltage, capacitance, resistance and much more, this new development has a 4-20 mA% current loop measurement, a low-pass filter and an auto-hold function. During development, special emphasis was placed on user protection through the shock and impact-resistant housing and the high overvoltage category. Due to the extensive measurement functions and the intuitive operation, this device is ideally suited for every electronics engineer, technician and engineer who attach great importance to a precise, indestructible and technically powerful multimeter.
| Basic Accuracy DC: | +/- 0,9% |
|---|---|

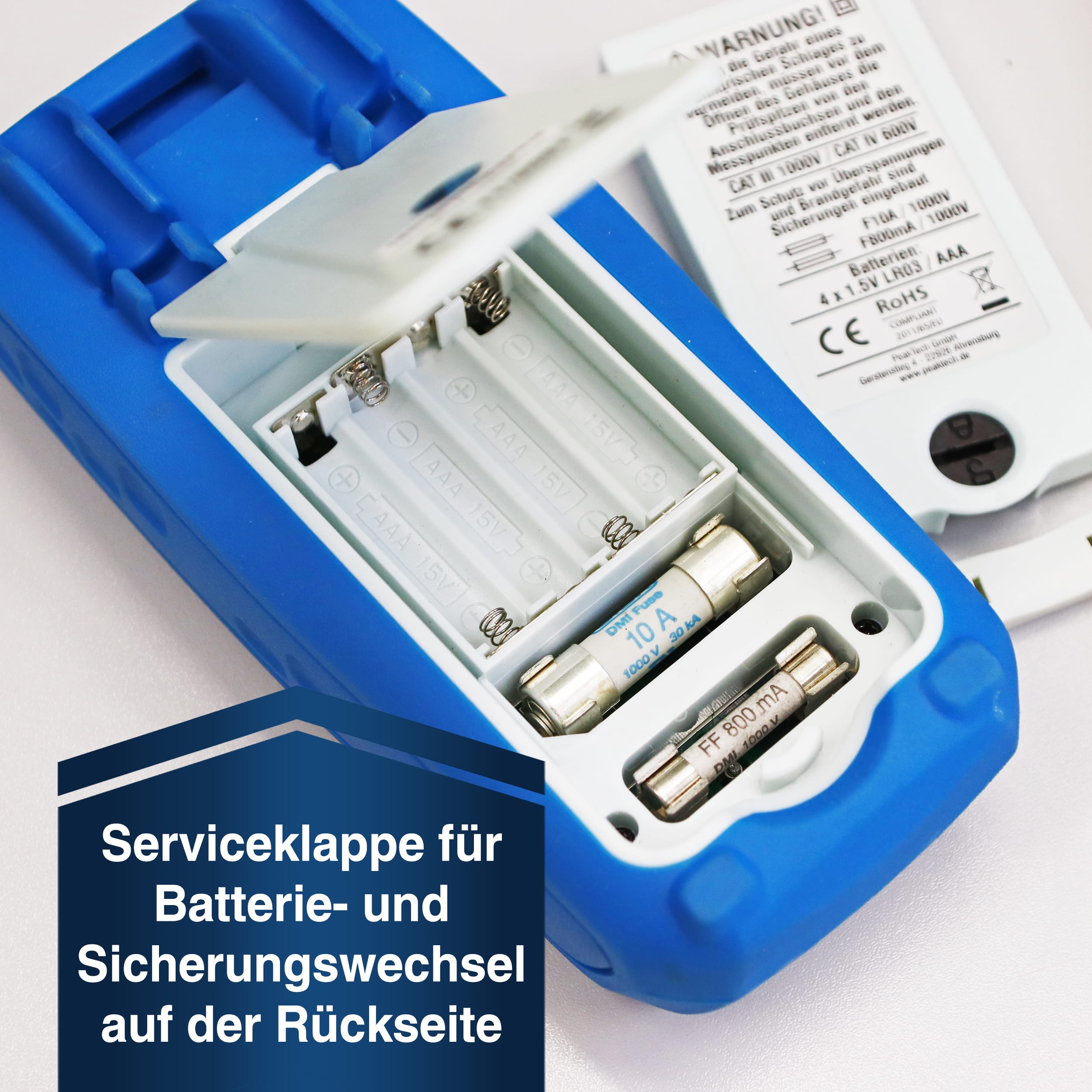

| Battery: | 1,5VAAA |
| Capacitance max.: | 6 mF |
| Digital counts: | 60.000 |
| Display Type: | LCD |
| OHM resolution min.: | 0,01 Ω |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Range selection: | Auto |
| True RMS: | ■ |
| TÜV/GS: | ■ |
| V AC resolution min.: | 0,01 mV |
| V DC Resolution min.: | 0,01 mV |
| V DC max.: | 1000V |
| A AC max.: | 10A |
| Hz max.: | 10 MHz |
| OHM max.: | 60 MΩ |
| Temp. max.: | 760 °C |
| Temp. min.: | -50 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 6000 µA |
| V AC max.: | 1000V |
| mV AC max.: | 600 mV |
| A DC max.: | 10A |
| mA AC max.: | 600 mA |
| µA AC max.: | 6000 µA |
