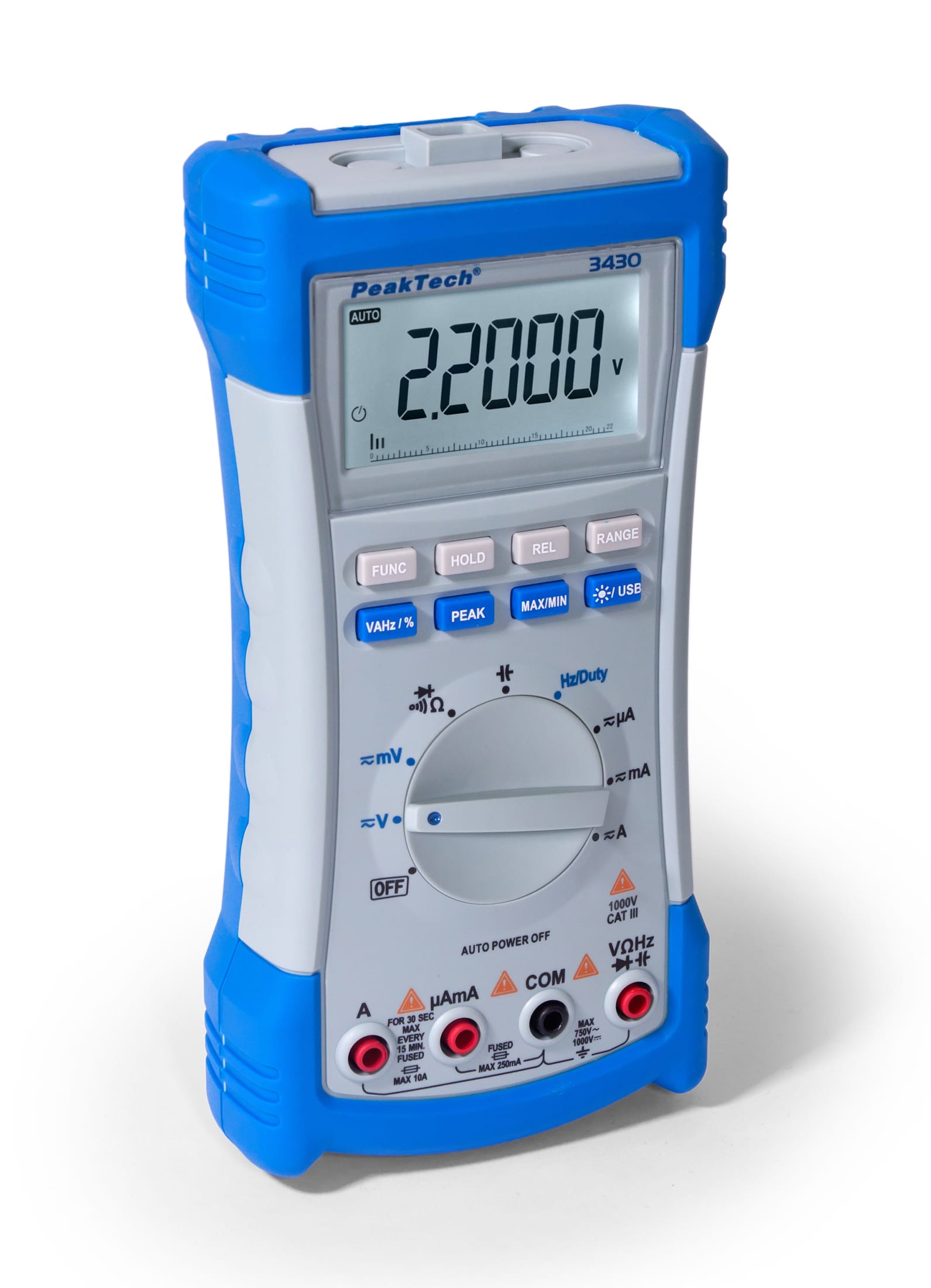

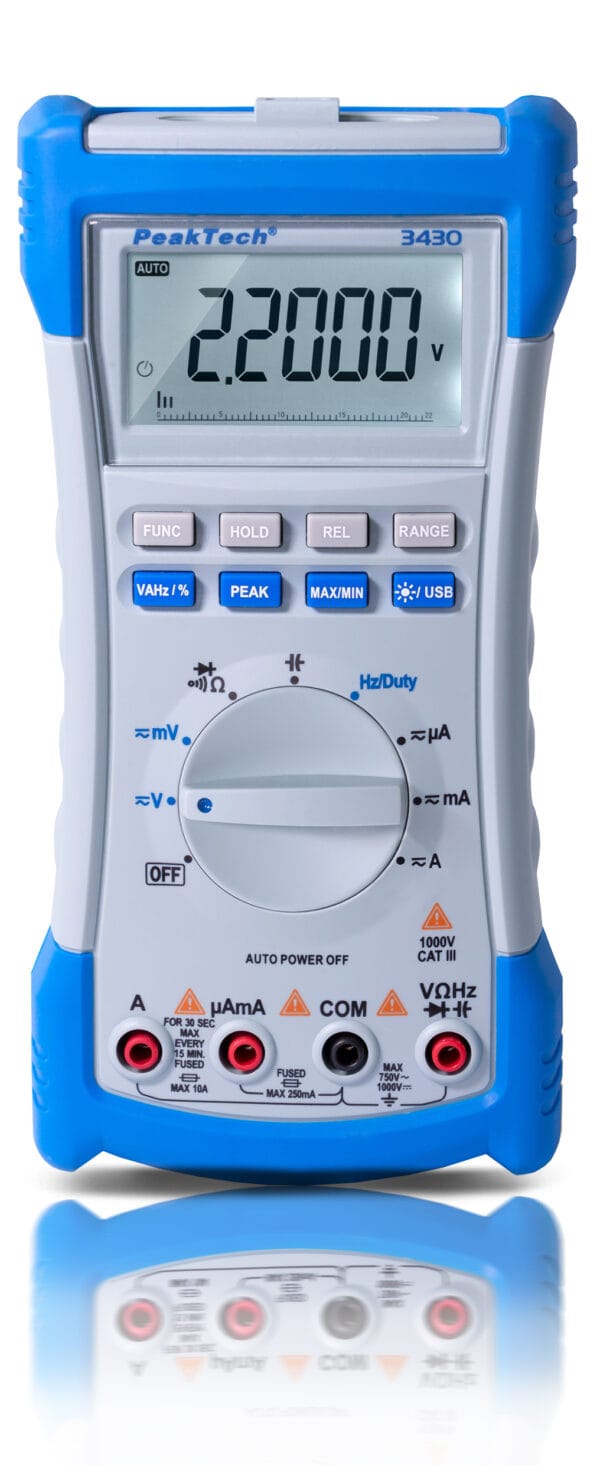

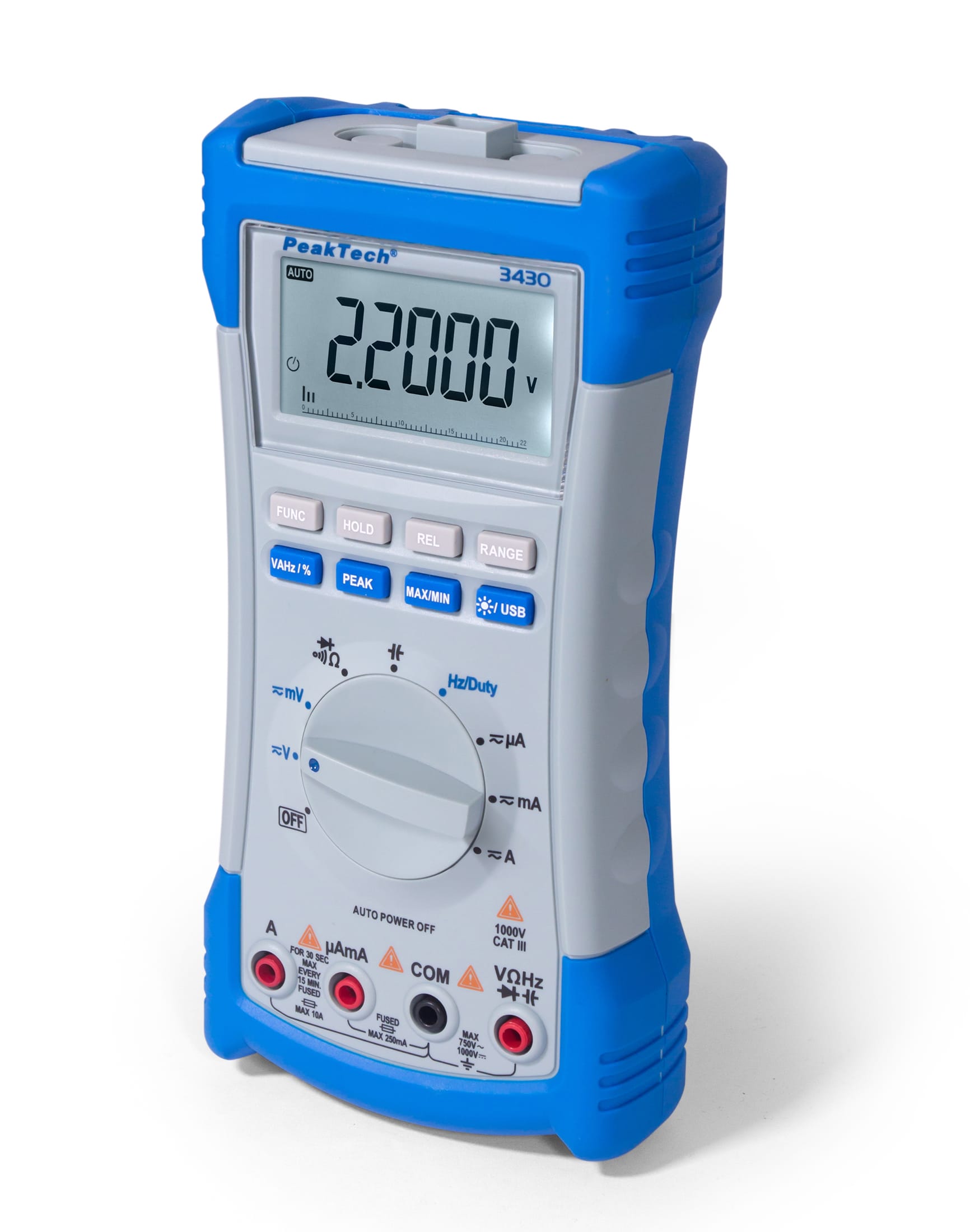

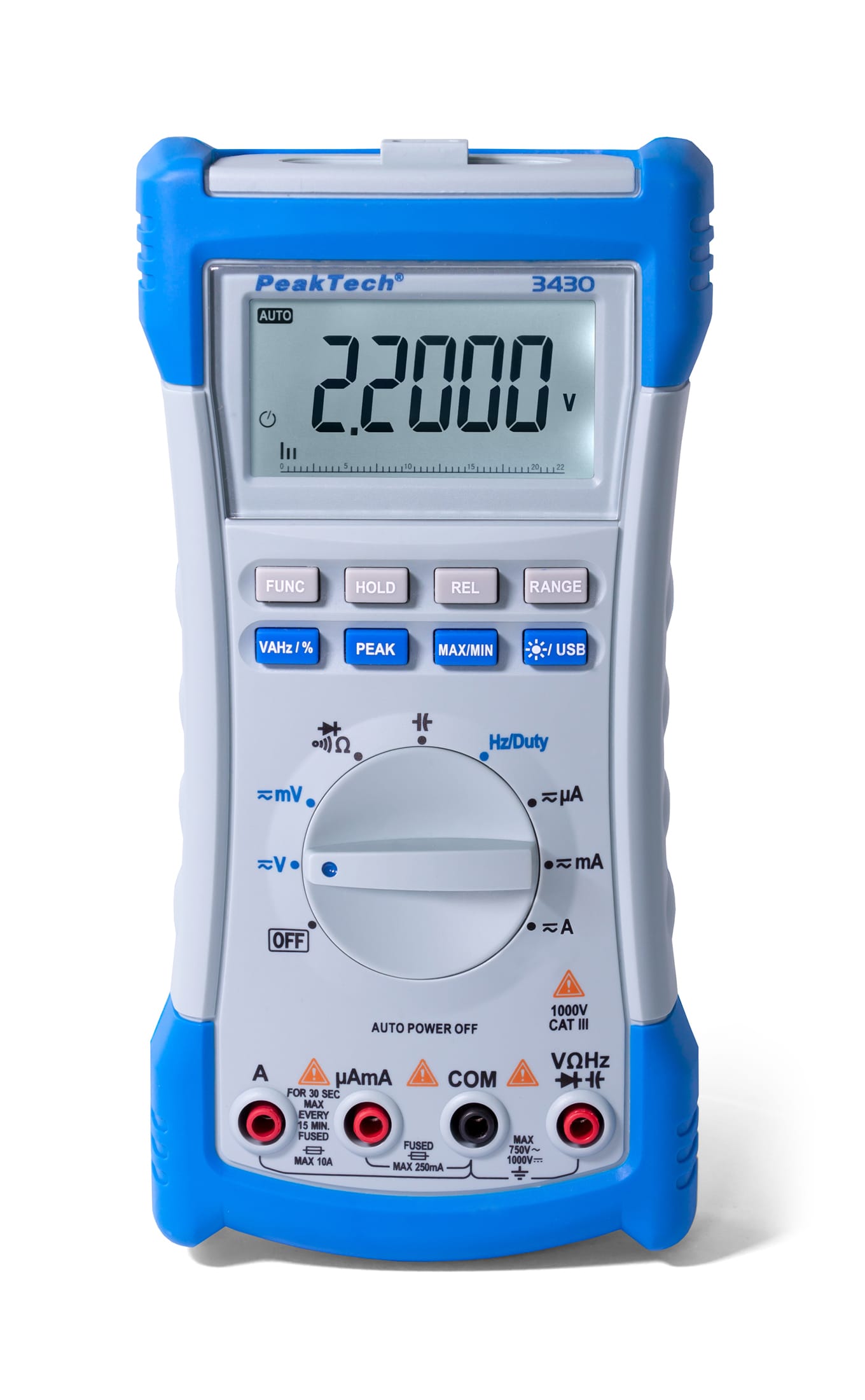

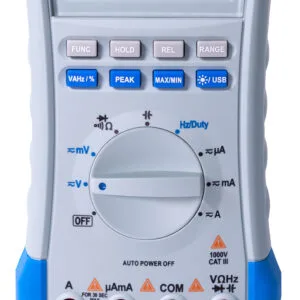

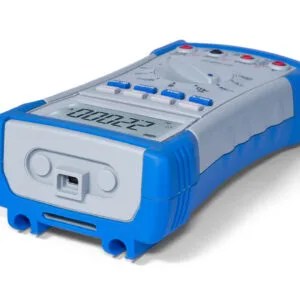

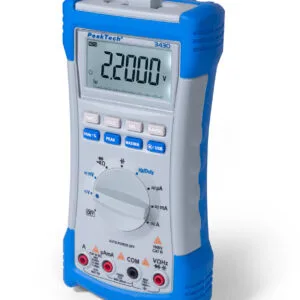

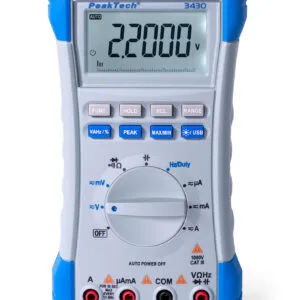

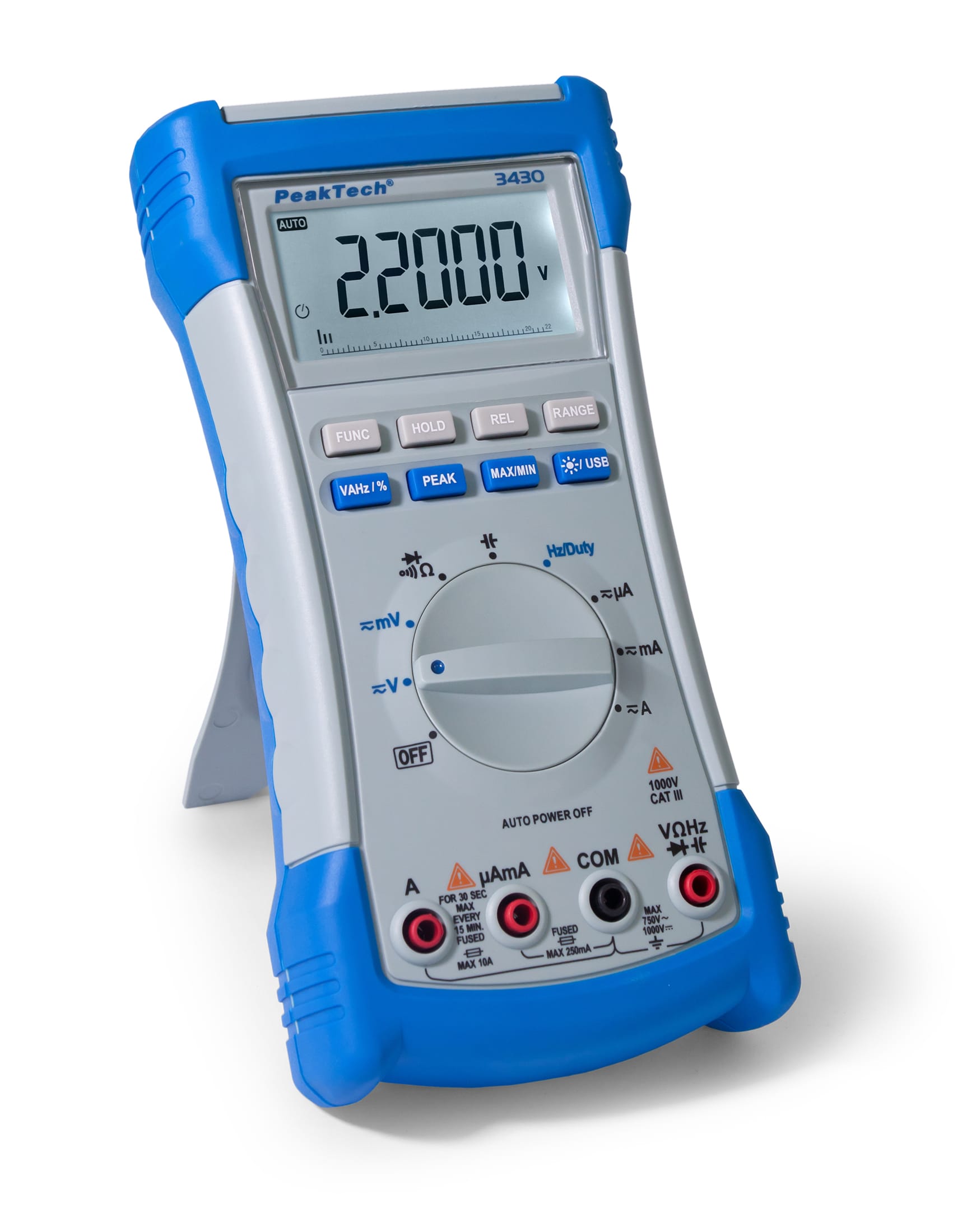

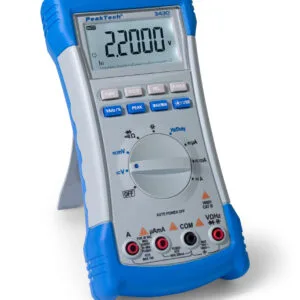

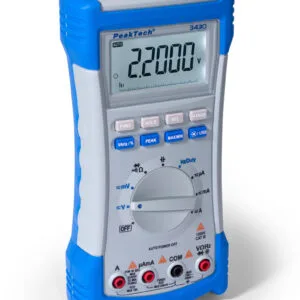

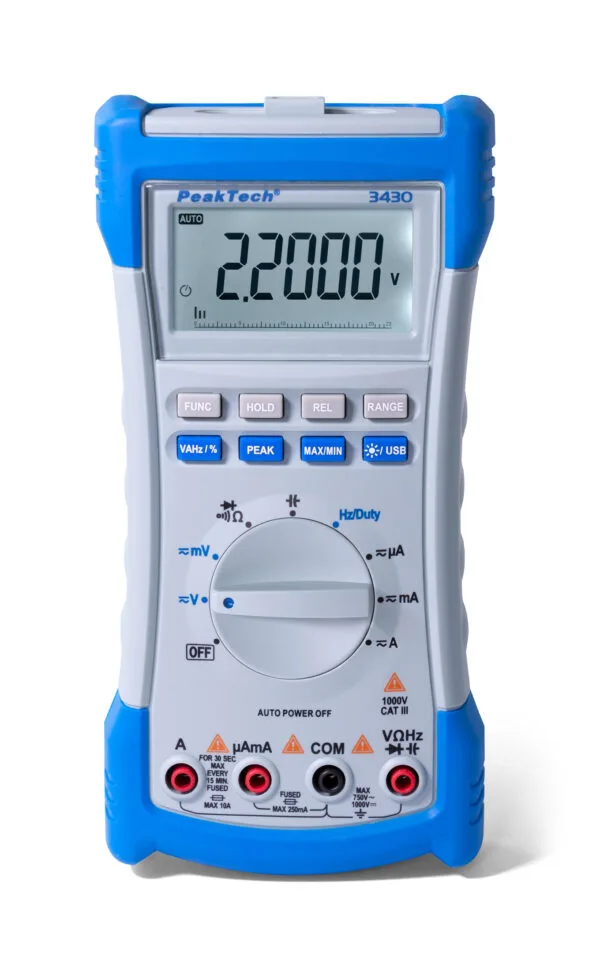

Professional digital multimeter with large (21mm digit height), easy to read and illuminated LCD display. This model has a high basic accuracy (0.05%), True RMS measurement for AC voltage & current, maximum / minimum value storage (MAX-MIN) as well as peak value recording and a high resolution with a maximum display of 22,000 counts. All measured values can be transferred to a PC via the integrated USB interface and recorded, evaluated and further processed with our free software “PeakTech DMM-Tool”. The automatic measuring range selection ensures user-friendly operation, only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacitance, frequency and resistance, this model has a continuity test with an acoustic signal and a diode test.
Software: DMM Tool compatible – download in the service area
| USB: | ■ |
|---|---|
| Basic Accuracy DC: | +/- 0,05% |
| Battery: | 1,5V AA |
| Capacitance max.: | 220 mF |
| Digital counts: | 22.000 |
| Display Type: | LCD |
| Over voltage category: | CAT III 1000 V |
| Range selection: | Auto |
| True RMS: | ■ |
| TÜV/GS: | ■ |
| V DC max.: | 1000V |
| A AC max.: | 10A |
| Hz max.: | 220 MHz |
| OHM max.: | 220 MΩ |
| mA DC max.: | 220mA |
| mV DC max.: | 220 mV |
| µA DC max.: | 2200 µA |
| V AC max.: | 750 V |
| mV AC max.: | 220 mV |
| A DC max.: | 10A |
| mA AC max.: | 220 mA |
| µA AC max.: | 2200 µA |
