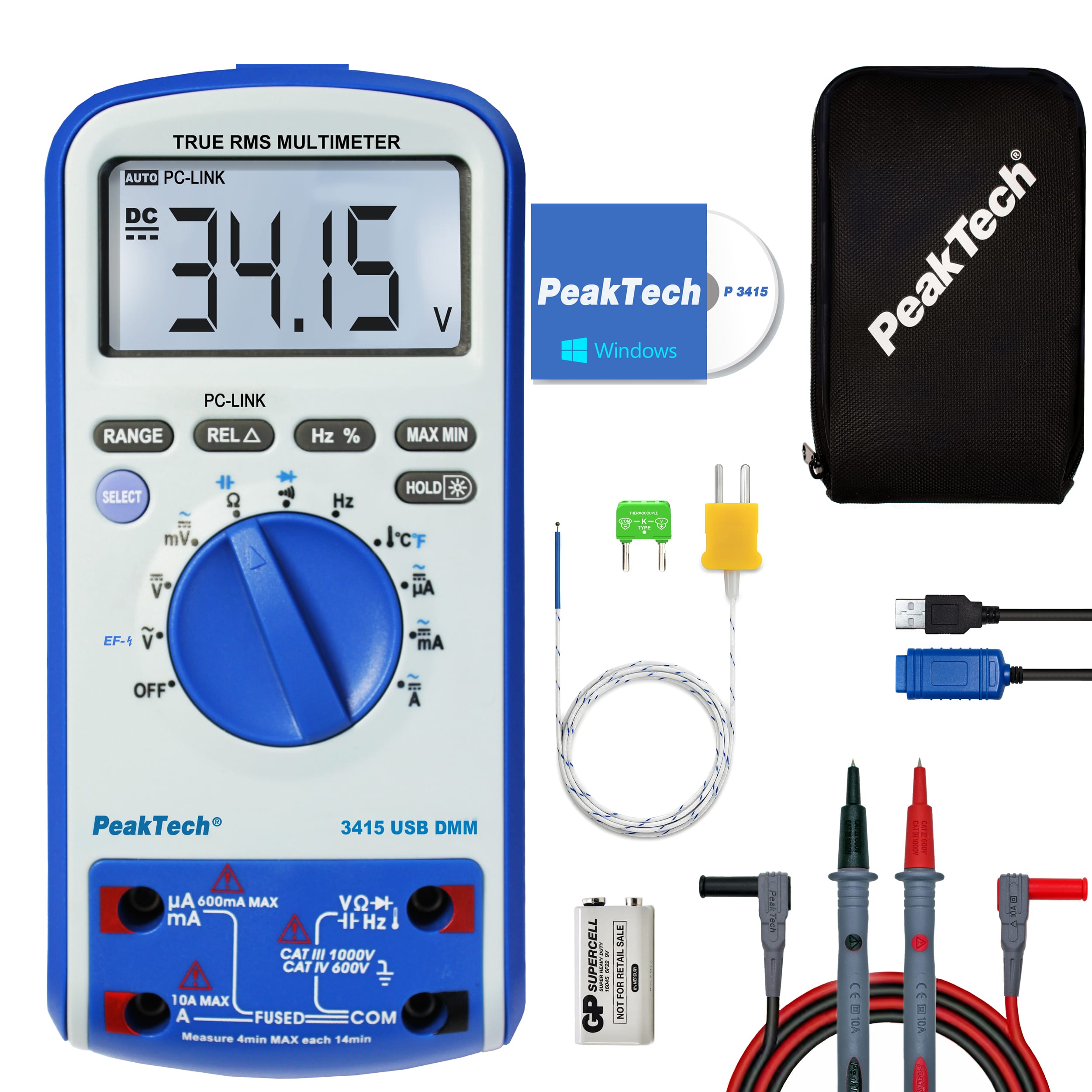

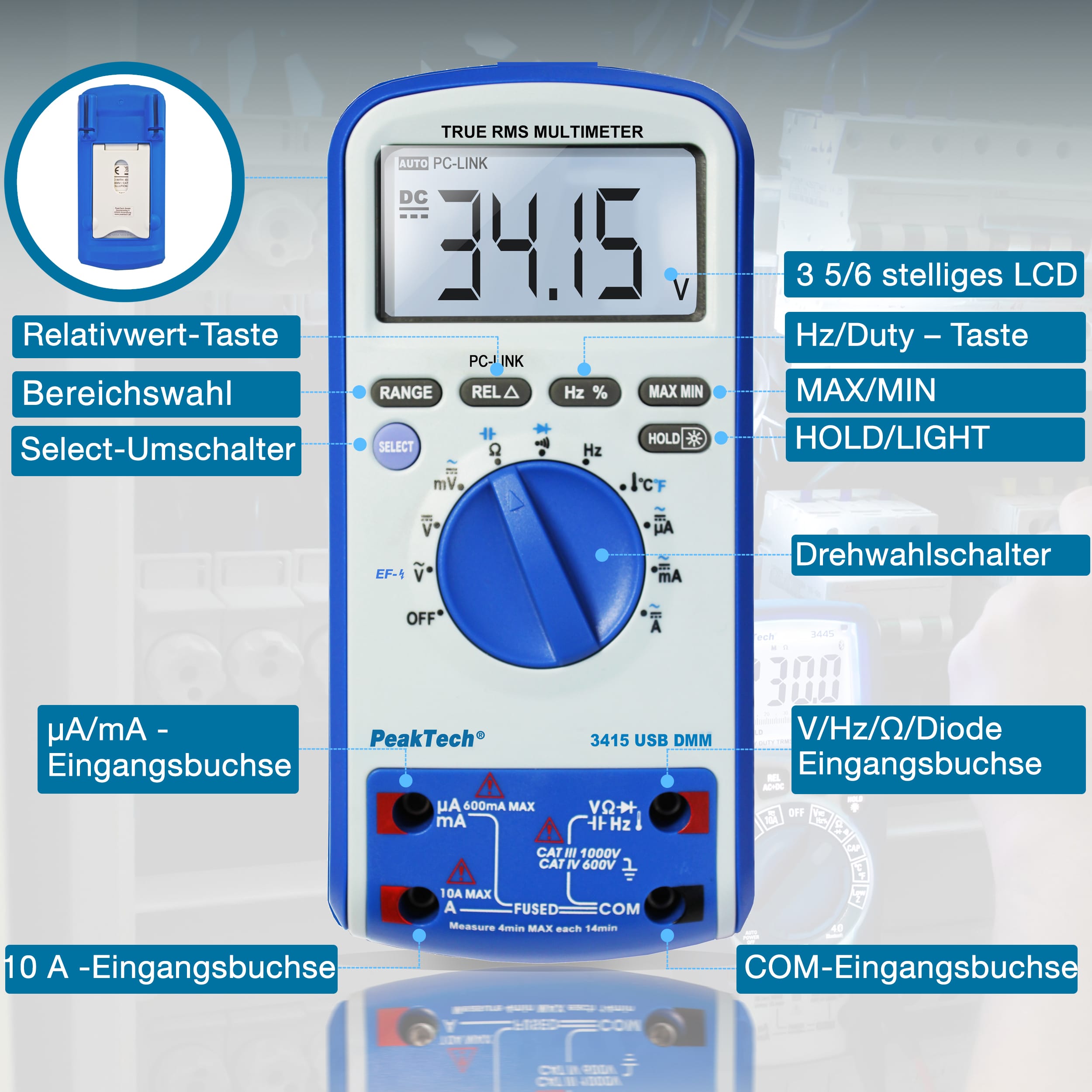

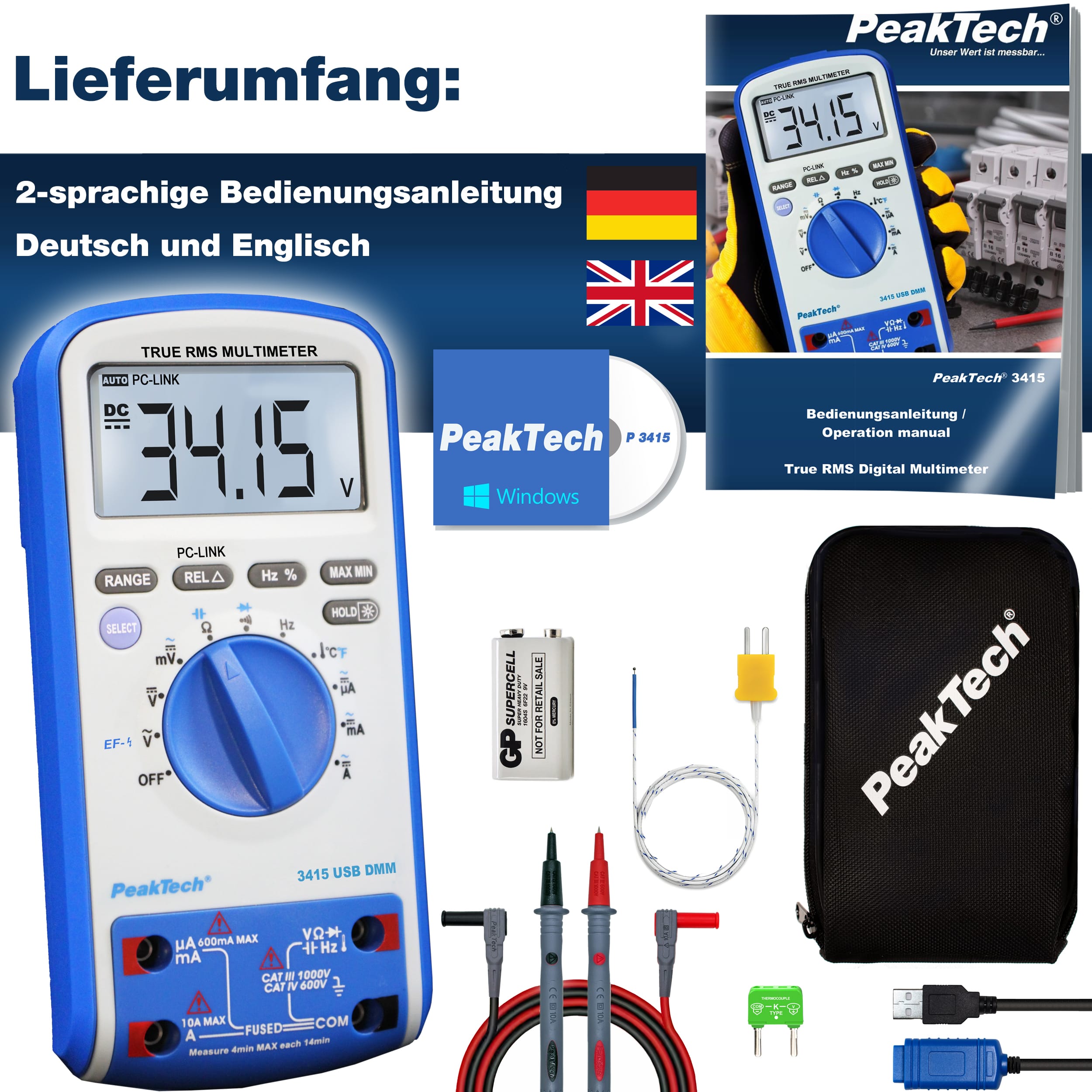

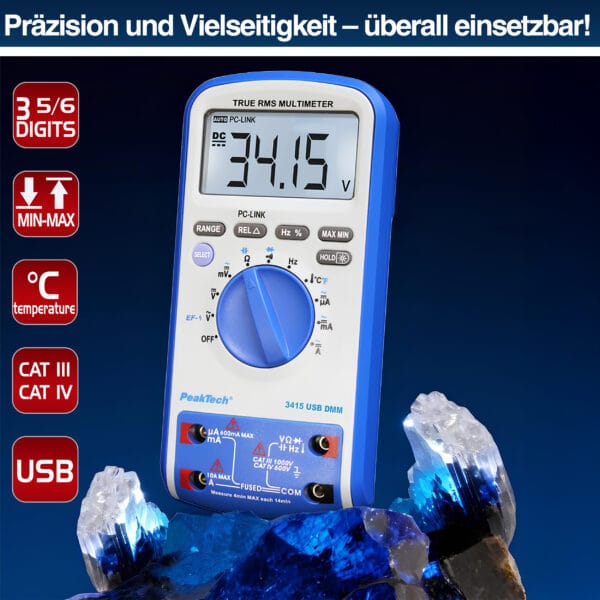

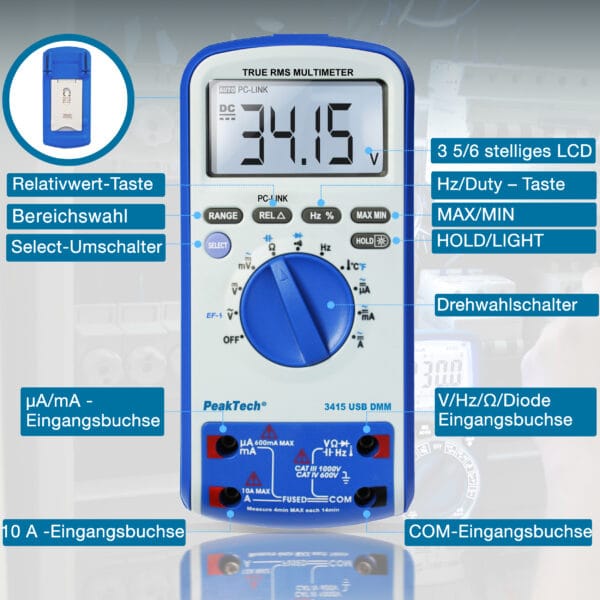

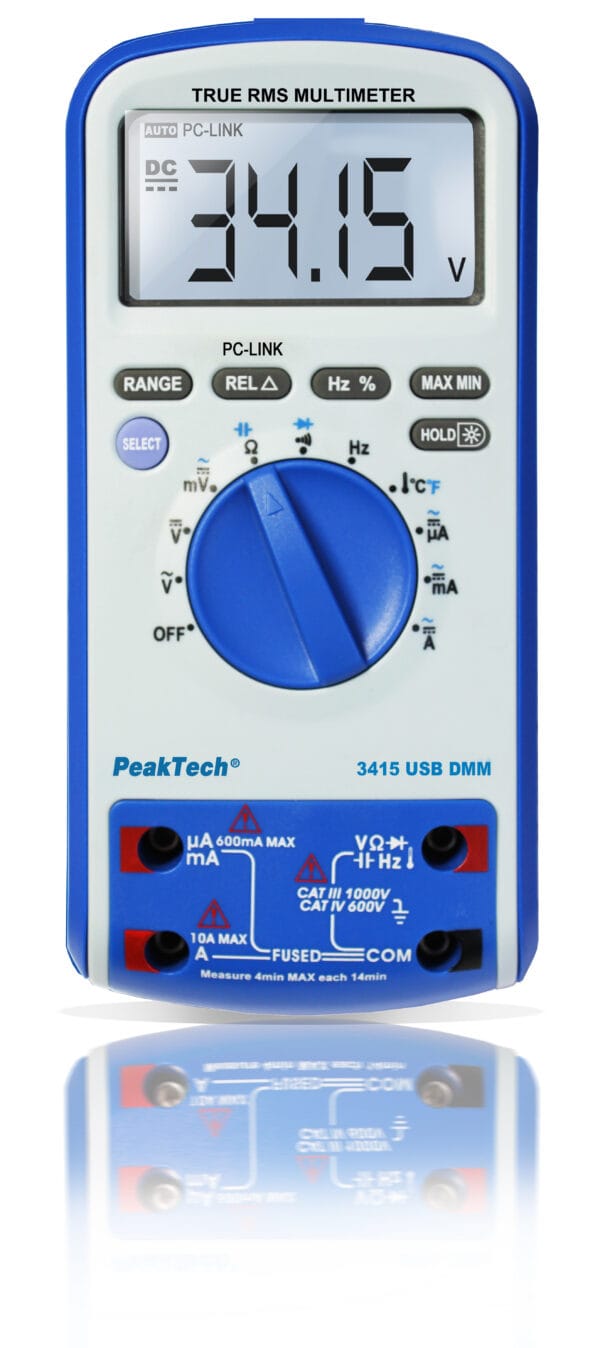

The PeakTech 3415 is a handy and safe multimeter with a USB interface. It offers measurement functions for direct and alternating voltage, direct and alternating current measurement, resistance and many other measurement functions. The AC voltage and current measurement are recorded by the integrated real effective value (TrueRMS) function. With the USB interface it is possible to read any measured data and display it with the PeakTech DMM software.

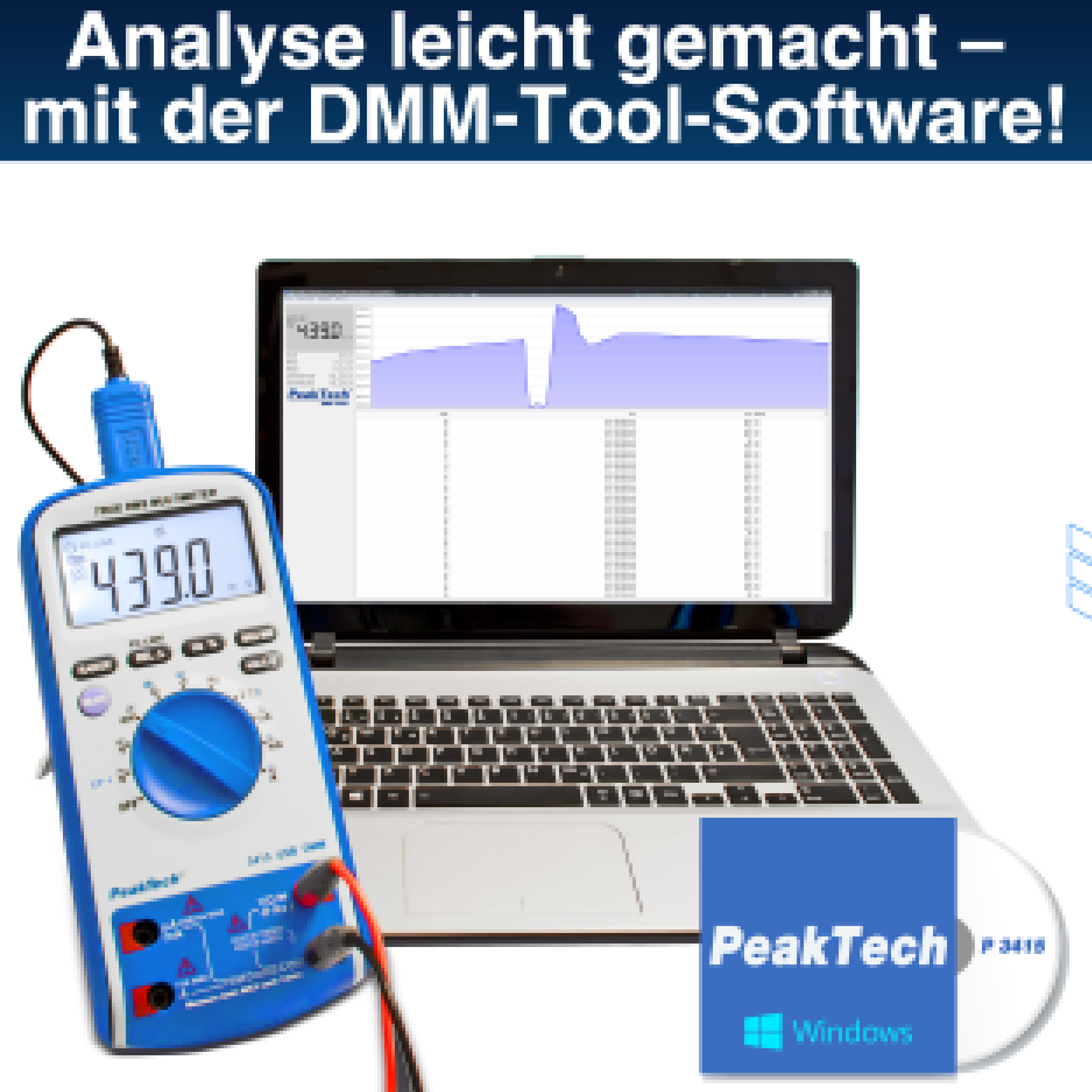

Software: DMM Tool compatible – download in the service area
| USB: | ■ |
|---|---|
| Basic Accuracy DC: | +/- 0,5% |
| Battery: | 9V Block |
| Capacitance max.: | 60 mF |
| Digital counts: | 6.000 |
| Display Type: | LCD |
| NCV: | ■ |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Range selection: | Auto |
| True RMS: | ■ |
| V DC max.: | 1000V |
| A AC max.: | 10A, 20 A |
| Hz max.: | 1000 kHz |
| OHM max.: | 60 MΩ |
| Temp. max.: | 1000 °C |
| Temp. min.: | -55 °C |
| mA DC max.: | 600mA |
| mV DC max.: | 600 mV |
| µA DC max.: | 6000 µA |
| V AC max.: | 750 V |
| mV AC max.: | 600 mV |
| A DC max.: | 10A, 20A |
| mA AC max.: | 600 mA |
| µA AC max.: | 6000 µA |
