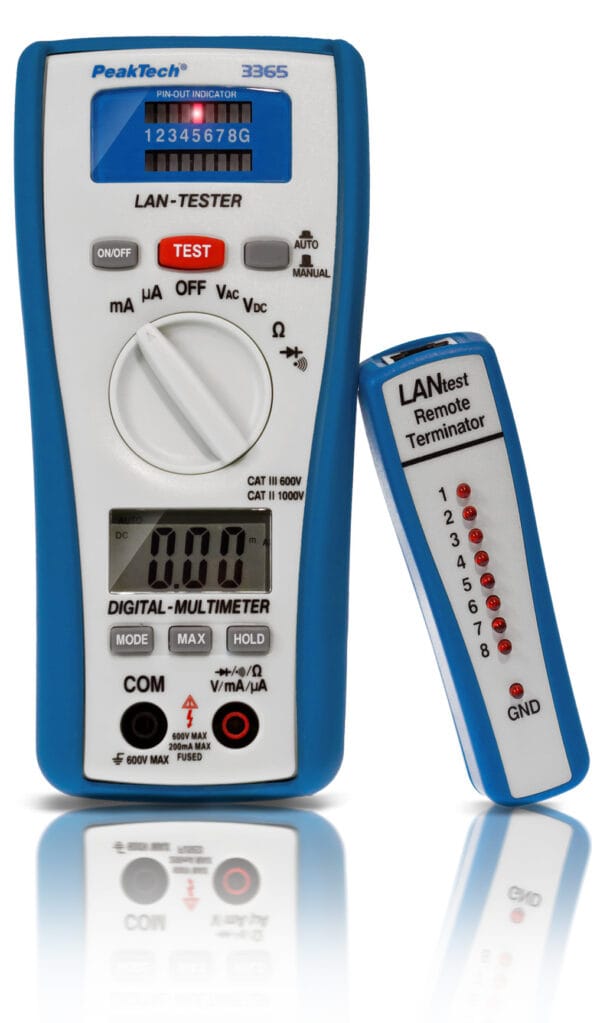

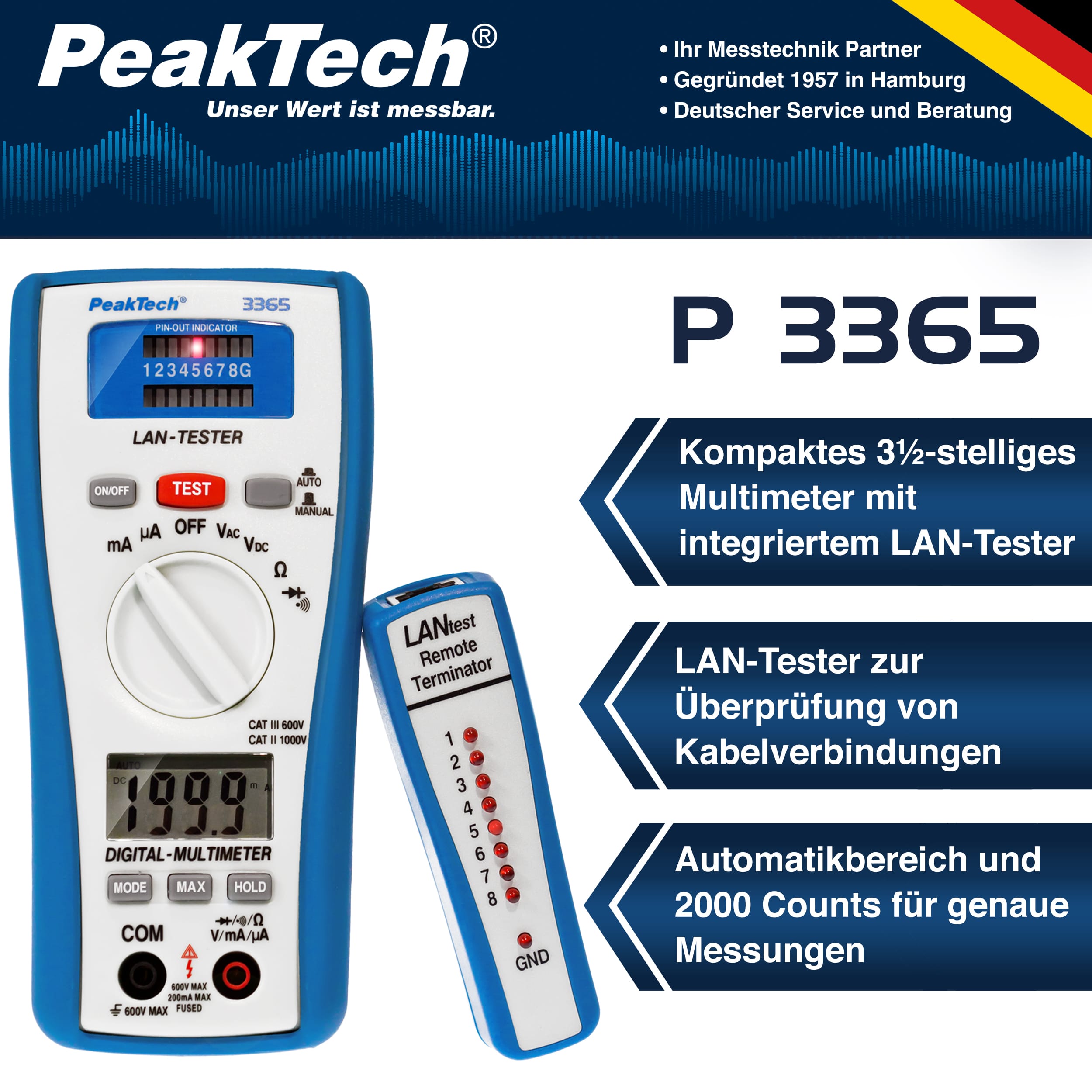

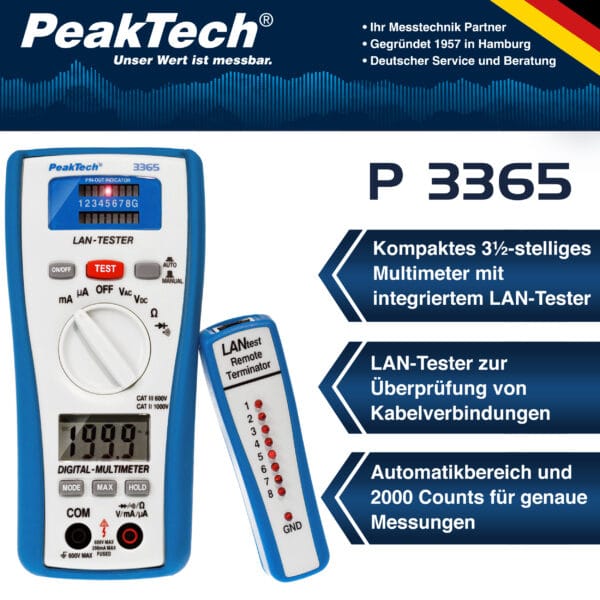

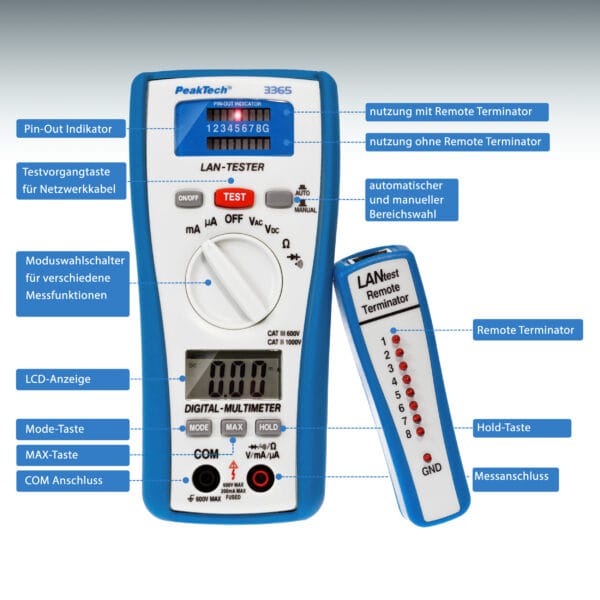

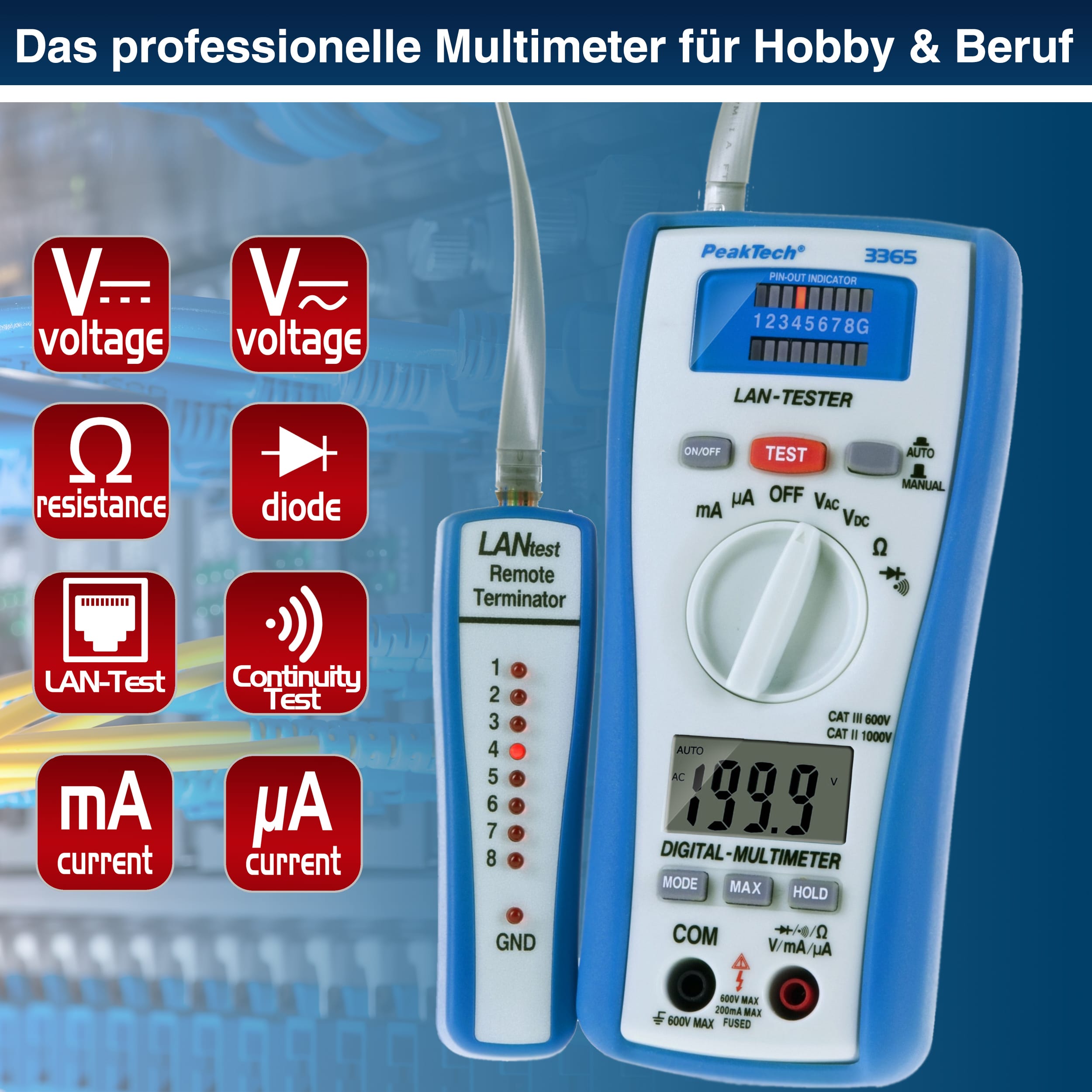

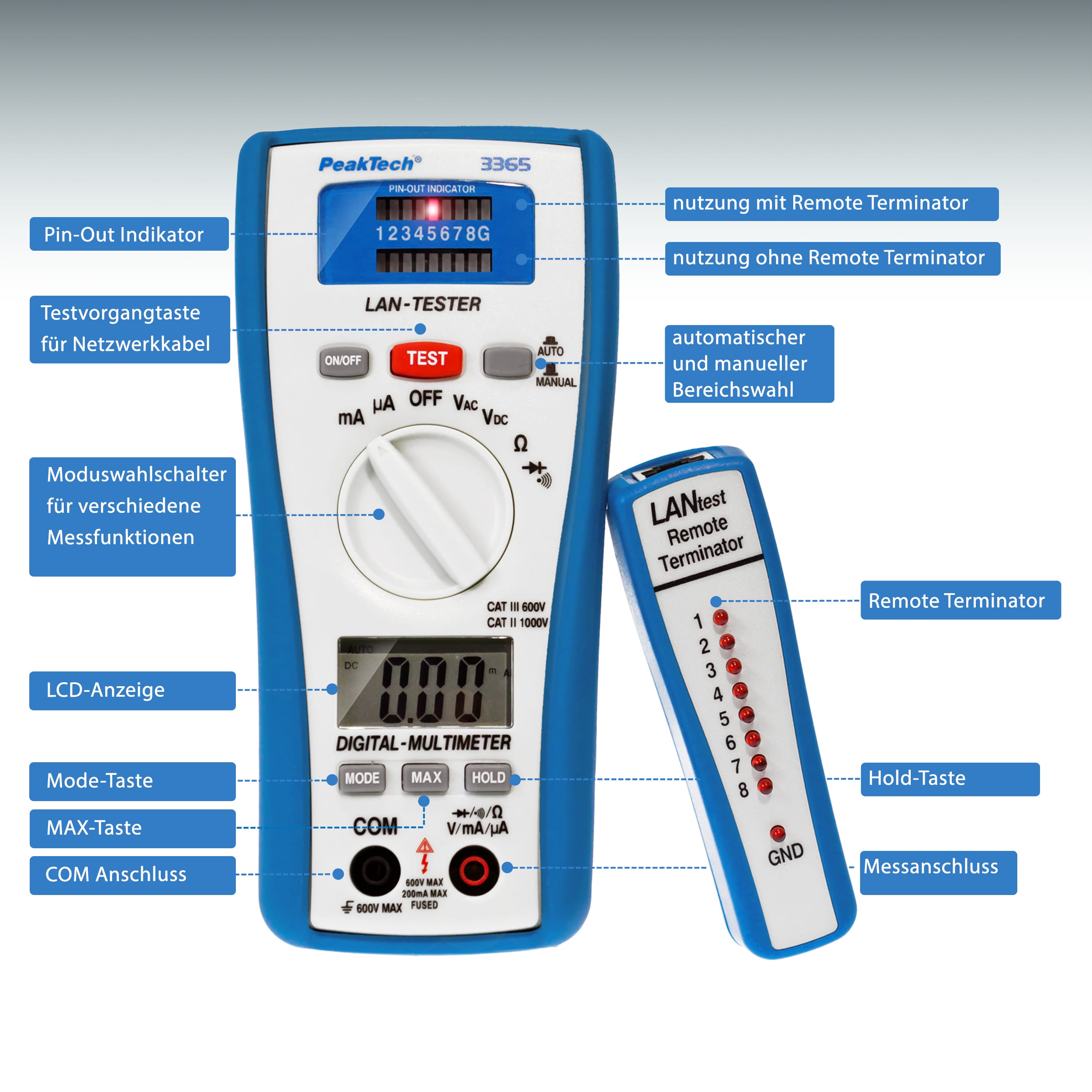

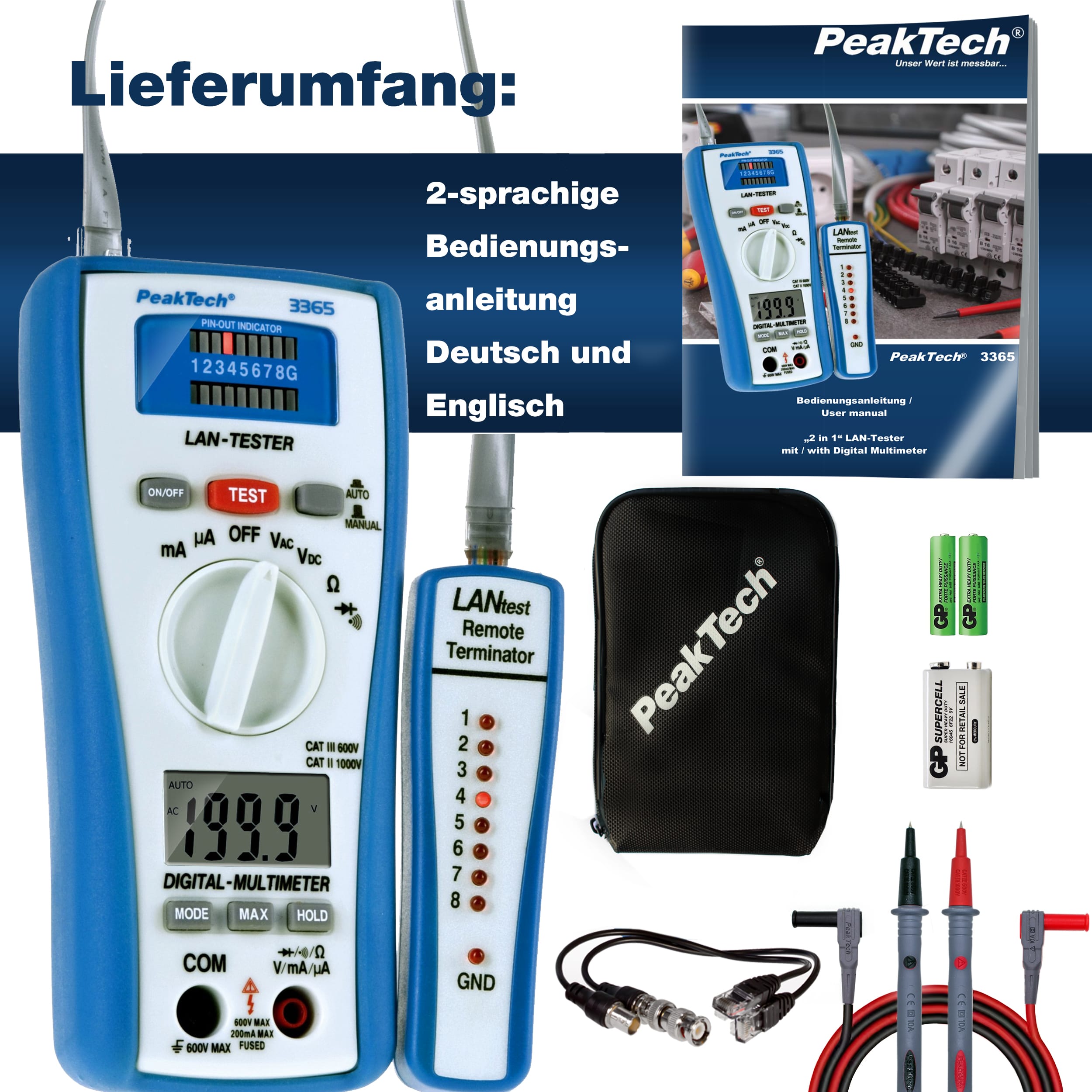

Compact 3½-digit multimeter, developed according to the CAT III 600 V standard with integrated LAN network tester. In addition to the extensive measurement functions for voltage, current and resistance, this model has a fast-reacting continuity test with an acoustic signal and the possibility of performing diode tests. This combination measuring device is a very practical test device that easily shows the correct pin assignment of network cables by comparing a transmitter with the corresponding cable receiver using an LED. Trouble-free checking of cable passage, open, short and cross connect is possible.
| Basic Accuracy DC: | +/- 0,5% |
|---|---|
| Digital counts: | 2.000 |
| Display Type: | LCD |
| LAN-Tester: | ■ |
| Over voltage category: | CAT III 600 V |
| Range selection: | Auto |
| V DC max.: | 600V |
| mA DC max.: | 200mA |
| mV DC max.: | 200 mV |
| µA DC max.: | 2000 µA |
| V AC max.: | 600 V |
| mA AC max.: | 200 mA |
| µA AC max.: | 2000 µA |
