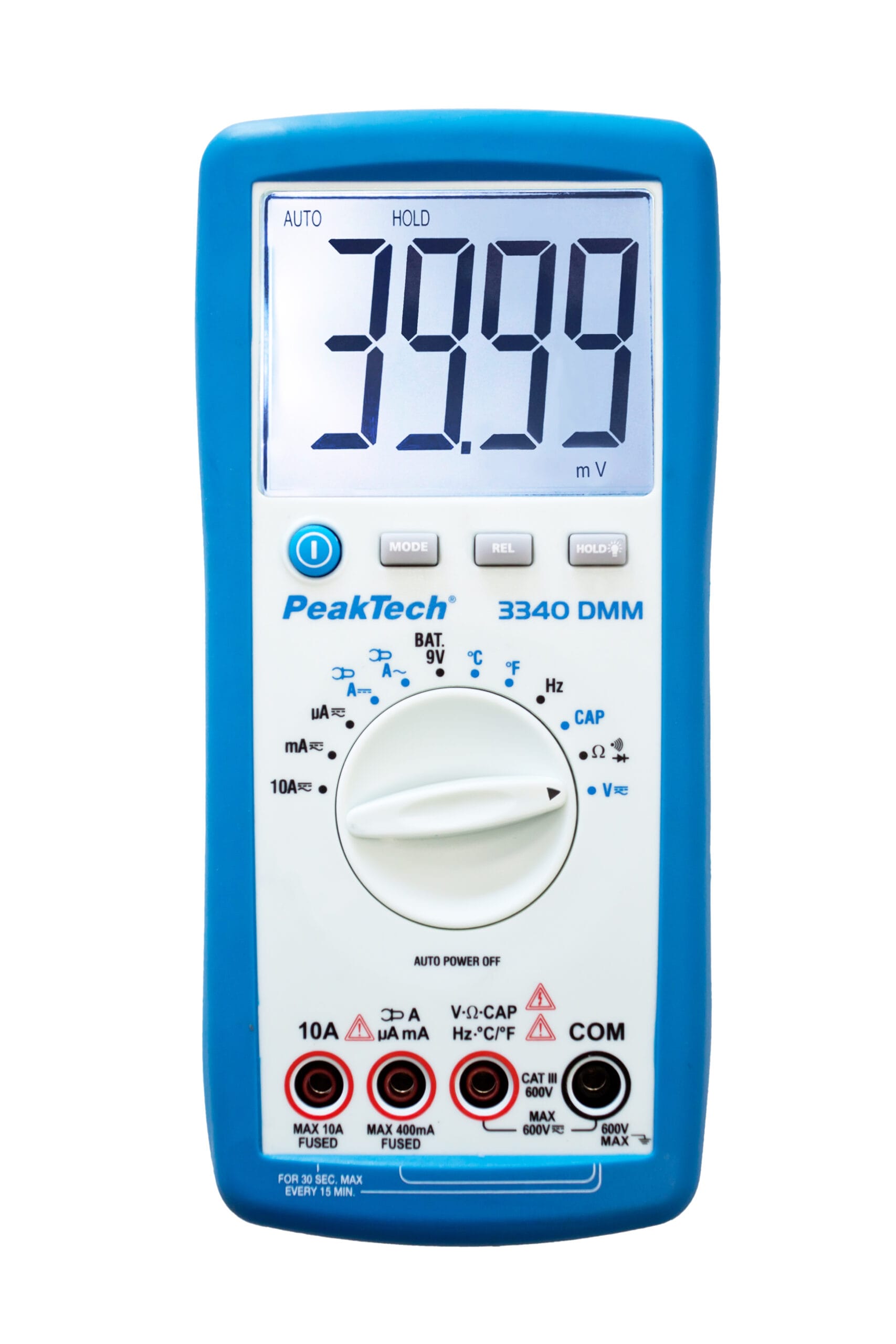

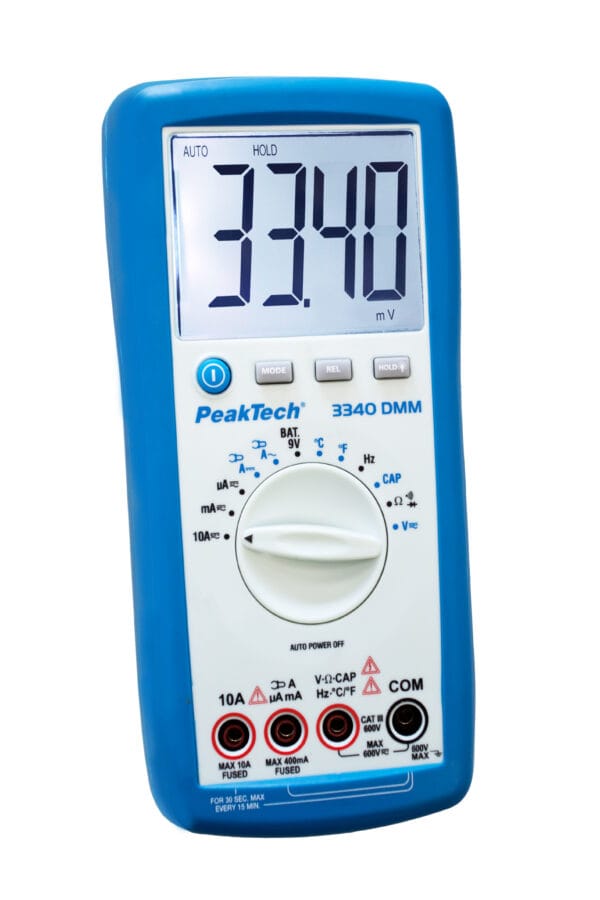

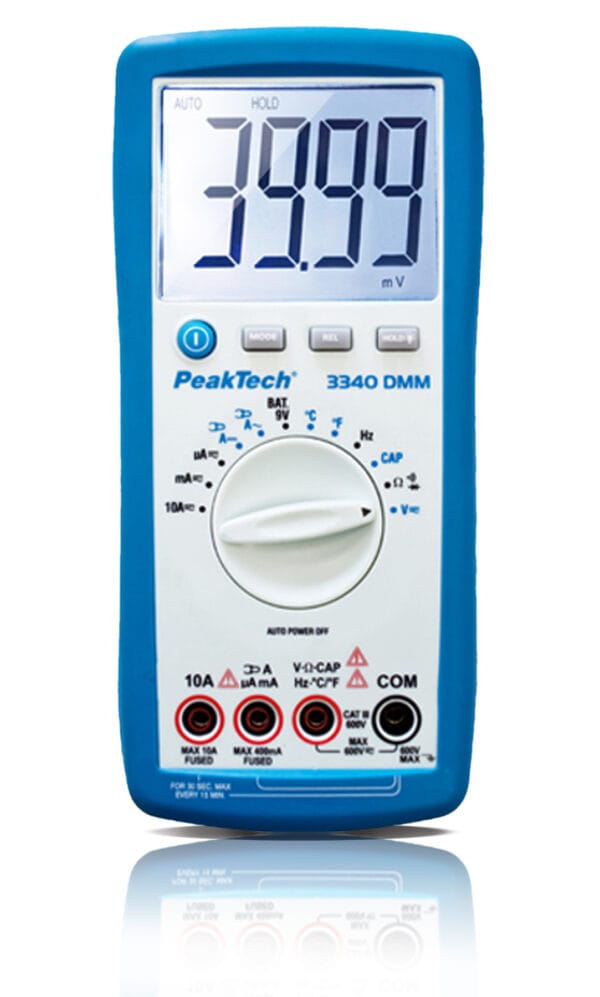

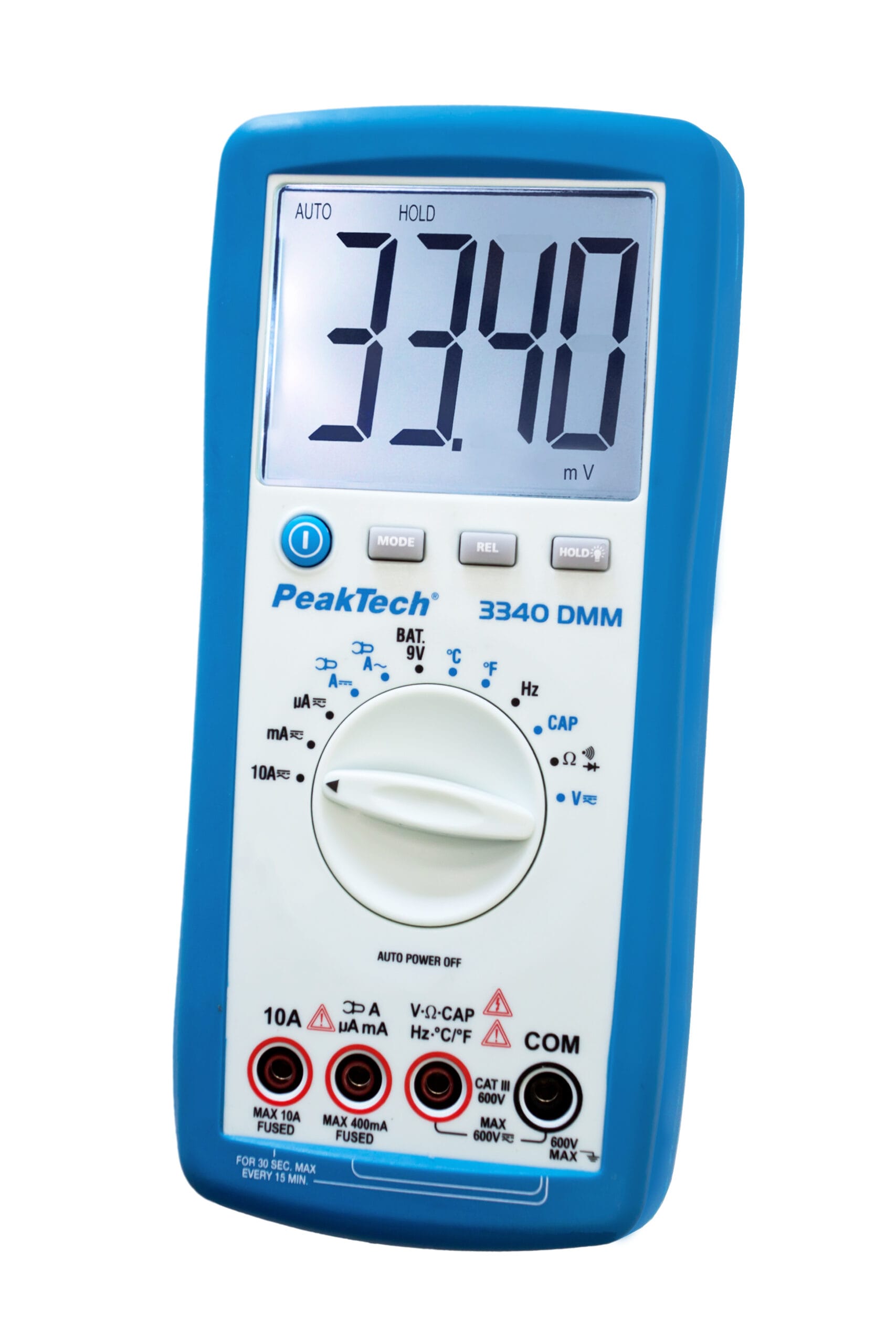

Modern digital multimeter with large, easy-to-read and illuminated LCD display for electronics professionals, service technicians, trainees or hobby users. The automatic measuring range selection ensures user-friendly operation that only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacitance, frequency, temperature and resistance, this model has a continuity test with an acoustic signal and the possibility to carry out diode tests.
| Basic Accuracy DC: | +/- 0,5% |
|---|---|
| Capacitance max.: | 100 mF |
| Digital counts: | 4.000 |
| Display Type: | LCD |
| OHM resolution min.: | 0,1 Ω |
| Over voltage category: | CAT III 600 V |
| Range selection: | Auto |
| V AC resolution min.: | 100 mV |
| V DC Resolution min.: | 0,1 mV |
| V DC max.: | 600V |
| A AC max.: | 10A, 20 A |
| Hz max.: | 5 MHz |
| OHM max.: | 40 MΩ |
| Temp. max.: | 760 °C |
| Temp. min.: | -20 °C |
| mA DC max.: | 400 mA |
| mV DC max.: | 400 mV |
| µA DC max.: | 4000 µA |
| V AC max.: | 600 V |
| A DC max.: | 10A, 20A |
| mA AC max.: | 400 mA |
| µA AC max.: | 4000 µA |
