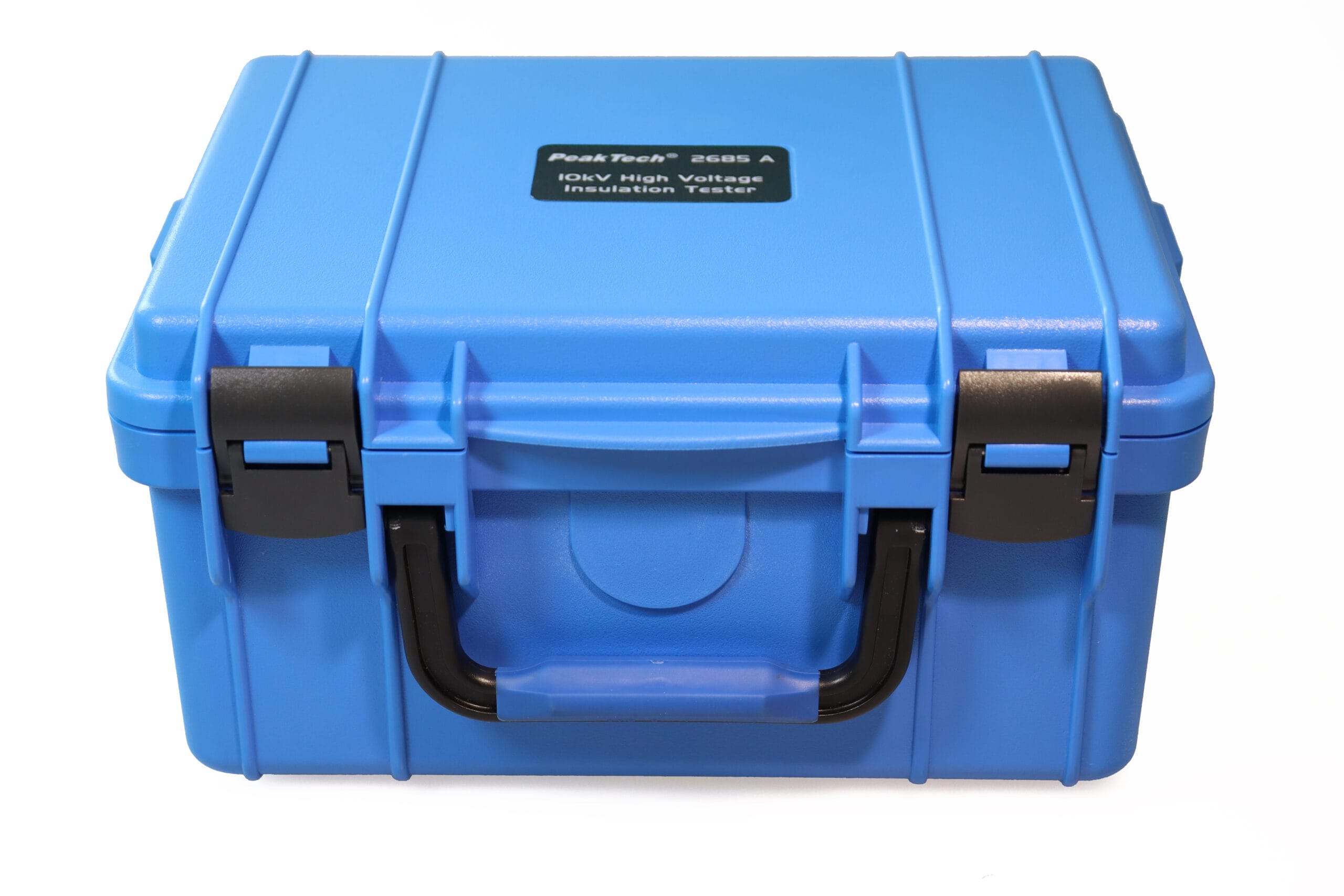

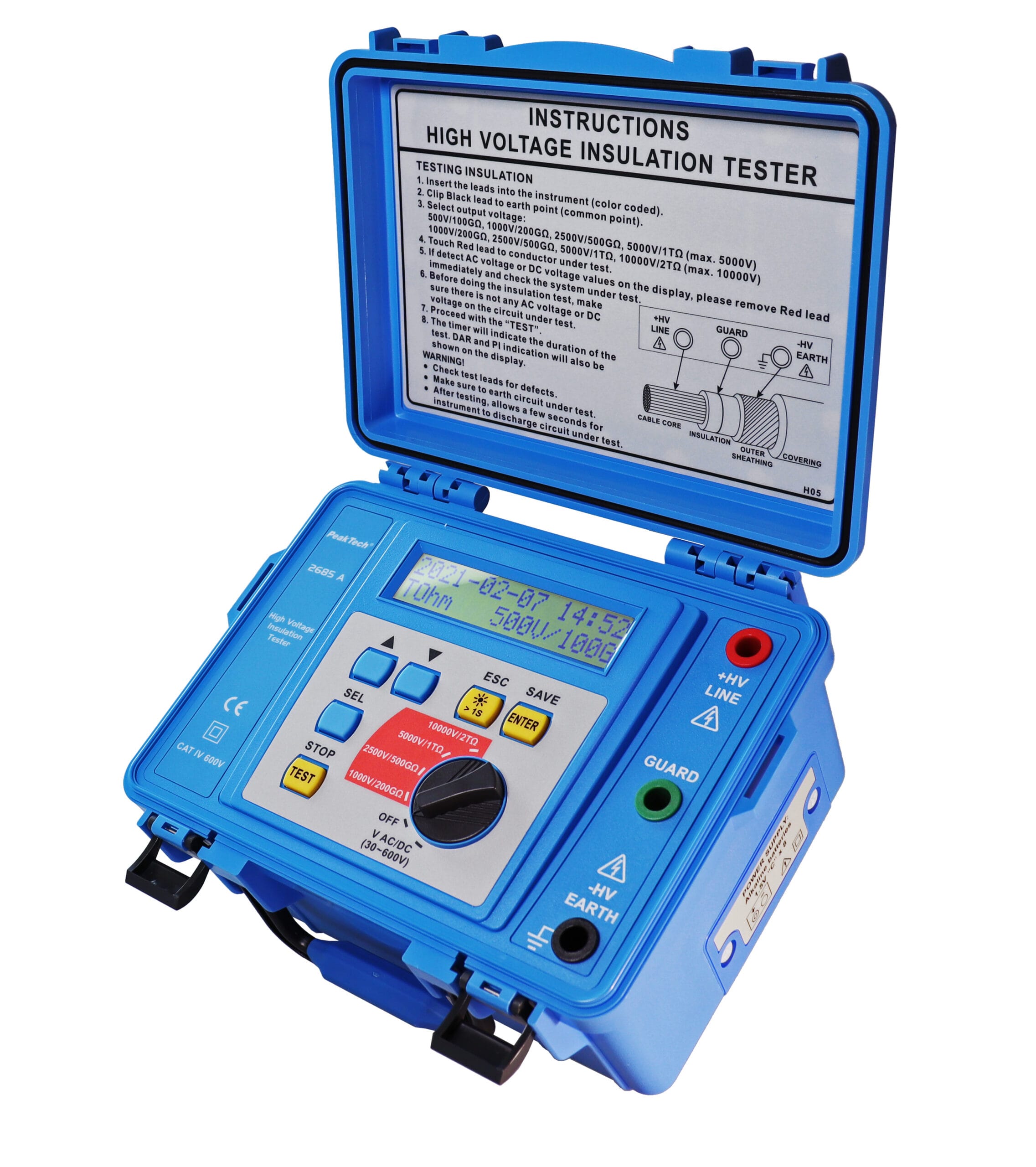

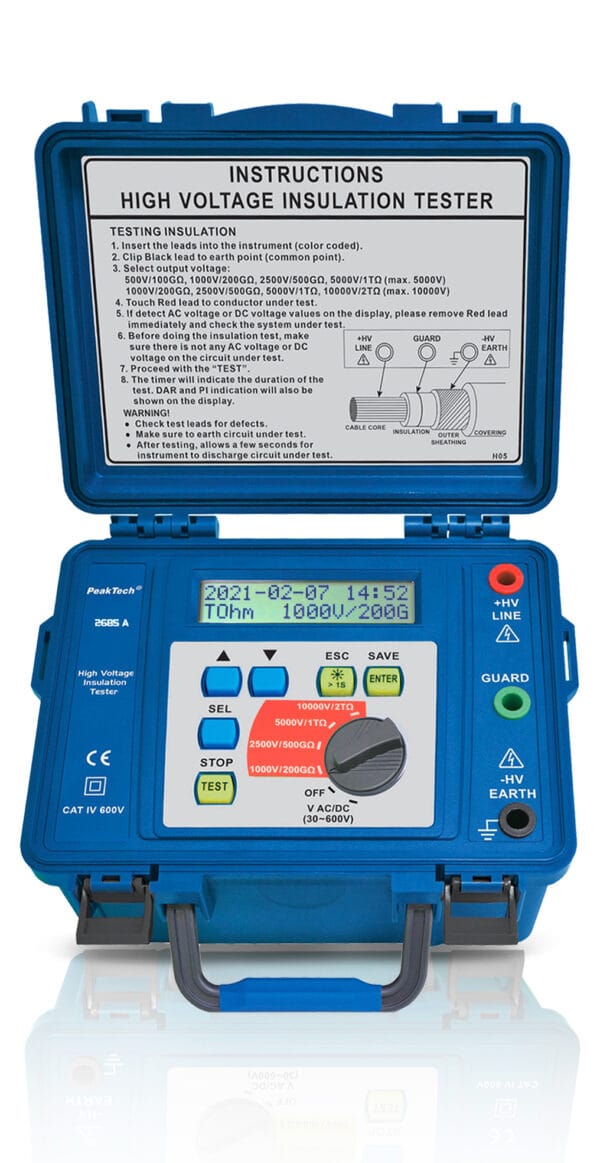

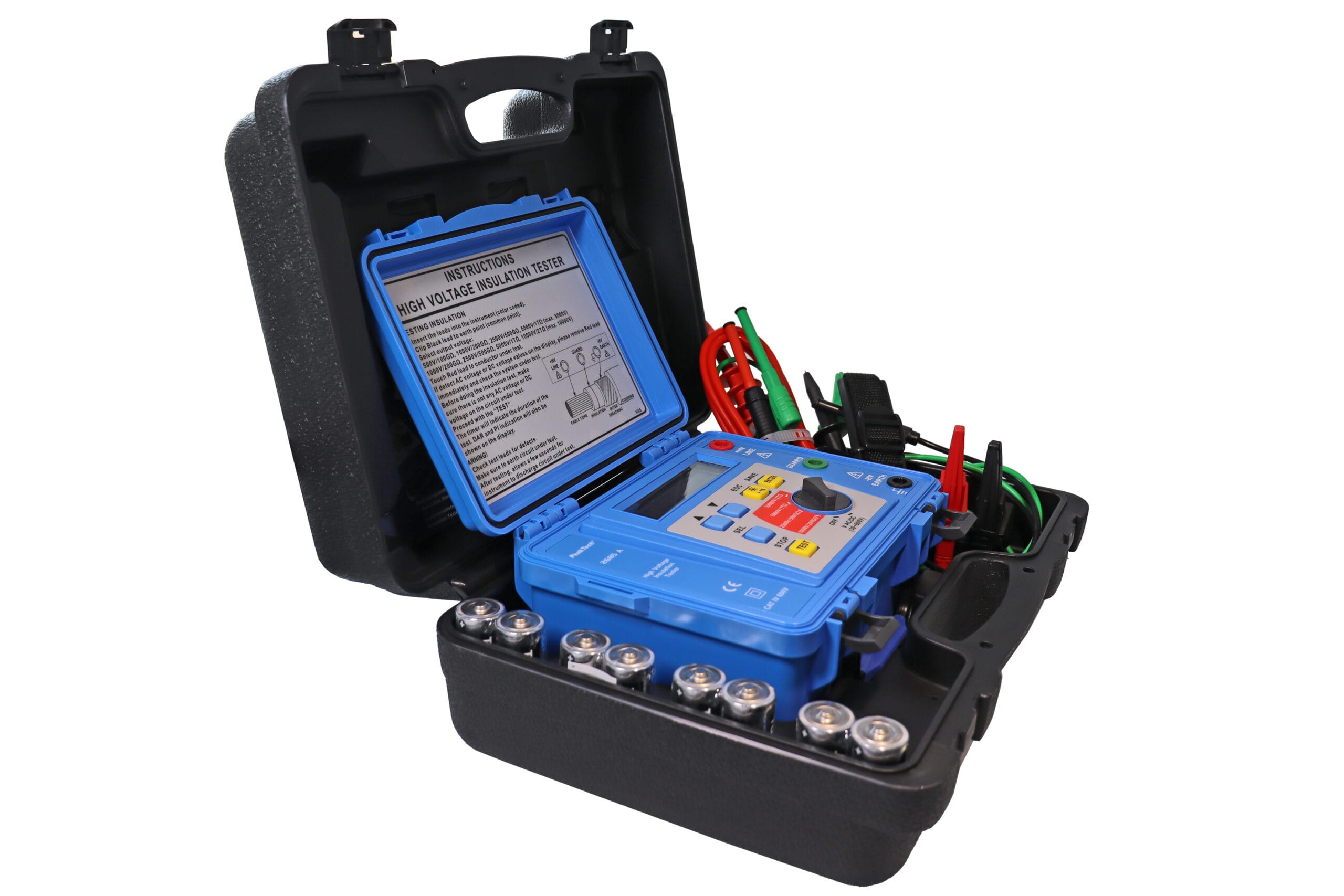

The PeakTech 2685 A is a high voltage insulation measuring device which can generate and output a test voltage of up to 10,000V. With the insulation measurement, lines or insulation of electrical equipment can be checked and defective ones can be identified. The respective sockets on the test device are marked for connection in order to prevent the device under test from being mixed up or incorrectly connected. The measuring functions can be set quickly using the selector switch and the pushbuttons. The insulation measuring device is built into a sturdy carrying case, which also protects it from splash water and external influences. With the new additional functions PI (polarization index) and DAR (dielectric absorption ratio) the application possibilities of the PeakTech 2685 A grows contrary to its predecessor. Due to its functions and high measuring ranges, the PeakTech 2685 A is ideal for everyday use in electrical engineering, as it can be used in almost every area in which insulation measurement is required.
| Display Type: | LCD |
|---|---|
| Ingress protection: | IP 65 |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Test voltage: | 10000 V |
| OHM max.: | 2 TΩ |
