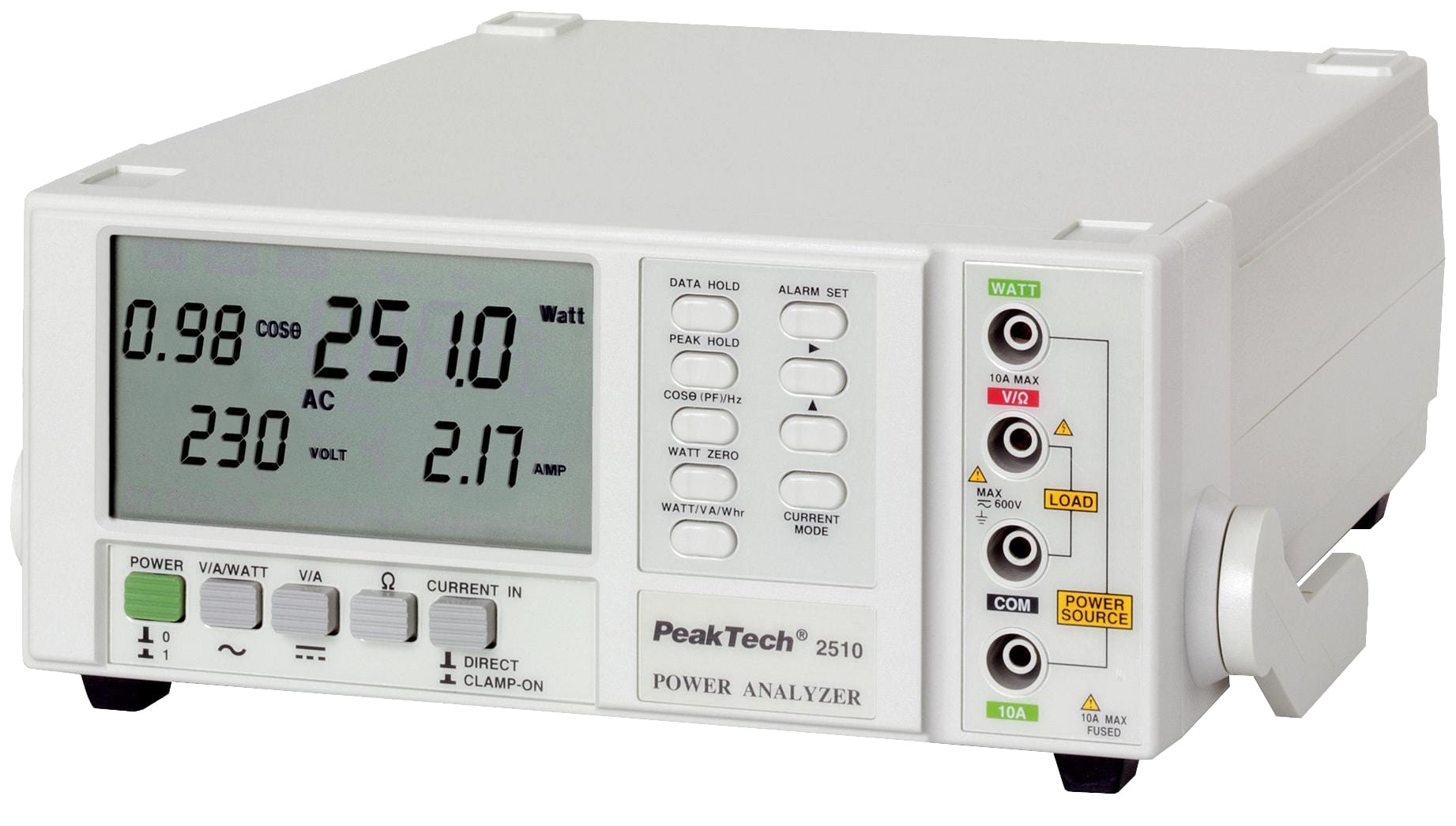

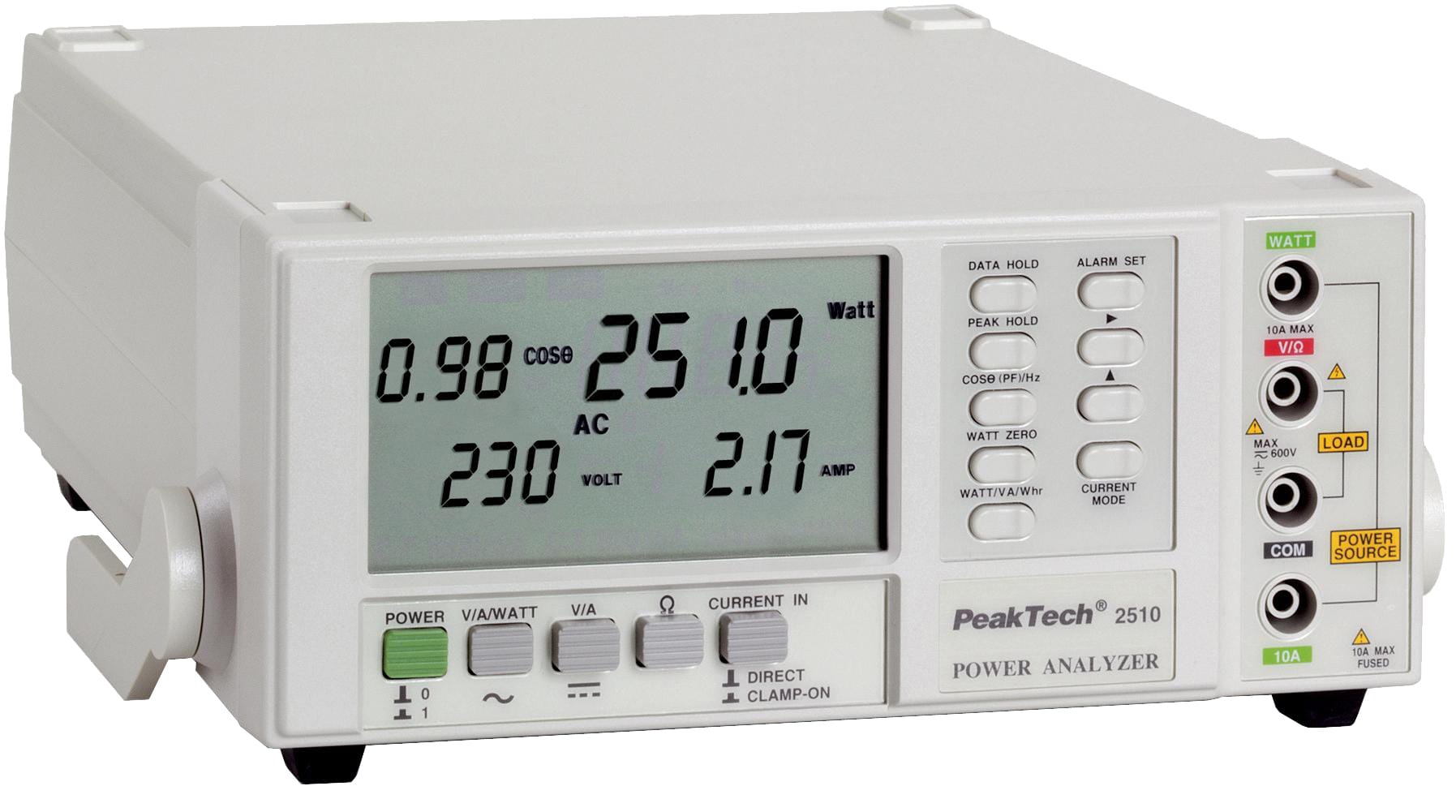

The PeakTech 2510 is a power analyzer with a large LCD display. Measured power can be recorded with the analyzer, but it is also possible to record and display various voltages, currents, power factors and many other variables. Several electrical variables are attracted during a measurement, so it is possible to show the power and the cos φ at the same time. The PeakTech 2510 has an RS-232 interface, whereby the measured data can be transmitted and read out. These and some other functions make the power analyzer the perfect addition to any laboratory.
| Display Type: | LCD |
|---|---|
| Over voltage category: | CAT II 600 V |
| Power factor: | 0,01 … 1,00 |
| Power max.: | 1000 kw (transducer), 6000 W (direct) |
| V DC max.: | 600V |
| Wat hours max.: | 10000 kWh |
| A AC max.: | 10 A (direkt), 1000 A (Stromwandler) |
| Hz max.: | 1 kHz |
| OHM max.: | 20 kΩ |
| V AC max.: | 600 V |
| A DC max.: | 10A (Direct), 1000A (Transducer) |
