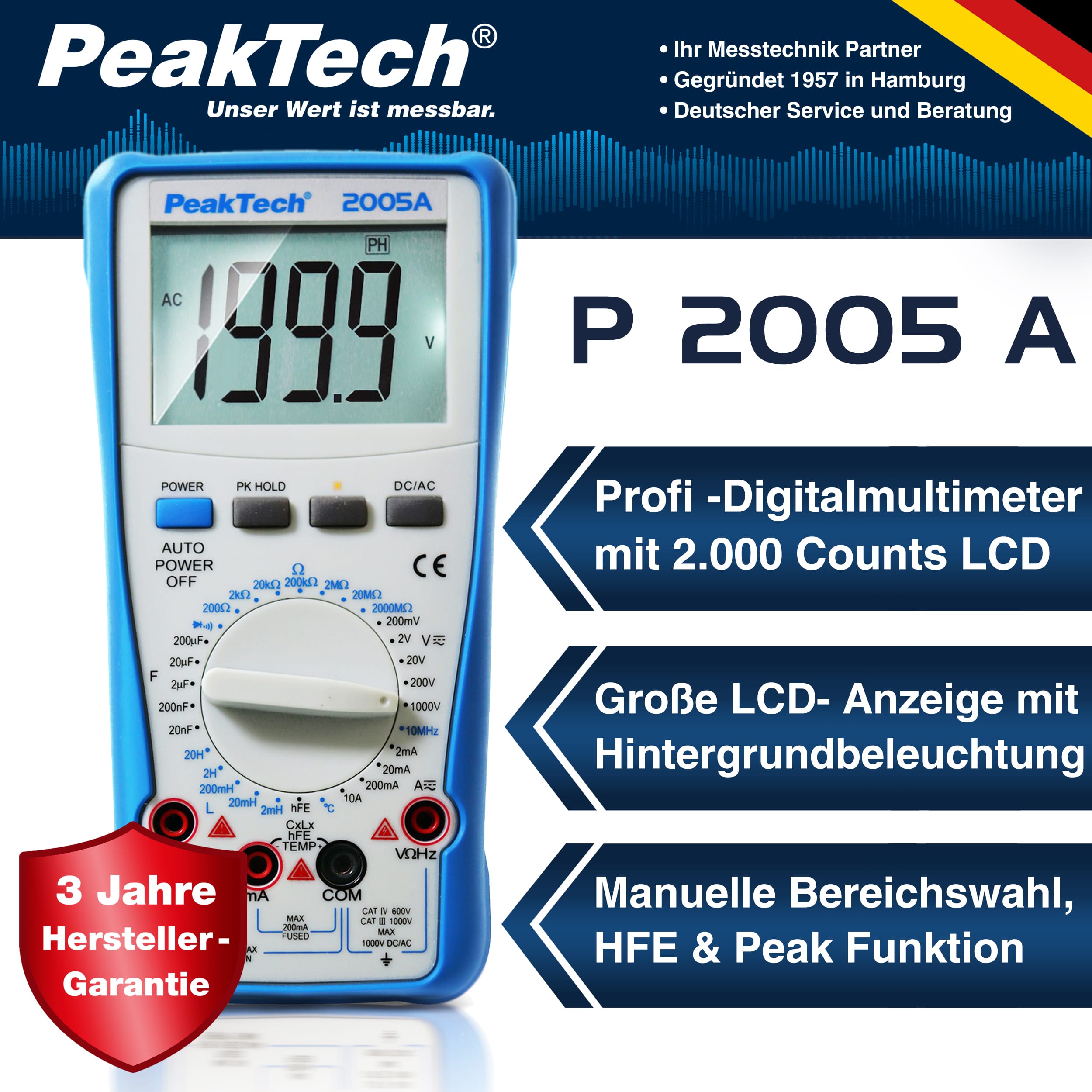

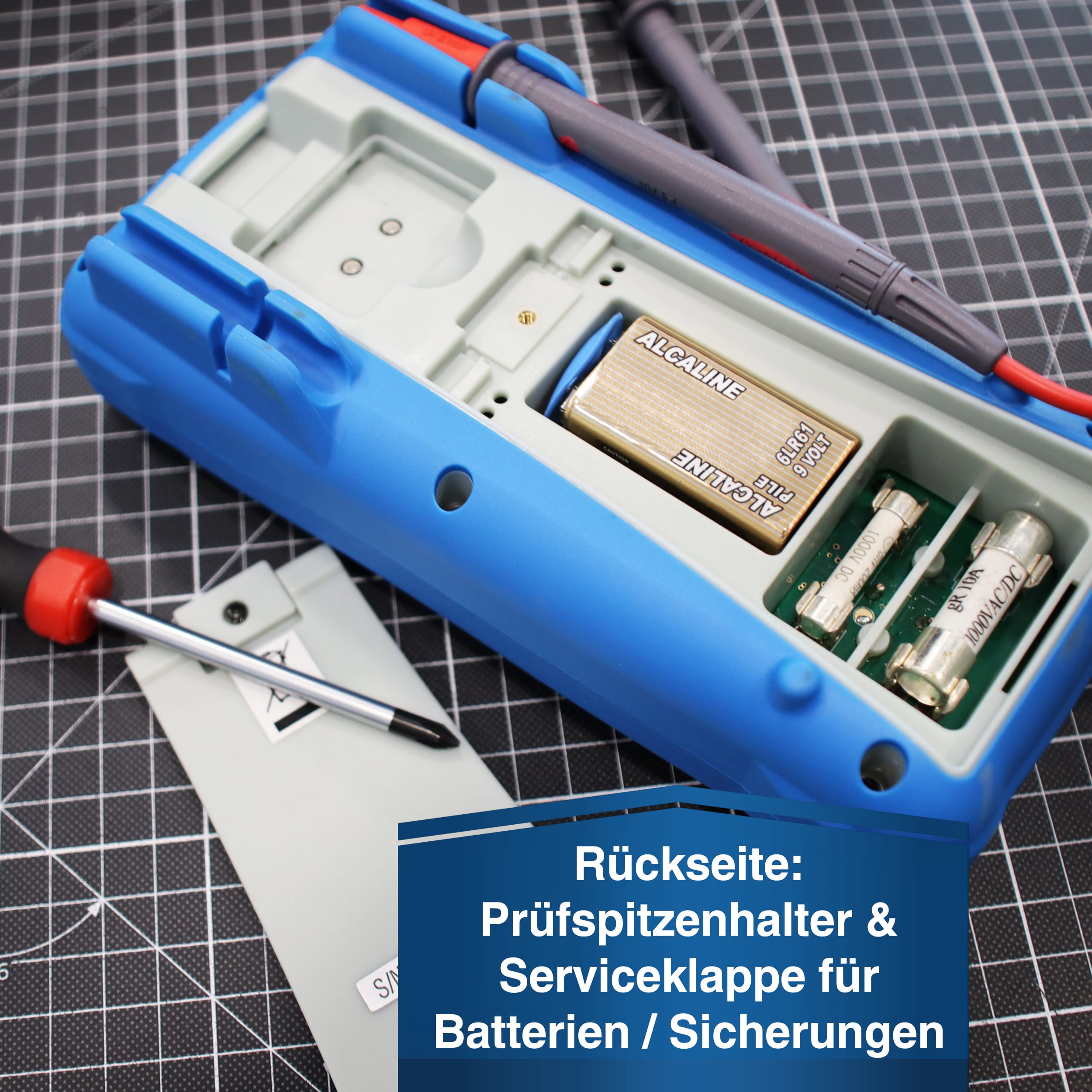

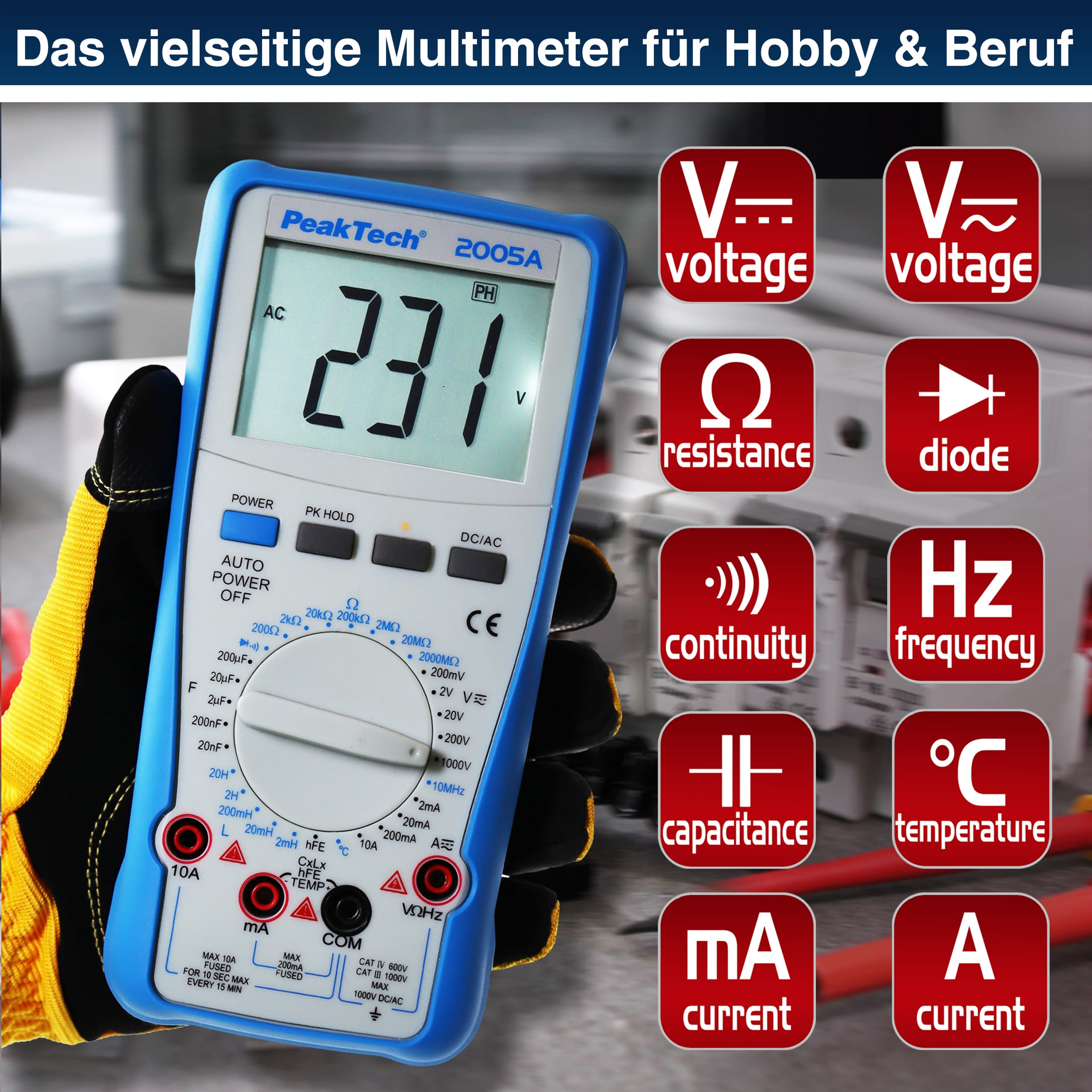

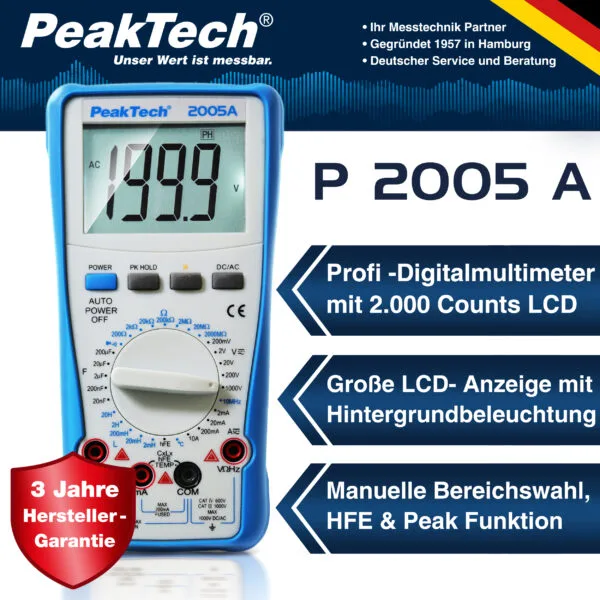

The new PeakTech 2005 A offers a multitude of measurement functions for electrical measured variables for every user from industry, craftsmanship, training, hobby and the laboratory. It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating, a tilt stand on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these. The device is working with a battery and has an LCD screen with a character height of 32 mm. The manual range selection enables a very fast response time and the measured values can be easily read on the illuminated display. The PeakTech 2005 A can be used to measure DCV, ACV, DCA, ACA, resistance, capacitance, diode, transistor, continuity, temperature, frequency and inductance, which create a wide range of applications. Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.
| Basic Accuracy DC: | +/- 0,5% |
|---|---|
| Capacitance max.: | 200 µF |
| Digital counts: | 2.000 |
| Display Type: | LCD |
| Inductance max.: | 20 H |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Range selection: | Manual |
| True RMS: | ■ |
| V DC max.: | 1000V |
| hFE: | ■ |
| A AC max.: | 10A |
| Hz max.: | 10 MHz |
| OHM max.: | 2000 MΩ |
| Temp. max.: | 1000 °C |
| Temp. min.: | -20 °C |
| mA DC max.: | 200mA |
| V AC max.: | 1000V |
| A DC max.: | 10A |
| mA AC max.: | 200 mA |
