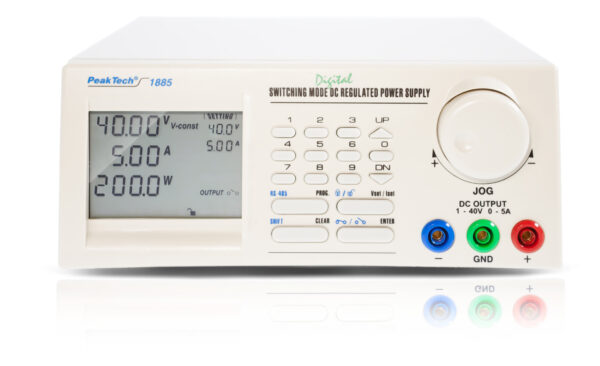

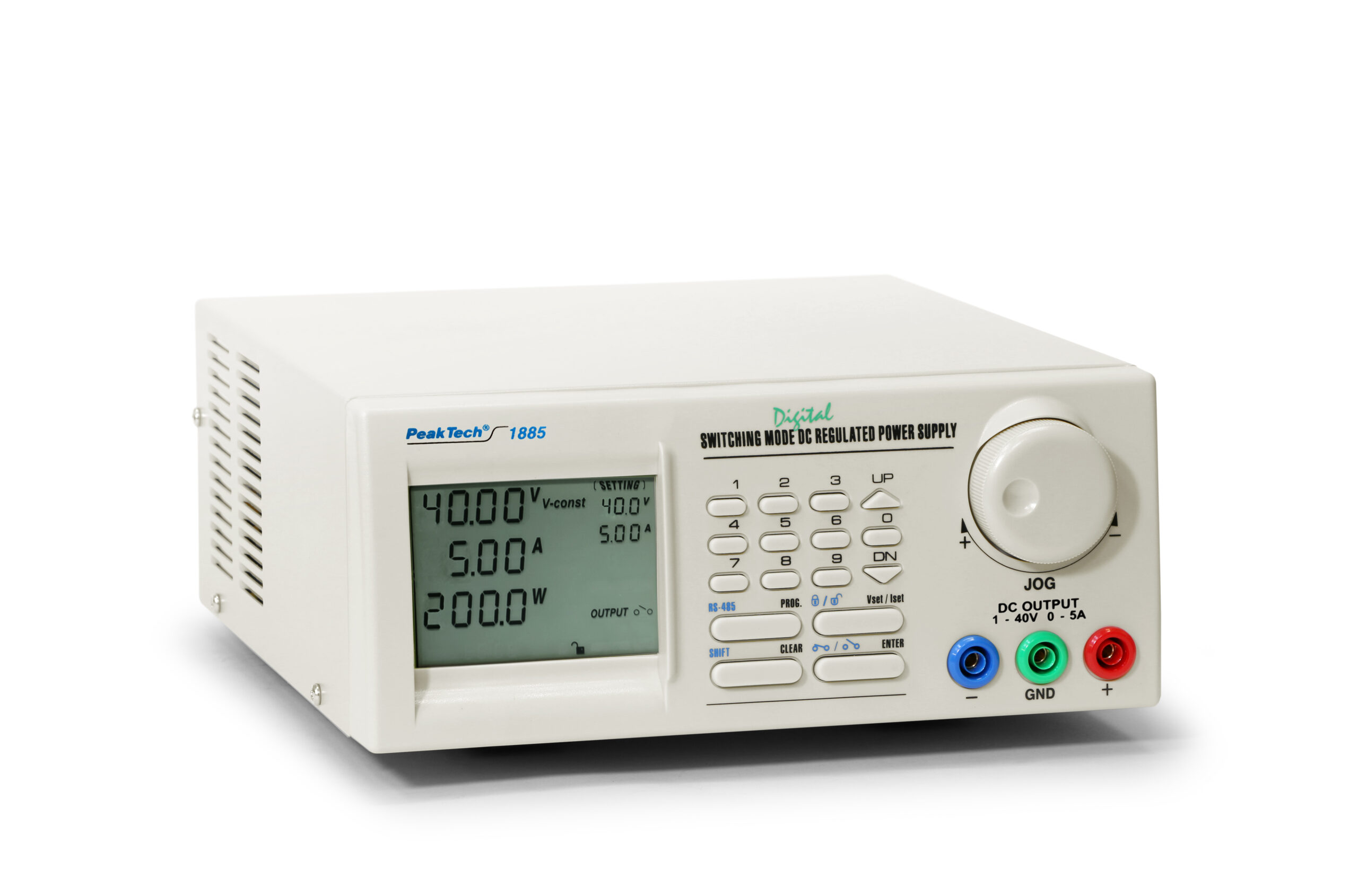

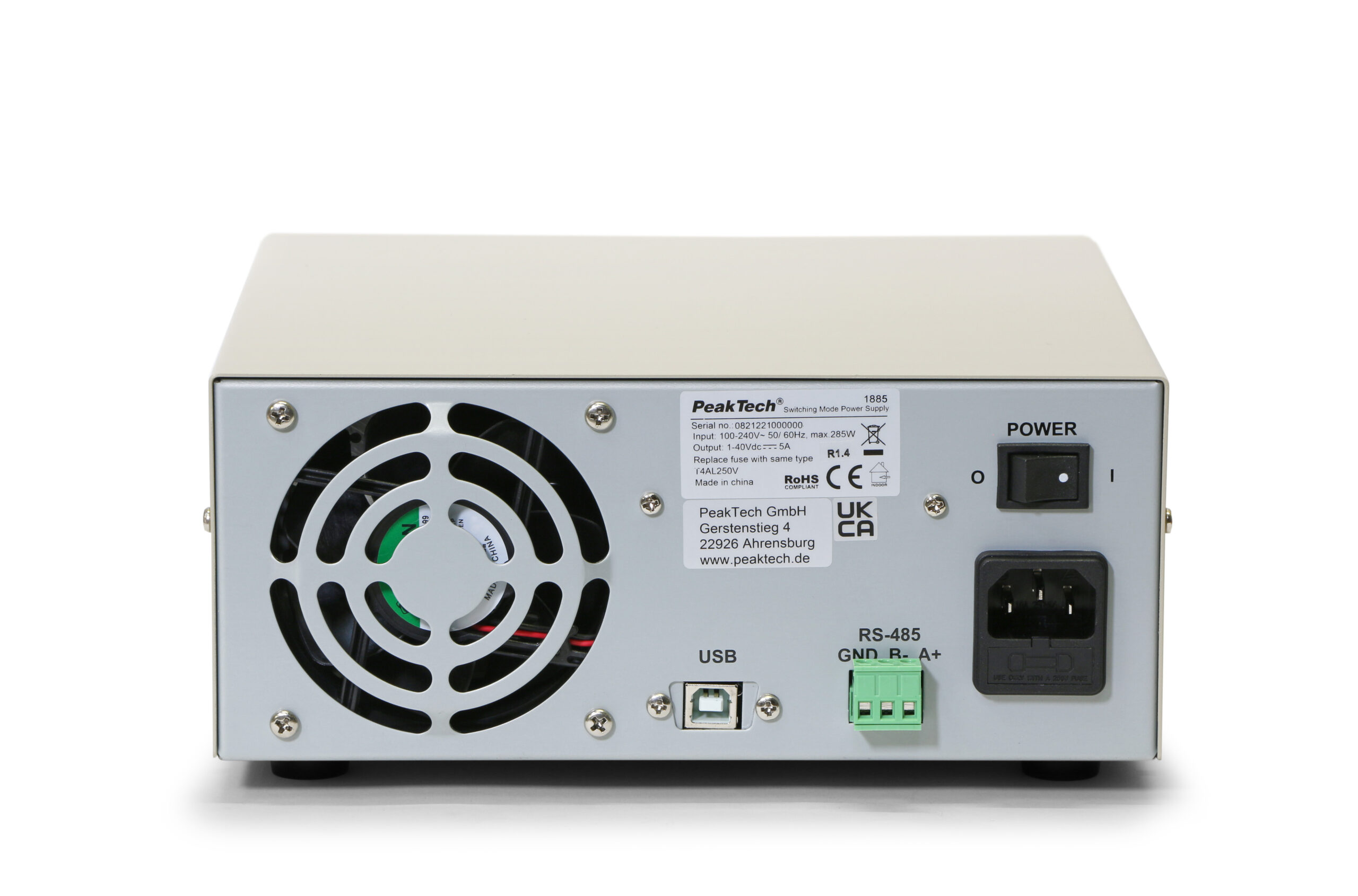

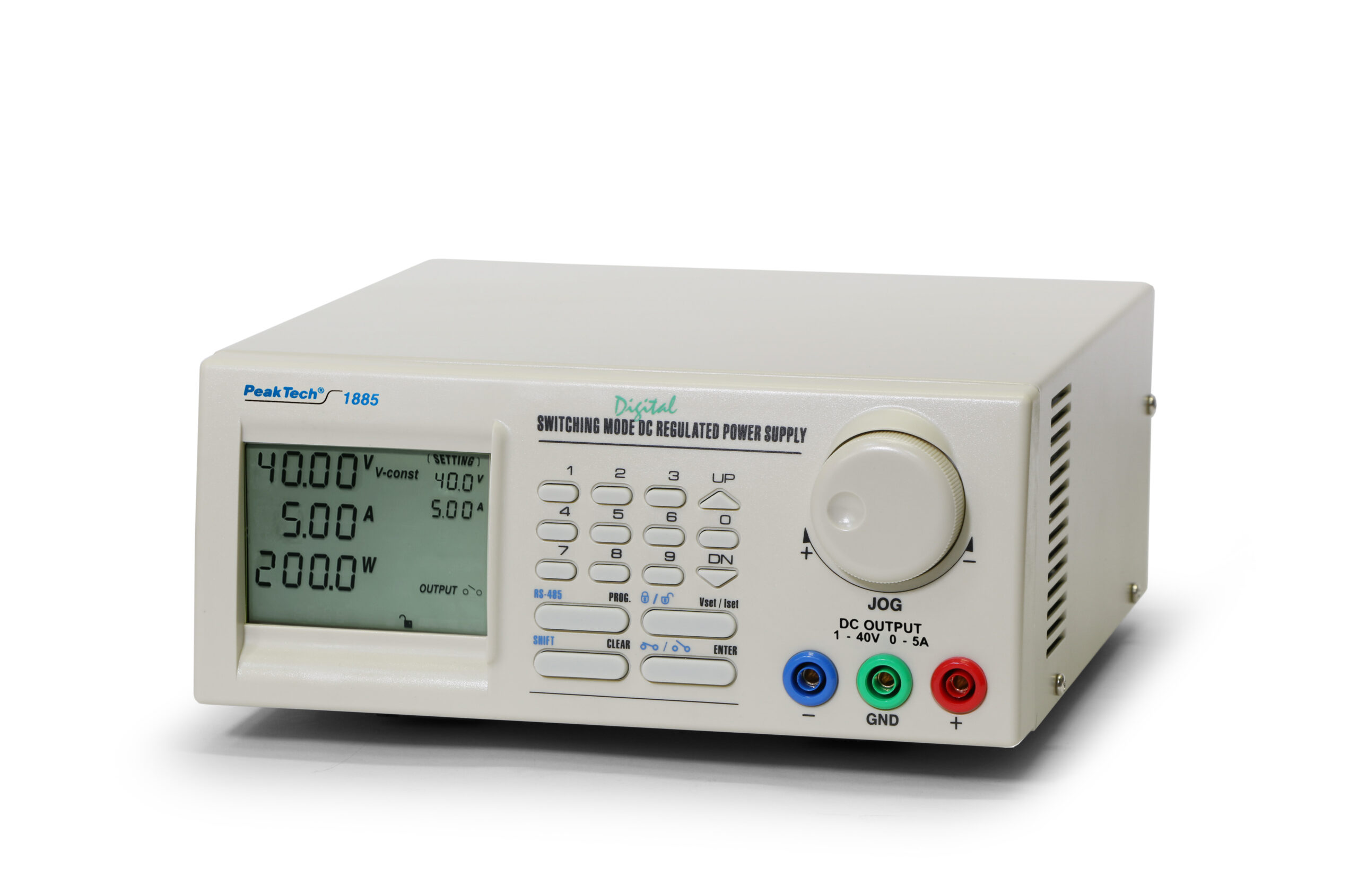

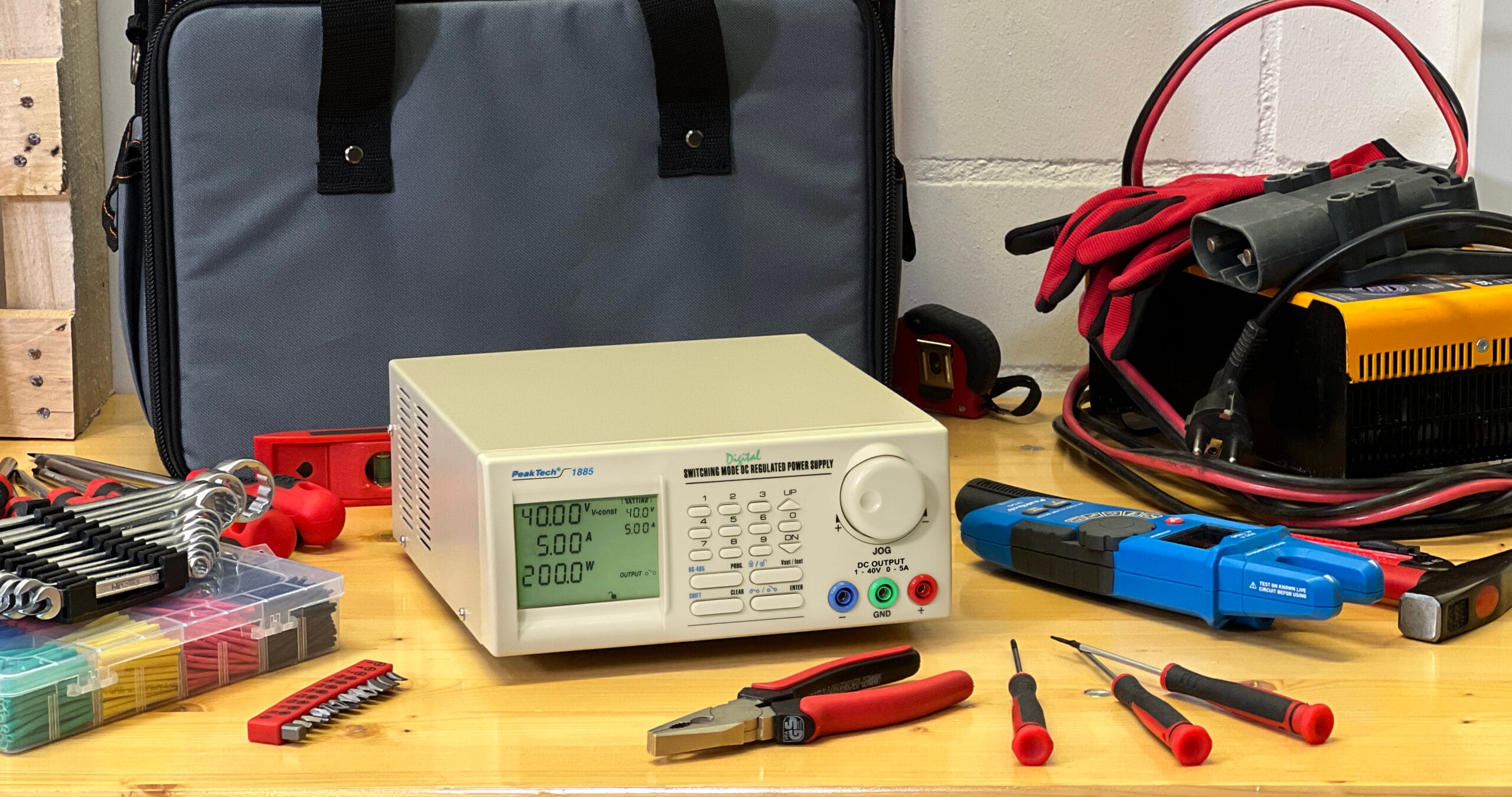

The PeakTech 1885 is a programmable laboratory power supply for a maximum of 40V / 5A DC, i.e. 200 W continuous power. In addition to presets for current and voltage values, time programs with intervals and the number of runs can also be created directly on the device or using the included PC software. For operation with a PC, the switching power supply is equipped with a USB and RS-485 interface. A PC connected to the RS-485 interface enables the control of up to 32 power supplies. A USB interface on the back of the device connects to a Windows PC. The intelligent fan control adjusts the speed of rotation to the respective temperature and output power. The output voltage and current limit can also be set in the open circuit without a connected load. Due to its high reliability and the programming functions, this power supply series is ideal for professional users from industry, control and regulation technology or the electronics laboratory.
| USB: | ■ |
|---|---|
| Channels: | 1 CH |
| Display Type: | LCD |
| Input connector: | IEC socket |
| Input voltage: | 100 – 240 VAC 50/60 Hz |
| Output Connection: | 4 mm Plug |
| Output Current: | 0 – 5 A |
| Output Voltage: | 1 – 40 V DC |
| RS-485: | ■ |
