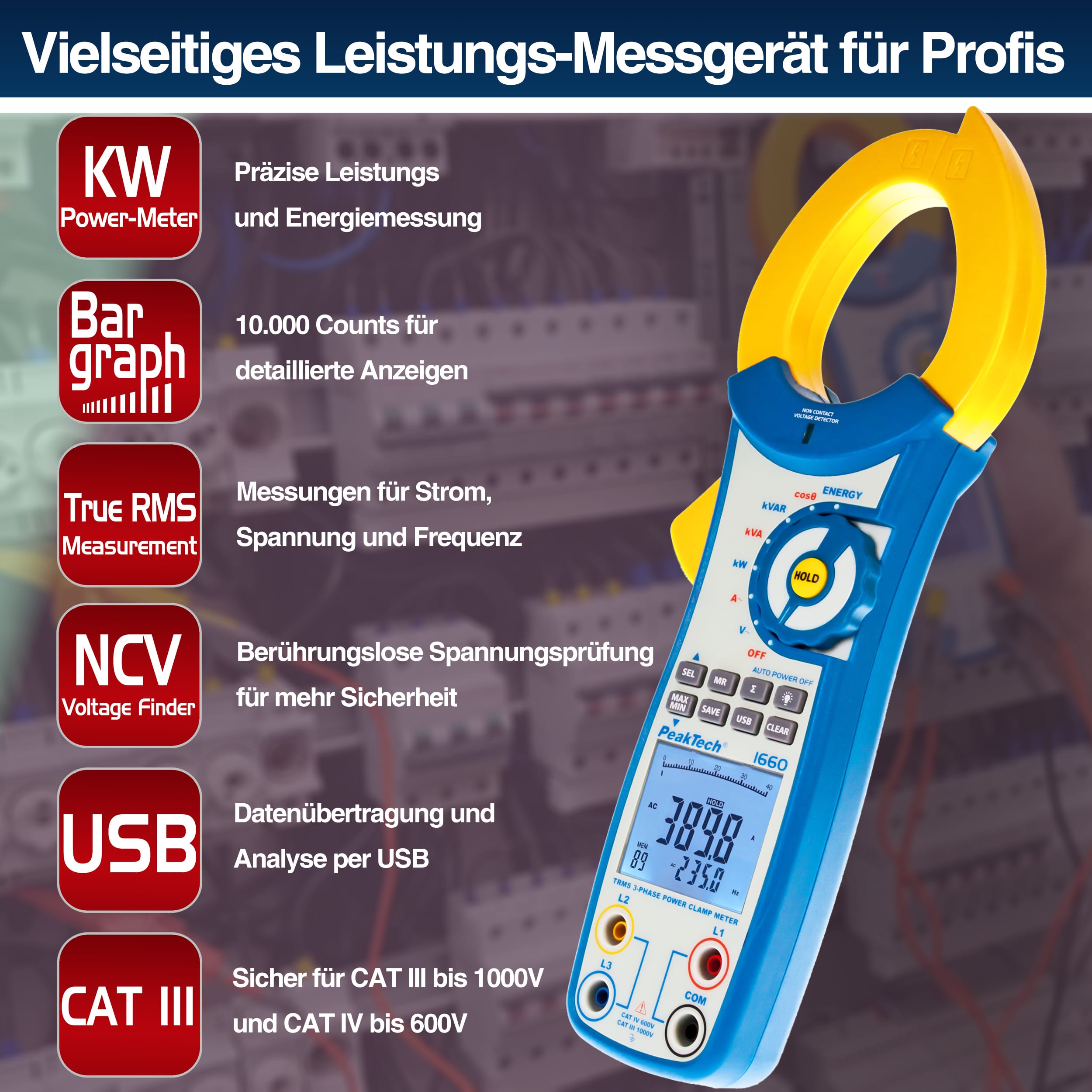

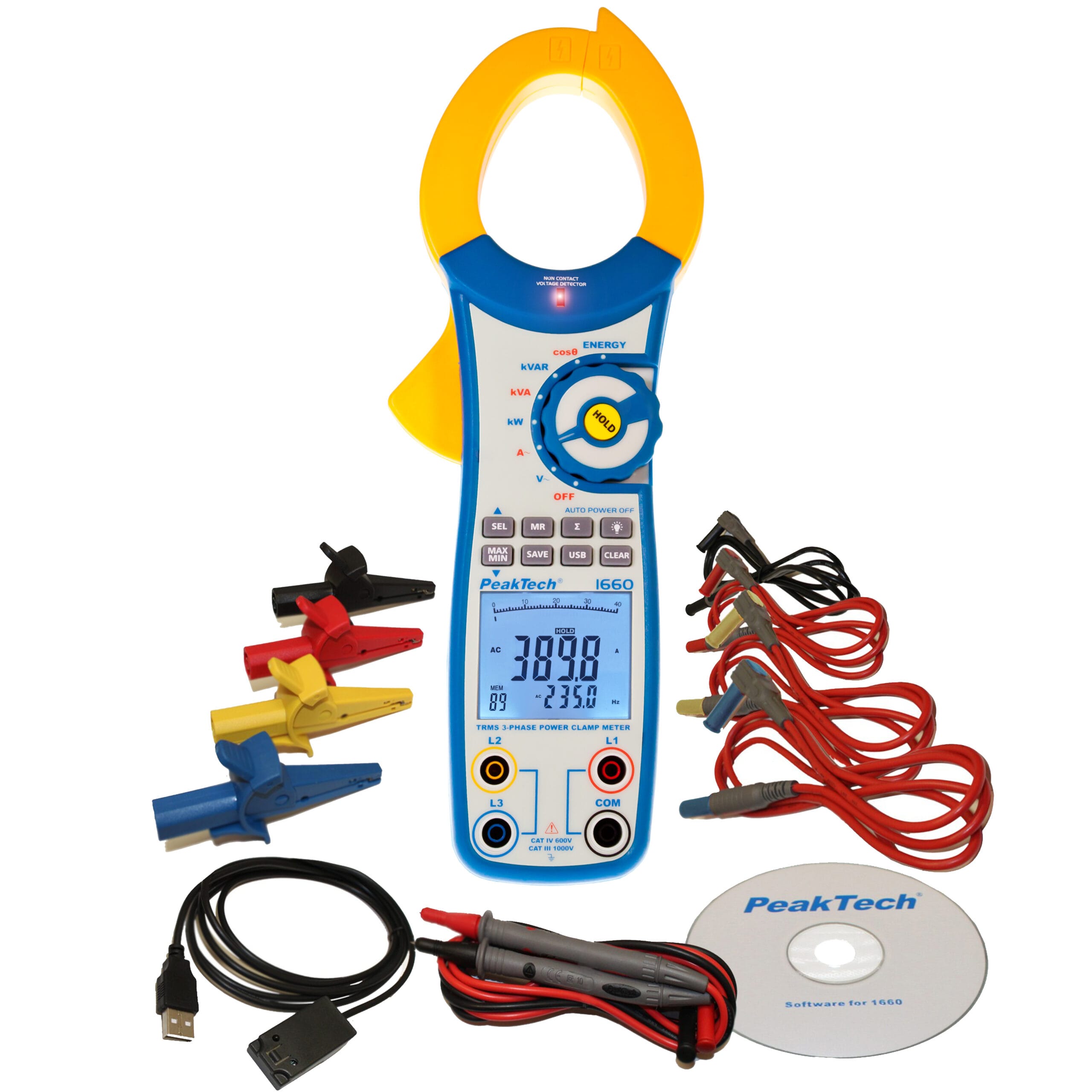

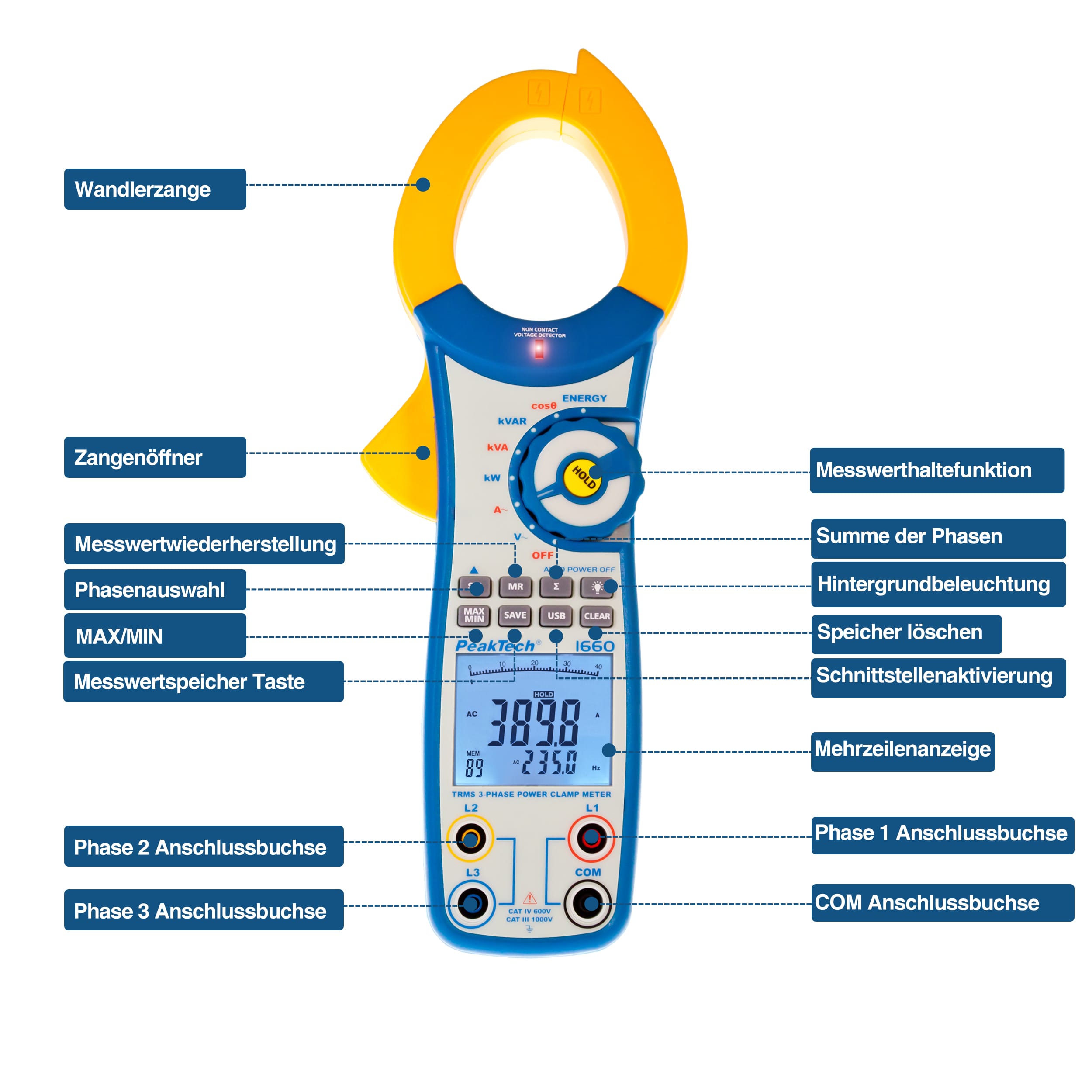

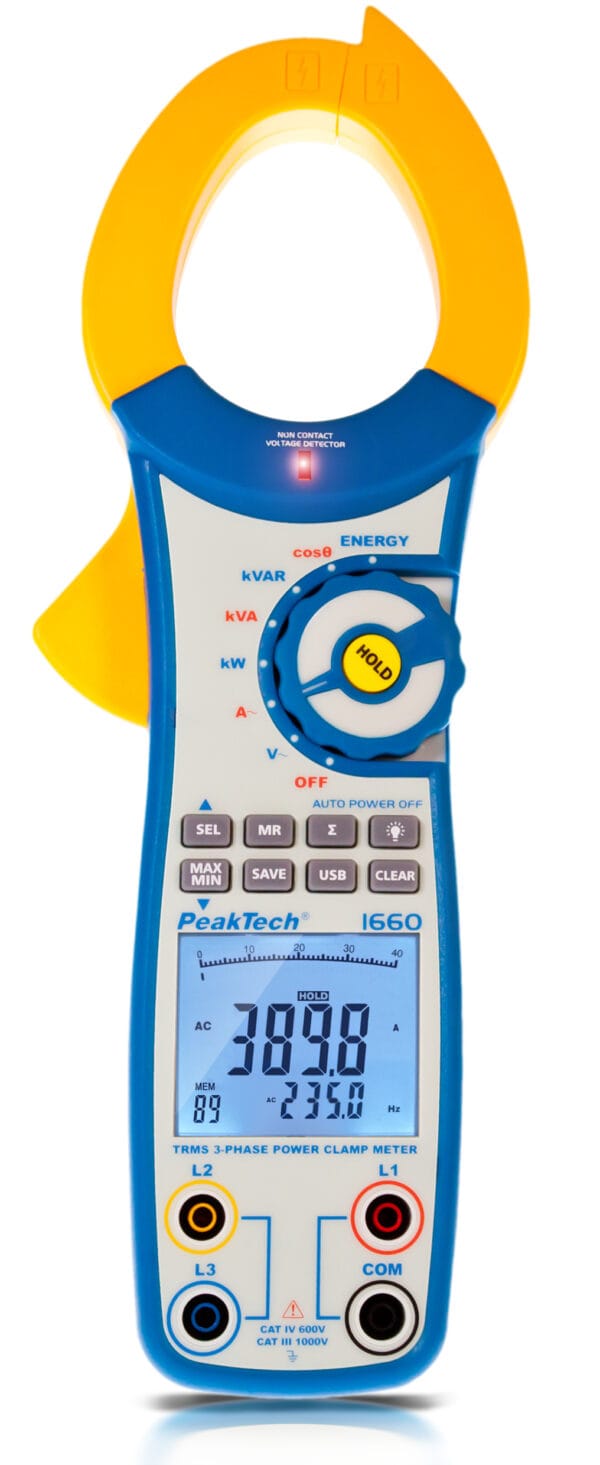

The PeakTech 1660 is a 1- and 3-phase TrueRMS AC clamp meter with many additional functions, such as the measurements for AC (ACA), AC voltage (ACV), active power (kW), apparent power (kVA), reactive power (kVAR), energy (kWh ), the power factor (Cosφ), frequency (Hz) and phase angle (°). All measured values can be read on the illuminated LCD display even in poorly lit rooms. In addition to this multitude of measurement functions, this device offers a PC interface for data acquisition via USB, an internal memory for 99 measurement data sets, a min./max. and data hold function. Due to the excellent price-performance ratio, extensive accessories and the many measuring functions, this device is ideally suited for use in trade and industry.
| USB: | ■ |
|---|---|
| Digital counts: | 10.000 |
| Display Type: | LCD |
| NCV: | ■ |
| Over voltage category: | CAT III 1000 V, CAT IV 600 V |
| Power factor: | 0,3 … 1 |
| Power meas.: | ■ |
| TÜV/GS: | ■ |
| Wat hours max.: | 10000 kWh |
| A AC max.: | 1000 A |
| V AC max.: | 750 V |
