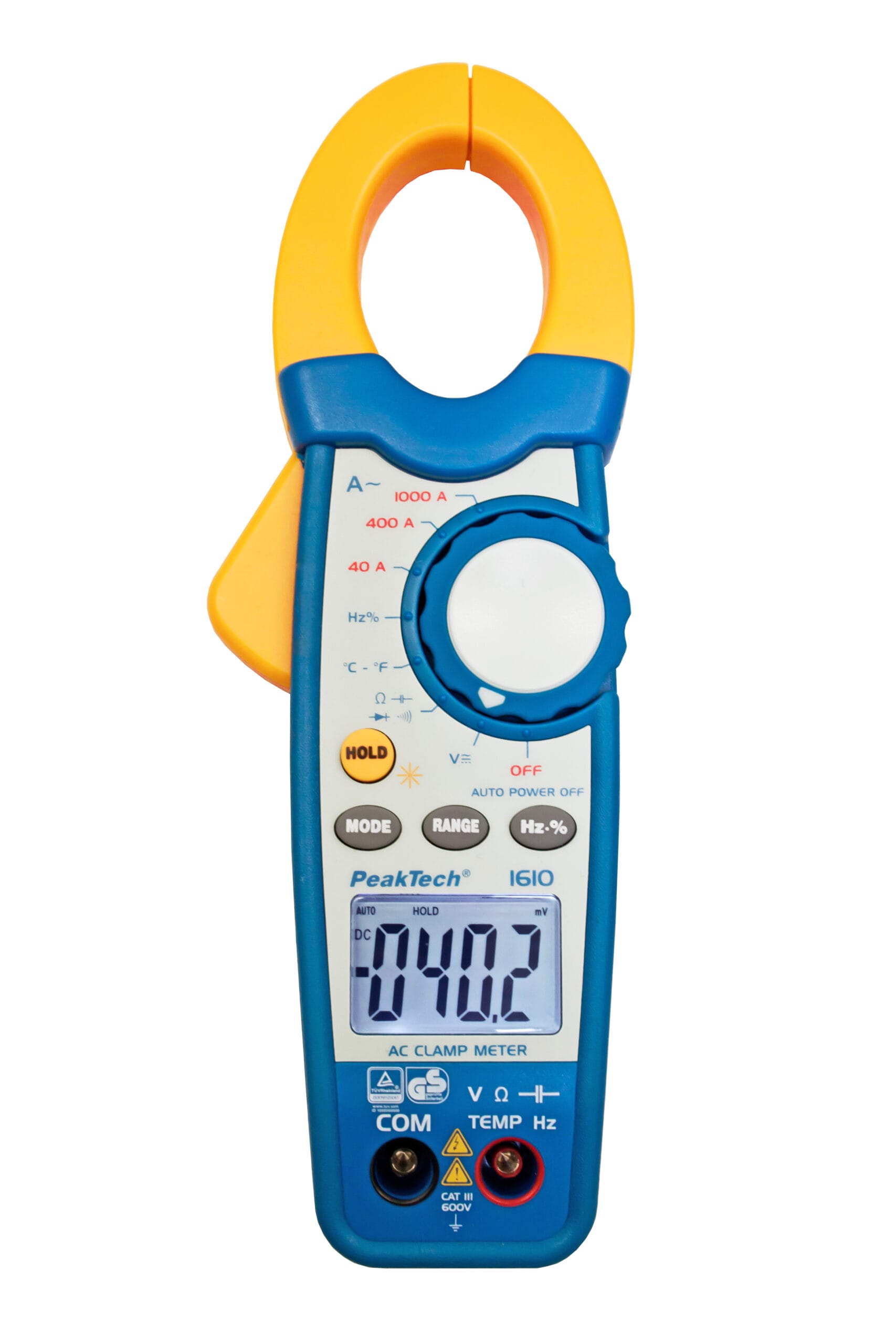

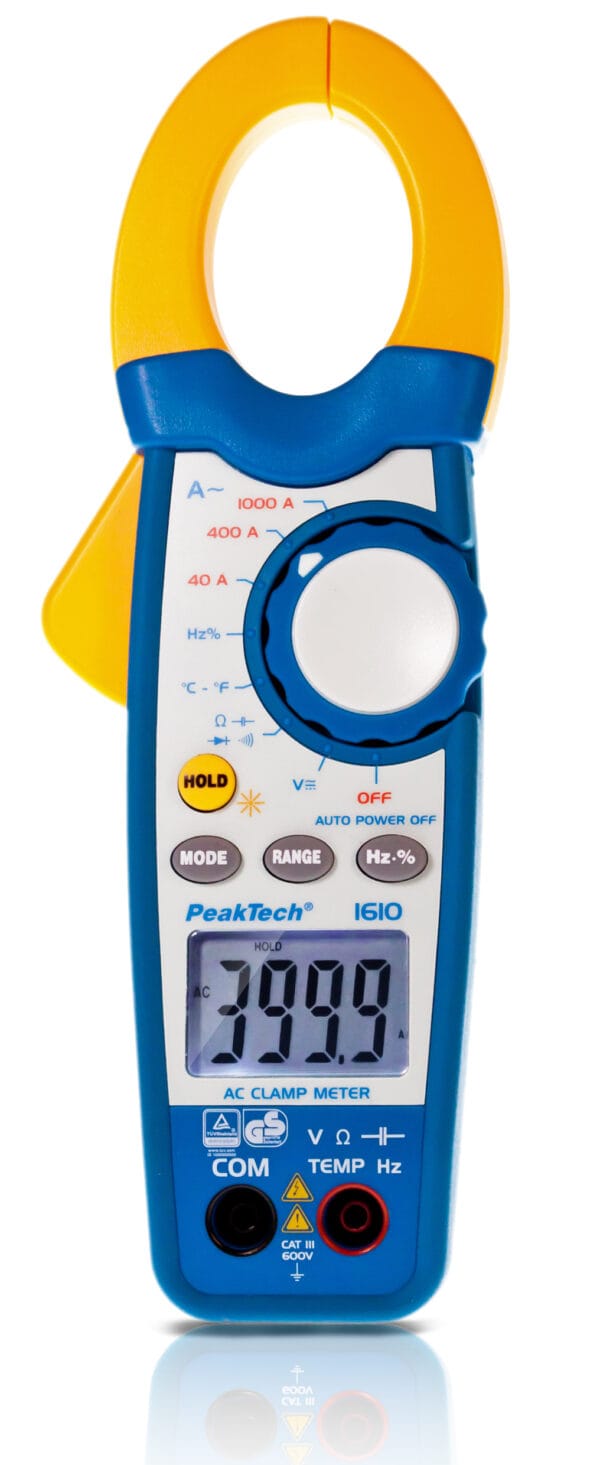

The PeakTech 1610 is a measuring device for AC alternating currents up to 1000 A via a current clamp for cable diameters up to 35mm. Current clamps are ideal for current measurement in electrical systems and control cabinets, since only single wires are guided through the clamp jaws for contact-free current measurement and no electrical connections have to be disconnected. This method also enables measurements of very high currents, which would overload any standard multimeter if connected directly. In addition, this model has extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement. Continuity tests with acoustic signals and diode tests can also be carried out. Due to its high functionality and simple handling, this current clamp is suitable for electronics specialists, service technicians or hobbyists.
| Capacitance max.: | 100 µF |
|---|---|
| Digital counts: | 4.000 |
| Display Type: | LCD |
| Over voltage category: | CAT III 600 V |
| TÜV/GS: | ■ |
| V DC max.: | 600V |
| A AC max.: | 1000 A |
| Hz max.: | 10 MHz |
| OHM max.: | 40 MΩ |
| Temp. max.: | 1000 °C |
| Temp. min.: | -50 °C |
| mV DC max.: | 400 mV |
| V AC max.: | 600 V |
| mV AC max.: | 400 mV |
