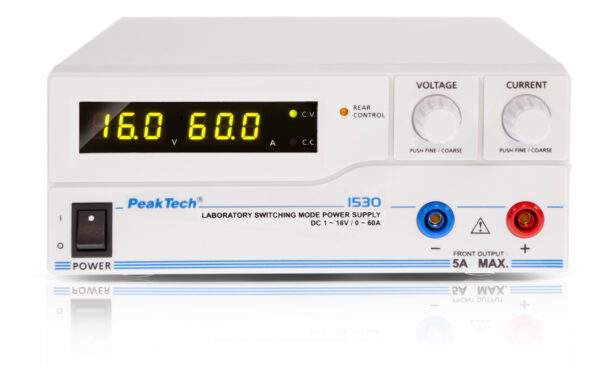

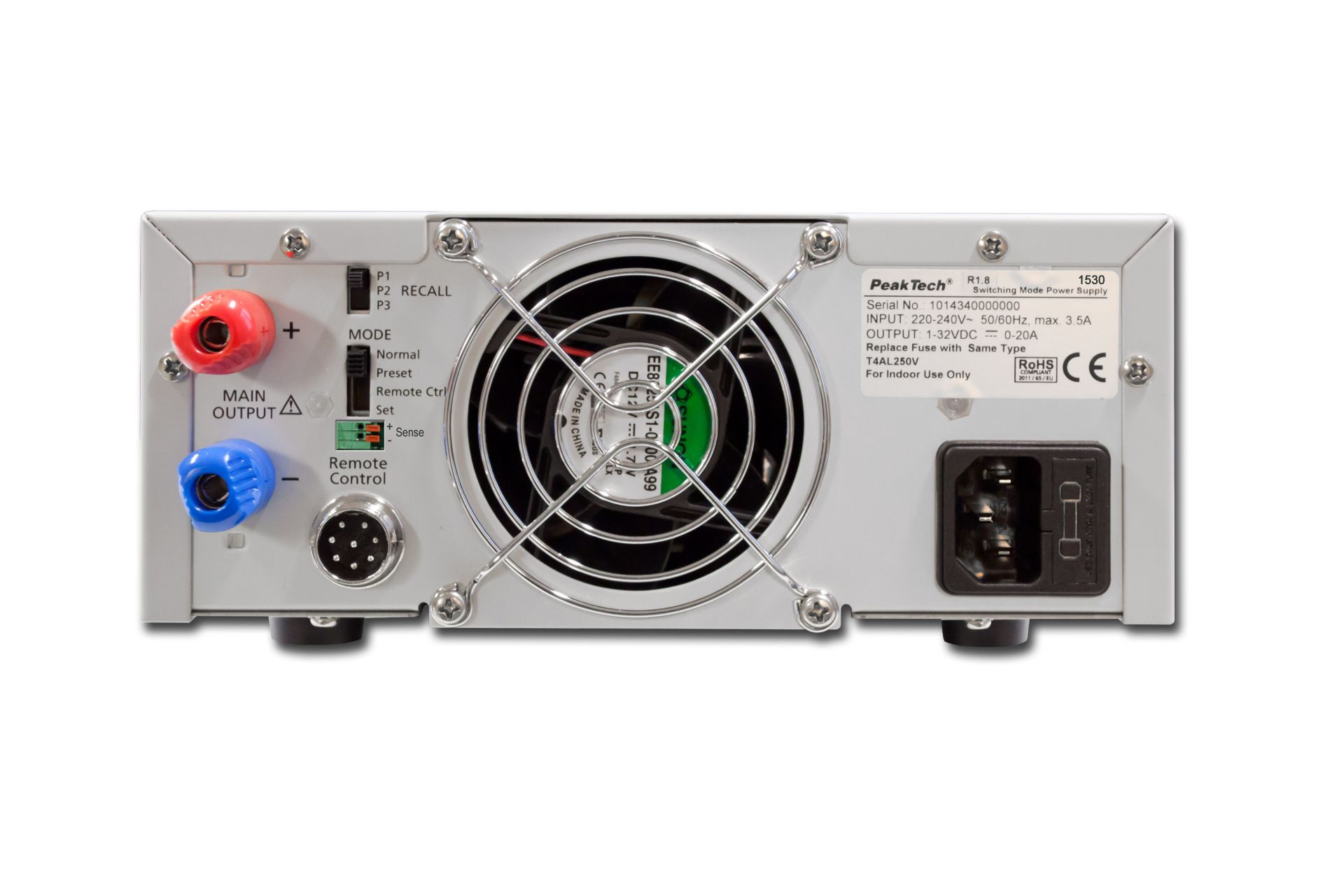

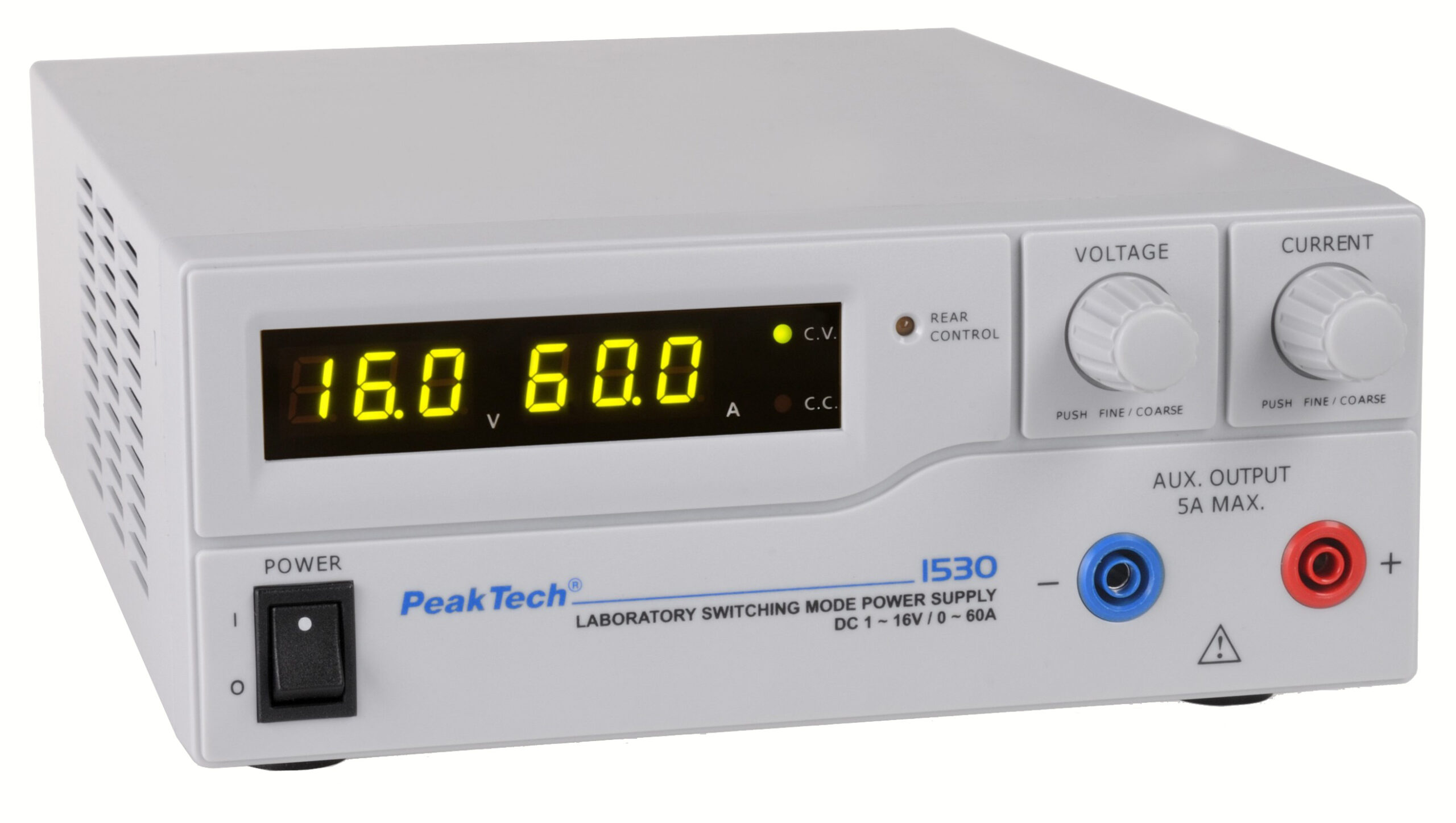

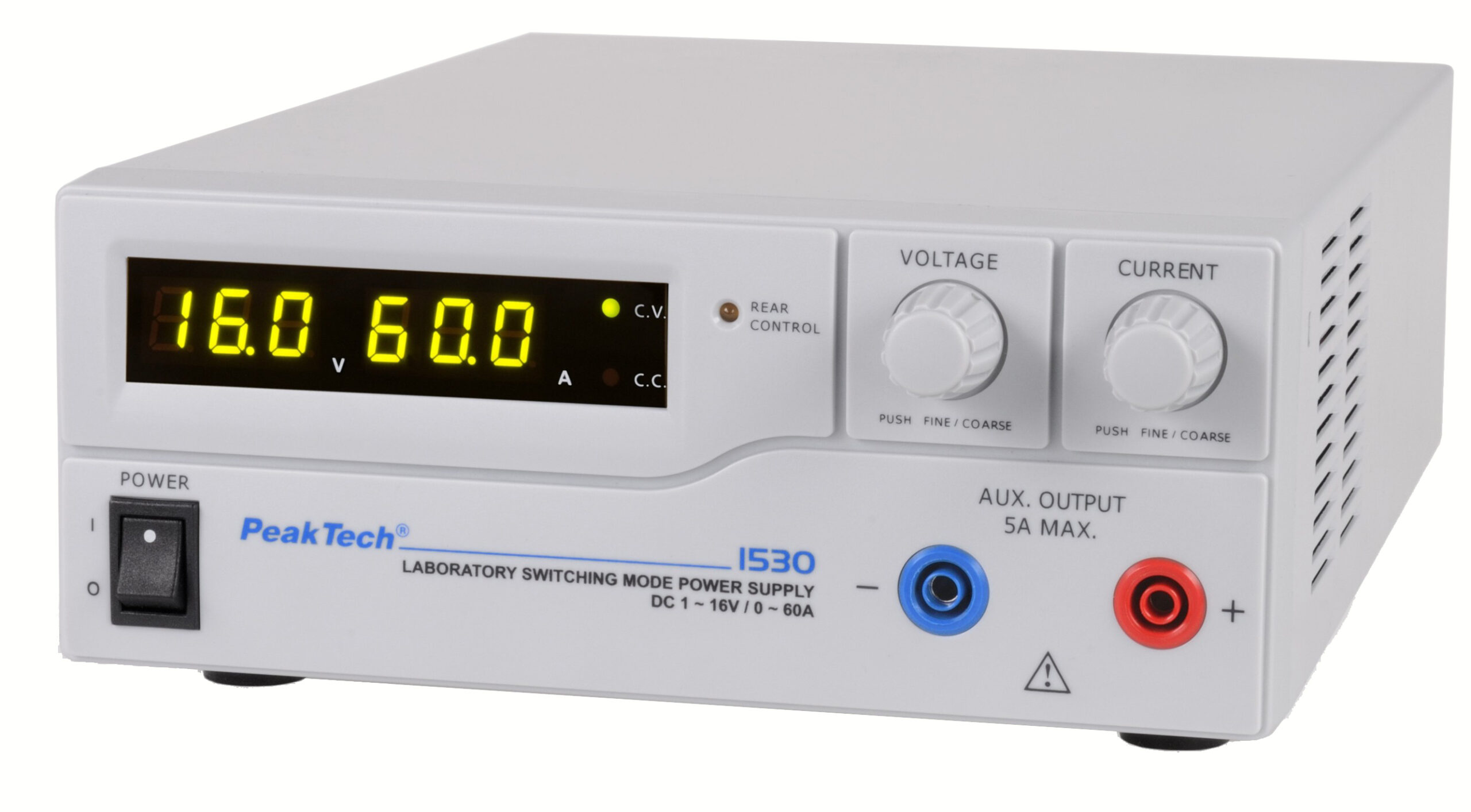

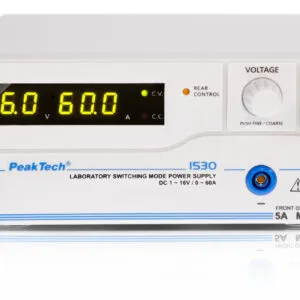

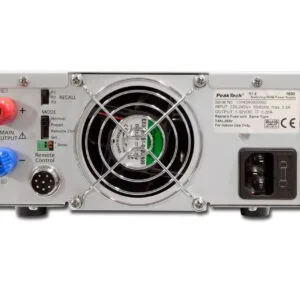

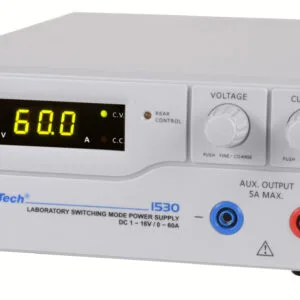

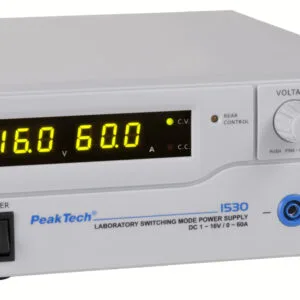

The PeakTech 1530 is a high-performance power supply for a maximum of 16V / 60A DC, equal to 960 W continuous power. The double function buttons (coarse and fine adjustment) allow an easy, precise and quick adjustment of the voltage and current values due to the rotary encoder and the microprocessor control. Alternatively, there is a connection socket on the back for analog remote control and a preset switch for three preset output values. The intelligent fan control adjusts the speed of rotation to the respective temperature and output power. The output voltage and current limit can also be set in the open circuit without a connected load. Thanks to its high performance and compact design, this power supply series is ideal for professional applications in industry and mechanical engineering.
| Channels: | 1 CH |
|---|---|
| Display Type: | Segment |
| Input connector: | IEC socket |
| Input voltage: | 230 VAC / 50 Hz |
| Output Connection: | 4 mm Plug, Pole terminal (rear) |
| Output Current: | 0 – 60 A |
| Output Voltage: | 1 – 16 V DC |
