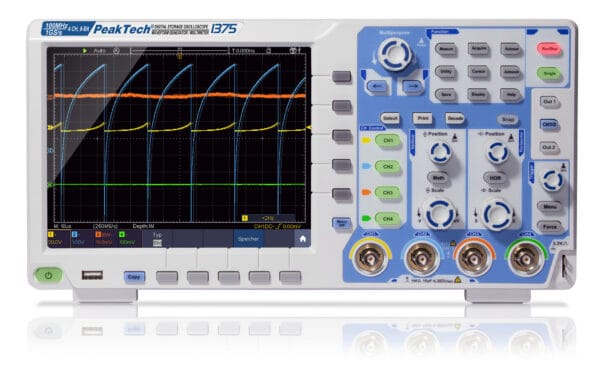

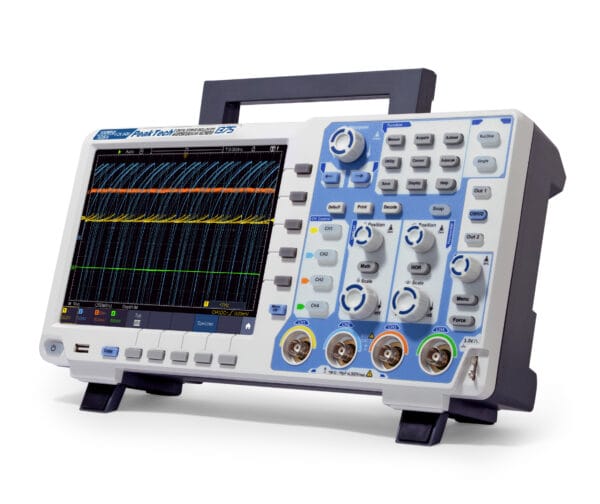

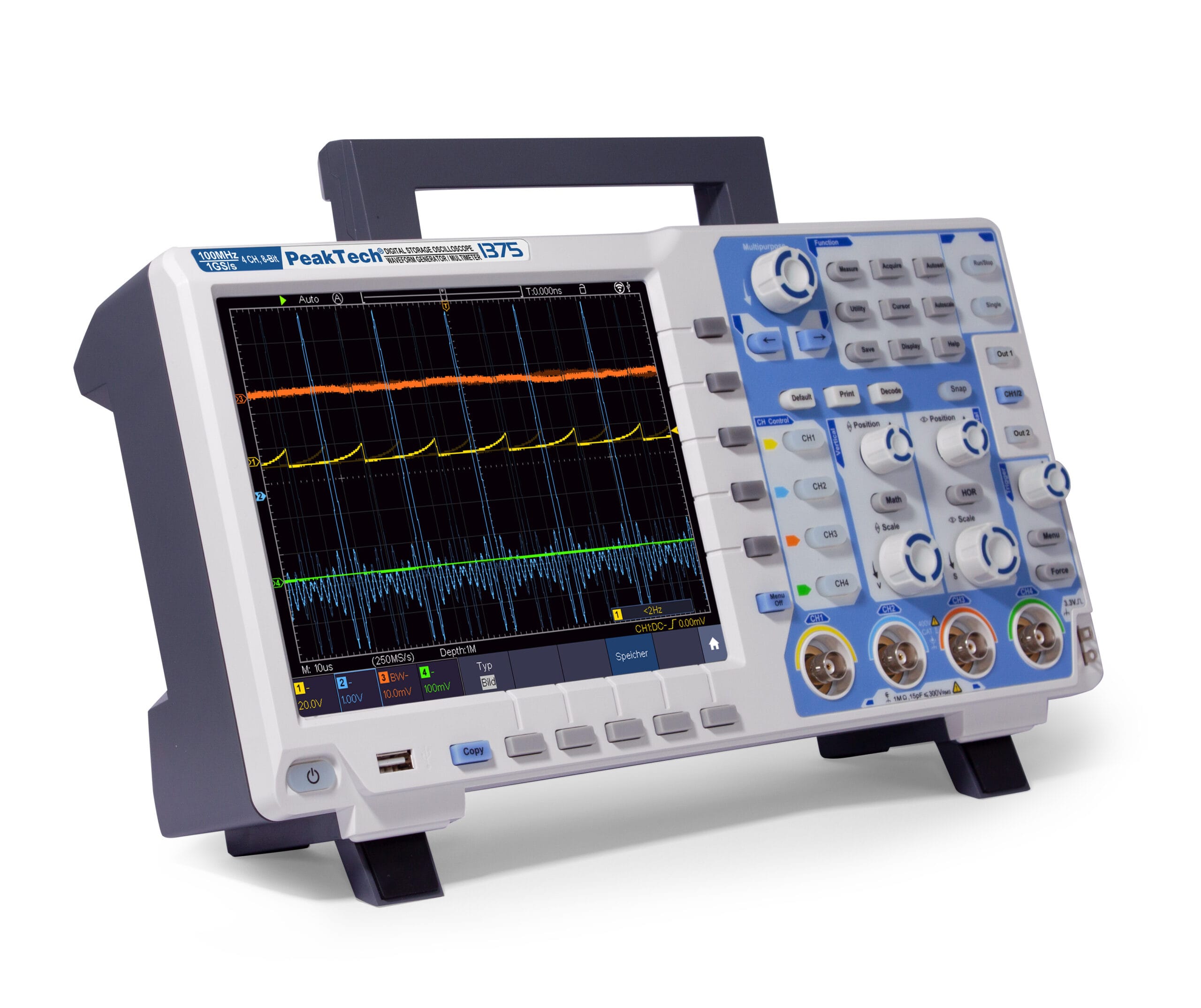

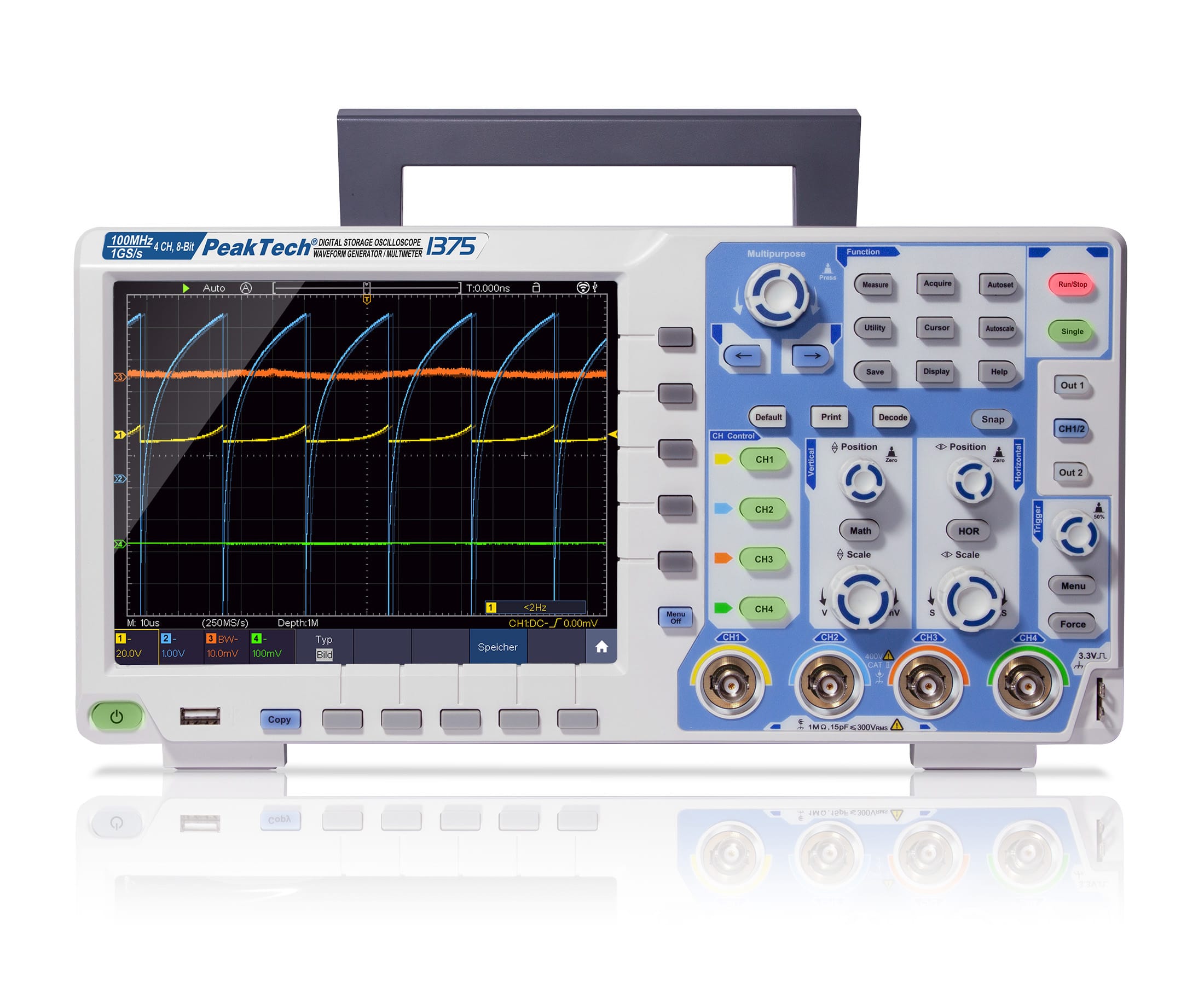

The PeakTech 1375 is a 100 MHz 4-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touchscreen and extensive additional functions. It has a sampling rate of up to 1 GS / s and convinces with its high quality and easy handling with the best price / performance ratio. The many functions can be controlled using the function keys and rotary controls or via a comfortable touchscreen operation. With its integrated 2-channel 25 MHz arbitrary waveform generator and the 4000 counts multimeter for voltage, current and resistance measurements, this all-in-one device can be used as a mobile workplace in the laboratory, service and industry. The integrated decoders for CAN bus, RS-232, I2C and SPI enable analysis of bus signals.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| Sampling 4 CH: | 250 MS/s |
| USB: | ■ |
| Bandwidth: | 100 MHz |

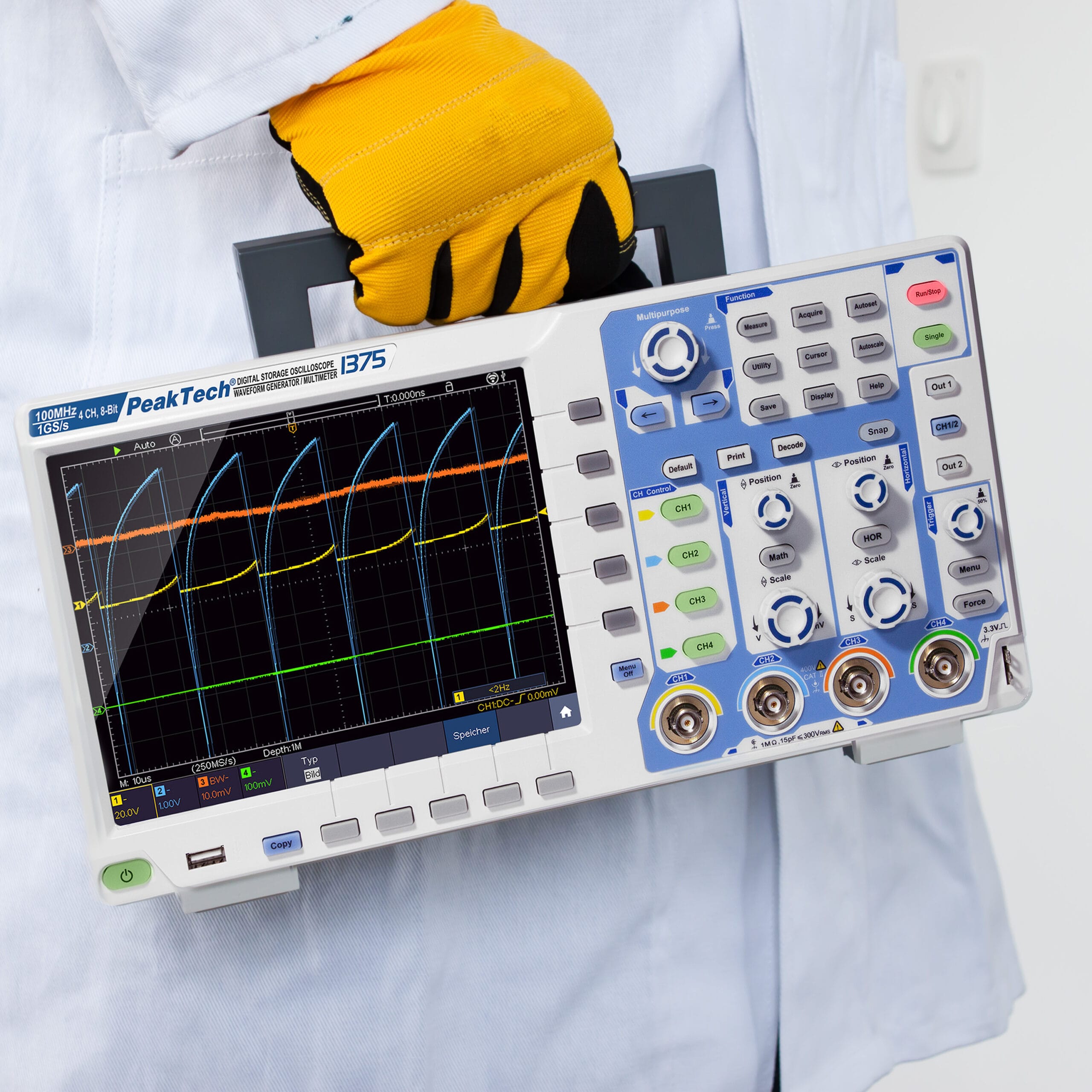

| Battery: | Li-Po 13200 mAh (optional) |
| Channels: | 4 CH |
| Display Type: | Touchscreen TFT |
| Hor. scale max.: | 1000 s/div |
| Hor. scale min.: | 1 ns/div |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 40.000.000 Points |
| Resolution: | 800 x 600 Pixel |
| Rise Time: | <, 1.7 ns |
| Screen size (TFT): | 20 cm (8″) |
| VGA: | ■ |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 10 V/div |
| Vert. scale min.: | 2 mV/div |
| WiFi: | ■ |
| Integr. AWG: | ■ |
| Integr. DMM: | ■ |
