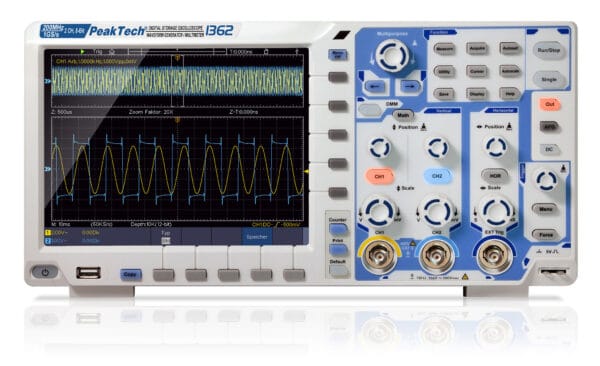

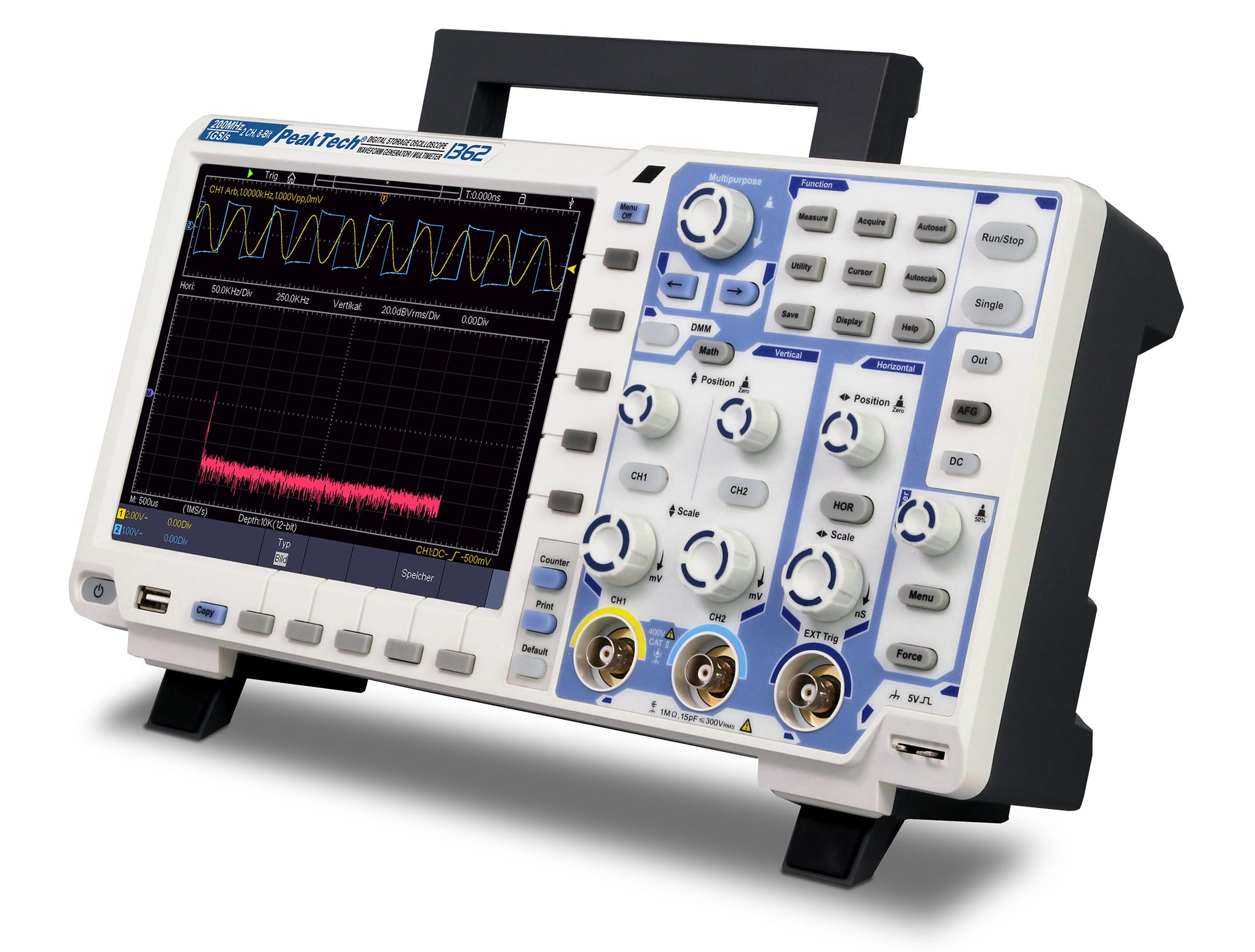

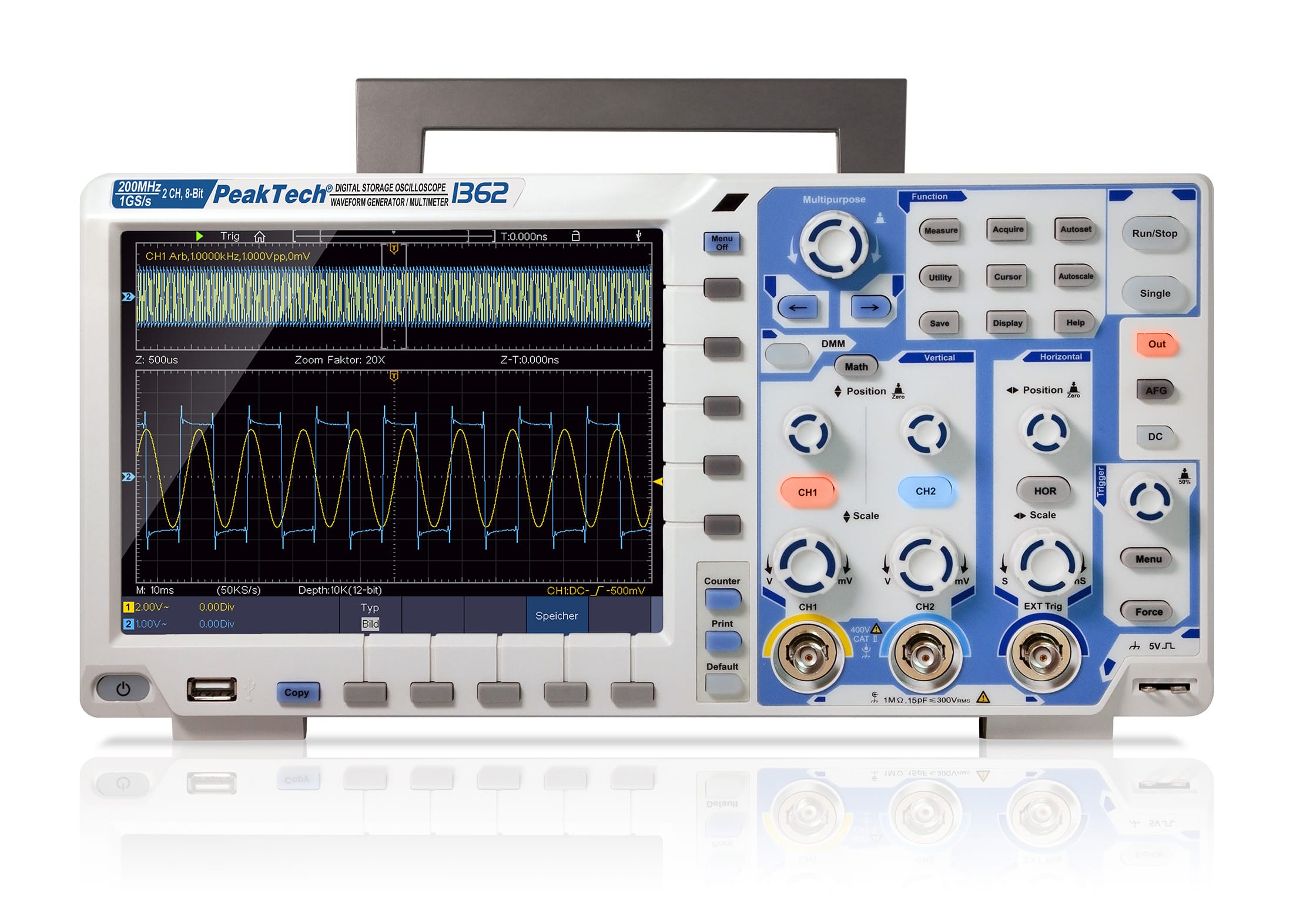

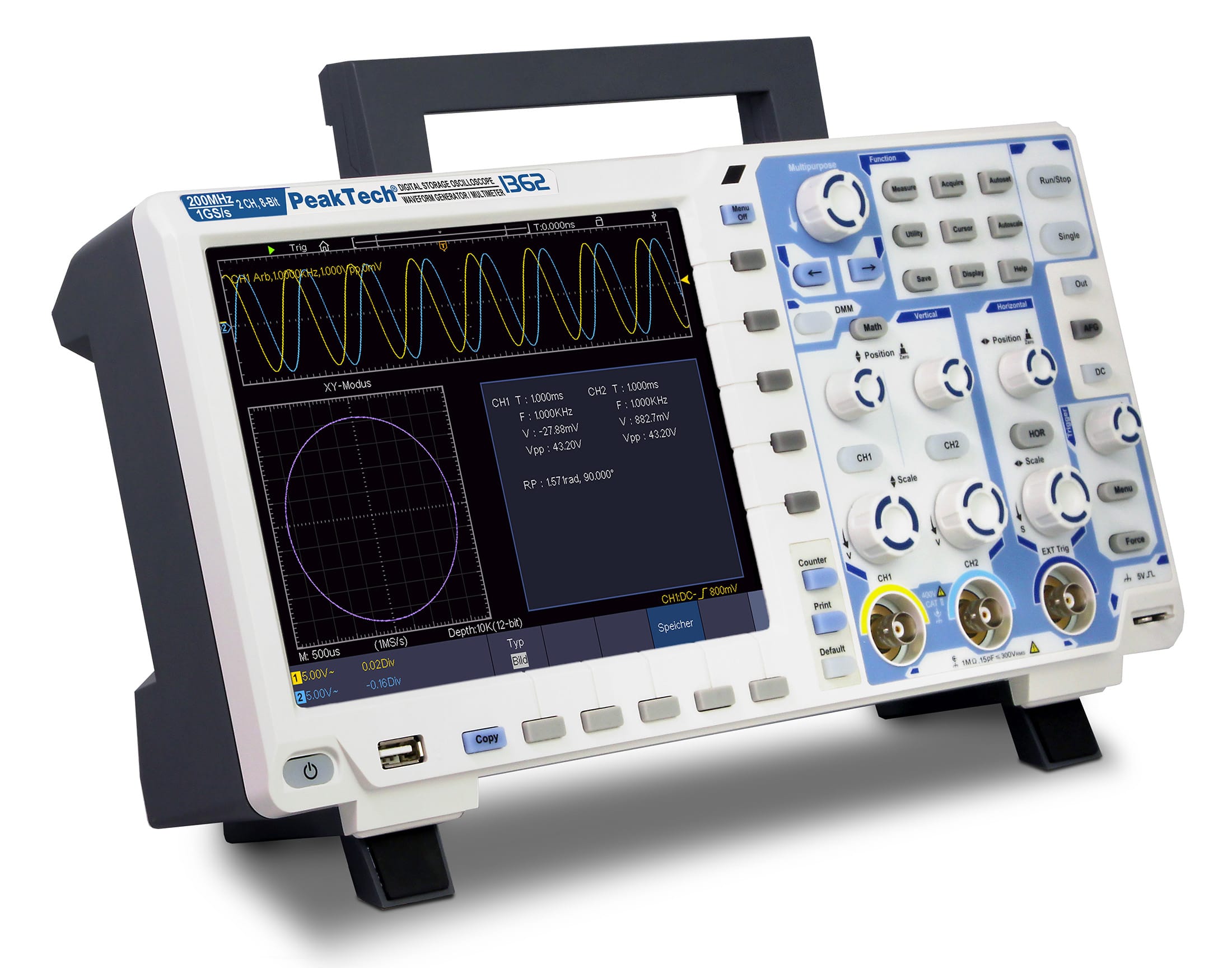

The PeakTech 1362 is a 200 MHz 2-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touchscreen and extensive additional functions. It has a sampling rate of up to 2 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. The many functions can be controlled with the function keys and rotary controls or via a comfortable touchscreen operation. For example, select the menus, time base, sensitivity, or active signal line displayed on the screen. The zoom function or file management with the keyboard field displayed can also be operated using the touchscreen. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner.
| Sampling 1 CH: | 2 GS/s |
|---|---|
| Sampling 2 CH: | 1 GS/s |
| USB: | ■ |
| Bandwidth: | 200 MHz |
| Battery: | Li-Po 13200 mAh (optional) |
| Channels: | 2 CH |
| Display Type: | Touchscreen TFT |
| Hor. scale max.: | 1000 s/div |
| Hor. scale min.: | 1 ns/div |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 40.000.000 Points |
| Resolution: | 800 x 600 Pixel |
| Rise Time: | <, 1.75 ns |
| Screen size (TFT): | 20 cm (8″) |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 10 V/div |
| Vert. scale min.: | 1 mV/div |
| WiFi: | ■ |
| Integr. AWG: | ■ |
| Integr. DMM: | ■ |
