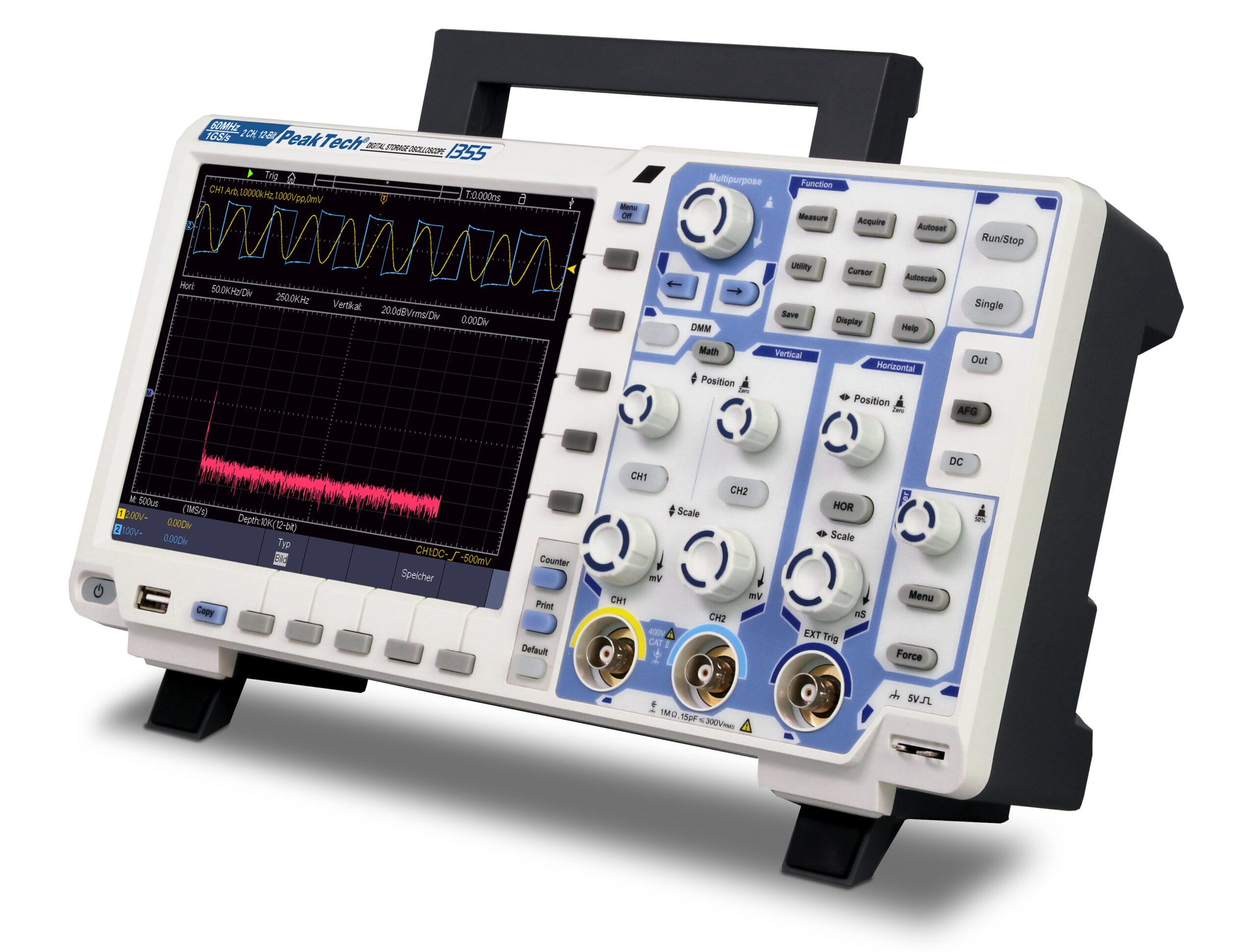

The PeakTech 1355 is a 60 MHz 2-channel digital storage oscilloscope of the latest generation with a high-resolution TFT touchscreen and extensive additional functions. It has a sampling rate of up to 1 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. Due to the 12-bit A / D converter used, this model has a 16 times higher resolution compared to an 8-bit oscilloscope, which ensures a much finer waveform resolution and allows the user to find even the smallest deviations. The many functions can be controlled either with the function keys and rotary controls or via a comfortable touchscreen operation. For mobile use, an optionally available battery can be installed, which supplies the oscilloscope over the entire working day without an additional mains connection.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| USB: | ■ |
| Bandwidth: | 60 MHz |
| Battery: | Li-Po 13200 mAh (optional) |
| Channels: | 2 CH |
| Display Type: | Touchscreen TFT |
| Hor. scale max.: | 100 s/div |
| Hor. scale min.: | 2 ns/div |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 40.000.000 Points |
| Resolution: | 800 x 600 Pixel |
| Rise Time: | <, 5.8 ns |
| Screen size (TFT): | 20 cm (8″) |
| VGA: | ■ |
| Vert. resolution: | 12 Bit |
| Vert. scale max.: | 10 V/div |
| Vert. scale min.: | 1 mV/div |
