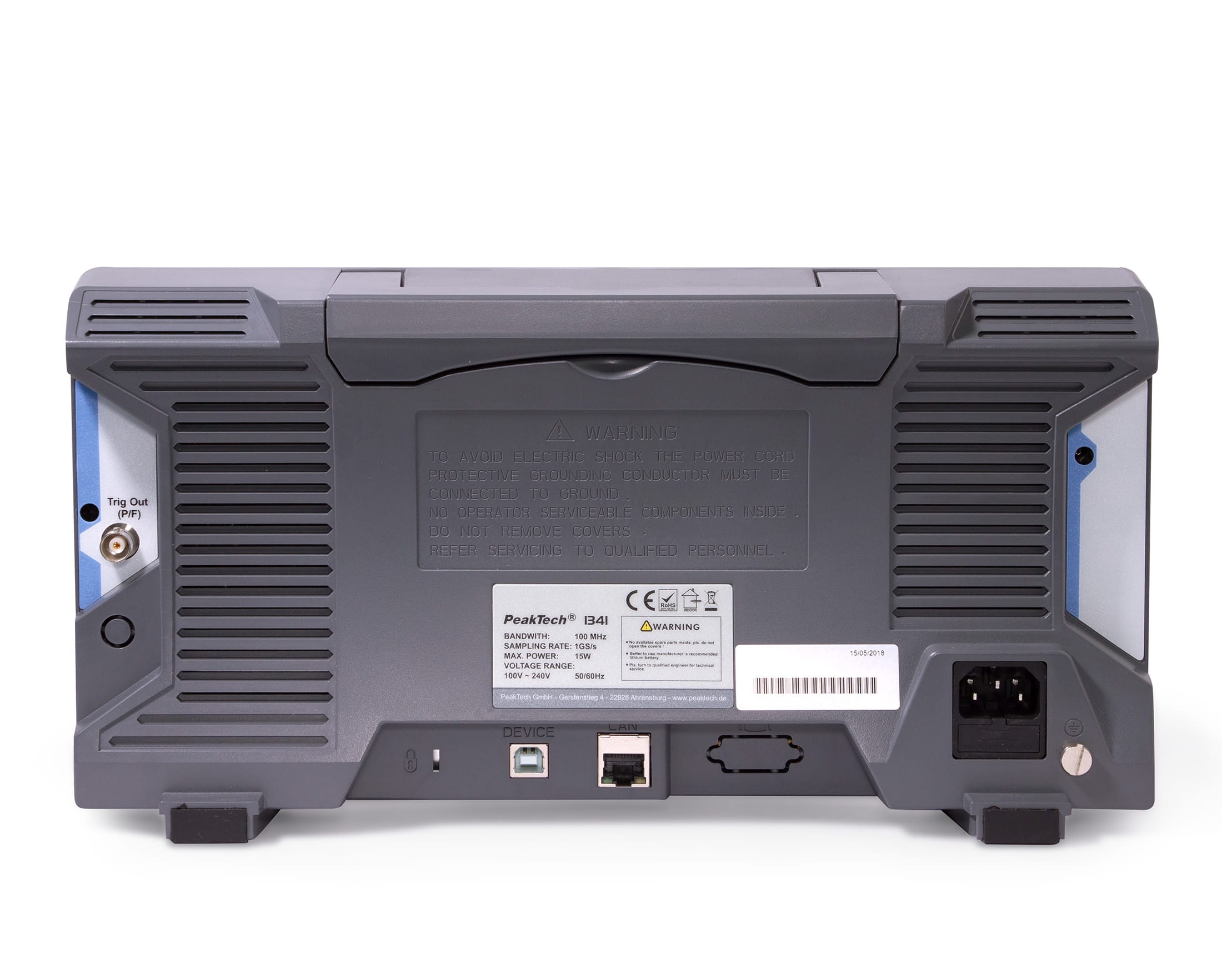

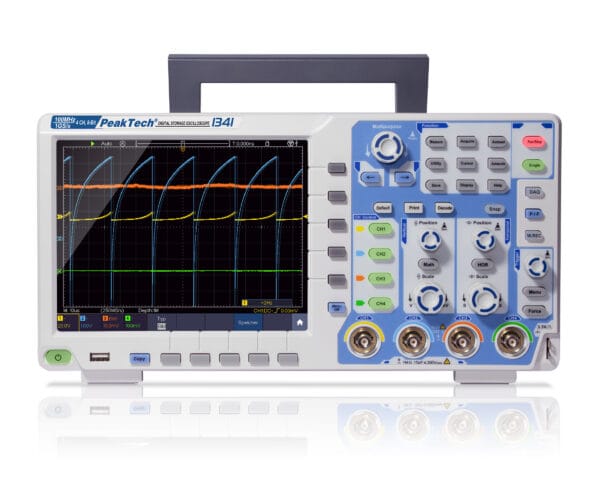

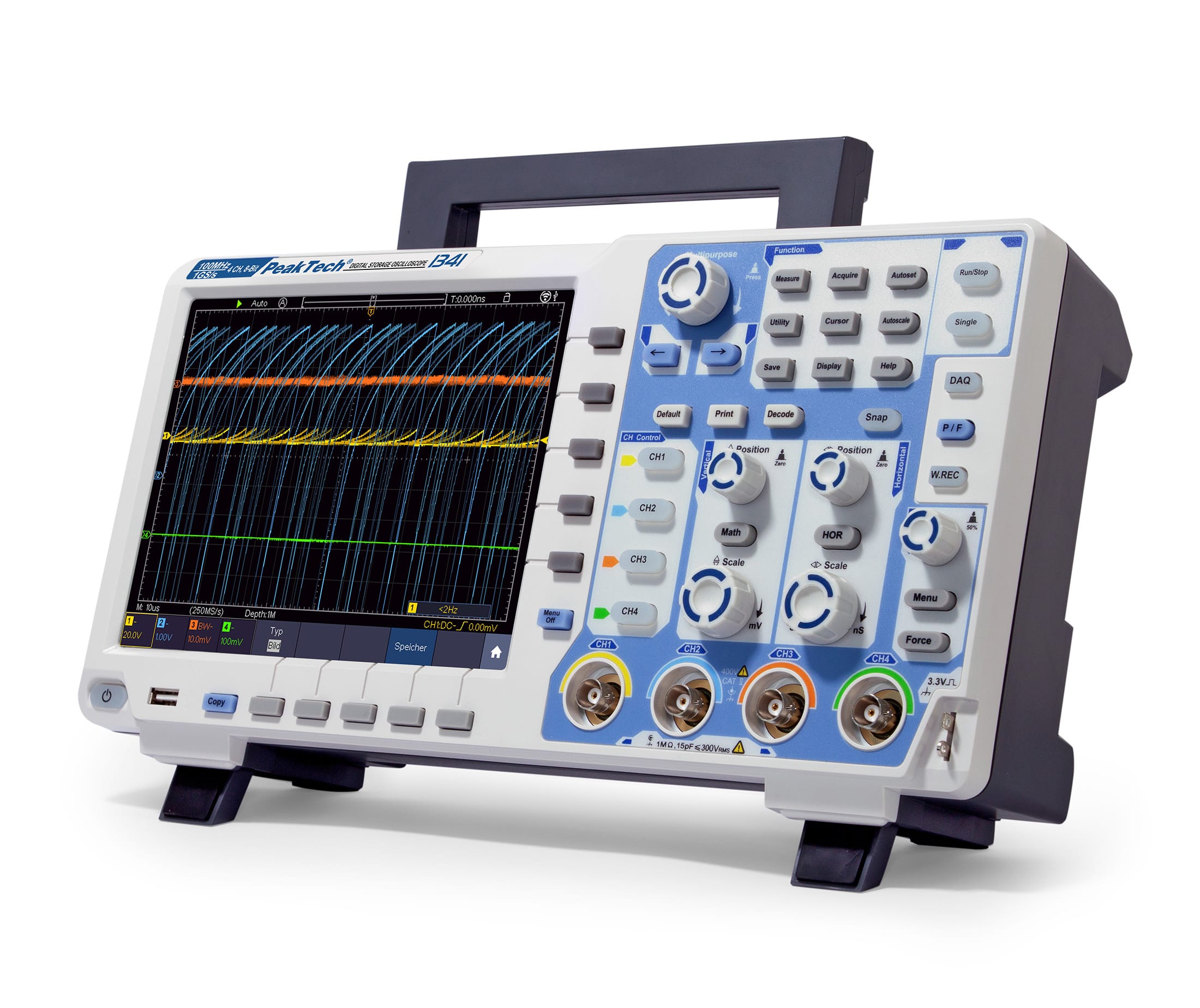

The PeakTech 1341 is a 100 MHz 4-channel digital storage oscilloscope of the latest generation with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 1 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. Of course, all models in this series have an XY mode and an FFT function as well as an integrated frequency counter. The data can be transferred to the PC via a LAN connection or the USB interface, whereby waveforms can also be saved on a USB memory stick while on the move. For this mobile use, an optionally available battery can be installed, which supplies the oscilloscope over the entire working day without an additional power connection.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| Sampling 4 CH: | 250 MS/s |
| USB: | ■ |
| Bandwidth: | 100 MHz |
| Battery: | Li-Po 13200 mAh (optional) |
| Channels: | 4 CH |
| Display Type: | Color-TFT |
| Hor. scale max.: | 1000 s/div |
| Hor. scale min.: | 2 ns/div |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 40.000.000 Points |
| Resolution: | 800 x 600 Pixel |
| Rise Time: | <, 3.5 ns |
| Screen size (TFT): | 20 cm (8″) |
| VGA: | ■ |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 10 V/div |
| Vert. scale min.: | 1 mV/div |
