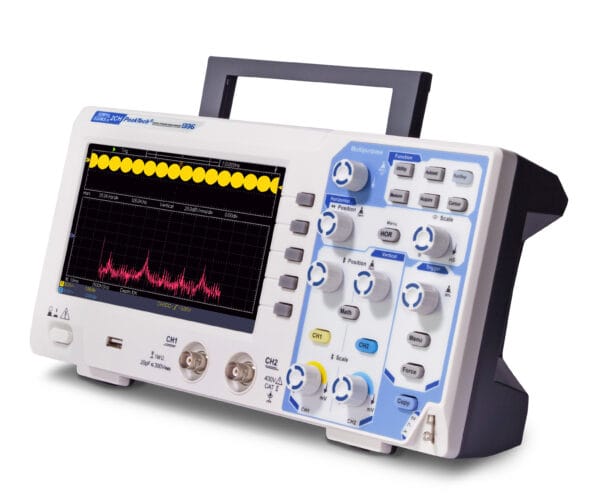

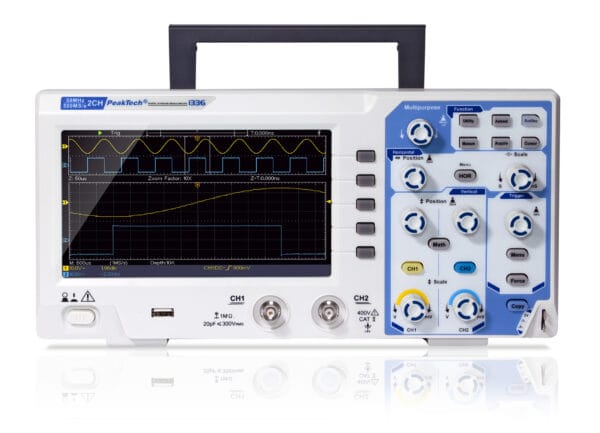

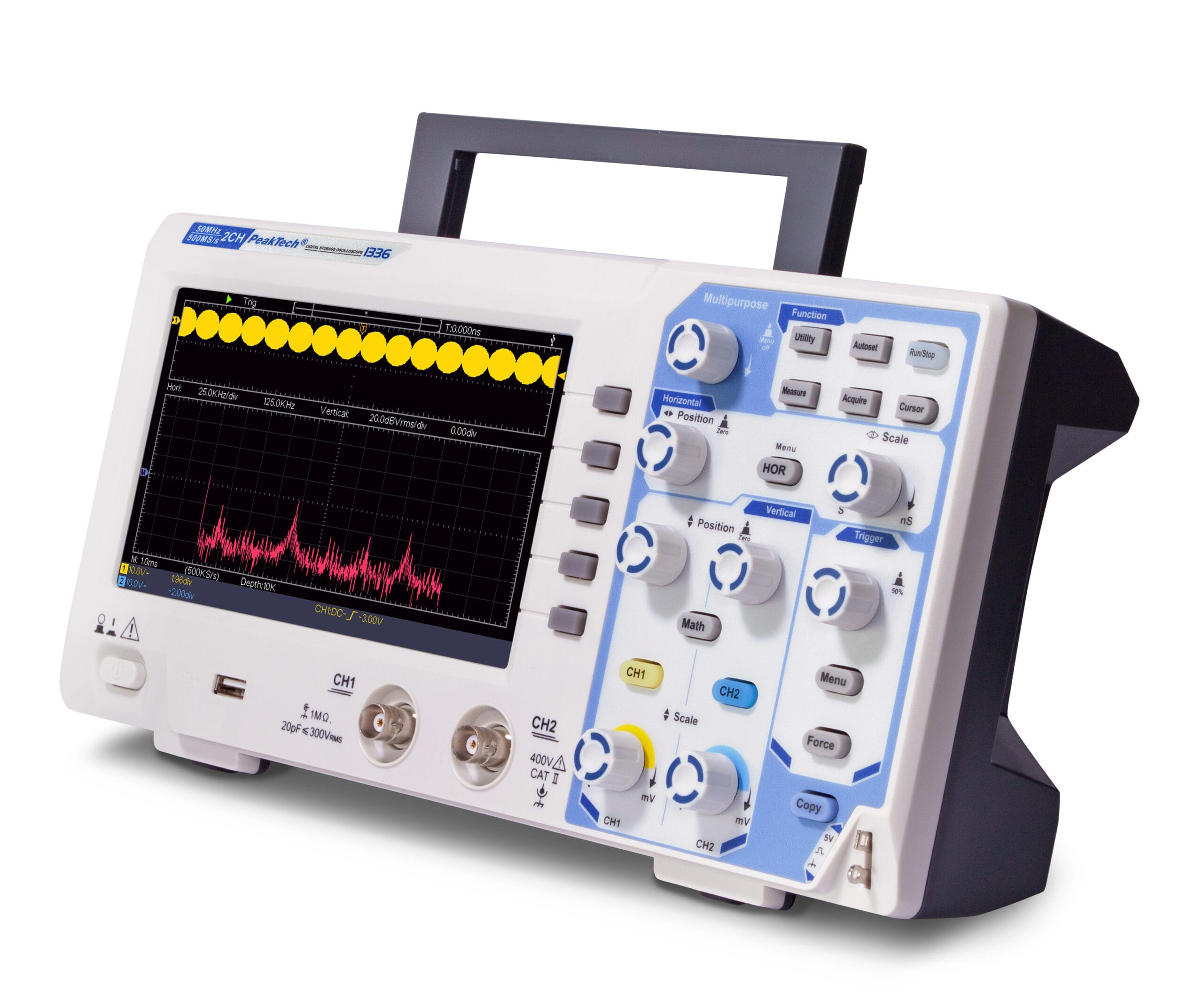

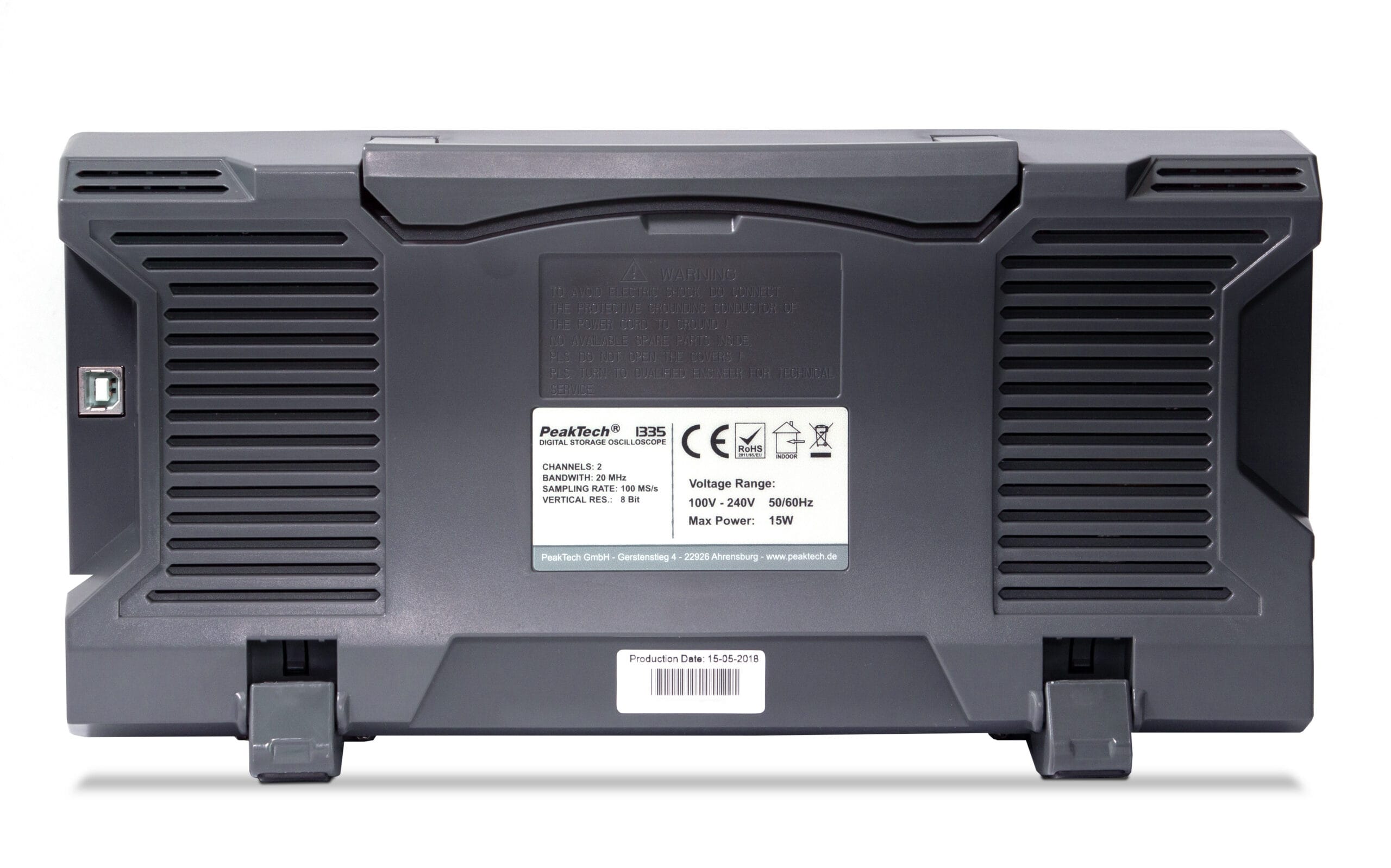

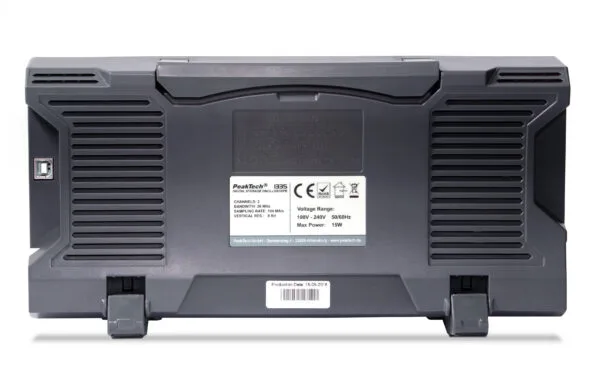

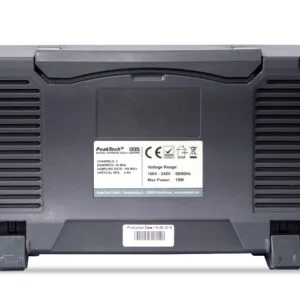

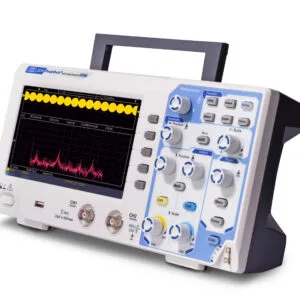

The PeakTech 1336 is an affordable 50 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 500 MS / s and convinces with its high quality and easy handling with the best price / performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, however, the scaling of the time base can be adjusted in a user-friendly manner.
| Sampling 1 CH: | 500 MS/s |
|---|---|
| Sampling 2 CH: | 250 MS/s |
| USB: | ■ |
| Bandwidth: | 50 MHz |
| Channels: | 2 CH |
| Display Type: | Color-TFT |
| Hor. scale max.: | 1000 s/div |
| Hor. scale min.: | 5 ns/div |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 10.000 Points |
| Resolution: | 800 x 480 Pixel |
| Rise Time: | <, 7 ns |
| Screen size (TFT): | 17,5 cm (7″) |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 5 V/div |
| Vert. scale min.: | 5 mV/div |
