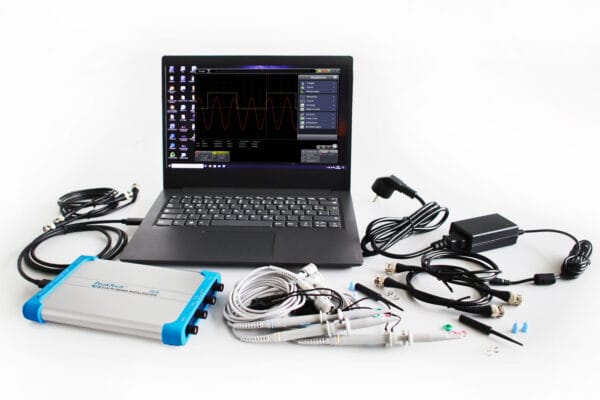

This powerful 4-channel oscilloscope is ideal for mobile use on a laptop or for permanent installation in control cabinets. For fast display of any incoming waveform, just press the Autoset button and the oscilloscope itself will search for the best possible display. With Autoscale, on the other hand, the scaling of the time base can be adjusted in a user-friendly way. All oscilloscope functions are controlled via the comprehensive software. Various triggers, channel settings, measurement functions, sampling, cursor and mathematical functions can be set. Data transfer to the PC takes place via an isolated LAN connection or the USB interface, whereby the unit is directly supplied with the necessary voltage via USB.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| Sampling 4 CH: | 250 MS/s |
| USB: | ■ (isoliert) |
| Bandwidth: | 100 MHz |
| Channels: | 4 CH |
| Hor. scale max.: | 100 s/div |
| Hor. scale min.: | 1 ns/div |
| Memory depth: | 10.000.000 Points |
| Rise Time: | <, 3.5 ns |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 5 V/div |
| Vert. scale min.: | 2 mV/div |
