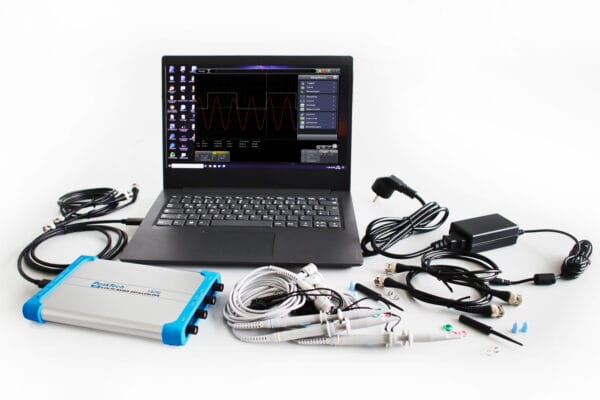

This powerful 4-channel oscilloscope is ideal for mobile use on a laptop or permanent installation in control cabinets. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, the scaling of the time base can be adjusted in a user-friendly manner. The data can be transferred to the PC via an isolated LAN connection or the USB interface, whereby the device is supplied with the necessary voltage directly via USB.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| Sampling 4 CH: | 250 MS/s |
| USB: | ■ (isoliert) |
| Bandwidth: | 70 MHz |
| Channels: | 4 CH |
| Hor. scale max.: | 100 s/div |
| Hor. scale min.: | 1 ns/div |
| Memory depth: | 10.000.000 Points |
| Rise Time: | <, 5 ns |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 5 V/div |
| Vert. scale min.: | 2 mV/div |
