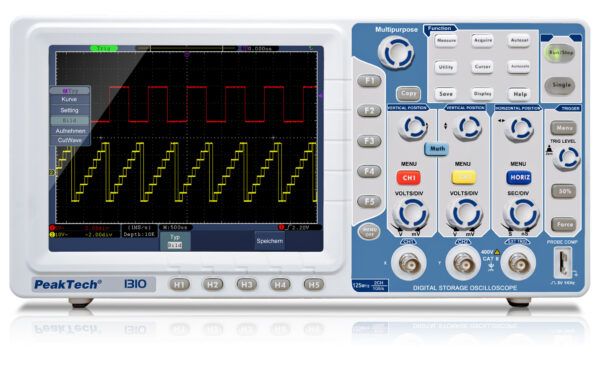

The PeakTech 1310 is an affordable 125 MHz 2-channel digital storage oscilloscope with a high-resolution TFT color display and extensive additional functions. It has a sampling rate of up to 1 GS/s and convinces with its high quality and easy handling with the best price / performance ratio. To quickly display each incoming waveform, simply press the Autoset key and the oscilloscope itself searches for the best possible display. With Autoscale, the scaling of the time base can be adjusted in a user-friendly manner. The data can be transferred to the PC via a LAN connection or the USB interface, whereby waveforms can also be saved on a USB memory stick while on the move.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| USB: | ■ |
| Bandwidth: | 125 MHz |
| Channels: | 2 CH |
| Display Type: | Color-TFT |
| Hor. scale max.: | 100 s/div |
| Hor. scale min.: | 2 ns/div |
| LAN: | ■ |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 100.000 Points |
| Resolution: | 800 x 600 Pixel |
| Rise Time: | <, 2.8 ns |
| Screen size (TFT): | 20 cm (8″) |
| VGA: | ■ |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 5 V/div |
| Vert. scale min.: | 5 mV/div |
