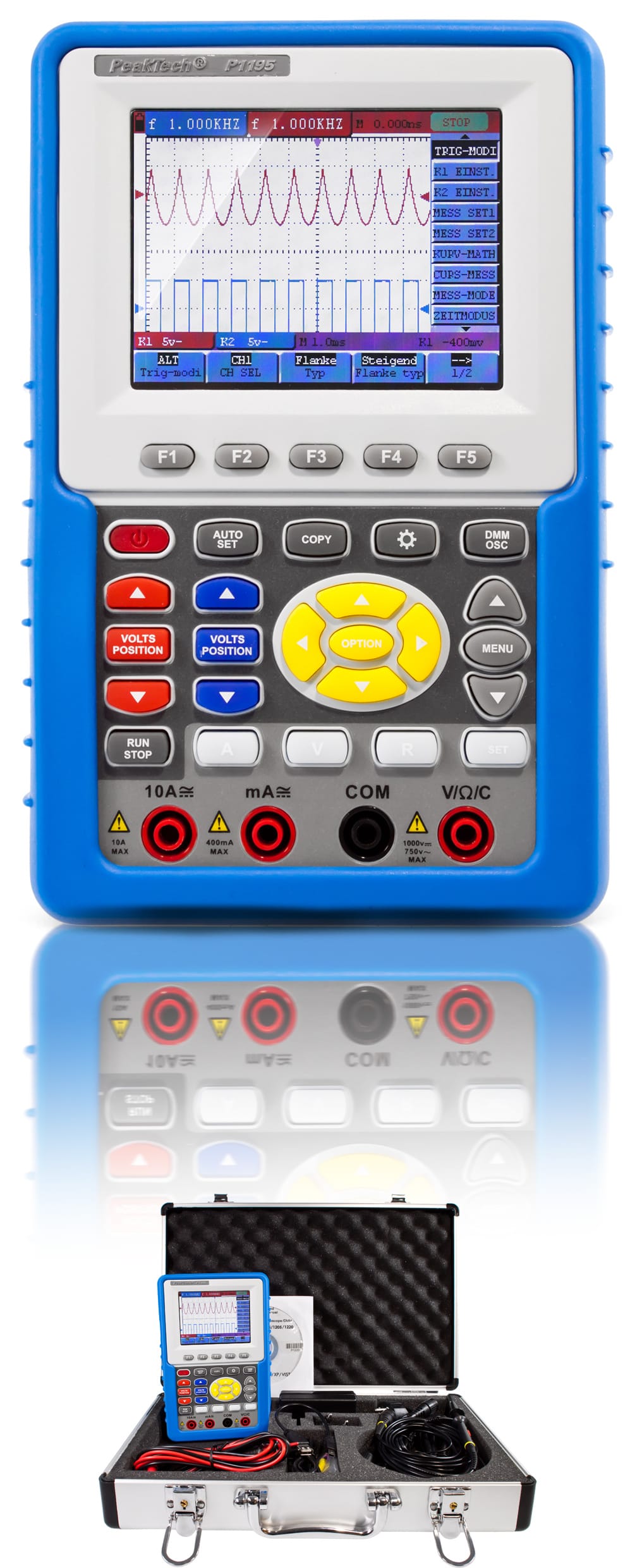

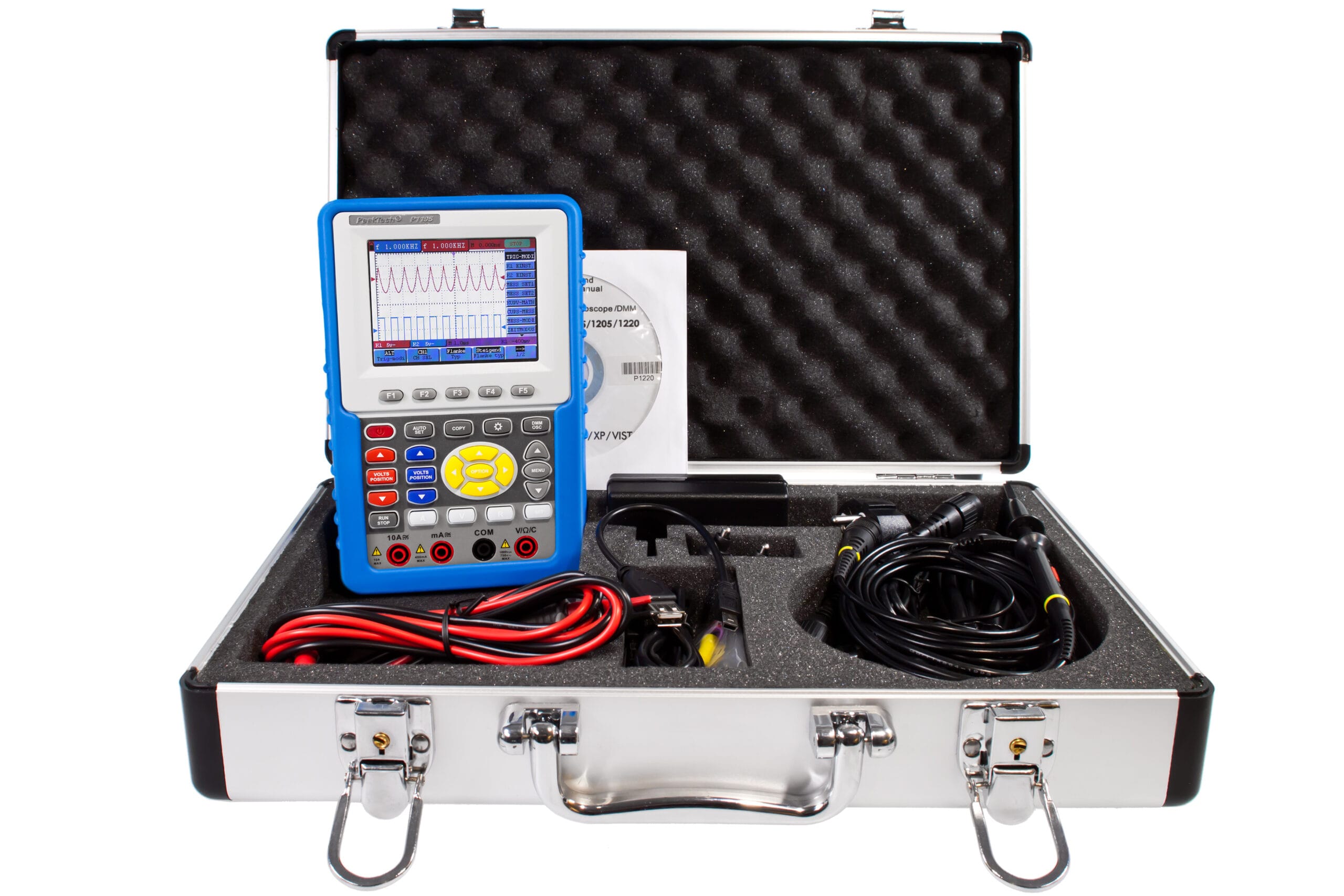

The PeakTech 1195 is a combination of a digital storage oscilloscope with two channels via BNC sockets and 100 MHz bandwidth and a digital multimeter with 4mm safety sockets for measurements of direct and alternating voltage, direct and alternating current, capacitance and resistance. The display of the True RMS multimeter shows 4000 digital digits and has an additionally simulated analog scale with pointer, which switches automatically depending on the measuring function and range. Measurement data from the oscilloscope and the multimeter can be recorded using a USB stick and can be evaluated on the PC using the included software. The control of all measurement functions is user-friendly via a graphical user interface and it is available in various system languages, which are shown on the large color display with 640×480 pixels.
| Sampling 1 CH: | 1 GS/s |
|---|---|
| Sampling 2 CH: | 500 MS/s |
| USB: | ■ |
| Bandwidth: | 100 MHz |
| Battery: | Li-Po 7,4 V 3500 mAh |
| Channels: | 2 CH |
| Display Type: | Color-TFT |
| Hor. scale max.: | 100 s/div |
| Hor. scale min.: | 5 ns/div |
| Mains voltage: | 110/240 V AC, 50/60 Hz |
| Memory depth: | 6.000 Points |
| Resolution: | 640 x 480 Pixel |
| Rise Time: | <, 3.5 ns |
| Screen size (TFT): | 9,7cm (3,8″) |
| Vert. resolution: | 8 Bit |
| Vert. scale max.: | 5 V/div |
| Vert. scale min.: | 5 mV/div |
| Integr. DMM: | ■ |
