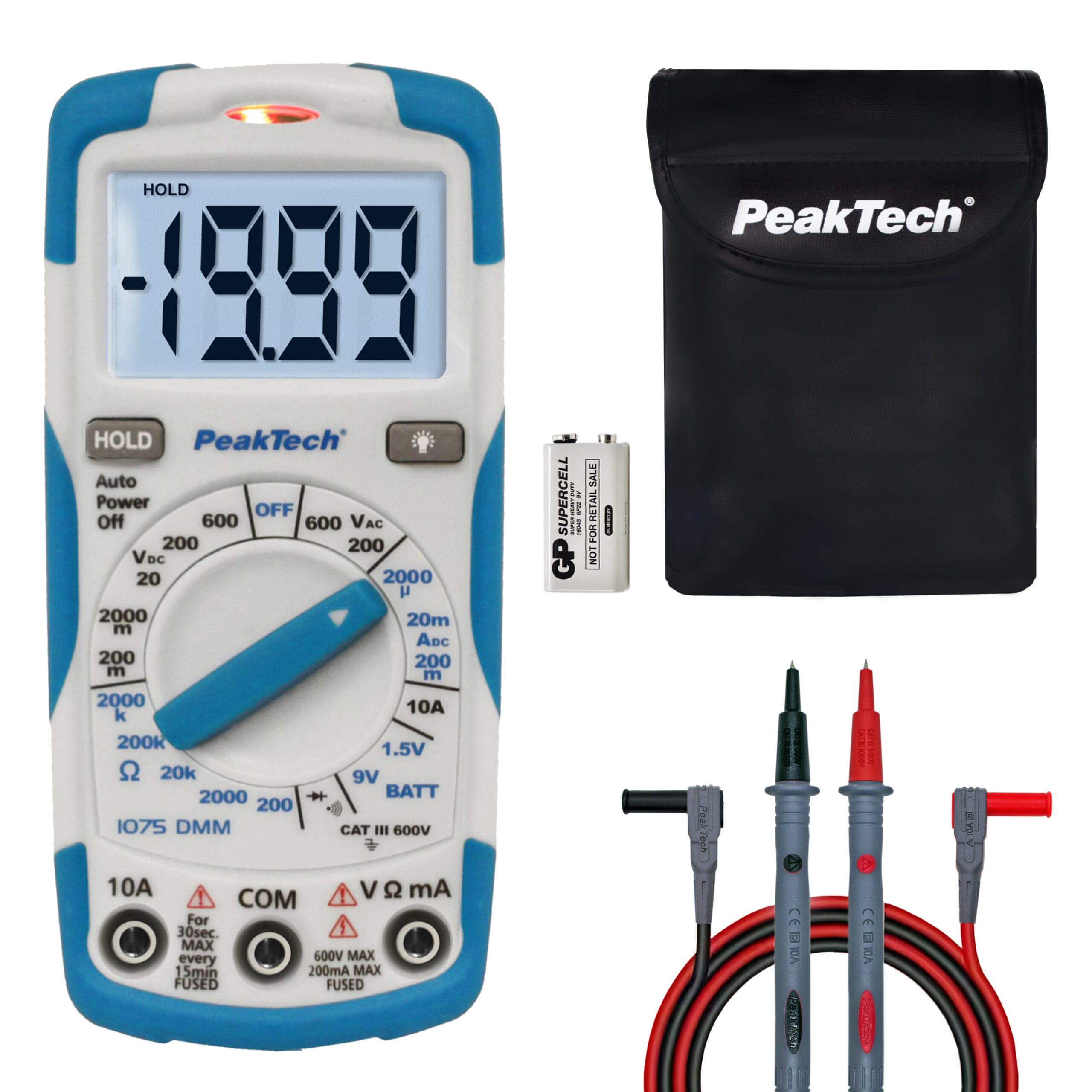

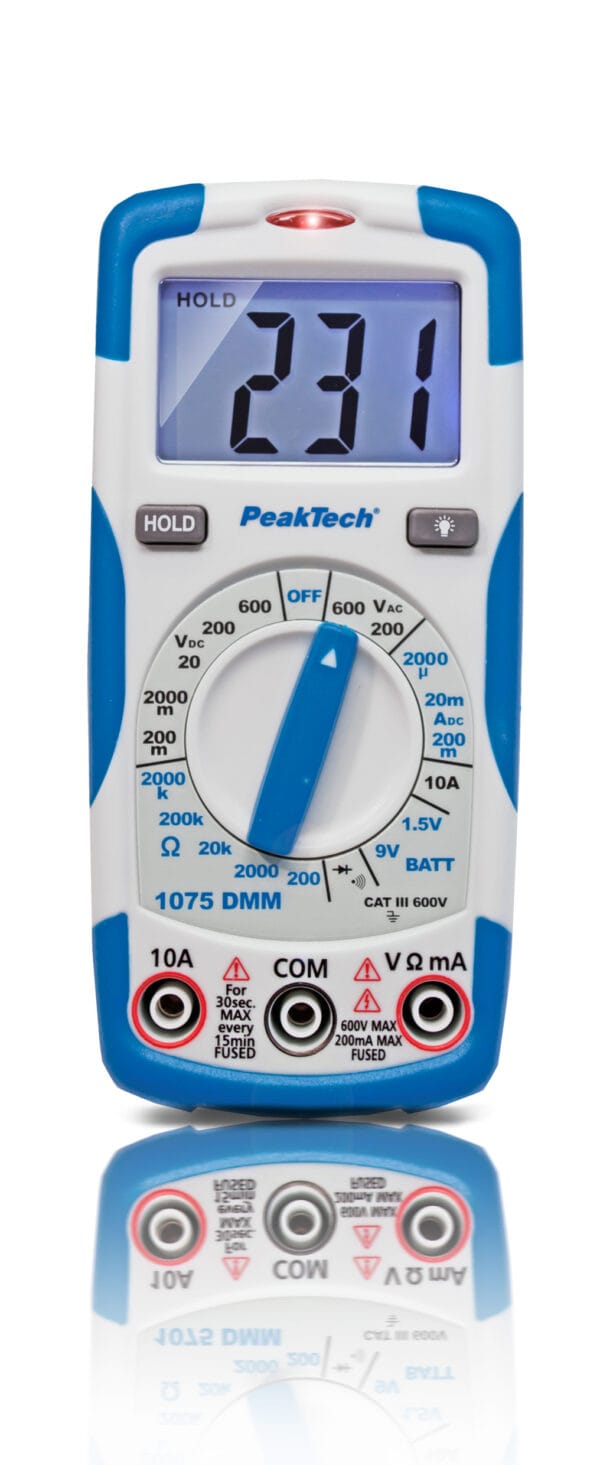

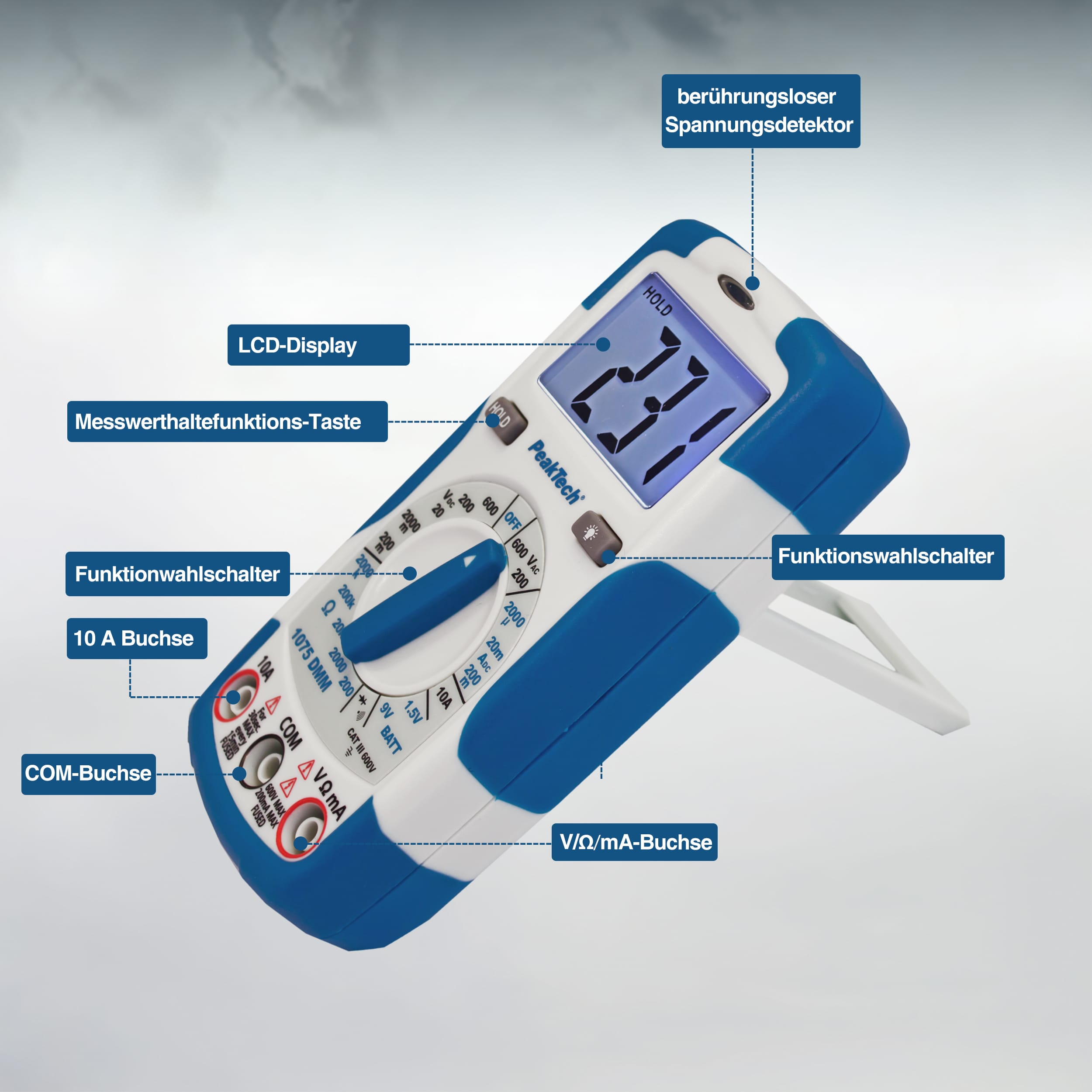

The PeakTech 1075 is a compact handheld multimeter with a 3 1/2-digit LCD display, which is easy to read thanks to its large segments and the integrated backlight. In addition to the extensive measurement functions for direct and alternating voltage, direct current and resistance, this model has a fast-reacting continuity test with an acoustic signal and a diode test. In addition, a non-contact voltage tester (NCV) is integrated on the front to check quickly that a conductor is de-energized. The measuring range is selected manually, which means that this measuring device displays a measured value particularly quickly. The integrated battery test function enables a more precise test of 1.5V and 9V batteries than a pure voltage test, since a small load resistance leads to a drop in the test voltage when the batteries are empty.
| Basic Accuracy DC: | +/- 0,5% |
|---|---|
| Battery Test: | 1,5V, 9V |
| Digital counts: | 2.000 |
| Display Type: | LCD |
| NCV: | ■ |
| Over voltage category: | CAT III 600 V |
| Range selection: | Manual |
| V DC max.: | 600V |
| OHM max.: | 2000 kΩ |
| mA DC max.: | 200mA |
| µA DC max.: | 2000 µA |
| V AC max.: | 600 V |
