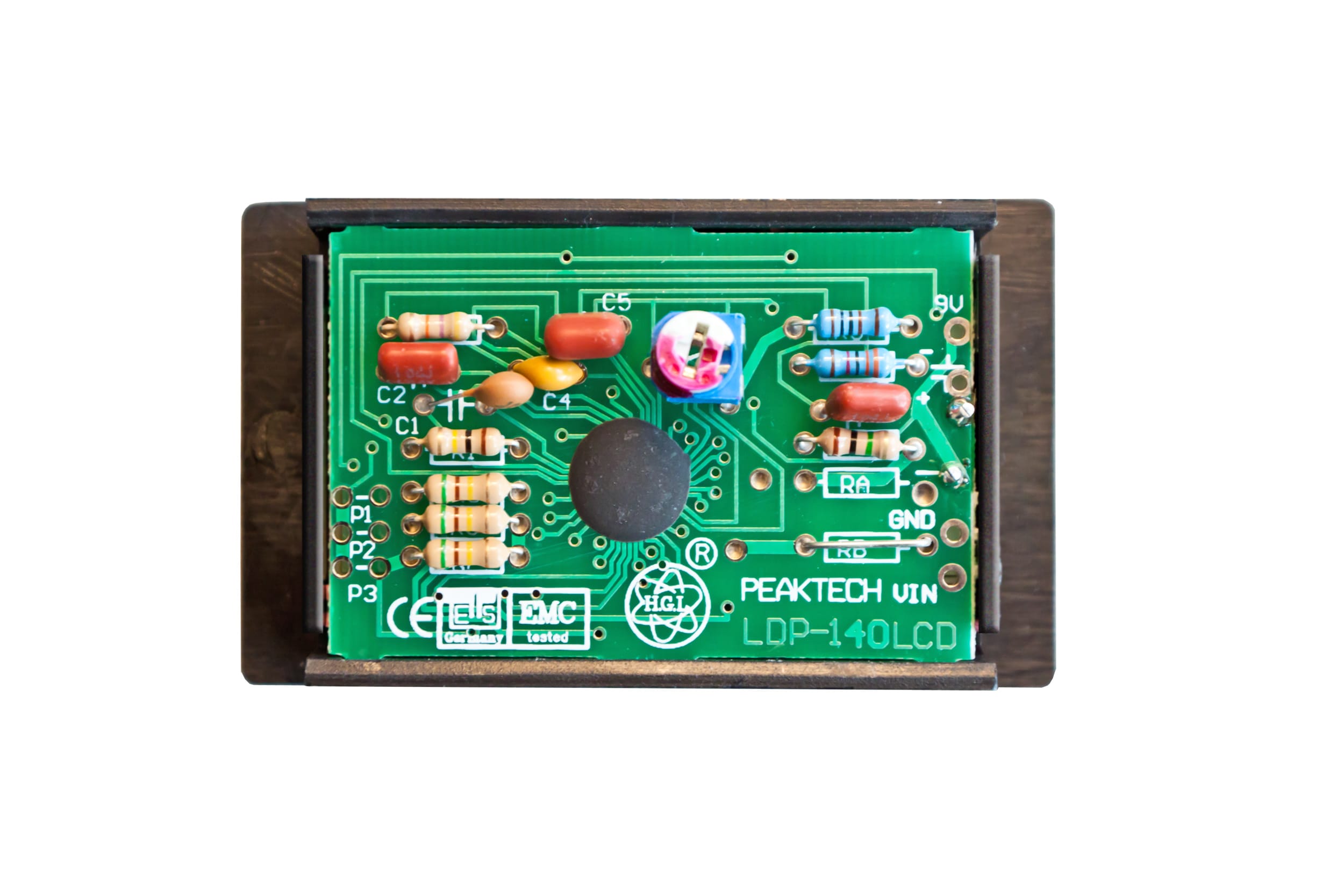

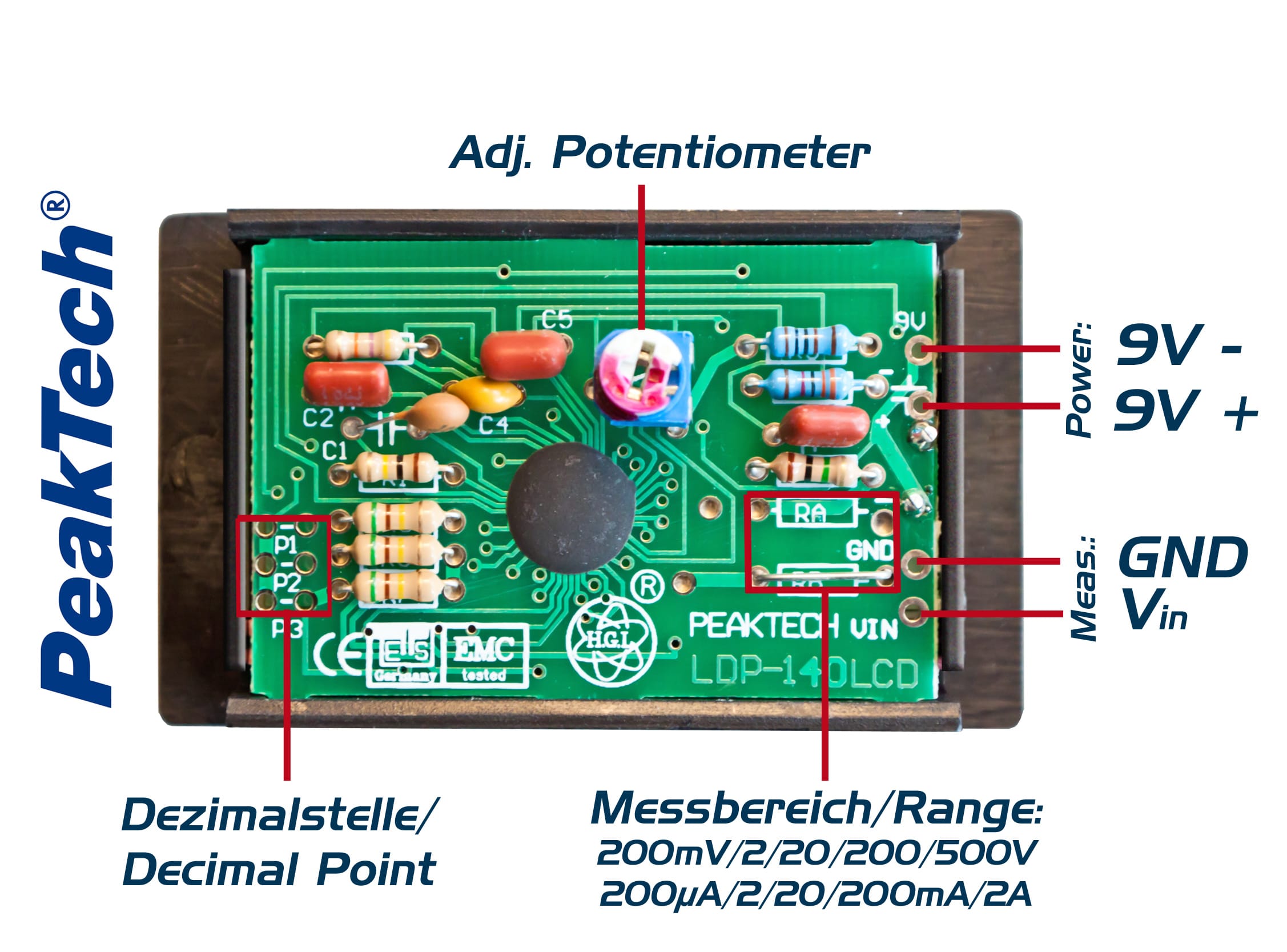

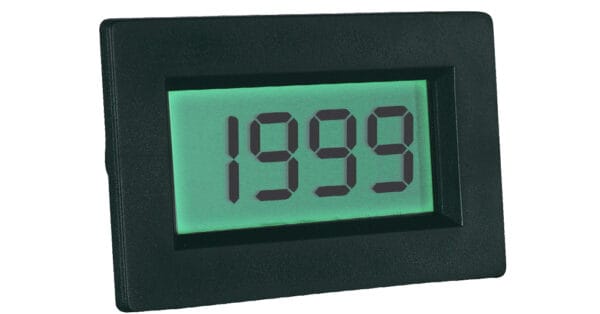

Practical built-in module as voltmeter with freely definable measuring range from 0 to 200mV, 2V, 20V, 200V or 500 V. Current measurements from 0 to 200µA, 2mA, 20mA, 200mA and 2A can be carried out via a shunt. With the snap-in frame, this inexpensive module can be integrated into any front panel of your own construction.
| Backlight: | ■ |
|---|---|
| Digital counts: | 2.000 |
| Display Type: | LCD |
| V DC max.: | 500V |
| mA DC max.: | 2000mA |
| mV DC max.: | 200 mV |
| µA DC max.: | 200 µA |
