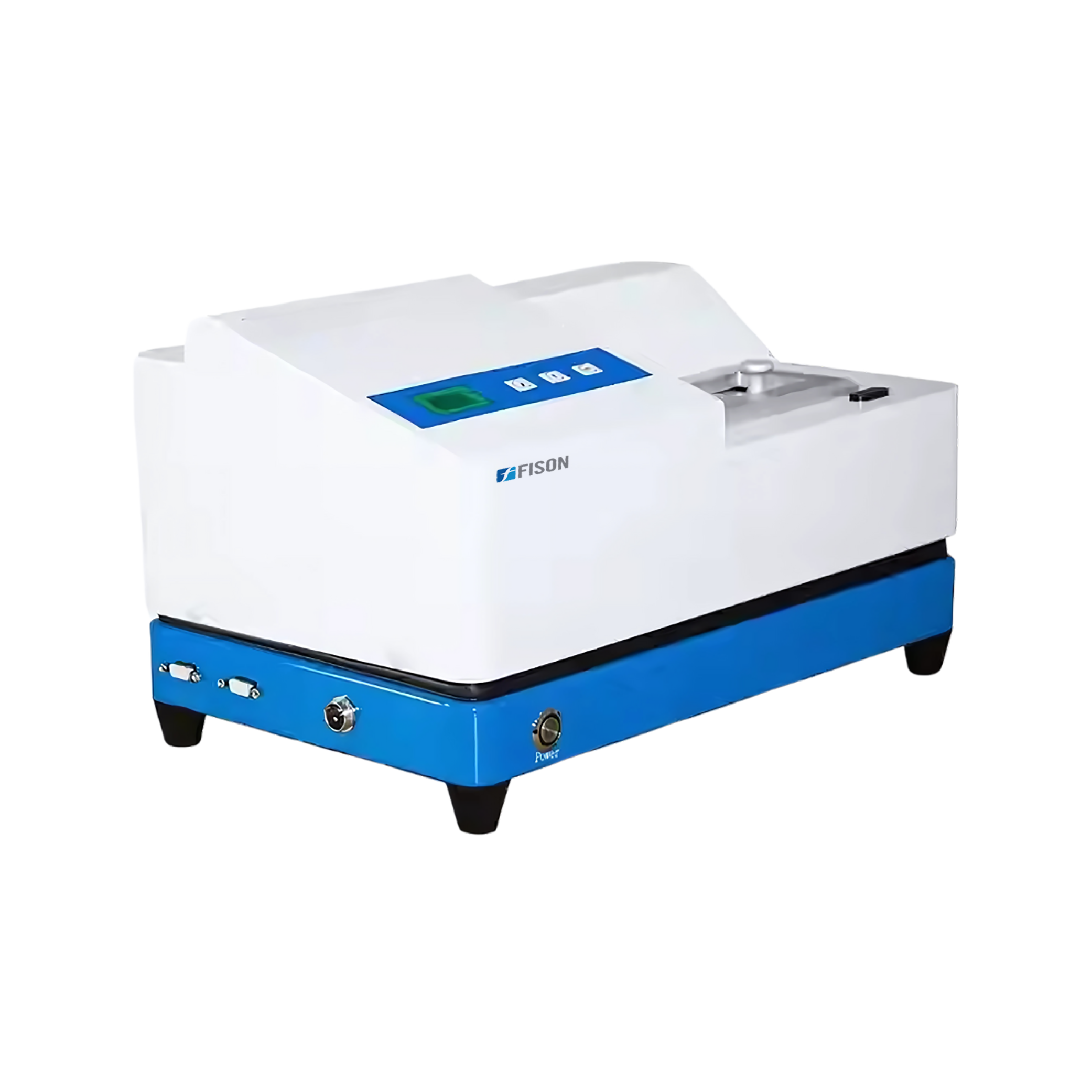

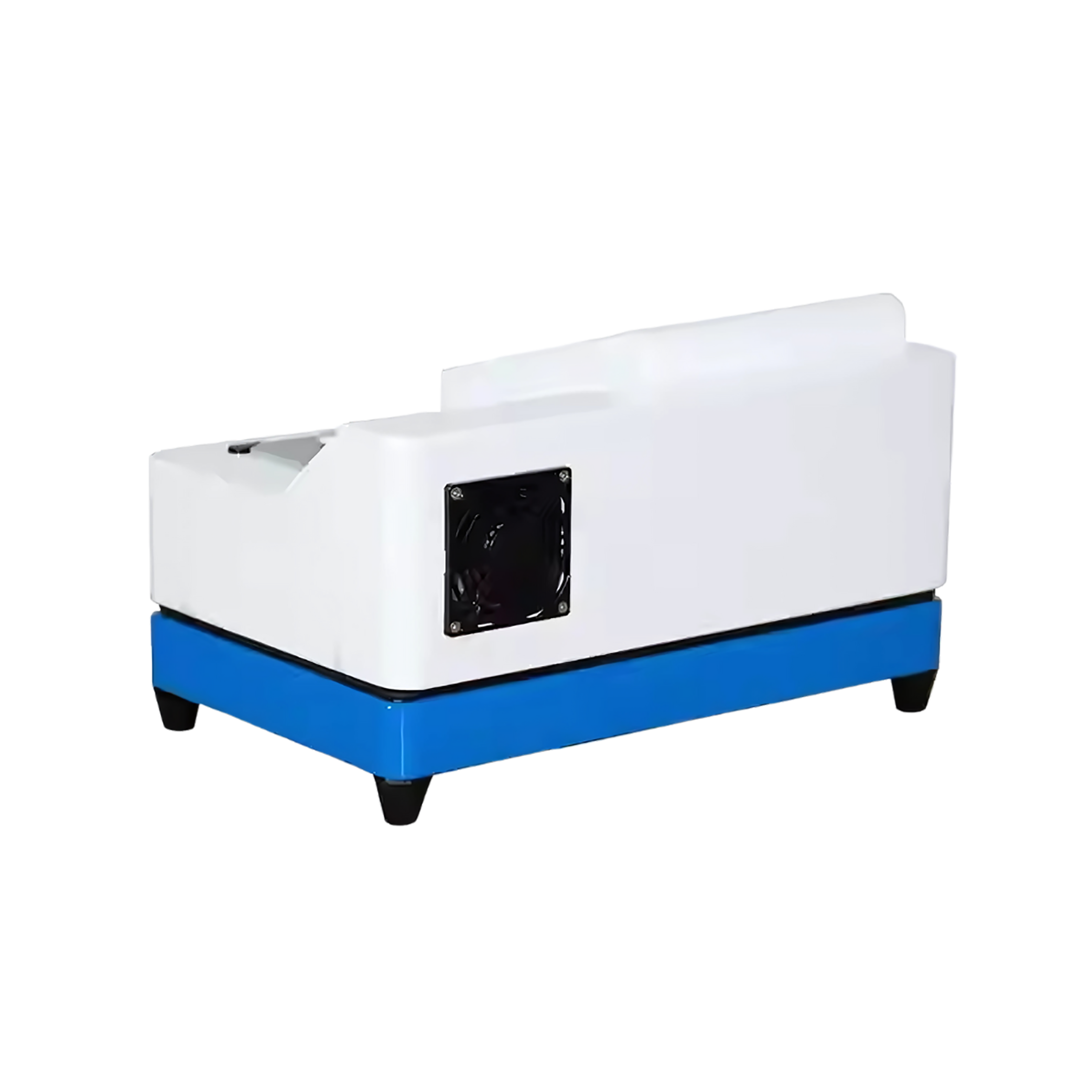

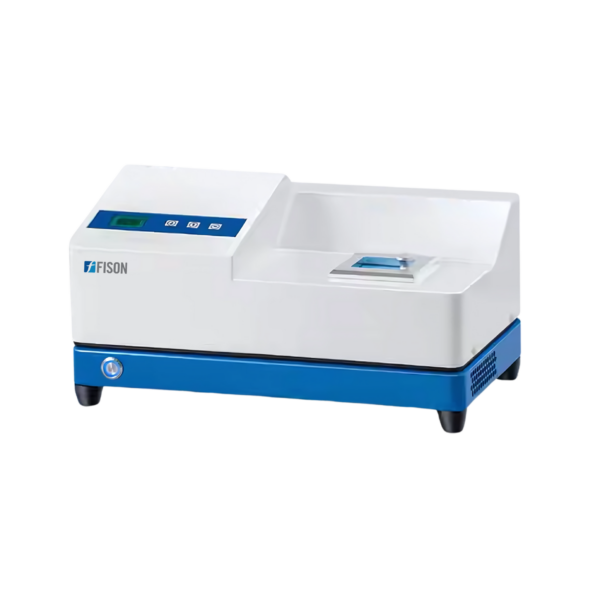

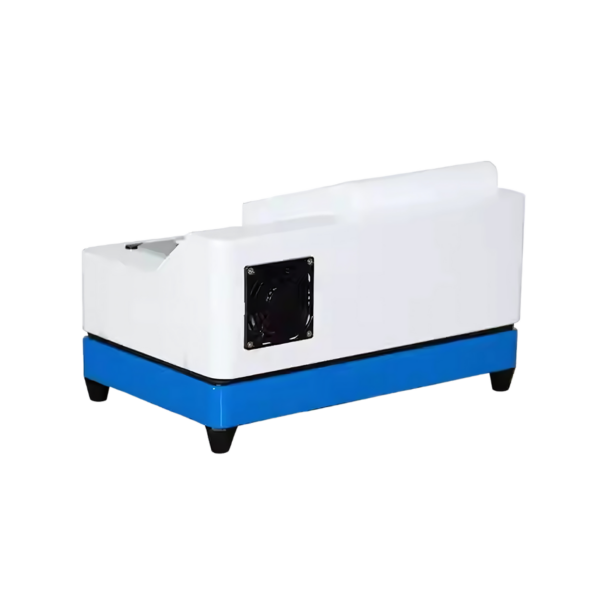

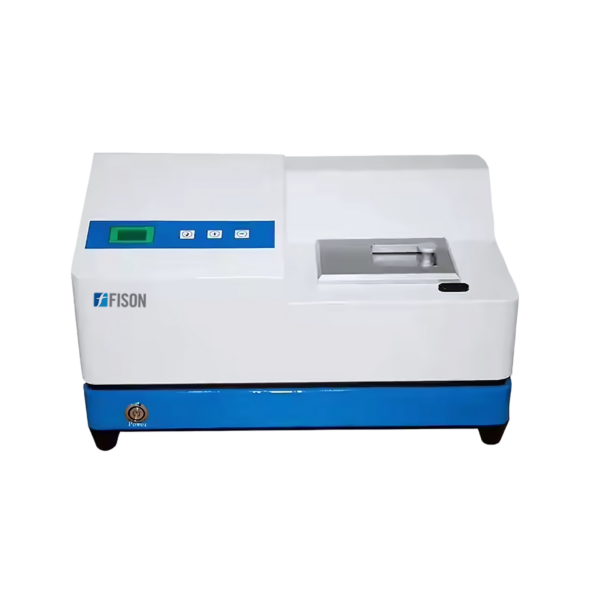

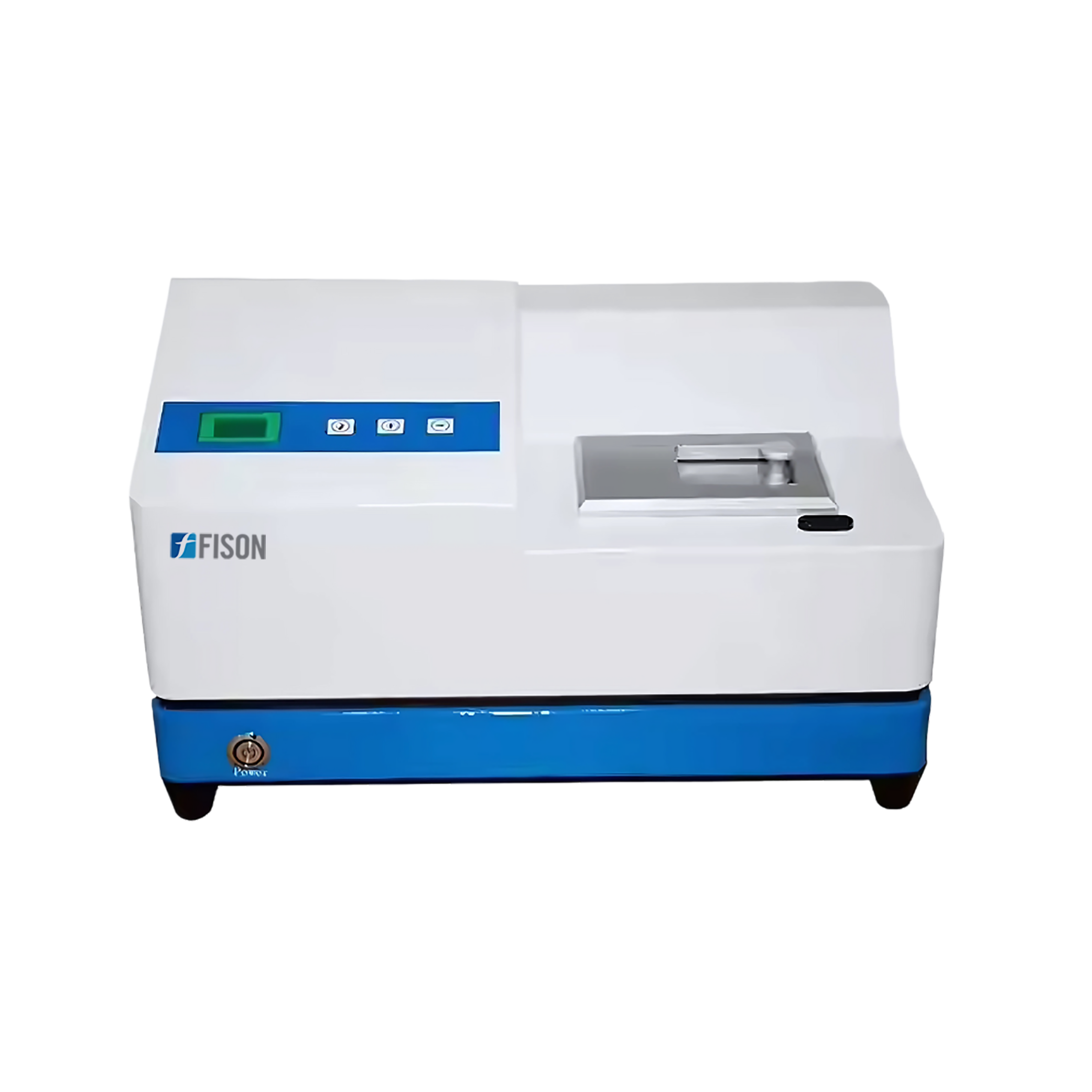

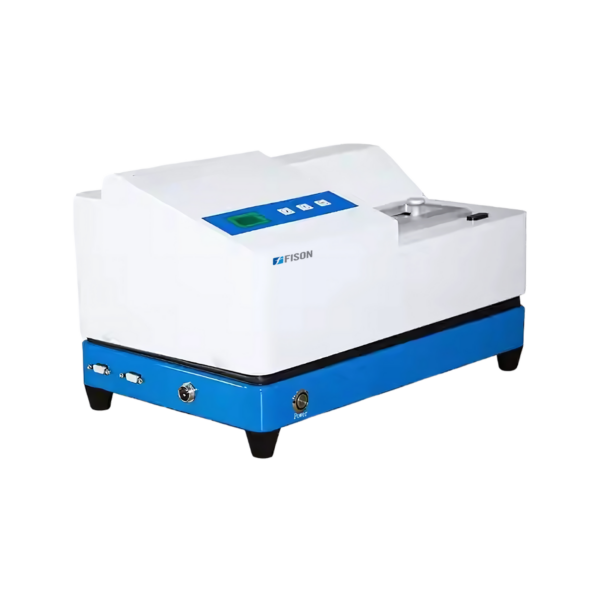

Nanoparticle Size Analyzer FM-NSA-A101 is an advanced, compact and tabletop unit adopted with dynamic light scattering principle and photon correlation spectroscopy technology, provides calculation according to Stokes-Einst and used Ein equation to calculate particle size. Incorporated with 1 to 10000 nm of measurement range with concentration range of 0.1 mg/L to 100 mg/L, has test speed of < 1 min/times and 90°scattering angle. With fiber-optical semi-conductor laser and photo multiplier tube detector, features 4 ml sample chamber with 5 to 90°C of temperature range and temperature-controlled protection. Equipped with PCS technology, high-speed photon correlate core and high precise temperature control system, has automatic induction door. Designed with dual-flow heat dissipation system and powerful analysis software, this laser particle size analyzer supports cumulative method analysis, on-negative least squares (NNLS) and Contin algorithms and measure particle size according to the Brownian motion speed of particles in liquid.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Nanoparticle Size Analyzer is used to determine the size and distribution of nanoparticles across research and development, manufacturing, quality control and product testing etc.
| Measurement Range | 1 to 10000 nm (Connected with Samples) |
| Concentration Range | 0.1 mg/L to 100 mg/L |
| Accuracy Error | < 1 % (Average particle size of standard sample) |
| Repeatability Error | < 1 % (Average particle size of standard sample |
| Light Source | Fiber optical semi-conductor Laser λ = 532 nm |
| Detector | Photo-multiplier tube |
| Scattering Angle | 90° |
| Standard | ISO 22412:2008 |
| Sample Pool | 10 ×10 mm, 4 ml |
| Temperature Range | 5 to 90°C (± 0.1°C) |
| Test Speed | < 1 Min/Time (Dispersion time without sample) |
| Digital Correlator | Physical channel: 512 Equivalent channel: 10000 Baseline channel: 8 |
| Digital Correlator Sampling/Delay Time | 1 µs to 200 µs (Dynamically adjustable) |
| Digital Correlator Minimum Resolution | 6 ns |
| Heat Dissipation System | Dual flow |
| Coloration Door | Automatic induction coloration door |
| Dimension (W×D×H) | 470×320×260 mm |
| Packaging Dimension (W×D×H) | 530×380×375 mm |
| Net Weight | 15 kg |
| Gross Weight | 20 kg |
