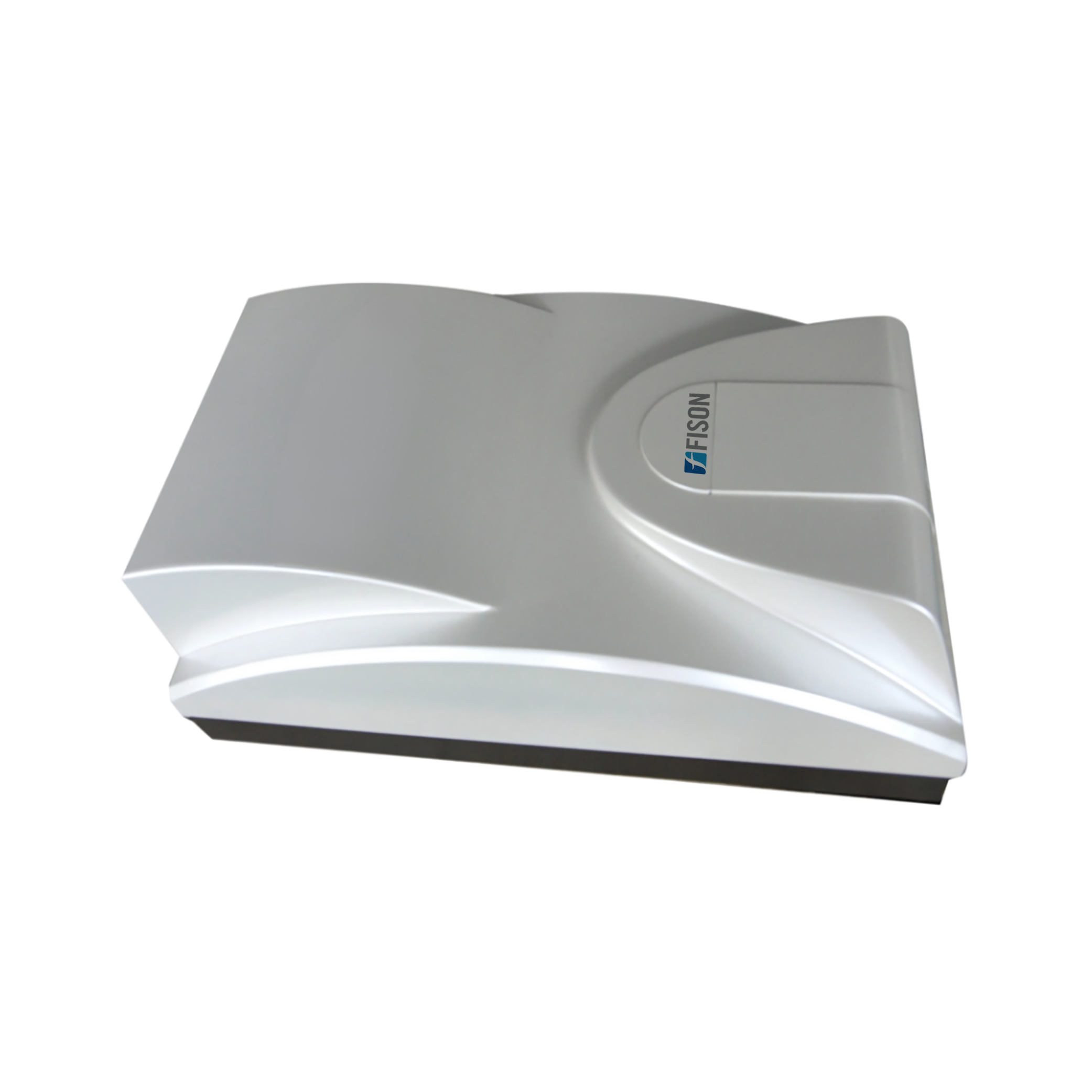

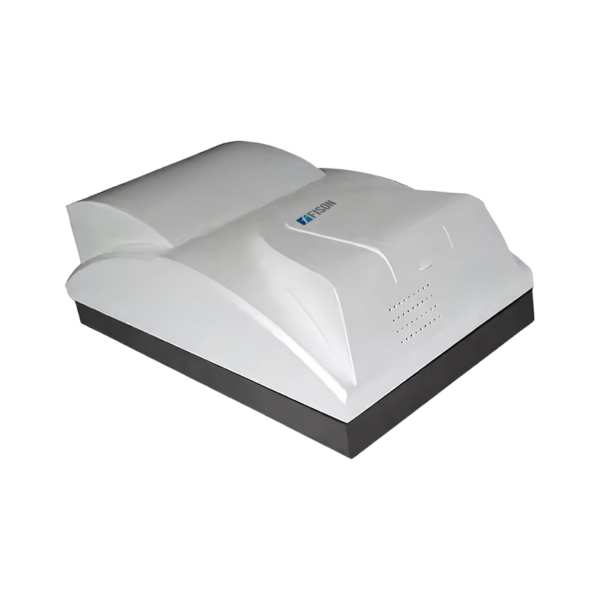

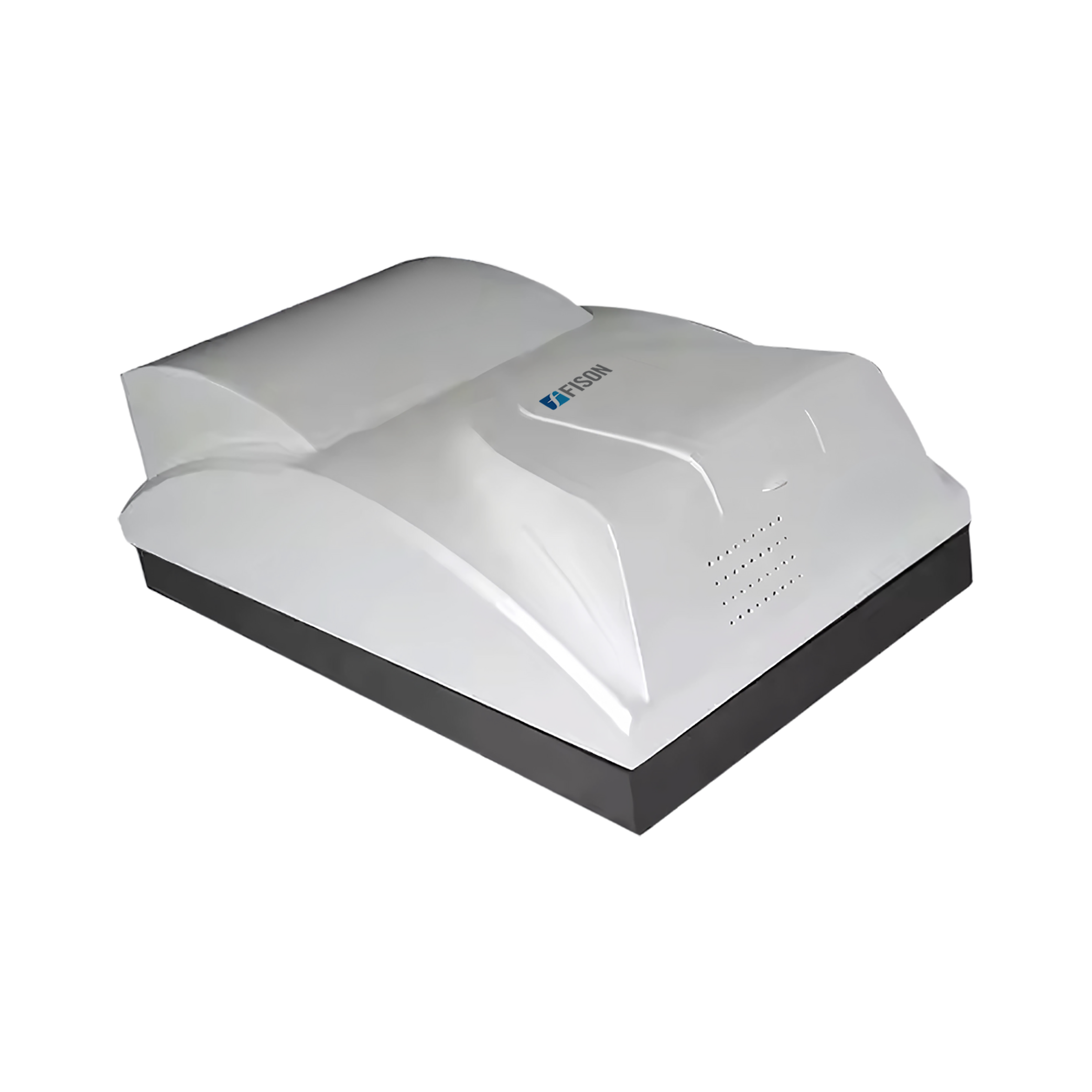

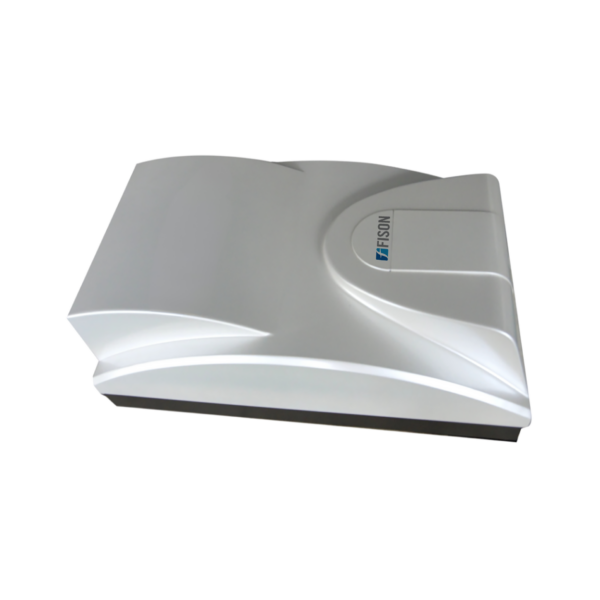

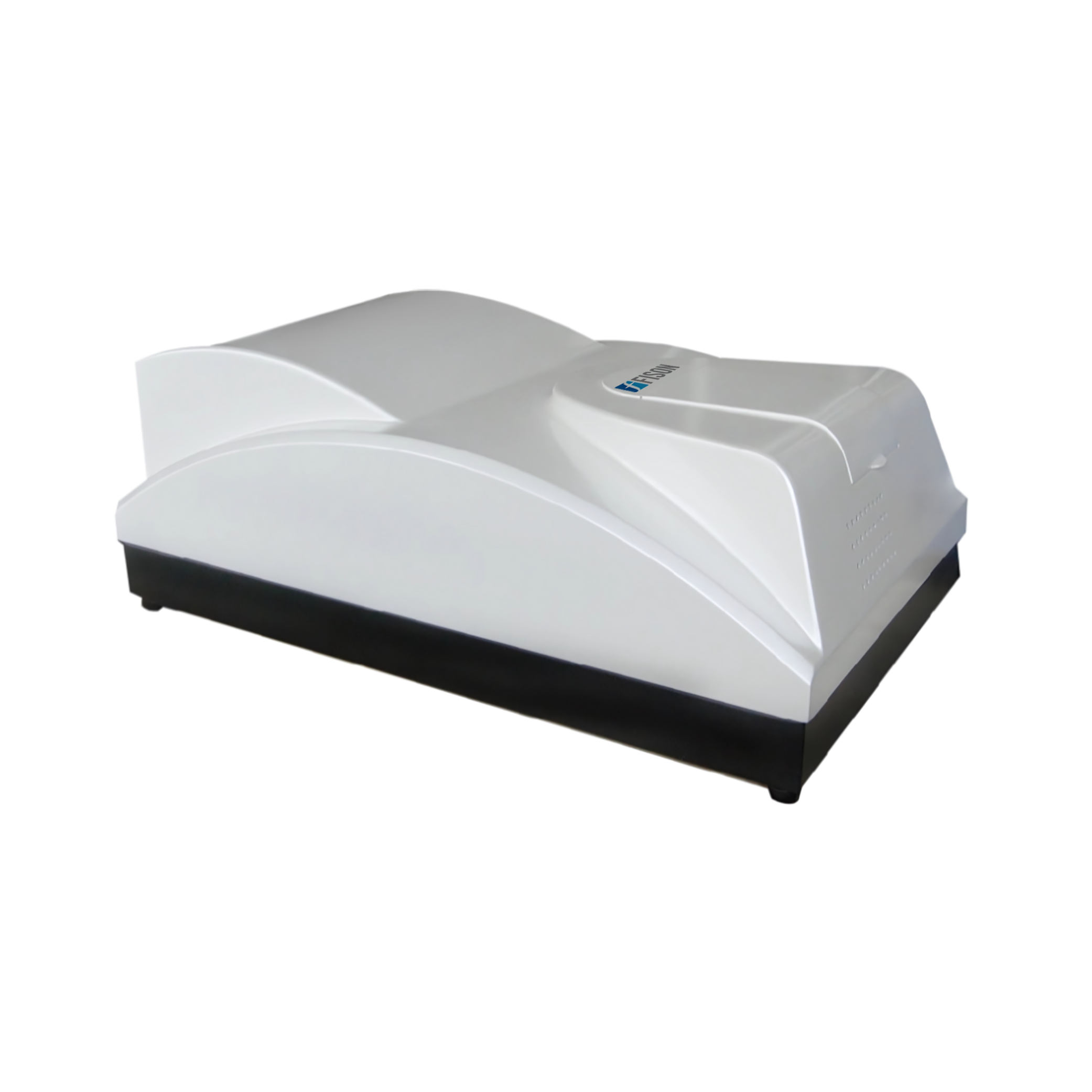

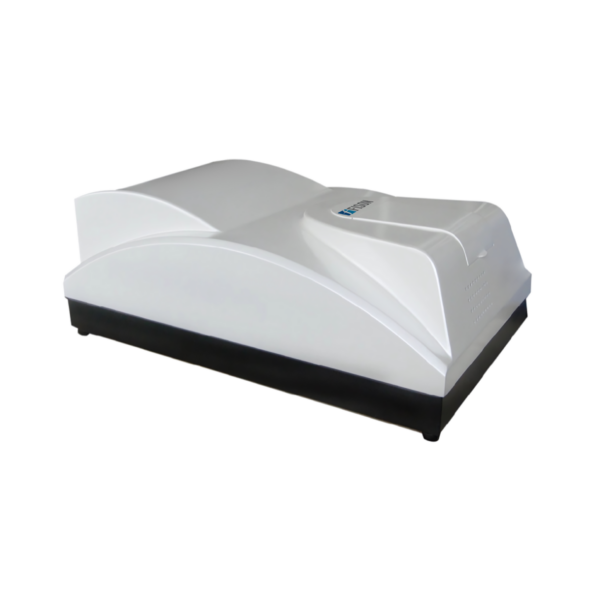

Nanoparticle Size Analyzer FM-NSA-A100 offers a measurement range of 1 to 10,000 nm, enabling precise analysis of particles from the nanoscale to the microscale. This integrates a photomultiplier detector for high sensitivity and optimal signal-to-noise ratio. It features an adjustable semiconductor laser for versatile and precise measurements. Our Nanoparticle Size Analyzer operates at an optimal scattering angle to ensure reliable and consistent results.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Nanoparticle Size Analyzer FM-NSA-A100 is applied in nanoparticle characterization across industries like pharmaceuticals, nanomaterials, cosmetics, and coatings. It is widely used in research labs, universities, and production facilities for accurate particle size analysis.
| Measure Range | 1 to 10000nm |
| Accuracy Error | ≤ 1% |
| Repeatability Error | ≤1% |
| Concentration Range | 0.1 to 100mg/ml |
| Light Source | Semiconductor laser λ= 532nm or 639nm P=1 to 40mW (Adjustable) |
| Detector | Photo-multiplier |
| Scattering Angle | 90◦ |
| Sample Cuvette | 10 × 10 × 40 nm (1 to 4mL) |
| Test Temperature | 5 to 90 ℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Test Speed | <5 min |
| Auto-Correlation Channels | 512 |
| Baseline Channel | 4 |
| Physical Channels | 10000 |
| Unit Delay Time | 100ns to 10ms |
| Standard | ISO 13321:1996 and ISO 22412:2008 |
| Analysis | Average particle diameter, particle di stribution, photon counting rate etc. |
| Power Consumption | 100 W |
| Power Supply | 220V 50Hz |
| Dimensions (L×W×H) | 600× 380 × 230 mm |
| Weight | 12 kg |
