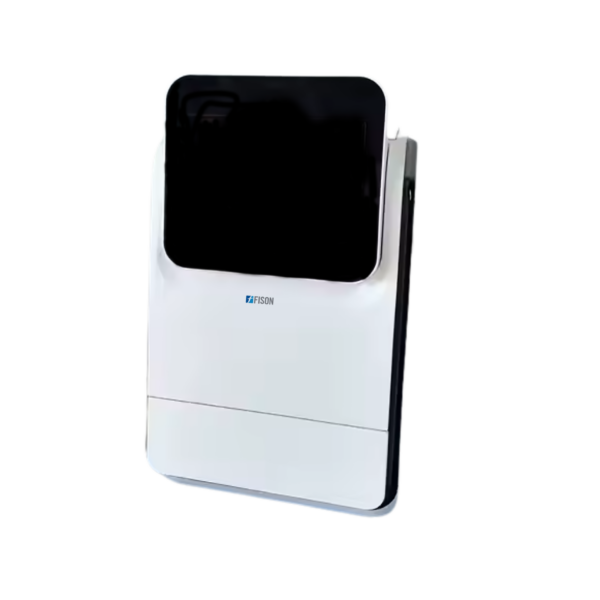

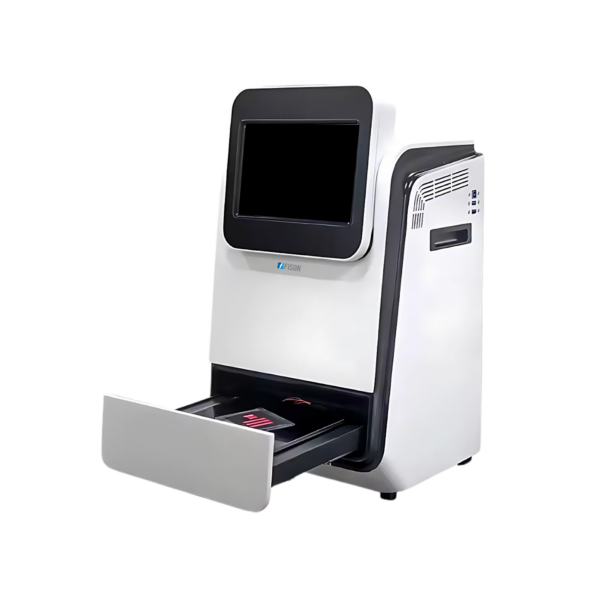

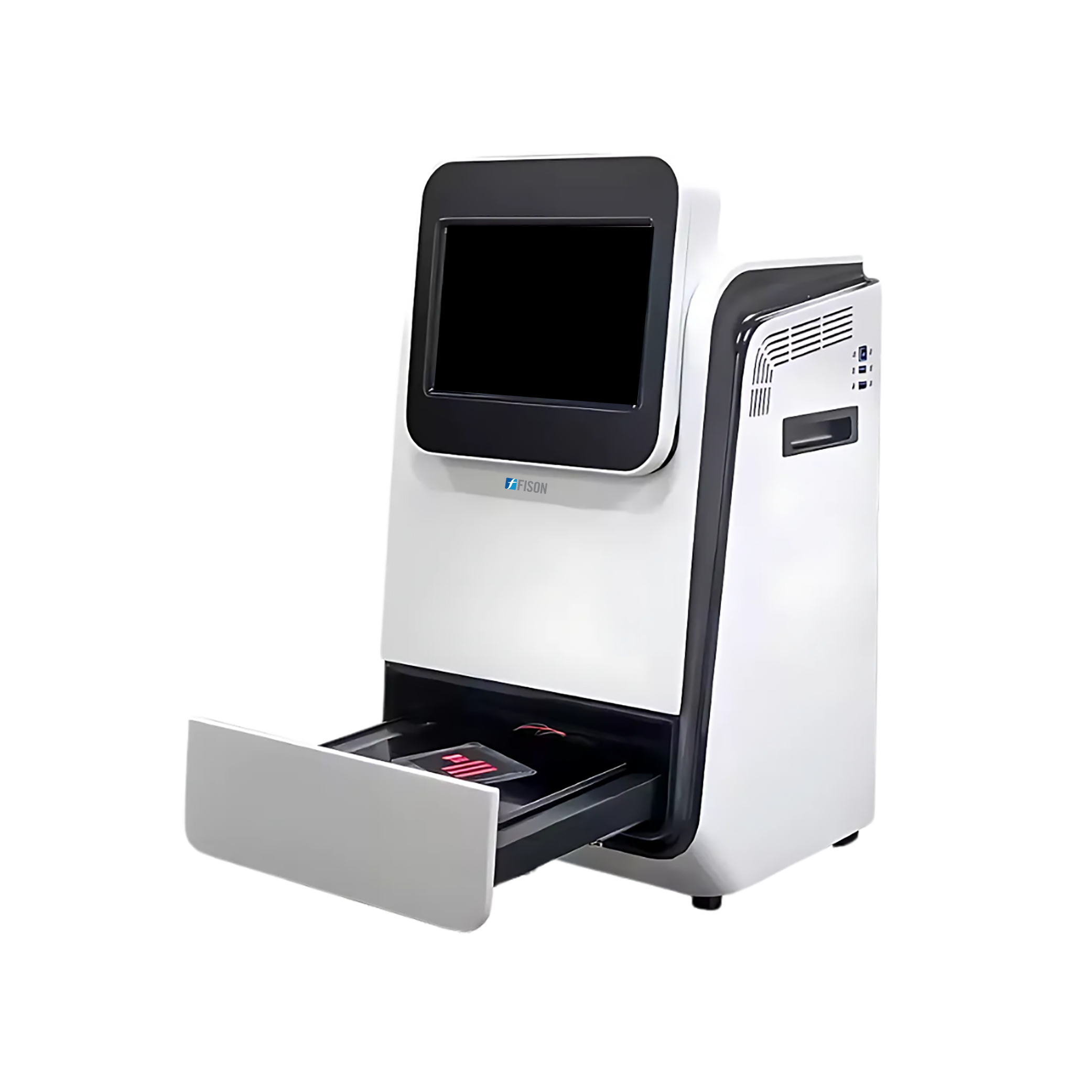

Multispectral Imager FM-MI-A100 features high-resolution 9.0 Megapixel imaging for detailed, accurate analysis. This delivers high performance with an exposure time of up to 30 minutes for detailed imaging. It supports unlimited software users, allowing efficient collaboration and data access across multiple workstations. Our imager features a flexible electronic lifting platform for easy sample positioning and enhanced workflow efficiency.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Multispectral Imager FM-MI-A100 is widely used in life sciences, materials science, and environmental research. It is ideal for detailed spectral analysis applications, such as imaging and diagnostics.
| Resolution | 9.0 Megapixels |
| Sensor | Cooled Back-illuminated CMOS |
| Linear Range | 4.8 OD |
| Temperature | -30°C regulated |
| Pixel Size | 3.76 × 3.76 μm |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F0.95 as standard (optional F0.8) Auto focus |
| Sample tray | Electronic Lifting Platform for multiple membrane sizes |
| Protein gel illumination | Electronic Lifting White LED Transmission |
| DNA/RNA detection | Electronic Lifting Blue LED Transmission |
| Dimensions(L×W×H) | 520 × 560 × 1100 mm |
| Weight | 50kg |
