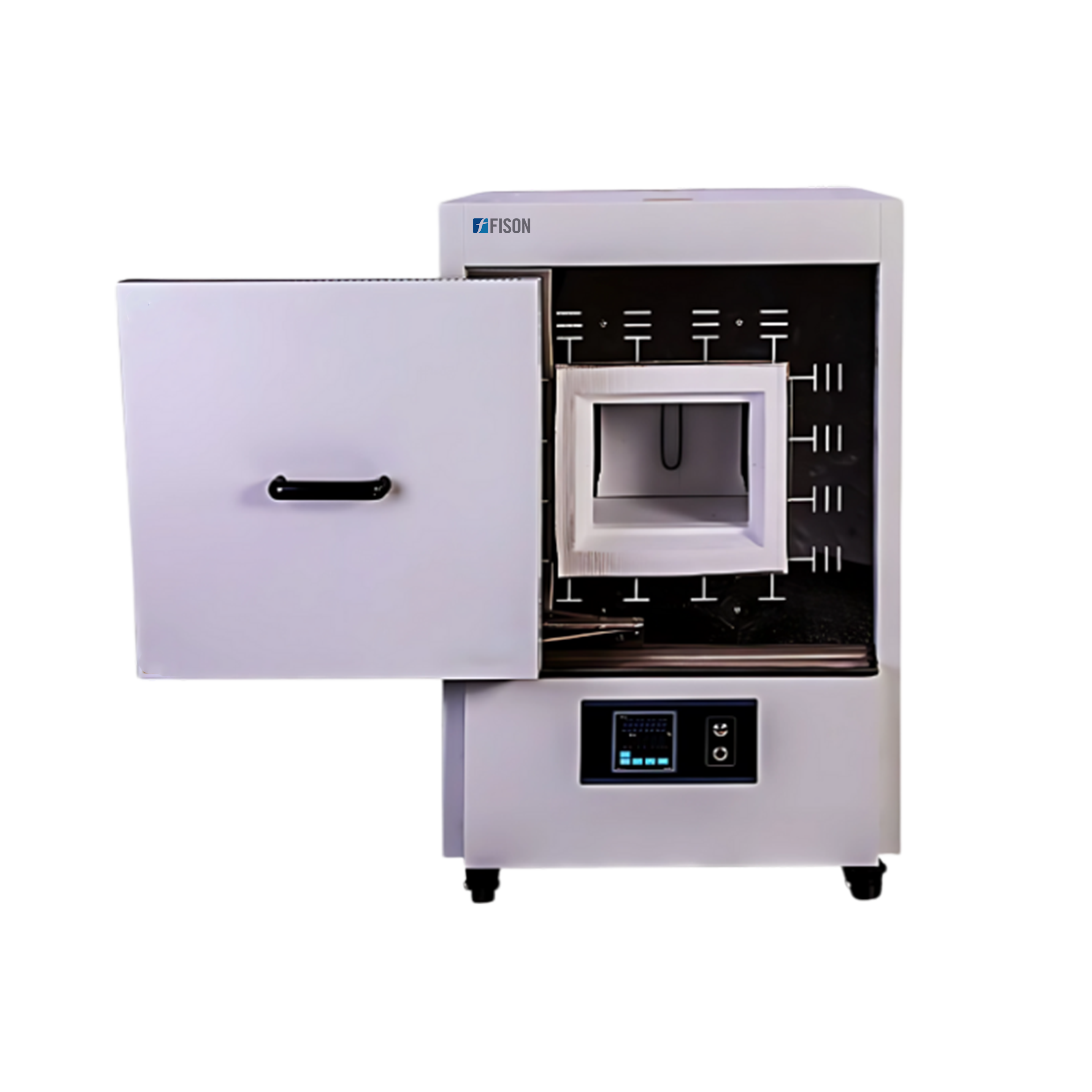

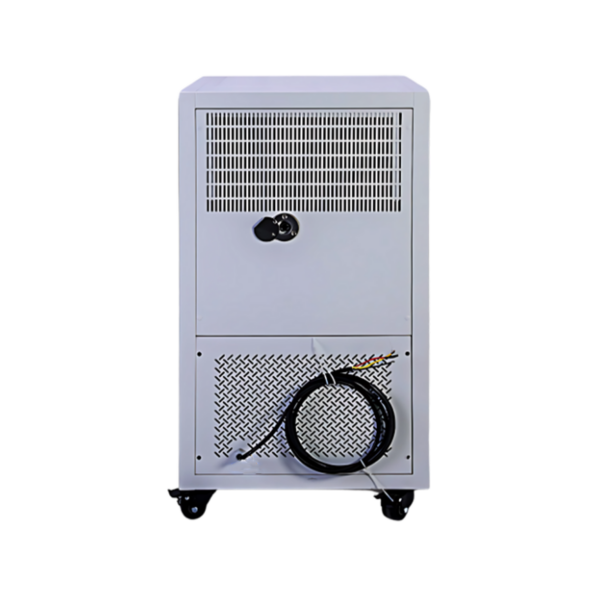

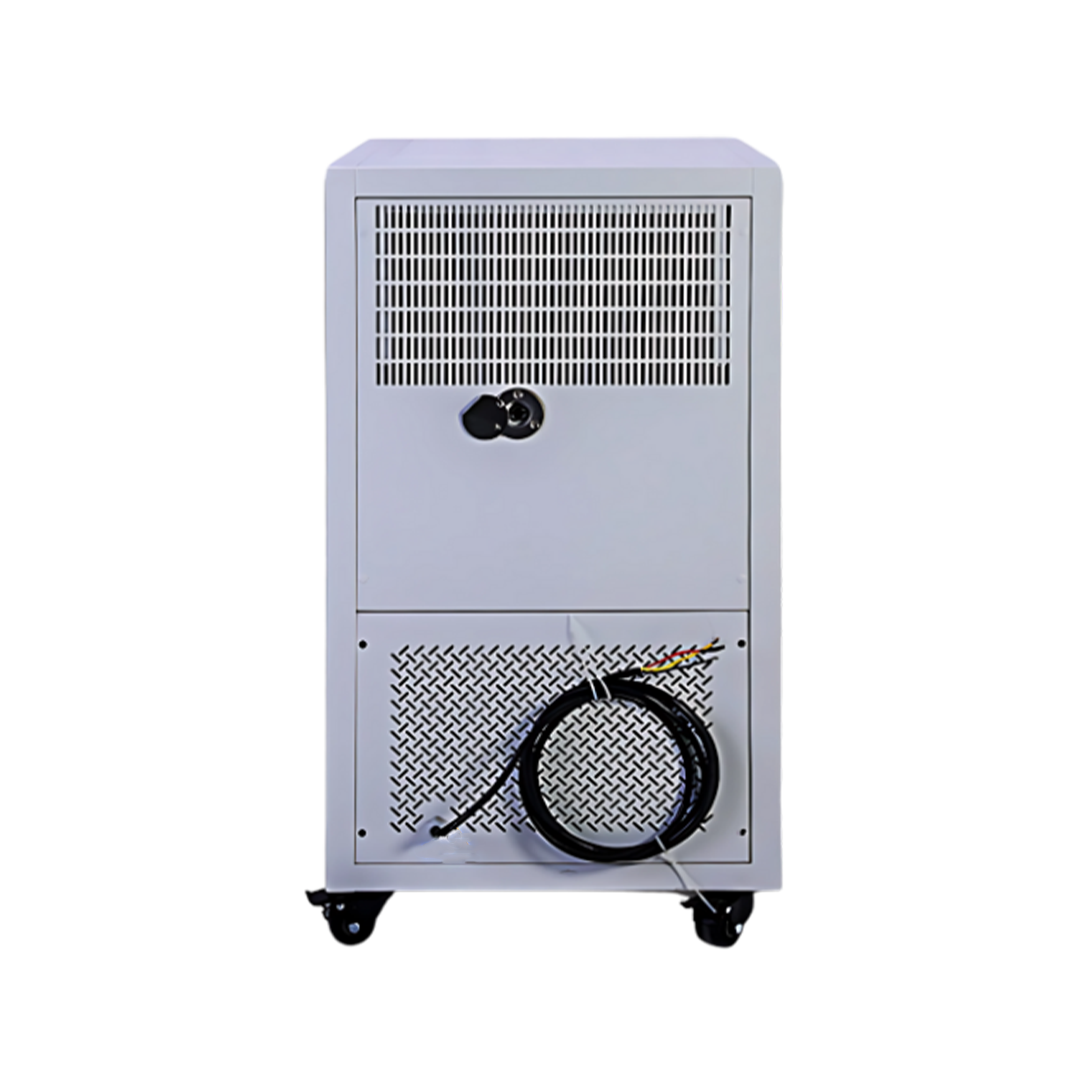

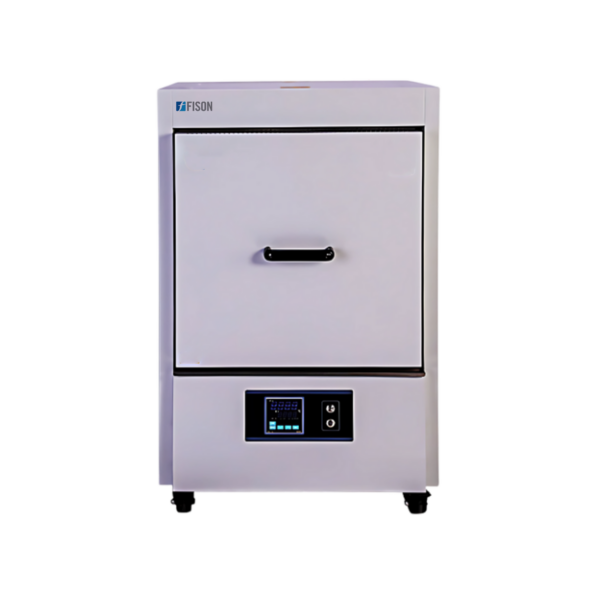

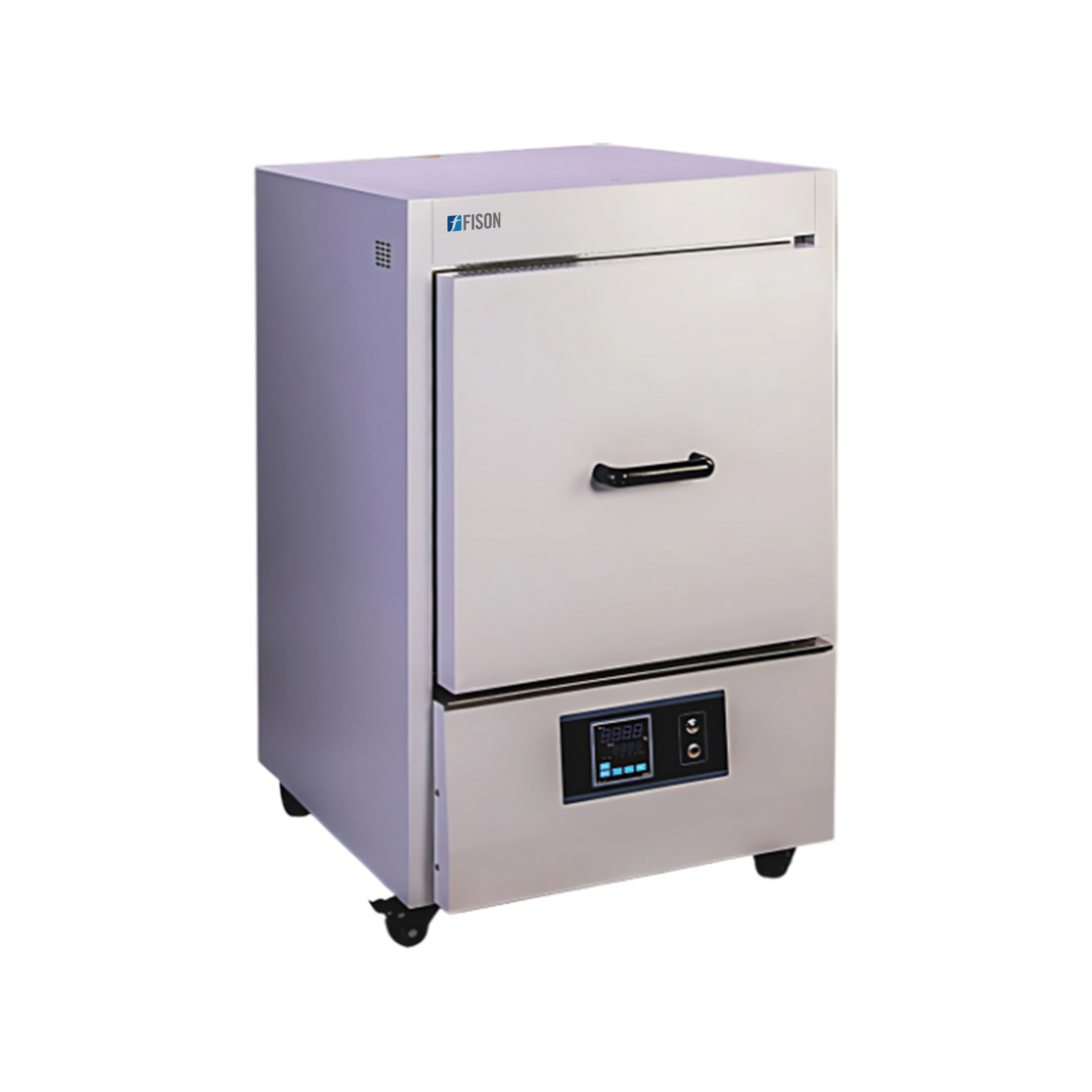

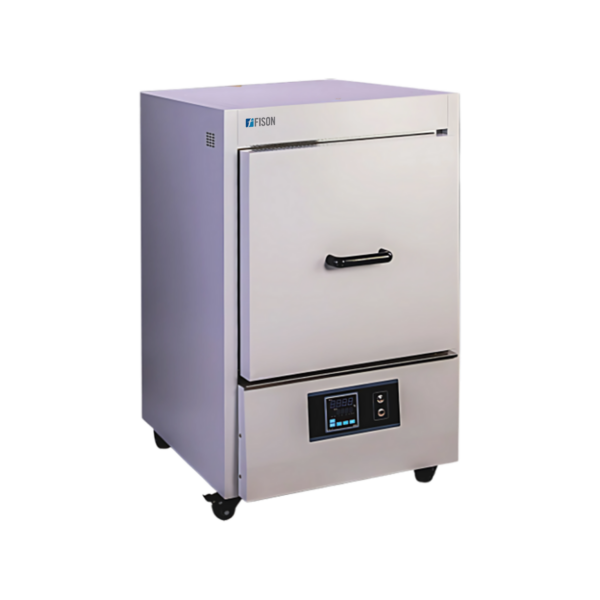

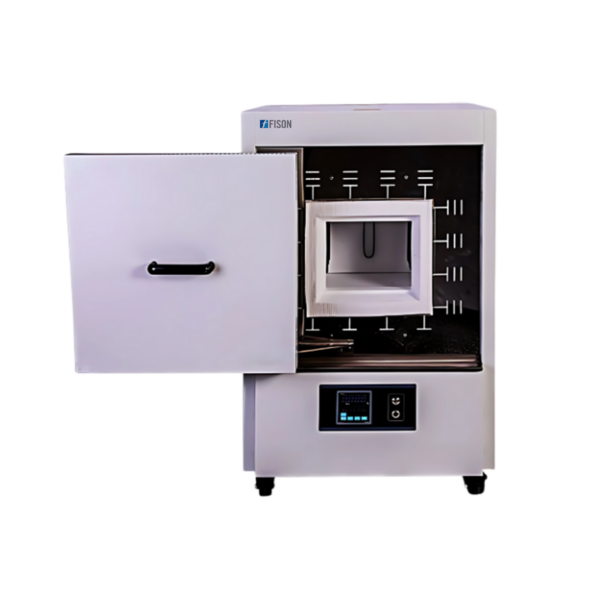

Muffle Furnace FM-MF-C100 offers a temperature range of 300 to 1800℃, providing precise heating for various laboratory and industrial applications. This includes a vacuum-formed polycrystalline mullite fiber chamber that provides heat preservation and uniform heating. It features a PID temperature control system for stable temperature management. Our Muffle furnace has a built-in exhaust device for efficient ashing and a clean working environment.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Muffle Furnace FM-MF-C100 is used for ashing biological samples, processing tissue samples, and conducting material analysis in research laboratories. It ensures accurate high-temperature treatment, essential for studies in biochemistry, molecular biology, and environmental sciences.
| Temperature Range | 300 to 1800℃ |
| Resolution | 1℃ |
| Volatility | ±1℃ |
| Heating Time | ≤60min |
| Capacity | 12 L |
| Sensor | B thermocouple |
| Muffle | Ceramic fiber |
| Heater | Silicon molybdenum rod |
| Timer | 0 to 999.9 hours |
| Frequency | 50 Hz |
| Power Consumption | 12,000W |
| Power Supply | AC380V |
| Packing Dimensions (W×D×H) | 840 × 985 × 1390 mm |
| Dimensions (W×D×H) | 680 × 858 × 1182 mm |
| Net Weight | 150 kg |
| Gross Weight | 170 kg |
