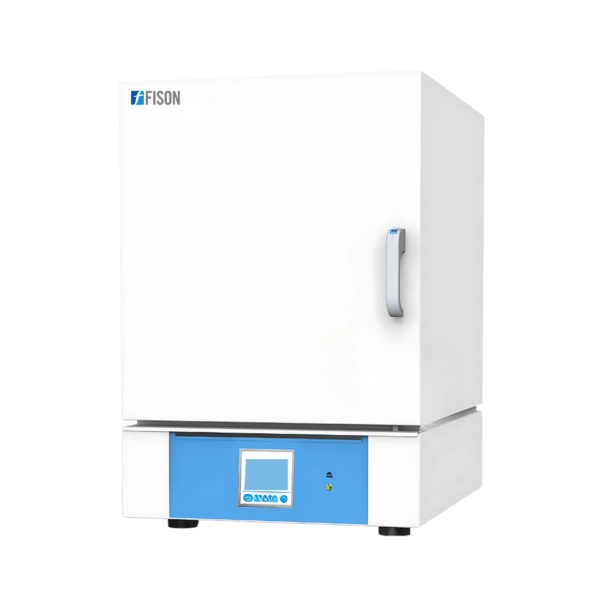

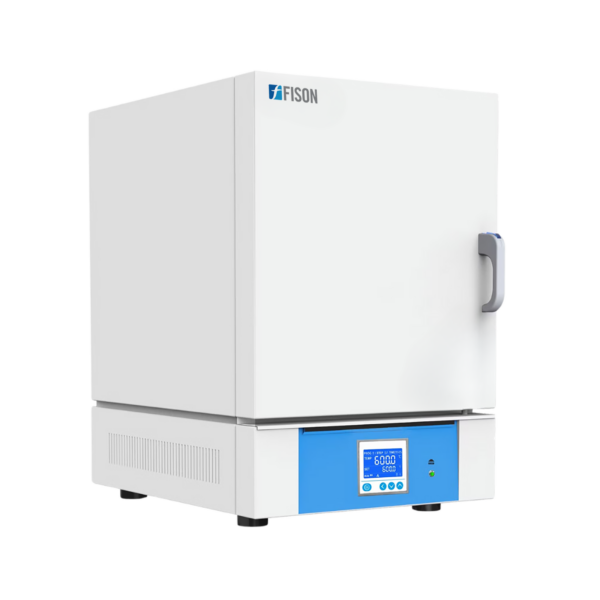

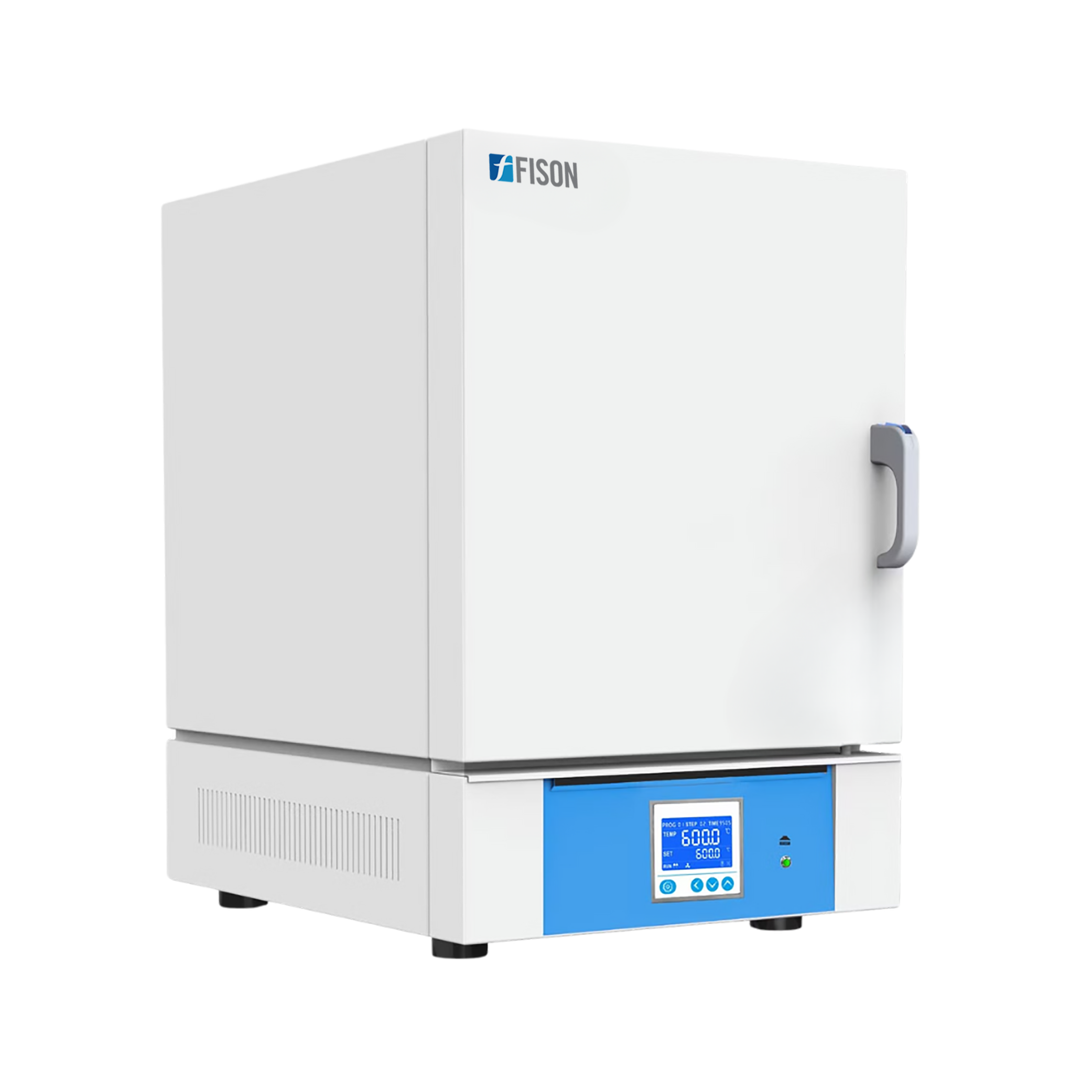

Muffle Furnace FM-MF-B103 features a temperature of 1100⁰C to ensure quicker reaction rates and shorter processing times. It has a safety switch that automatically shuts down when the door opens, ensuring the operator’s safety. This unit offers overcurrent prevention and anti-scalding to ensure safe operation and prevent accidents. Our muffle furnace has a low temperature on the shell surface and an excellent insulating effect on the ceramic fiber.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Muffle Furnaces are commonly used in quenching, annealing, and tempering small steel parts applied in industrial and mining enterprises, universities and research institutes. It can also be used as a pre-treatment for sintering, and ashing analysis of metal, stone, tools and ceramics.
| Capacity | 2 L |
| Working Temperature | 1000⁰C |
| Maximum Temperature | 1100⁰C |

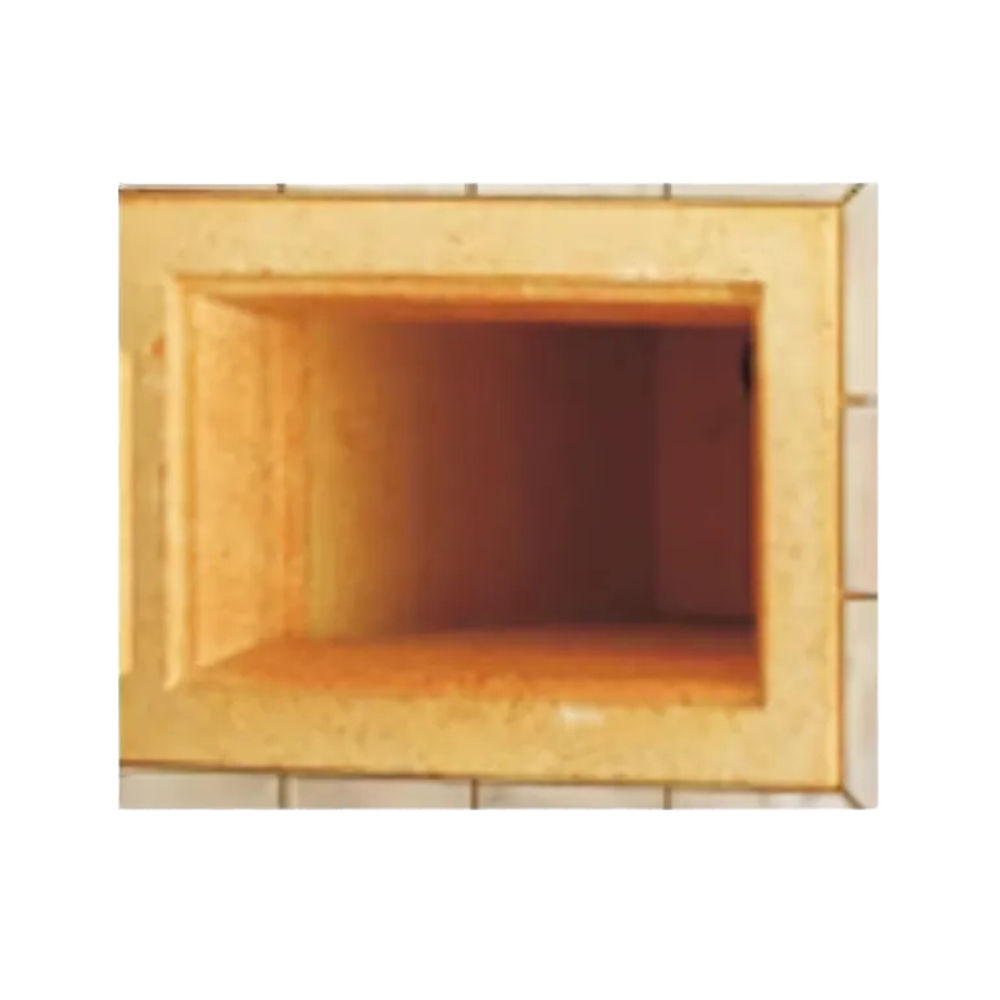

| Insulation Material | Alumina ceramic fiber |

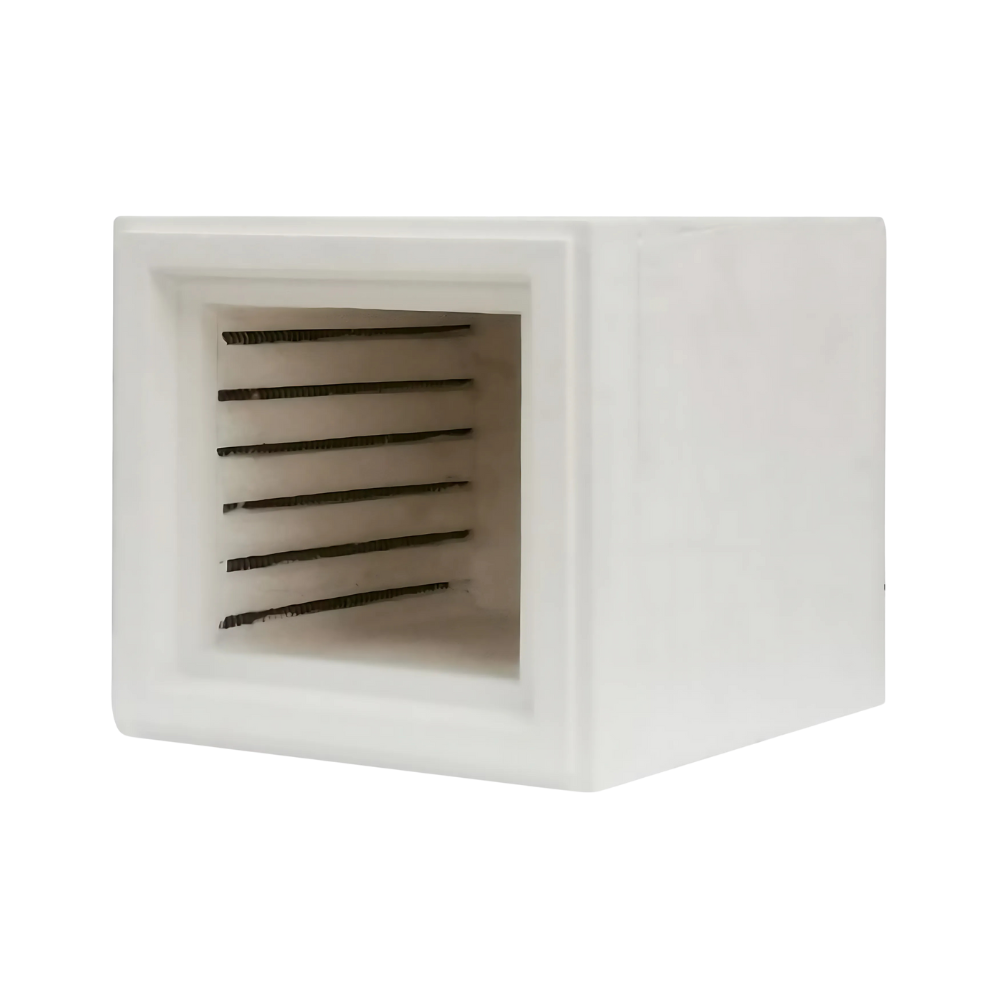

| Heating Element | Fe-Cr-Al |
| Heating Time | 35-65 Mins |
| Present start and off | Yes |
| Thermocouple type | K Type |
| Programmable Controller | Yes |
| Power Consumption | 2.5 kW |
| Power Supply | 220V 50/60HZ Single Phase |
| Interior Dimensions (W×D×H) | 120×200×80 mm |
| External Dimensions (W×D×H) | 380×495×584 mm |
