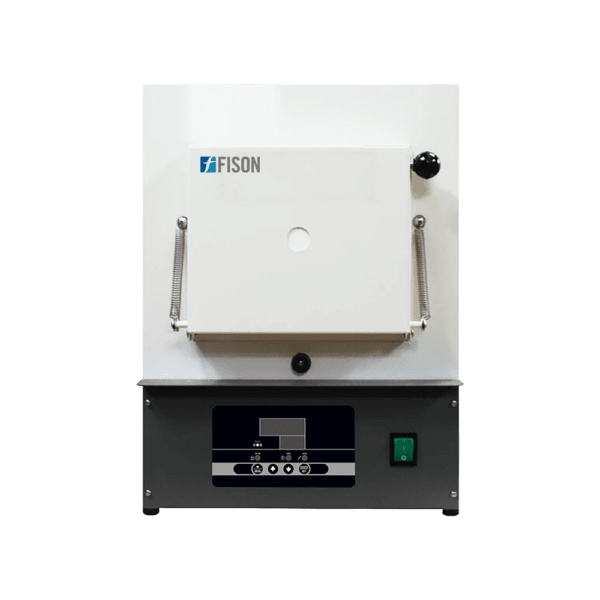

Muffle Furnace FM-MF-A300 offers a working temperature range of 300°C to 800°C with a maximum capability of 850°C. Insulated with ceramic fiber for high thermal efficiency and minimal heat loss. Our furnace provides a 5-liter chamber capacity for ample storage and accurate processing. Features a digital PID controller for precise temperature setting and monitoring.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Muffle furnace is used for material testing, ashing, sintering, and heat treatment processes. Its precise temperature control makes it suitable for a wide array of laboratory and industrial applications.
| Capacity | 5 L |
| Maximum Temperature | 850°C |
| Working Temperature Range | 300 to 800°C |
| Timer | 99 hr 59 min |
| Temperature Control | Digital PID controller |
| Insulation | Ceramic fiber |
| Heater | Kanthal A1 |
| Heating Power | 1.5 KW |
| Power Supply | AC 220V, 50/60 Hz |
| Internal Dimension (L × D × H) | 150 × 260 × 130 mm |
| External Dimension (L × D × H) | 320 × 410 × 440 mm |
| Packaging Dimension (L × D × H) | 500 × 550 × 700 mm |
| Net Weight | 21 kg |
| Gross weight | 45 kg |
