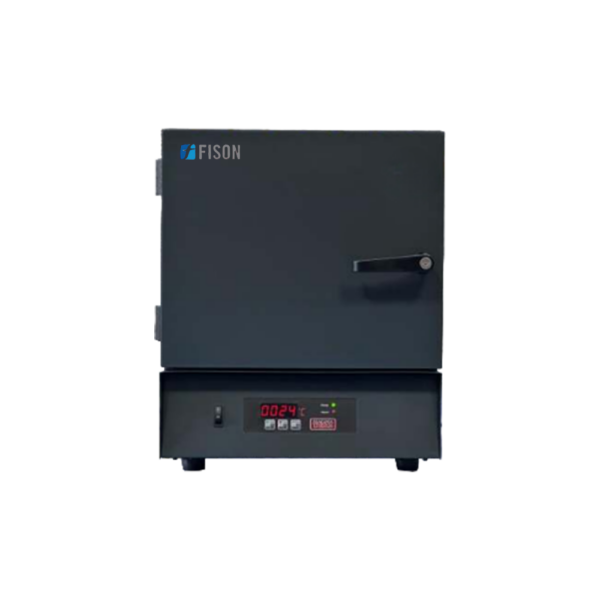

Muffle Furnace FM-MF-A202 operates at a maximum working temperature of 1200℃ with a capacity of 30 L. It features dual shell housing for enhanced durability. Its software-based PID control ensures accurate temperature management. The furnace includes sound warnings at step changes and at the end of the program for efficient operation. Its robust design, combined with advanced heating programs, makes it an ideal choice for high-temperature laboratory tasks.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Muffle Furnace FM-MF-A202 is widely used for heat treatment, material testing, and ashing processes in laboratories, research centers, industrial facilities and metallurgy labs.
| Maximum Working Temperature | 1200℃ |
| Capacity | 30 L |
| Continuous Working Temperature | 1050℃ |
| Display | 7 segment / 4 digit |
| Max. Current | 18 A |
| Electrical Connection | 1 Phase |
| Heating Element | Fe-Cr-Al |
| Thermocouple Type | K Type |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Ceramic fibre board or insulating fire brick |
| Front Face Insulation Material | Ceramic fibre board |
| Door Insulation Material | Ceramic fibre board |
| Housing Material | Steel sheet |
| Power | 3.9 |
| Internal Dimension W × H × D | 300 × 250 × 395 |
| External Dimension W × H × D | 554 × 615 × 640 |
| Weight | 47 kg |
