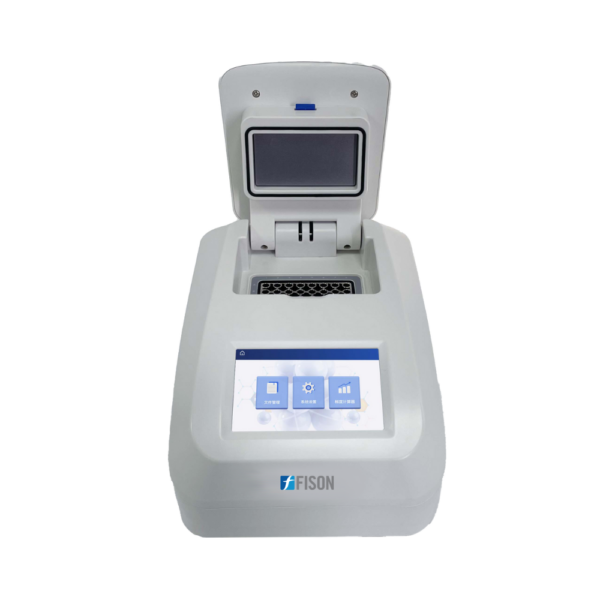

Mini Thermal Cycler FM-MTC-A100 supports 32×0.2 ml microtubes or 4×8×0.2 ml tube strips, offering versatile capacity for PCR applications. It offers a high-performance axial flow fan, ensuring efficient cooling with low operating noise. This supports up to 99 cycles, providing flexibility for a wide range of PCR protocols. Our thermal cycler is equipped with powerful software for advanced analysis, enabling efficient data processing and interpretation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Mini Thermal Cycler FM-MTC-A100 is ideal for a wide range of PCR applications, including DNA amplification, gene expression analysis, and diagnostics. It is commonly used in research laboratories, clinical settings, and educational institutions.
| Capacity | 32×0.2ml (microtubes),4×8×0.2ml (tube strips) |
| Cooling Down Rate (Max.) | 4℃ /S |
| Max. Cycles | 99 |
| Gradient Temperature Range | 30℃ to 100℃ |
| Gradient Temperature Accuracy | ±0.3℃ |
| Max. Steps | 30 |
| Block Temperature Range | 4℃ to 100℃ |
| Gradient Set Span (Max.) | 30℃ |
| Power Failure Recovery | Yes |
| Pause Function | Yes |
| Number of Peltier Units | 2 |
| Temperature Display Accuracy | 0.1℃ |
| Gradient Temperature Uniformity | ±0.3℃ |
| Temperature Holding Function | Infinite duration |
| Block Temperature Uniformity | ≤ ±0.25℃ |
| Temperature Control Ways | Block or Tube |
| Real-Time Operation Status | Image-text displayed |
| Block Temperature Accuracy | ±0.2℃ |
| Timer (Increasing/Decreasing) | -599 to 599 s for Long PCR |
| Timer Duration | 1s to 59min59sec / Infinite Duration |
| Temperature Increasing/Decreasing Rate | -9.9 to 9.9℃ for Touchdown PCR |
| Heating Lid Temperature Range | 30℃ to 105℃ |
| Display | LCD Touch Screen Display |
| Programs Stored | 200 |
| Heating Rate (Max.) | 5℃ /s |
| Power | 225W |
| Power Supply | AC 110V to 220V, 50 to 60Hz |
| Dimension (W×D×H) | 243×172×145 mm |
| Weight | 2.3 kg |
