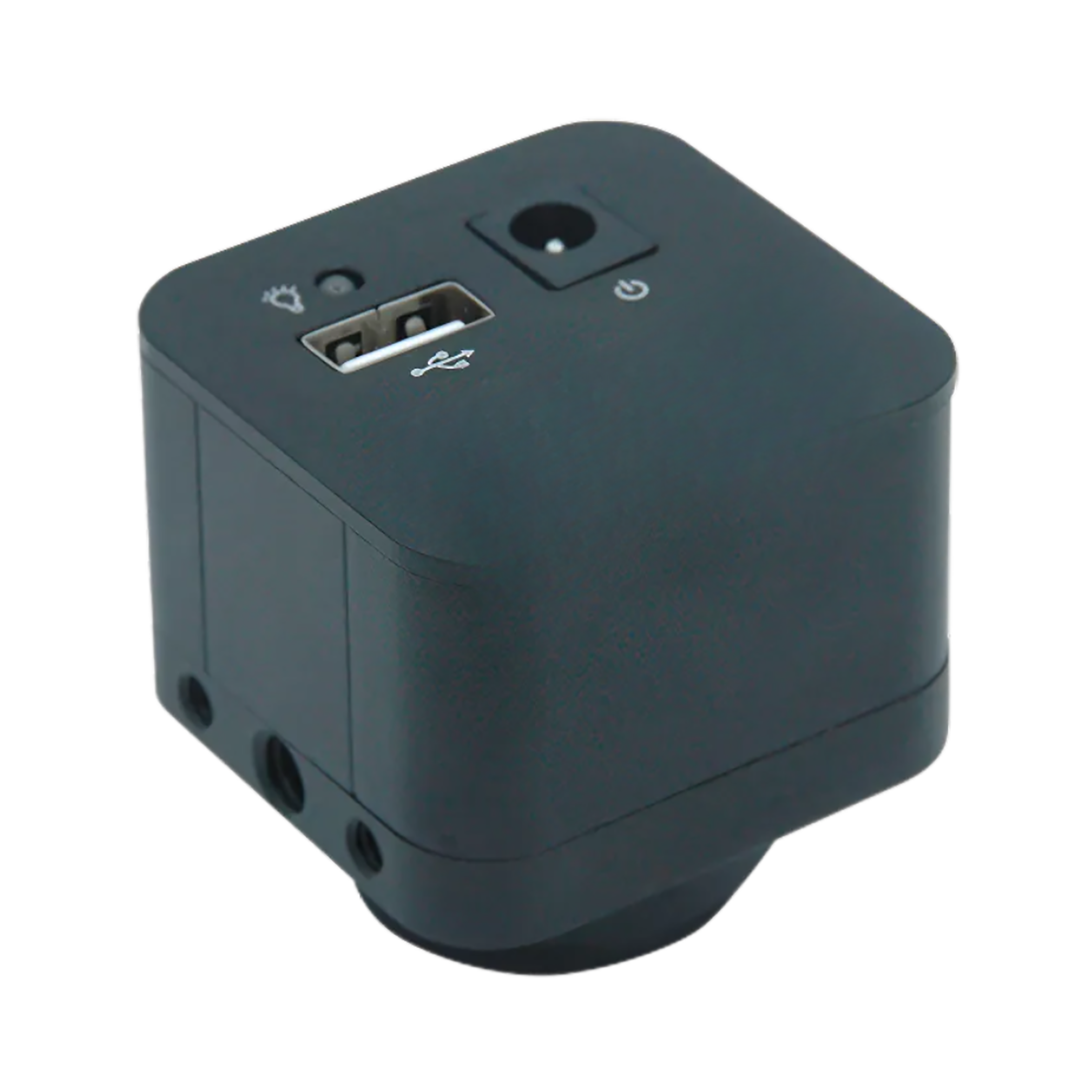

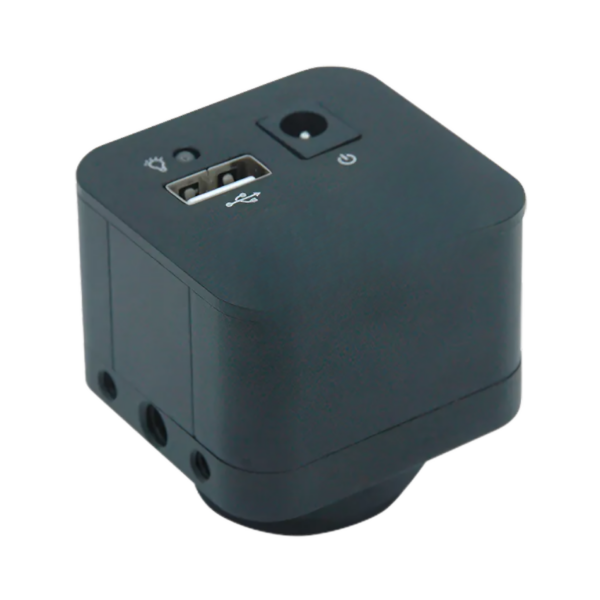

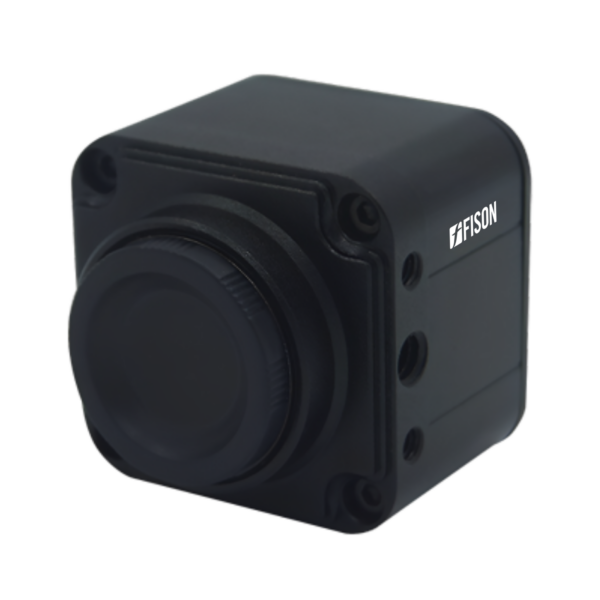

Microscopic Digital Camera FM-MDC-A400 is a Wi-Fi digital 2.0 USB eyepiece camera with CMOS image sensor that captures images for microscope and displays real-time live video on PC. With maximum resolution of 5.0 MP and frame rate of 30 fps at resolution 1920 × 1080, it gives higher sensitivity and excellent color correction. VGA camera is designed to provide better visual microscopic inspection & measurement of specimen under study.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, geology, archaeology, forensic science and other industries. Accurately displays images of observed specimen on computer, it is suitable for all kinds of optical microscopes.
| Image sensor type | CMOS (Micron) |
| Sensor size | 1 / 2.5” |
| Effective pixel | 5 million pixel |
| Imagining resolution | 5.0 MP |
| Hardware resolution | 1920 × 1080 |
| Pixel size | 2.2 × 2.2 µm |
| Frame rate | 30 fps |
| Sensitivity | 1.4 V / lux-sec @ 550nm |
| Signal to noise ratio (SNR) | 42.3 dB |
| Quick image capture | Support5 mstatic image capture |
| Video record | Support 1080 P video |
| Measuring tool | S-EYE |
| Exposure | Auto |
| White balance | Auto |
| Lens mount | C mount |

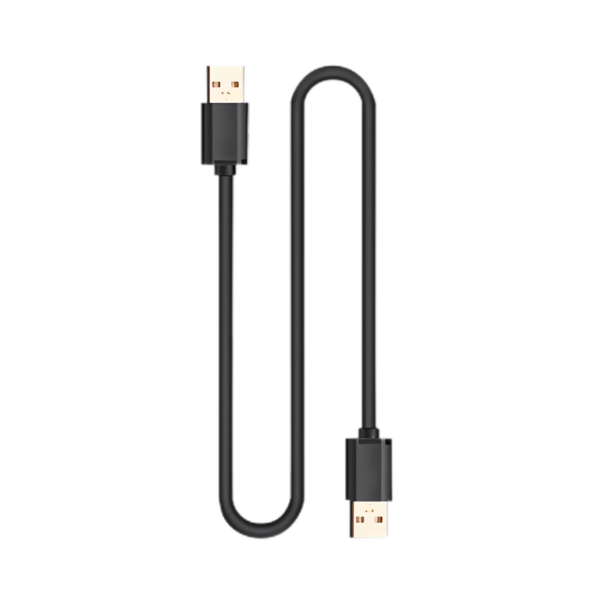

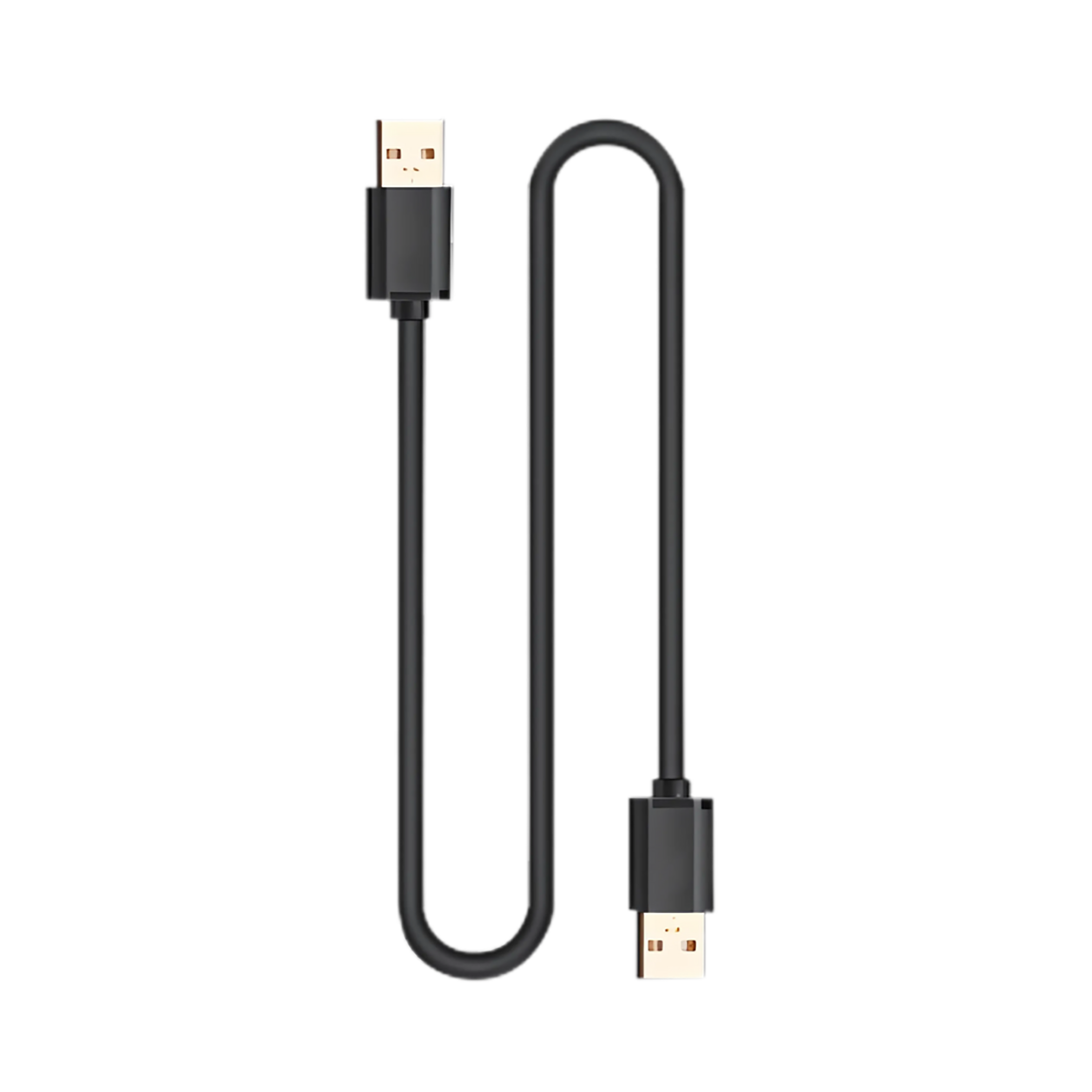

| Data interface | USB 2.0, WI-FI |
| Working temperature | -30°C to 70°C |
| Working humidity | 20 % RH to 75 % RH |
| Supported OS | Win X/7/8/10 |

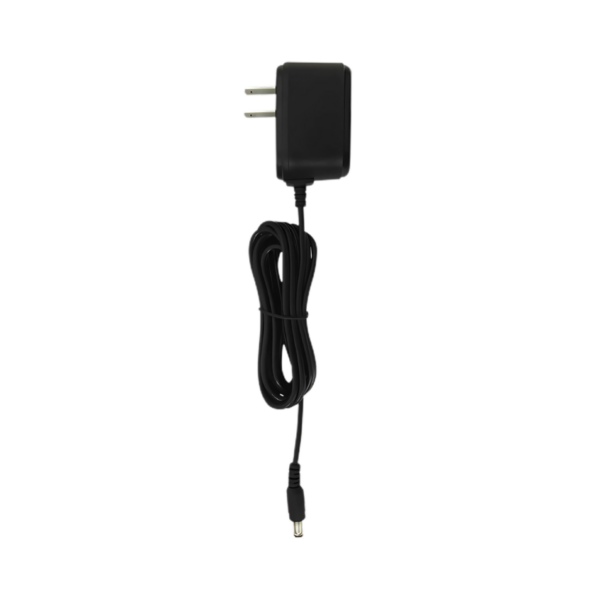

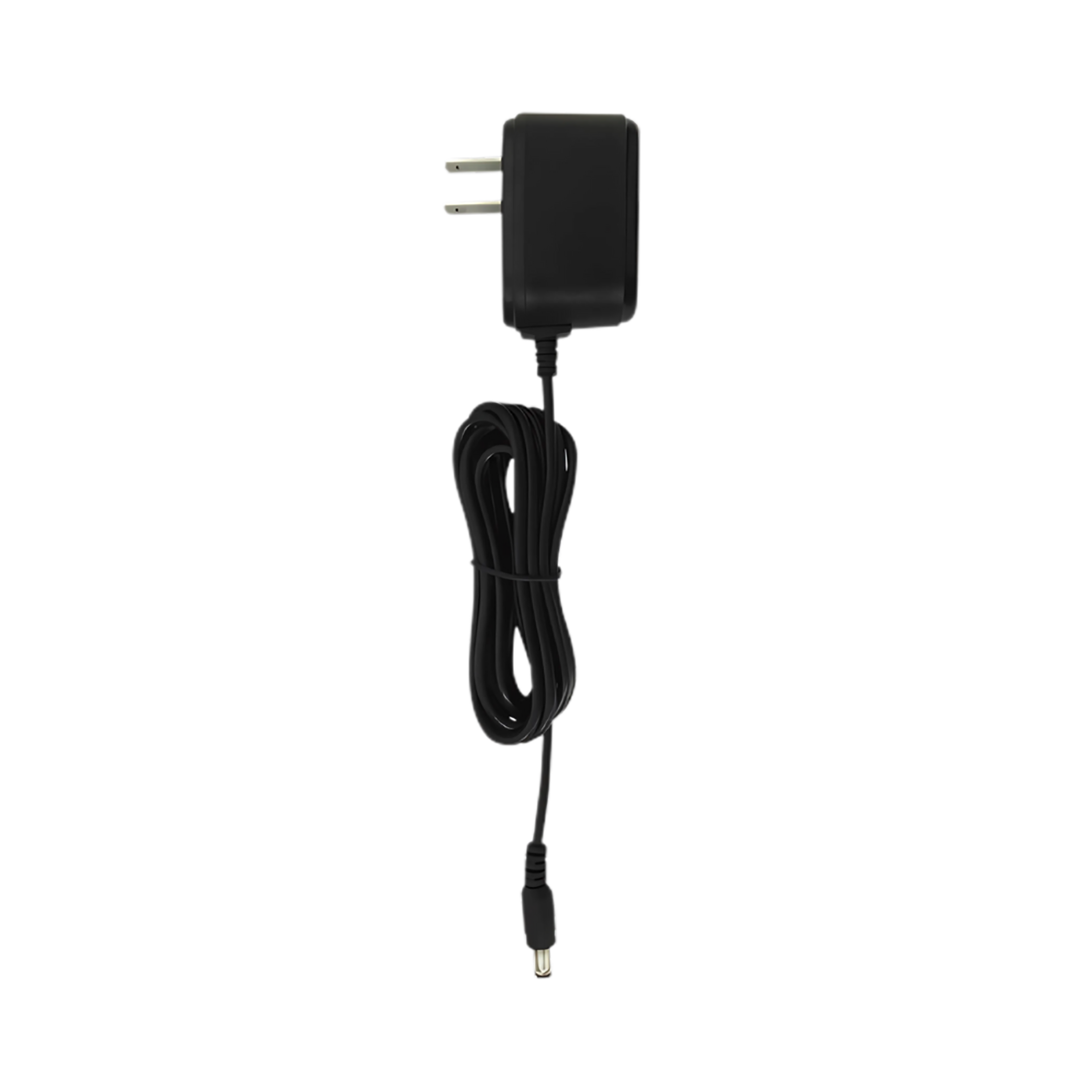

| Power Supply | DC 12V / 1A |
| Packaging dimension | 180 × 140 × 140 mm |
| Gross weight | 0.1 kg |
