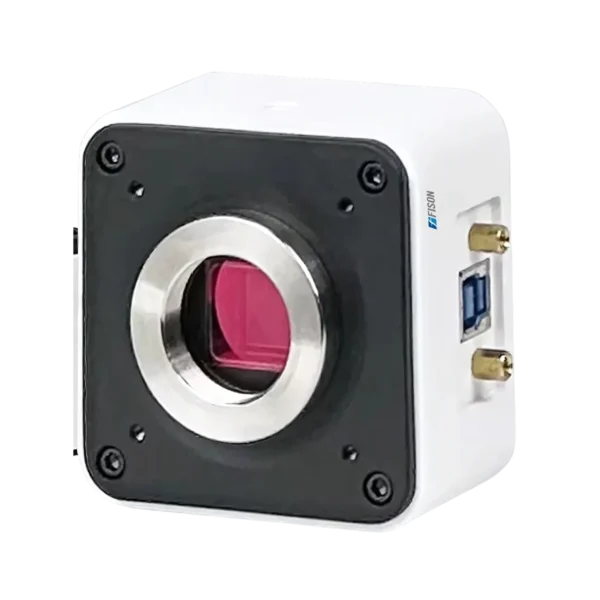

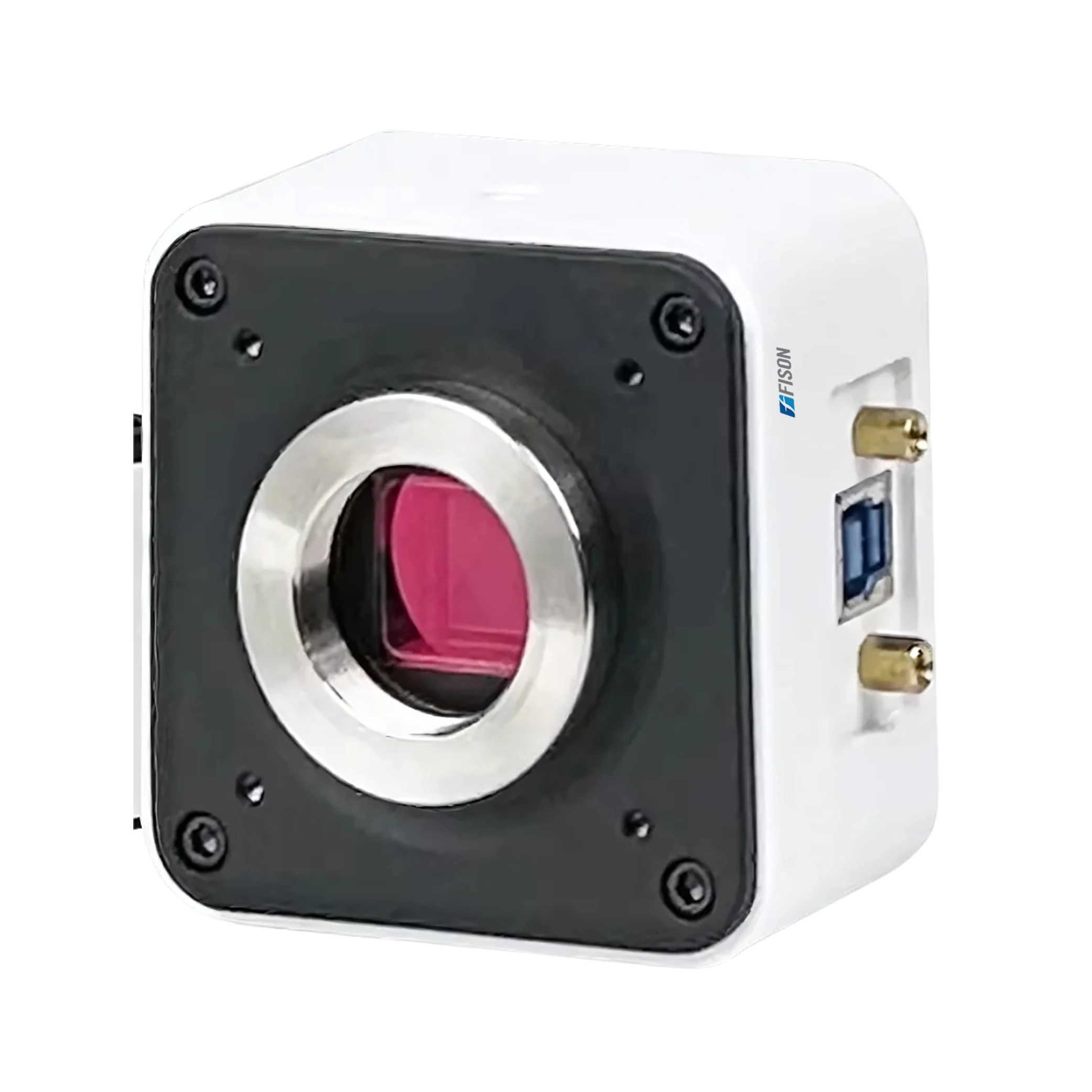

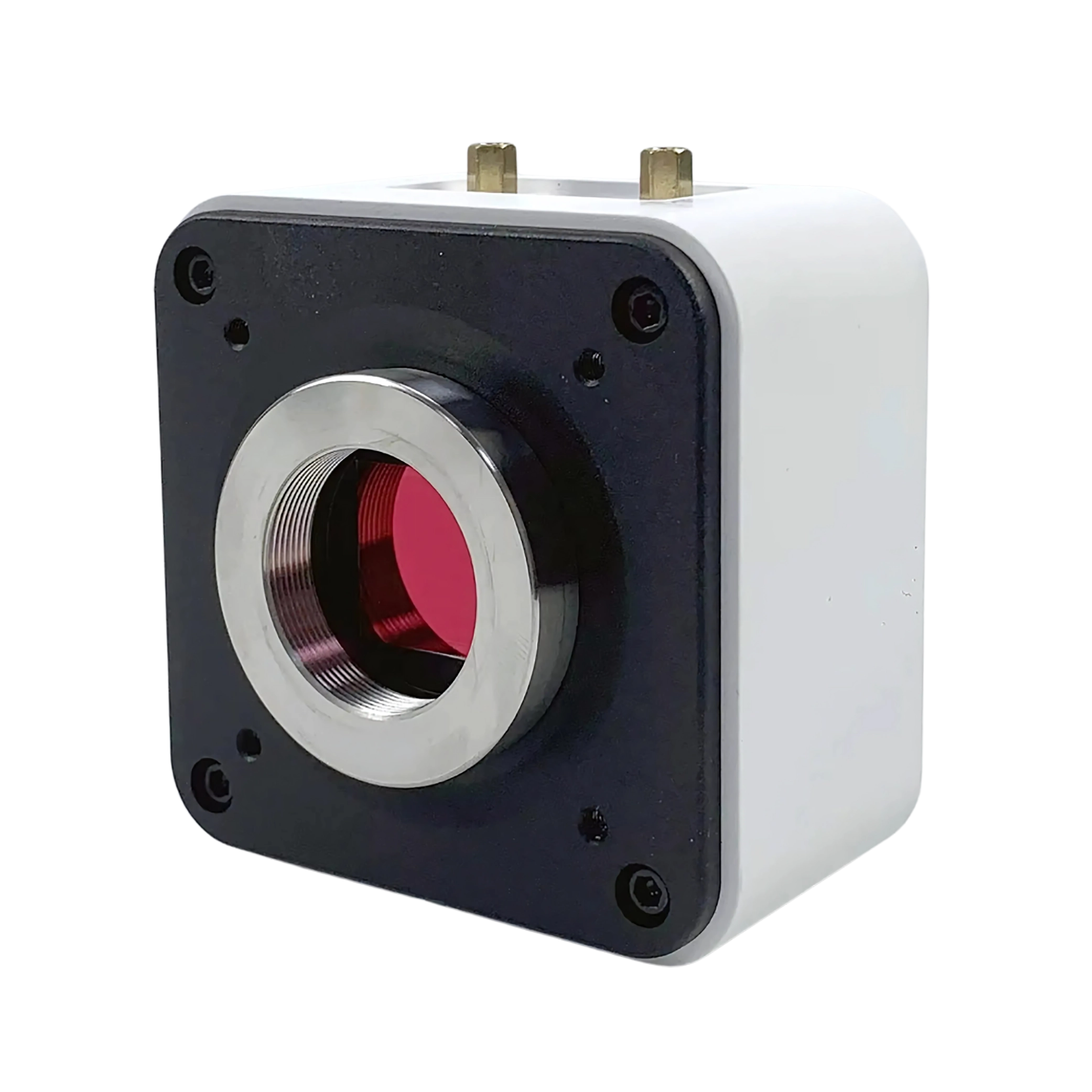

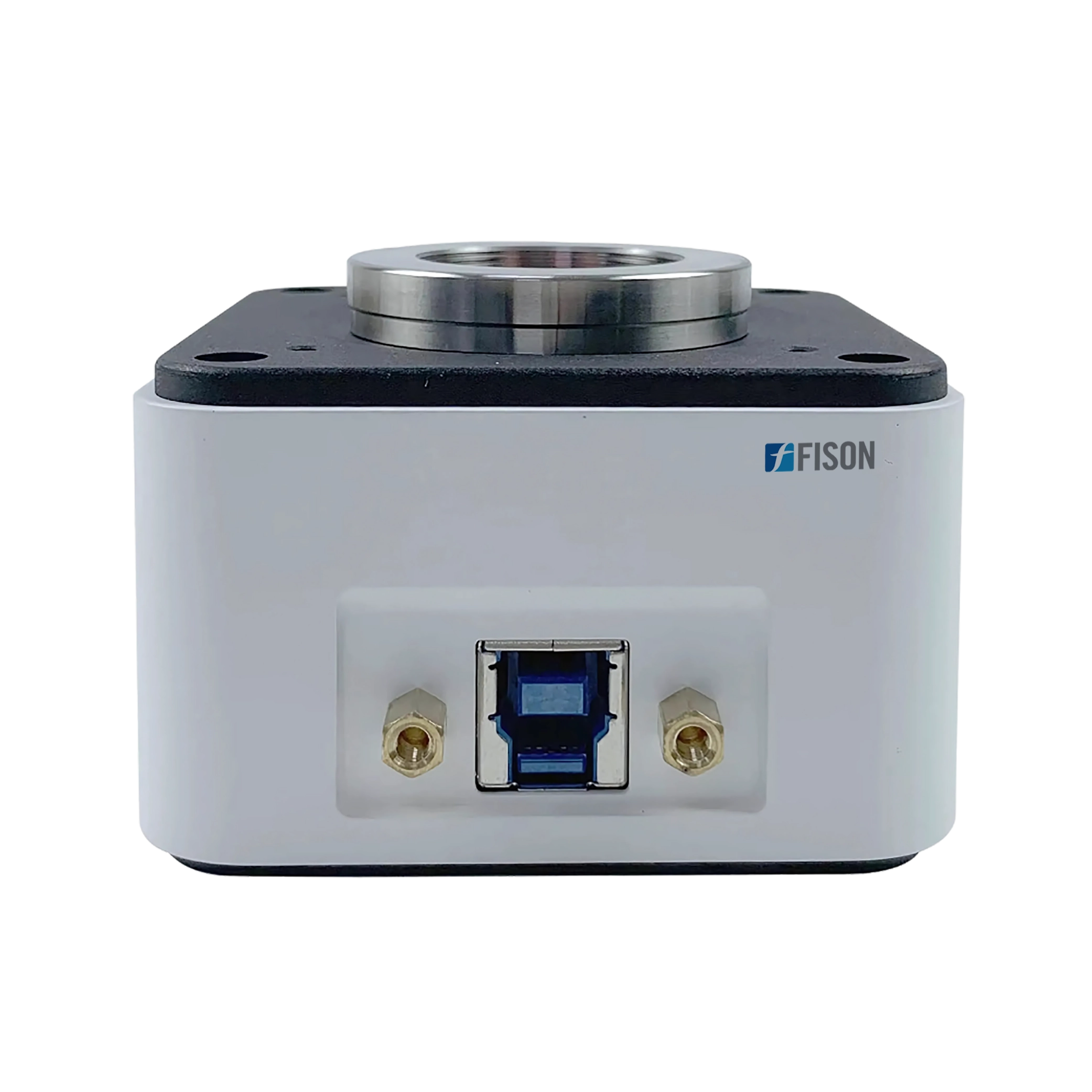

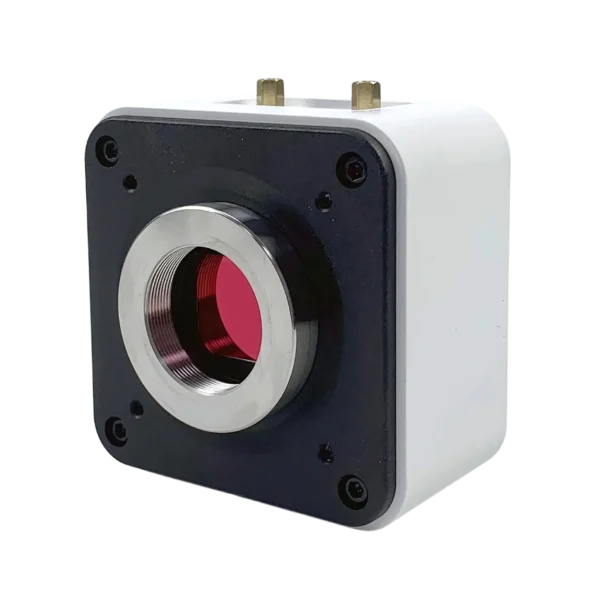

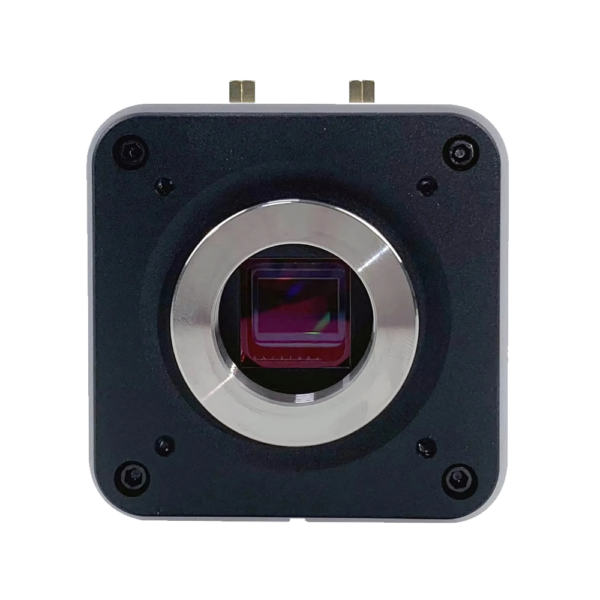

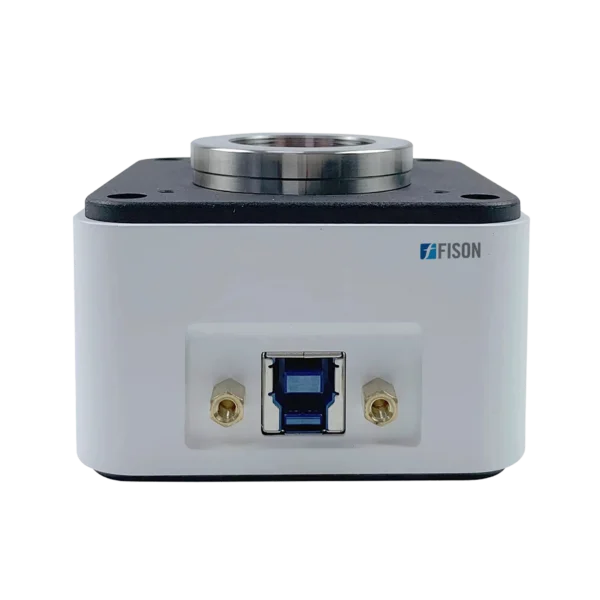

Microscopic Digital Camera FM-MDC-A201 is 3.0 USB high-speed transmission interface camera featured with computational imaging software, Mosaic 2.0. With a fast and high-definition 20 MP CMOS 1″ image sensor, it offers frame rate upto 67 fps (5496 × 3675) in full resolution and pixel size of 2.4 × 2.4 μm. Built in advanced rolling shutter technology, allows accurate tracking and captures dynamic crisp images of fast moving specimens.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Microscopic Digital Cameras are suited for industrial applications that require a great amount of data to be processed and transferred from camera to PC. These revolutionary industrial and biological, digital micro cameras are used in microscopic imaging, visual inspection, and measurement of test specimen across life sciences.
| Shutter Mode | Rolling |
| Sensor Model | IMX183CQJ-J |
| Sensor Type | CMOS |
| Sensor Size | 1″ |
| Camera type | Color |
| Pixel Size | 2.4 × 2.4 μm |
| Resolution | 20 MP, 5496 (H) x 3672 (V) |
| Frame Rate | 15 fps (5496 × 3675) 53 fps (2736 × 1824 2×2 bin) 67 fps (1920 × 1680 3×3 bin) |
| Exposure | Supports auto/manual exposure |
| Exposure time | 0.13 ms to 15 s |
| Color scale | Automatic |
| White balance | Automatic |
| Color gain | Manual |
| Noise reduction | Manual |
| Flat field correction | Manual |
| Color Temperature | 2000 to 15000 K |
| Picture Format | JPG/PNG/TIFF |
| Sample applications | Fluorescence microscope, Biological microscope, Polarizing microscope, Metallographic microscope, Stereoscopic microscope |
| Data Interface | USB 3.0 |
| Lens mount | Standard C mount |
| Multiple Cameras | Supports 4 cameras simultaneously |
| PC Operating | Software: Mosaic V 2.0 System: Windows/Linux/Mac |
| PC Configuration | CPU: Intel Core i5 or better (Quad or more Core) RAM: 8 G or more Supporting OS: Windows 7/8/10 64bit |
| Dimension | 68 × 68 × 46 mm |
| Gross weight | 330 g |
