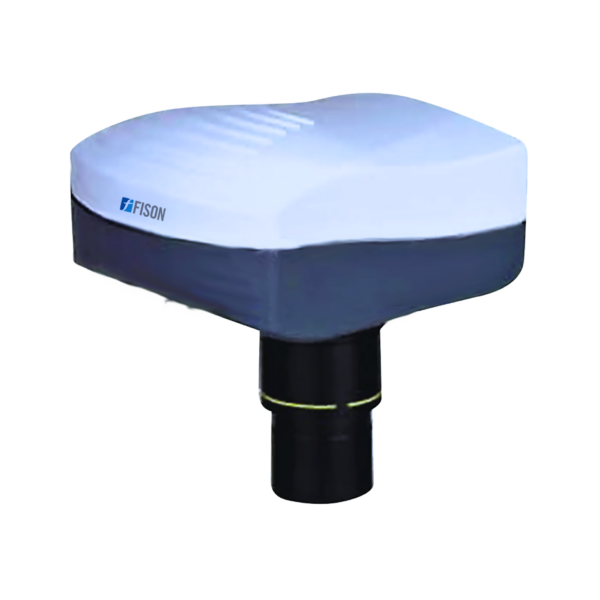

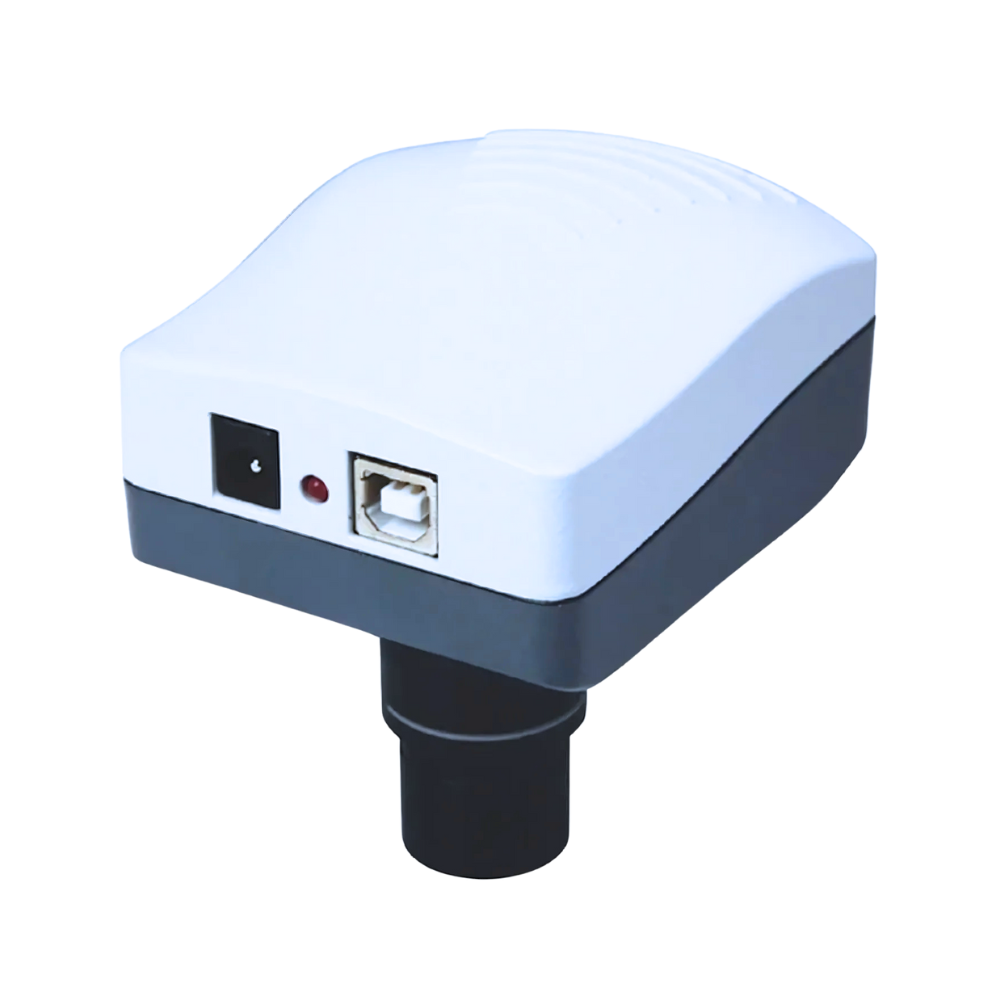

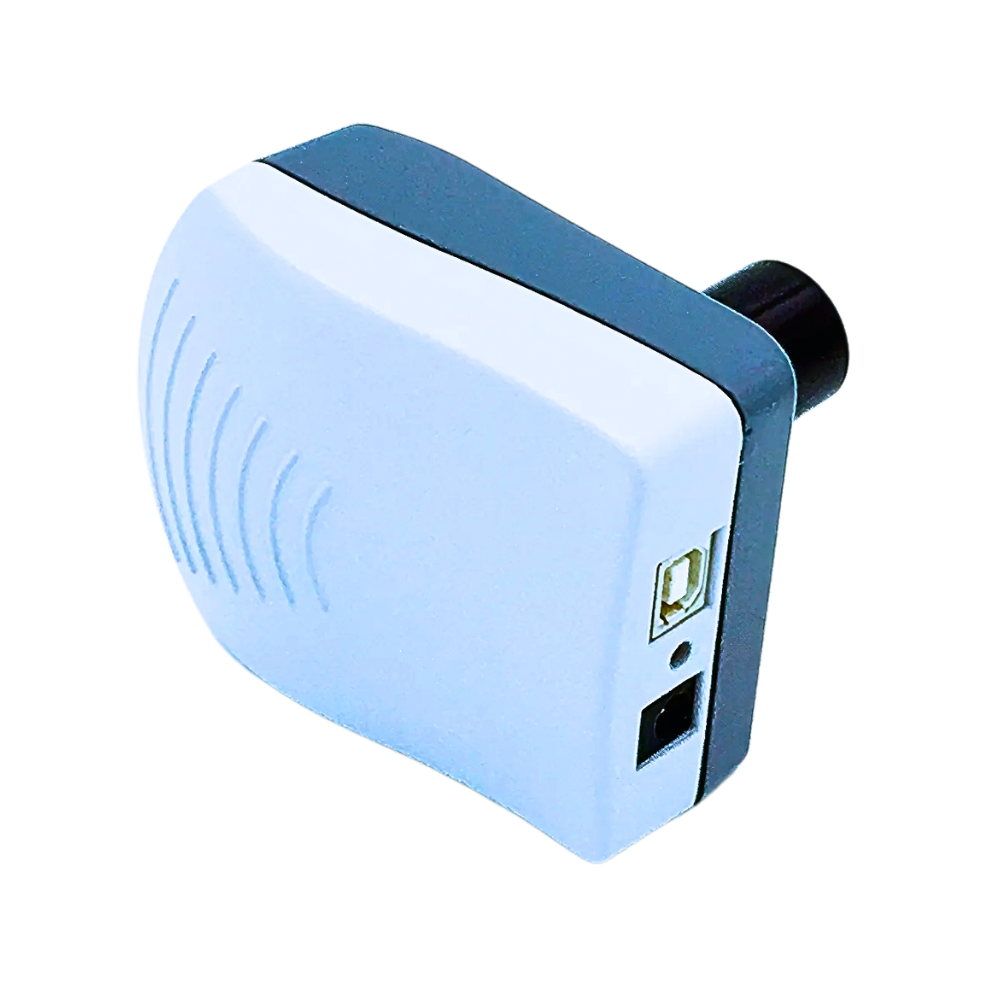

Microscopic Digital Camera FM-MDC-A102 is a digital 2.0 USB eyepiece camera with CMOS image sensor that captures microscope images and displays real-time live video on PC. With maximum resolution of 5.0 MP and frame rate of 2592 × 1944 pixels it gives higher sensitivity and excellent color correction. This camera is designed to fit an eyepiece tube of 23.2 mm or 30 mm diameter and ScopeImage DynamicPro Image analysis software offers better visual microscopic inspection and measurement of specimen under study.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries. Accurately displays images of observed specimen on computer, it is suitable for all kinds of optical microscopes.
| Image sensor type | Color CMOS (Micron) |
| Sensor size | 1/2.3″ CMOS |
| Imagining resolution | 5.0 MP |
| Hardware resolution | 2592 × 1944 |
| Pixel size | 2.2 μm × 2.2 μm |
| Digital output | 24–bit (color) |
| Frame rate | 2592 x 1944 4 fps |
| Sensitivity | 0.44 V/lux-sec (550 nm) |
| Exposure | Auto / Manual |
| White balance | Auto / Manual |
| Lens mount | 23.2mm / 30mm diameter adapter tube, C-mount |
| Data interface | USB 2.0 |
| Standard software | ScopeImage DynamicPro Image analysis software |
| Working temperature | -30 to 70°C |
| Relative humidity | 20% to 75% RH |
| Supported OS | Windows 7/8/10 |
| Power | DC: 12 V/1 A |
| Dimension | 120 × 120 × 80 mm |
| Gross weight | 450 g |
