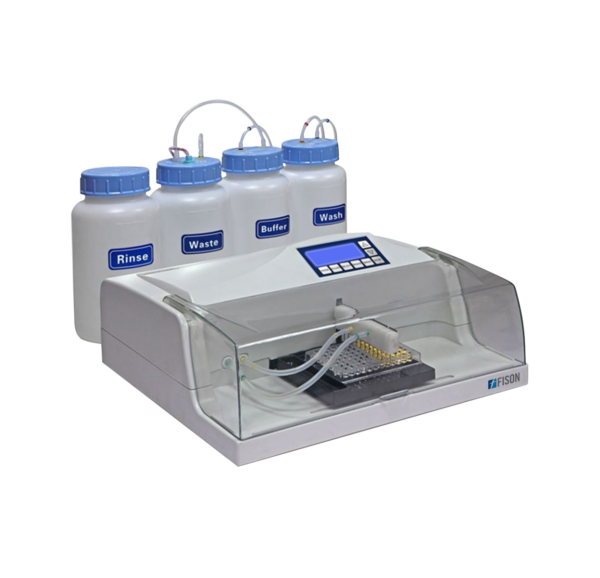

Microplate washer FM-MPW-A100 is a compact, efficient, reliable and user-friendly microplate-strip washer. Compatible for Flat, U or V-bottom, it provides complete bottom washing and includes 8 and 12 manifold channels. In addition it is provided with wash, rinse, buffer and wash bottle to make getting started simpler. Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also employed used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.
| Residual liquid | ≤ 1μL / well |
| Wash mode | Plate mode and Strip mode |
| Washing heads | 1 × 8 / 1 × 12 |
| Wash strip | 1 to 12 adjustable |
| Plate types | Flat, U-bottom, V-bottom |
| Washing volume | 50 to 3000 μl/well |
| Washing times | 0 to 99 times adjustable |
| Dipping time | 0 to 3600 sec. adjustable |
| Shaking time | 0 to 600 sec. adjustable |
| Sipping time | 0.1 to 9.9 sec. |
| Dispense precision | CV ≤ 2% |
| Input | 8 key membrane keyboard |
| Display | High brightness LCD display screen |
| Operating environment | Temperature: 5°C to 40°C, maximum humidity: 80% |
| Storage capacity | Up to 120 user defined wash board procedures |
| Power supply | 100 to 240 V, 50/60 Hz |
| Dimension (L × W × H) | 448 × 382 × 163 mm |
| Net weight | 8 kg |
