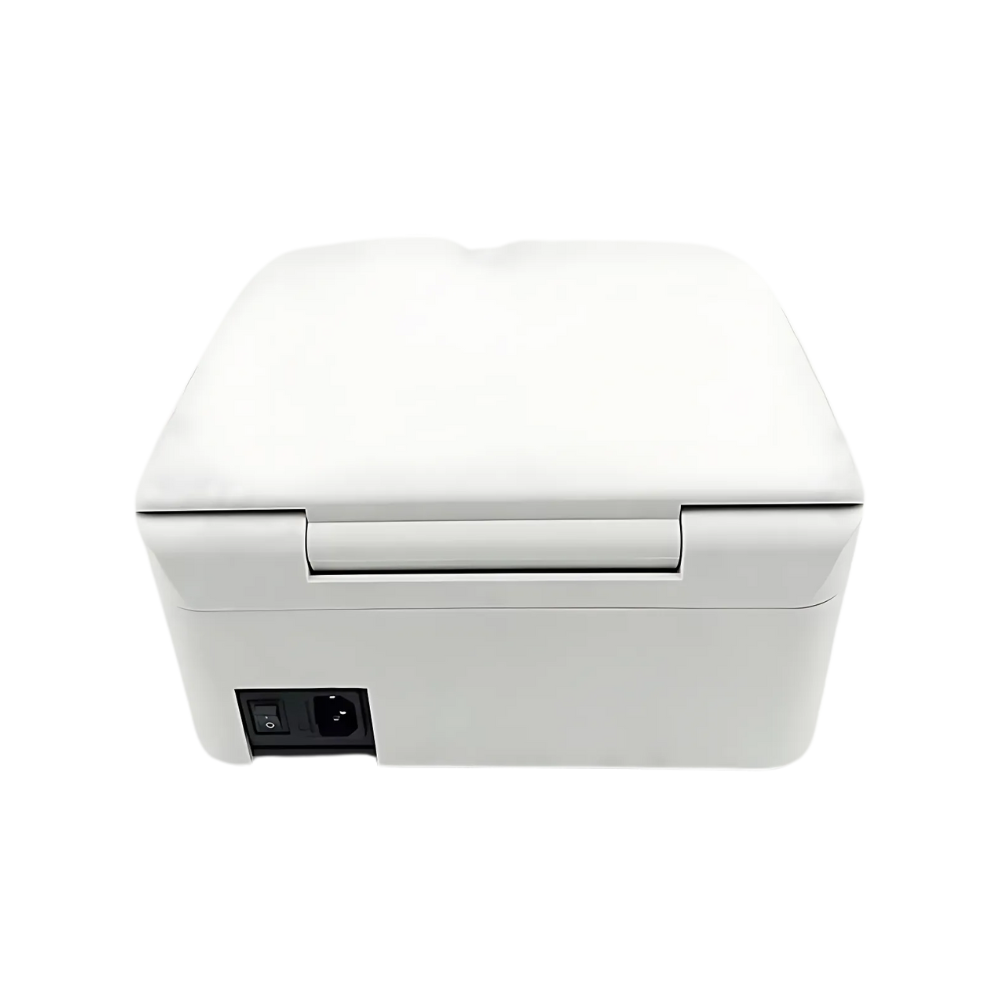

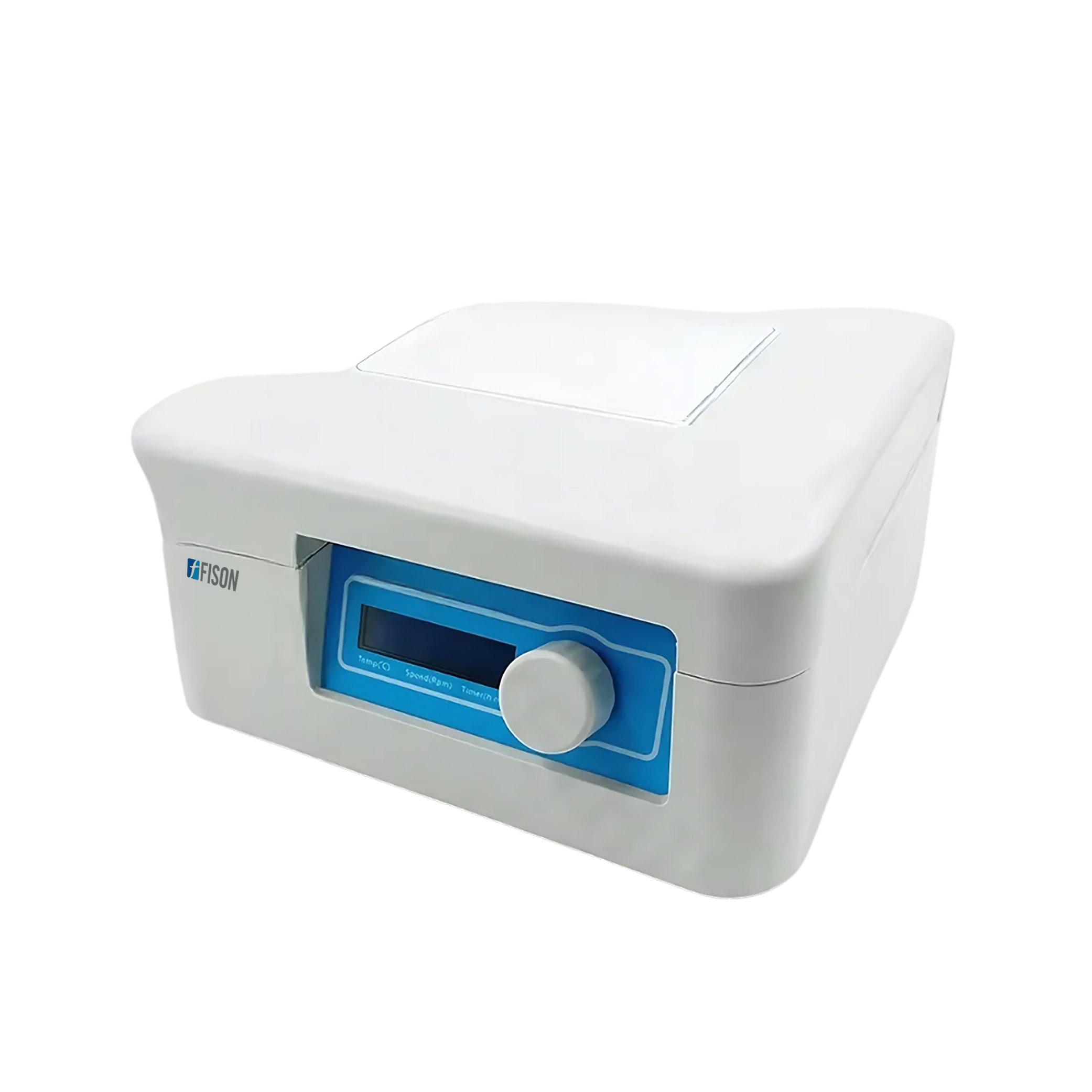

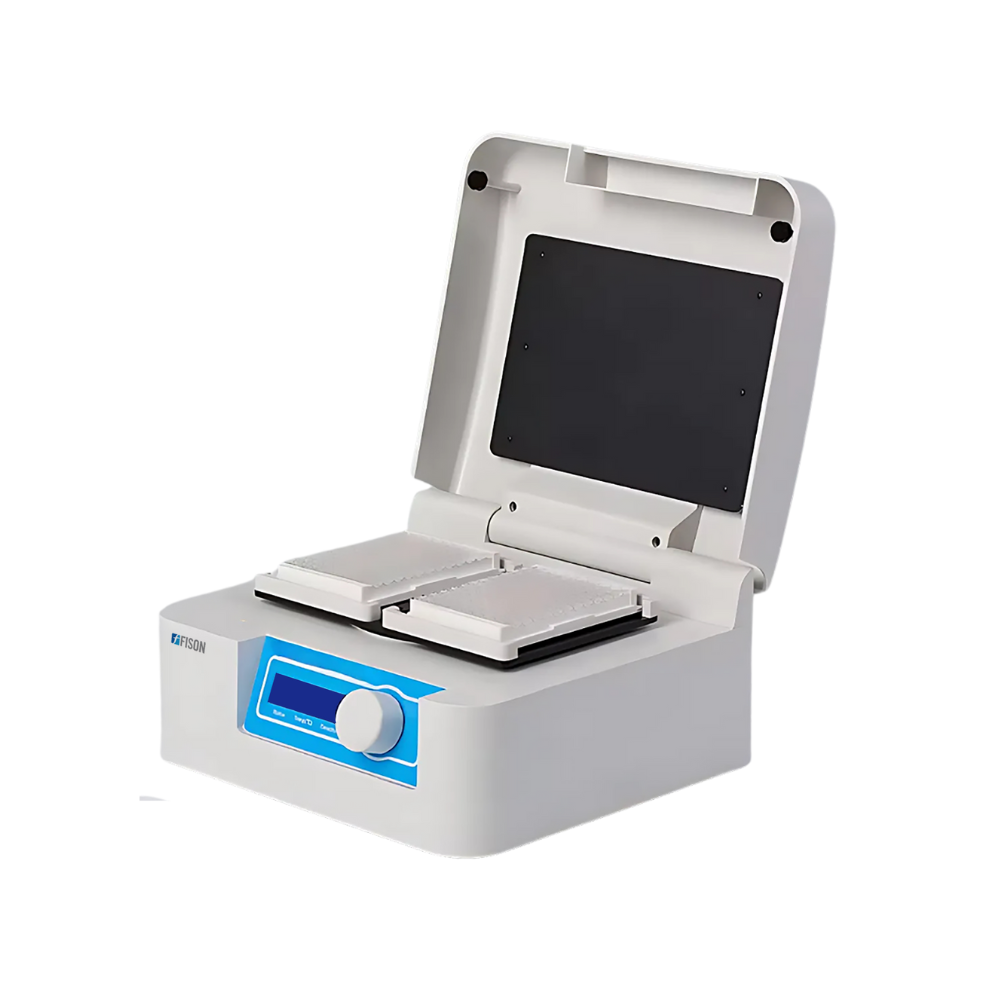

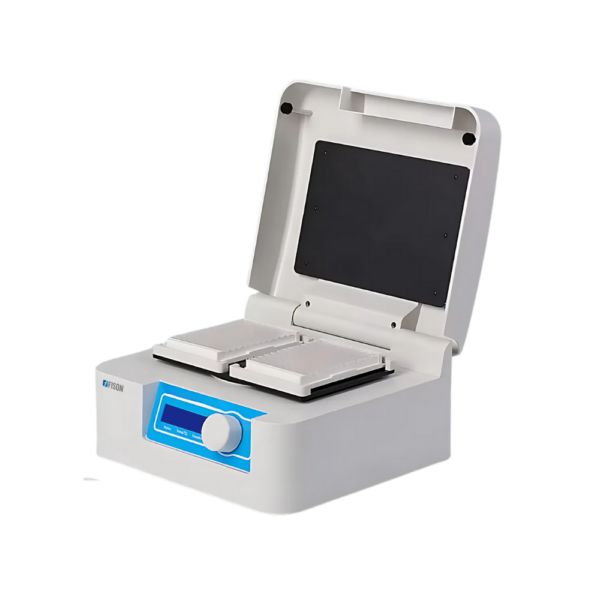

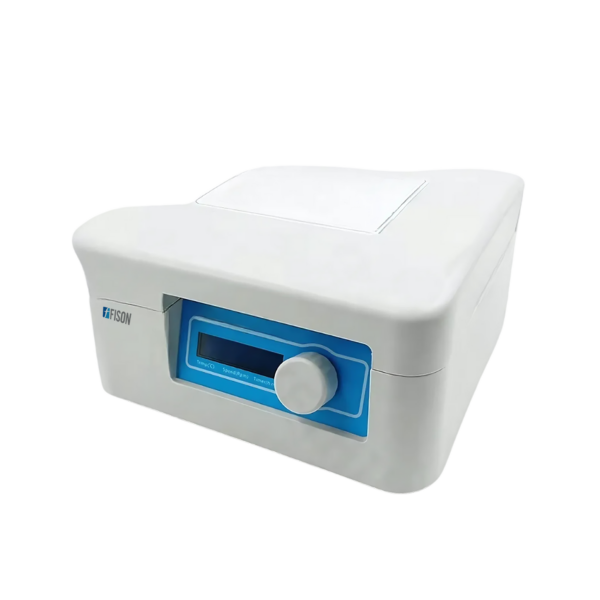

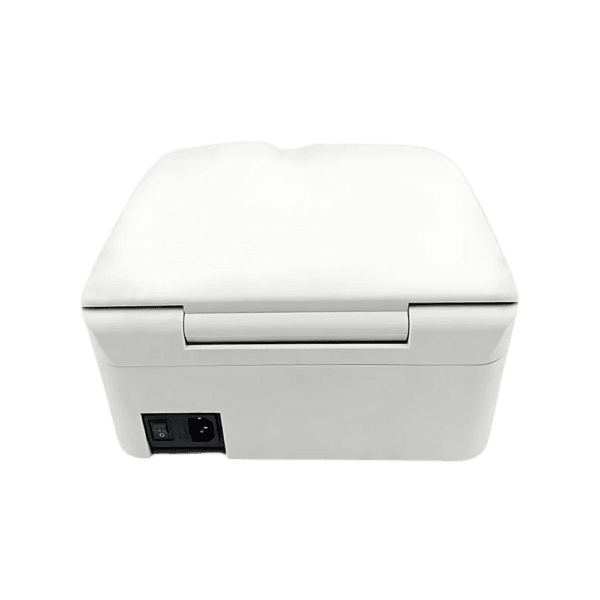

Microplate Shaker FM-MPS-A200 is a compact and tabletop equipment, adopted with direct brushless DC motor and PID intelligent temperature controller, offers 200 to 1600 rpm of shaking speed with temperature control range of RT+5° to 80°C. Features one touch knob operation with high quality switch, ensures stable and reliable operation. With sample capacity for 2 pcs × 96 wells microplates or culture plates, alarm on completion, it also offers heating time of ≤20 min. Equipped with LCD display and power recovery function, this equipment is mainly used for shaking and cultivation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Microplate shaker is used for maintaining temperature for ligation reactions, for storing oocytes and other samples at ice bucket temperature, for storing enzymes or DNA libraries, for transporting samples from the field at exactly the right temperature, heating samples, enzyme reactions and deactivations, PCR sample preparation, etc. across various labs, colleges, medical, pharma and research institutes.
| Shaking speed range | 200 to 1600 rpm |
| Capacity | 2 pcs × 96 wells microplates or culture plate |
| Shaking motion | Orbital |
| Amplitude | 3 mm |
| Temperature range | RT+5° to 80°C |
| Temperature uniformity | ≤+0.5°C |
| Temperature control accuracy | ≤+0.5°C |
| Display accuracy | 0.1°C |
| Heating time | ≤20 min (from RT to 80°C) |
| Heating | Heating film |
| Timer | 1 min to 99 h 59 min |
| Display | LCD display |
| Motor | Brushless DC motor |
| Temperature controller | PID |
| Operation mode | One touch knob operation |
| Power recovery function | Yes |
| Power supply | AC 110 to 240 V |
| Power | 150 W |
| Dimension (W×D×H) | 280×270×140 mm |
| Weight | 7 kg |
