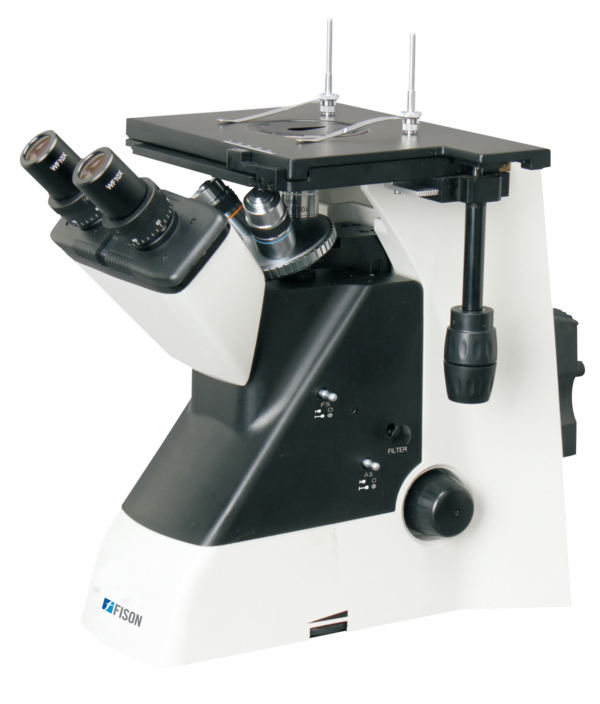

Metallurgical Microscope FM-MM-A100 is an inverted microscope with sliding binocular viewing head and compact design. Its teardrop and circular hole stage plate ensures flexible adjustments while viewing samples. Equipped with stage clips holds the specimen in position for better viewing.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in routine metallurgical analysis of specimens in research, quality, education, manufacturing industry.
| Optical system | Finite optical system |
| Viewing head | Sliding binocular viewing head 45° inclined |
| Objective | Achromatic Objective 10X/ 0.25 WD= 6.3 mm, Plan achromatic objective 40X/ 0.65 WD= 0.7 mm |
| Eyepiece | WF10X/ 18 mm, WF12.5X/ 14 mm |
| Stage | Mechanical stage 180 × 155 mm, Moving range: 40 × 30 mm, Teardrop, round hole stage with 2 pcs stage clips |
| Illumination | 12V/ 20W halogen lamp, center and brightness adjustable |
| Nosepiece | Triple nosepiece |
| Focusing | Coaxial coarse and fine focusing adjustment, Fine division 0.002 mm, Moving range 8 mm |
| Filter | Green, yellow, daylight filter |
| Dimension (L×W×H) | 385 × 230 × 360 mm |
| Net Weight | 8 kg |
