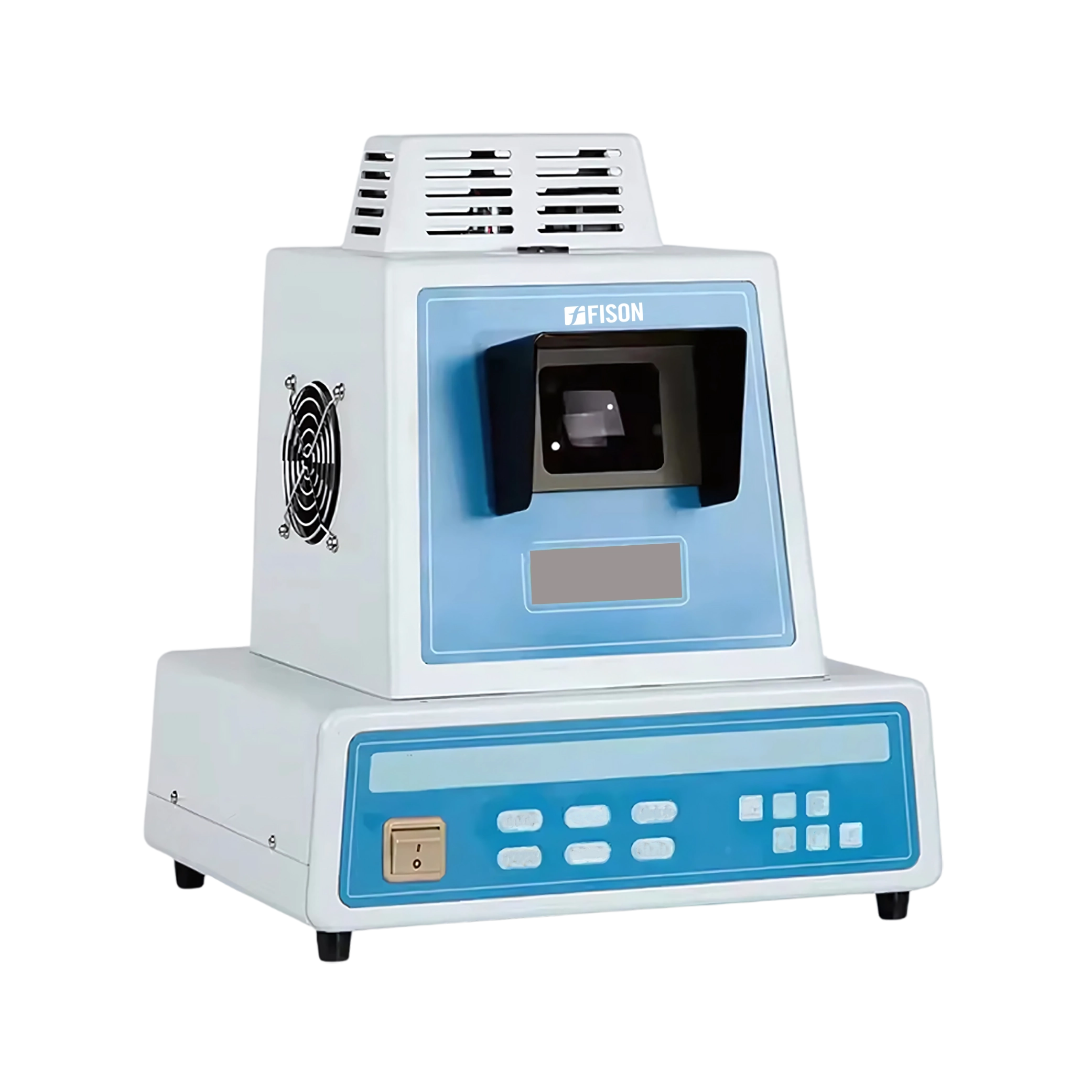

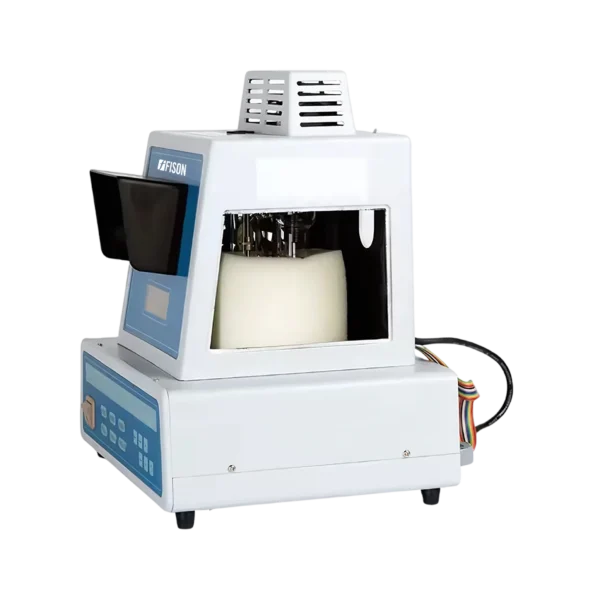

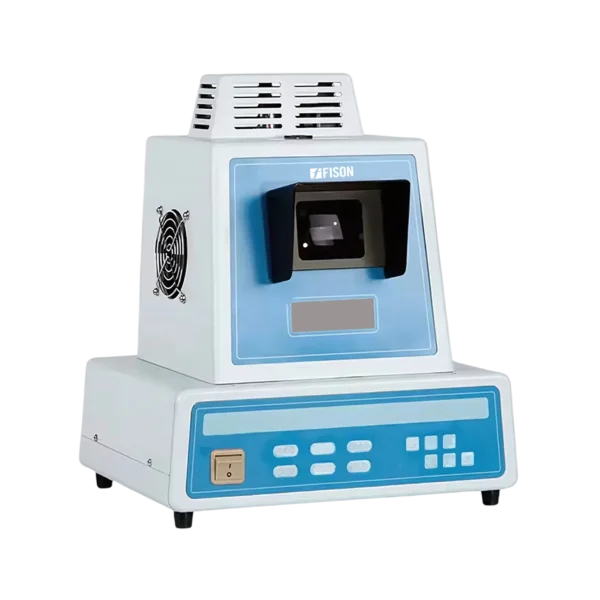

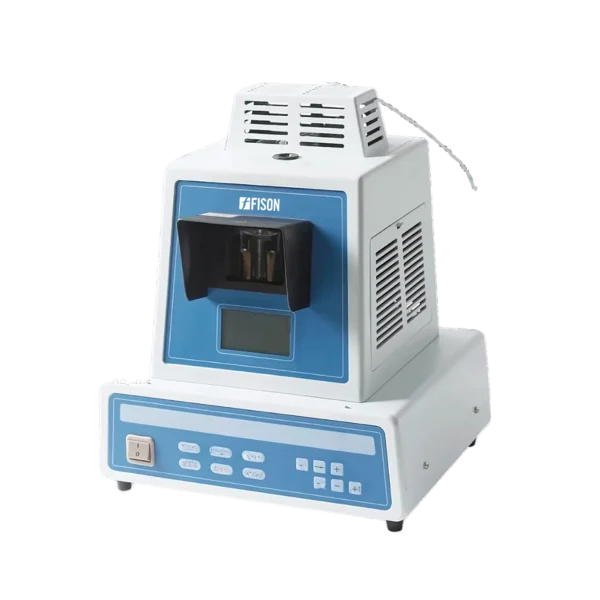

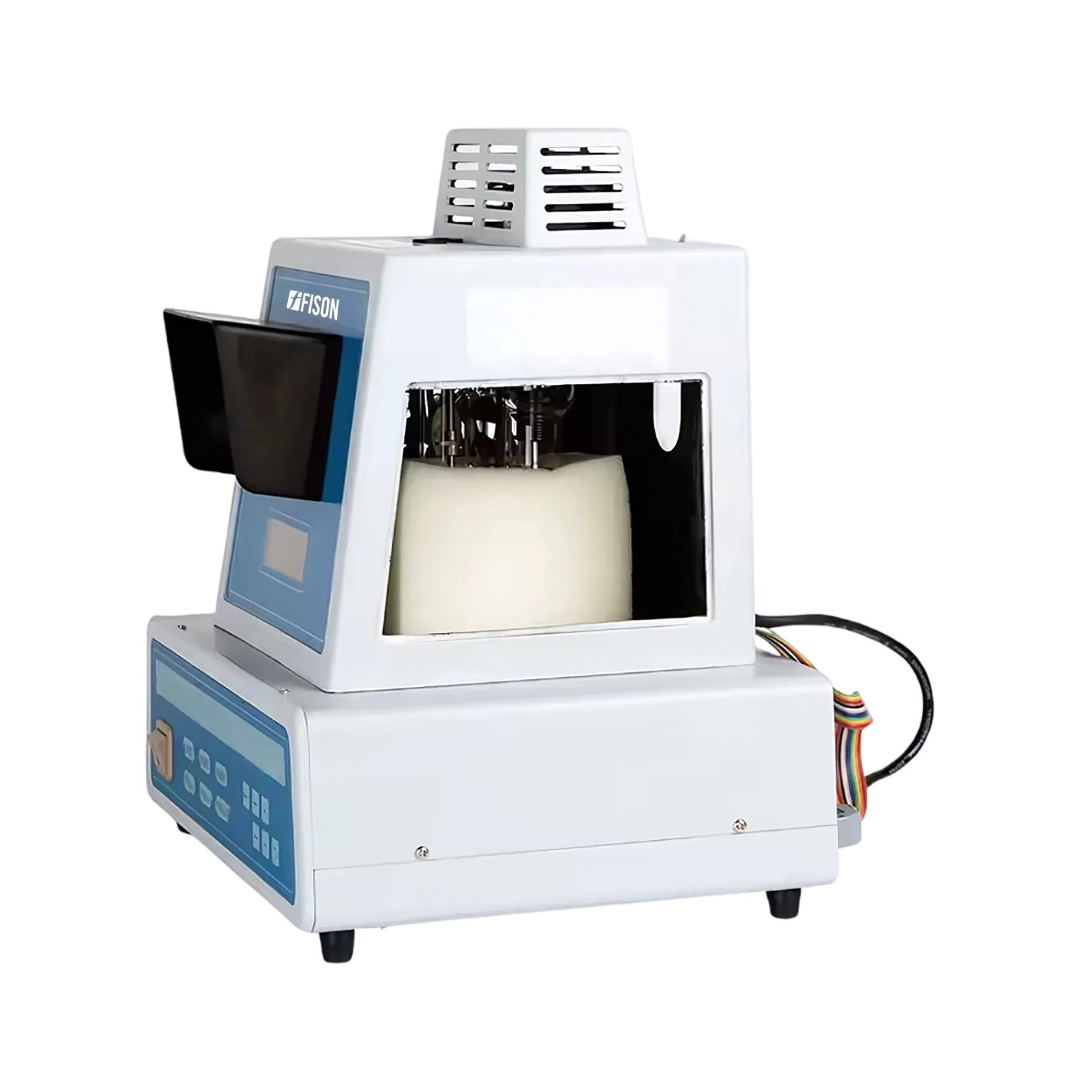

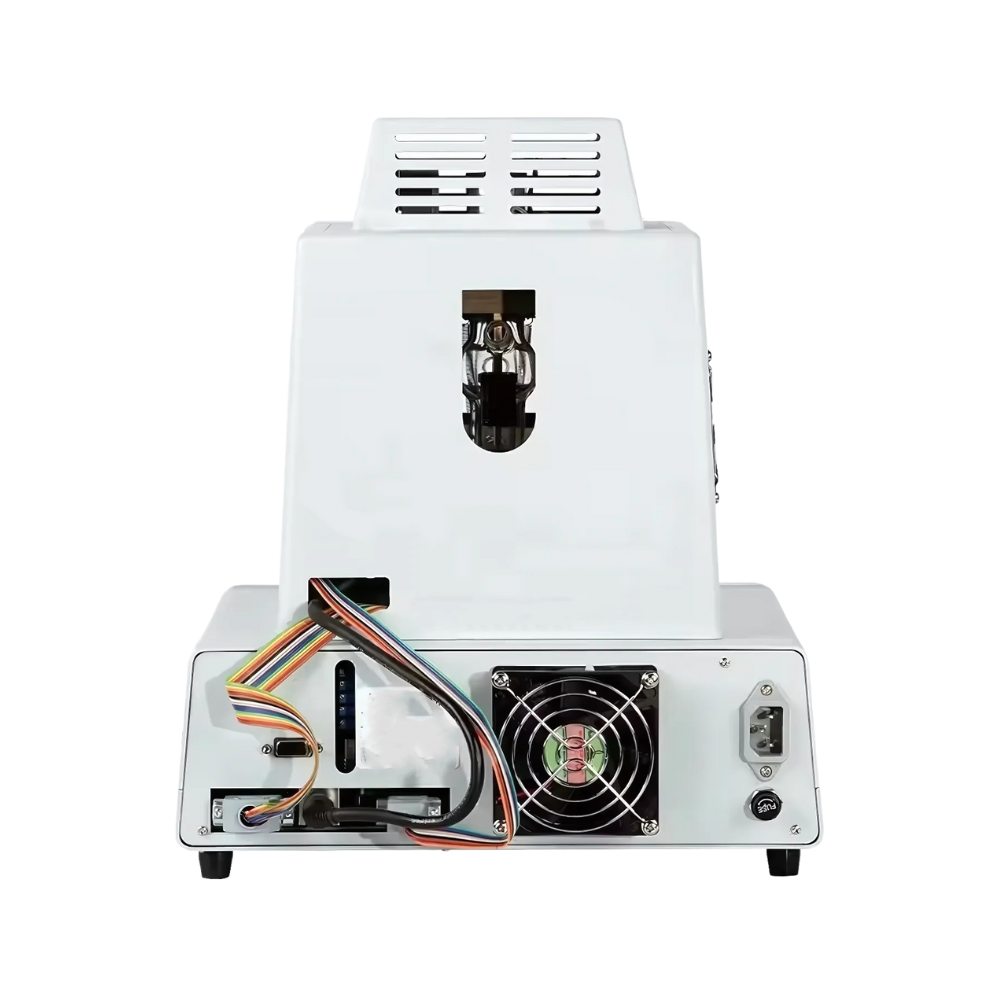

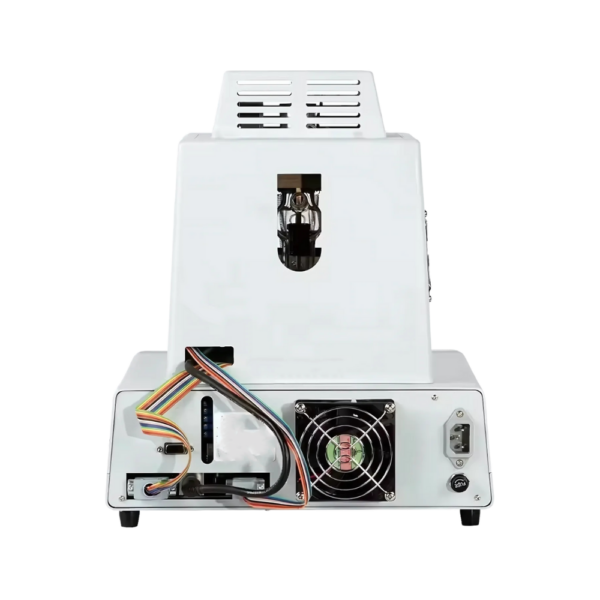

Melting Point Apparatus FM-MP-A100 is a desktop apparatus used to determine the melting point of a substance. Improved with automated technology measures powdered materials with a melting point temperature range of 280°C. Featured a user-friendly display with a precision of 0.1°C. Equipped with silicon Heating conducting medium. Functionality is crucial in identifying and characterizing various organic and inorganic compounds that have distinct melting points.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is applied in various industries, including drug industry, biochemistry, medicines, mining, and water management, for determining the melting points of medicines, dyestuffs, perfumes, and other organic crystals.
| Measuring Range | 280◦C |
| Accuracy | ≤ 200˚C, ± 0.4˚C, 200˚C, ±0.7˚C |
| Repeatability | 0.3◦C |
| Heat Conductive medium | Silicon oil |
| Size of the capillary | Length:120mm Outside Diameter: Φ 1.4mm Inside Diameter: Φ 1.0mm |
| No. of Capillary | 3 |
| Loading height of sample | 3mm |
| Minimum Digital Display | 0.1◦C |
| Interface | RS232 |
| Dimensions | 390 × 390 × 520mm |
| Weight | 13kgs |
