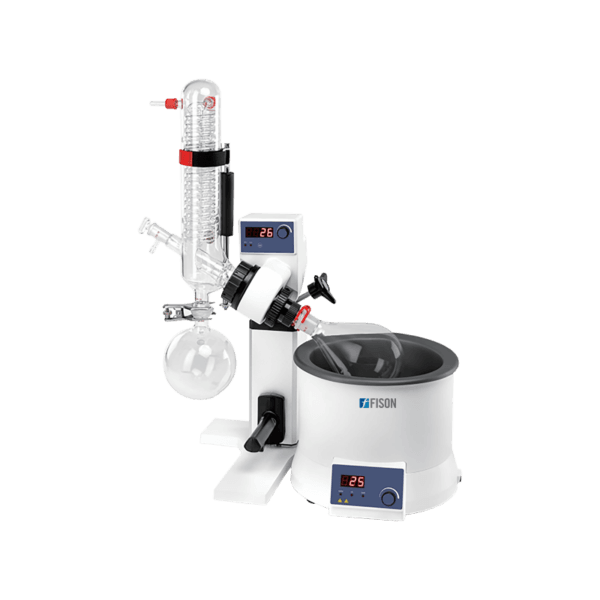

Manual Lifting Rotary Evaporator FM-LRE-A100 is designed for the efficient and controlled evaporation, distillation, and separation of solvents from liquid samples. Equipped with an LED display to observe speed, temperature, and time. Accommodated with an evaporation capacity of 1.5L/h with a speed range of 20 to 200 rpm. Supplied with a manual lift that allows the user to precisely position the evaporation flask to prevent the sample from overheating.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is used for concentration, crystallization, drying, separation, and solvent recovery of volatile solvents in various fields including pharmaceutical, chemical, and biotechnology industries.
| Motor Type | Brushless DC motor |
| Speed Range | 20 to 200 rpm |
| Temperature Range | 25℃ to 180℃ |
| Accuracy | Water: ±1℃ |
| Relative Humidity | ≤ 80 % RH |
| Evaporation Capacity | 1.56L/h |
| Power Consumption | 1245W |
| Power Supply | 100 to 120/200 to 240V, 50/60 Hz |
| Dimension (L × W × H) | 106 × 60 × 52 cm |
| Weight | 29kg |
