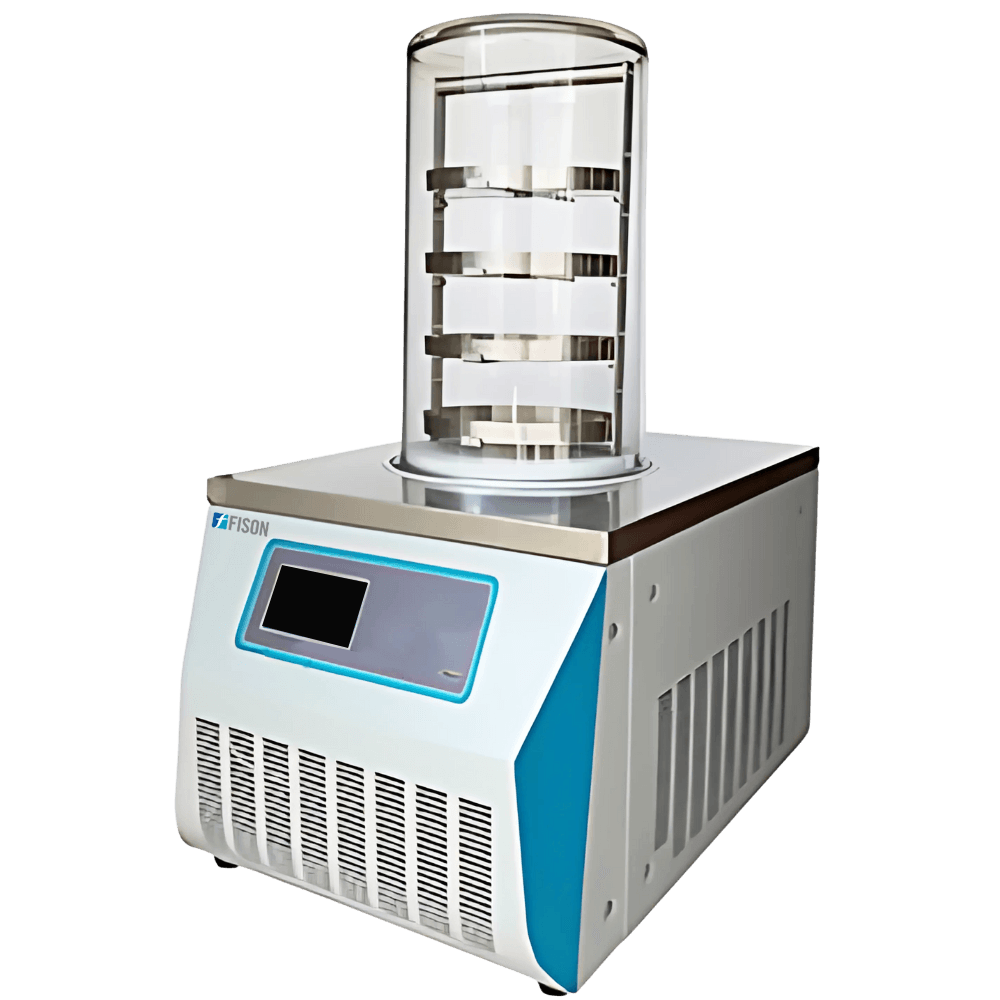

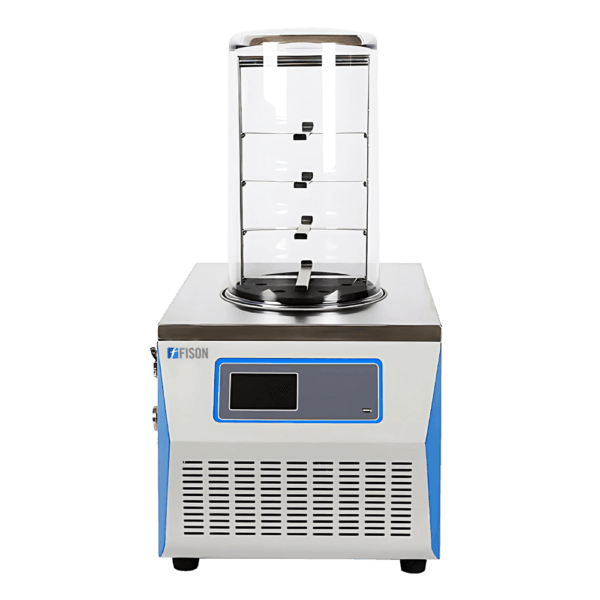

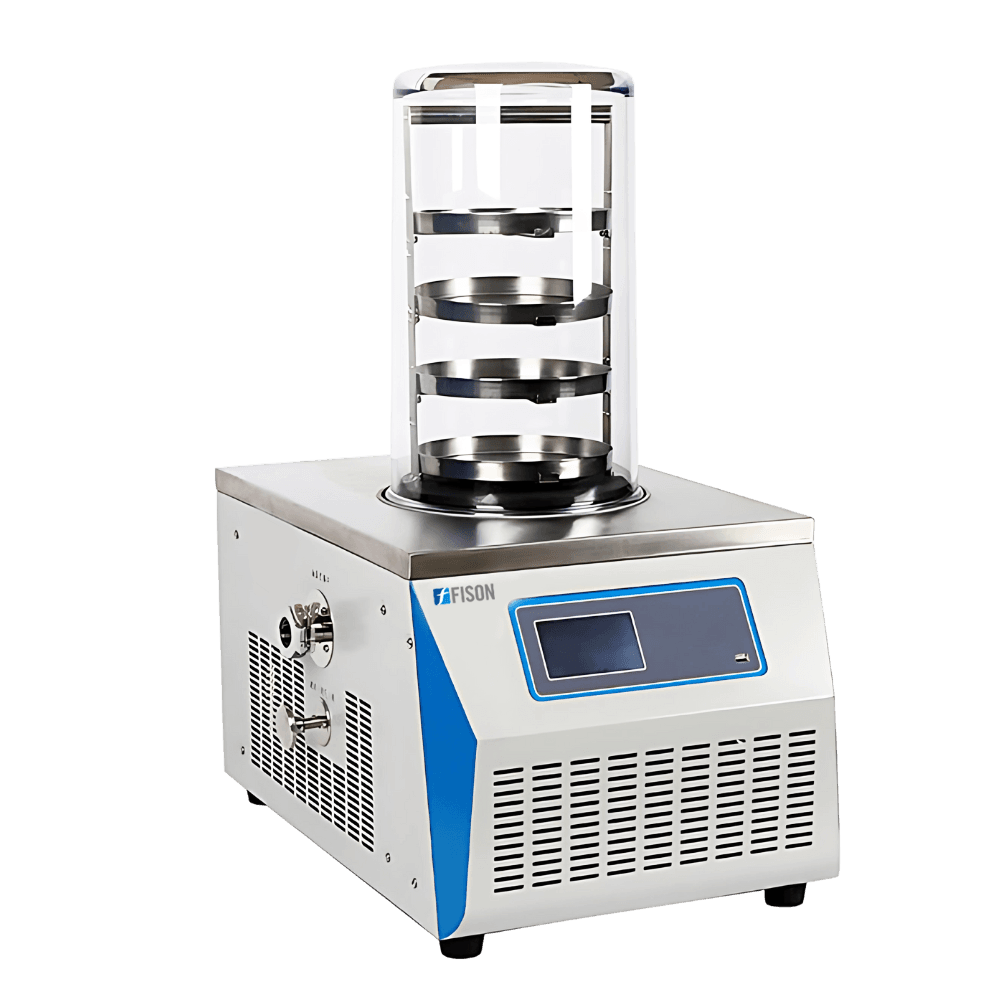

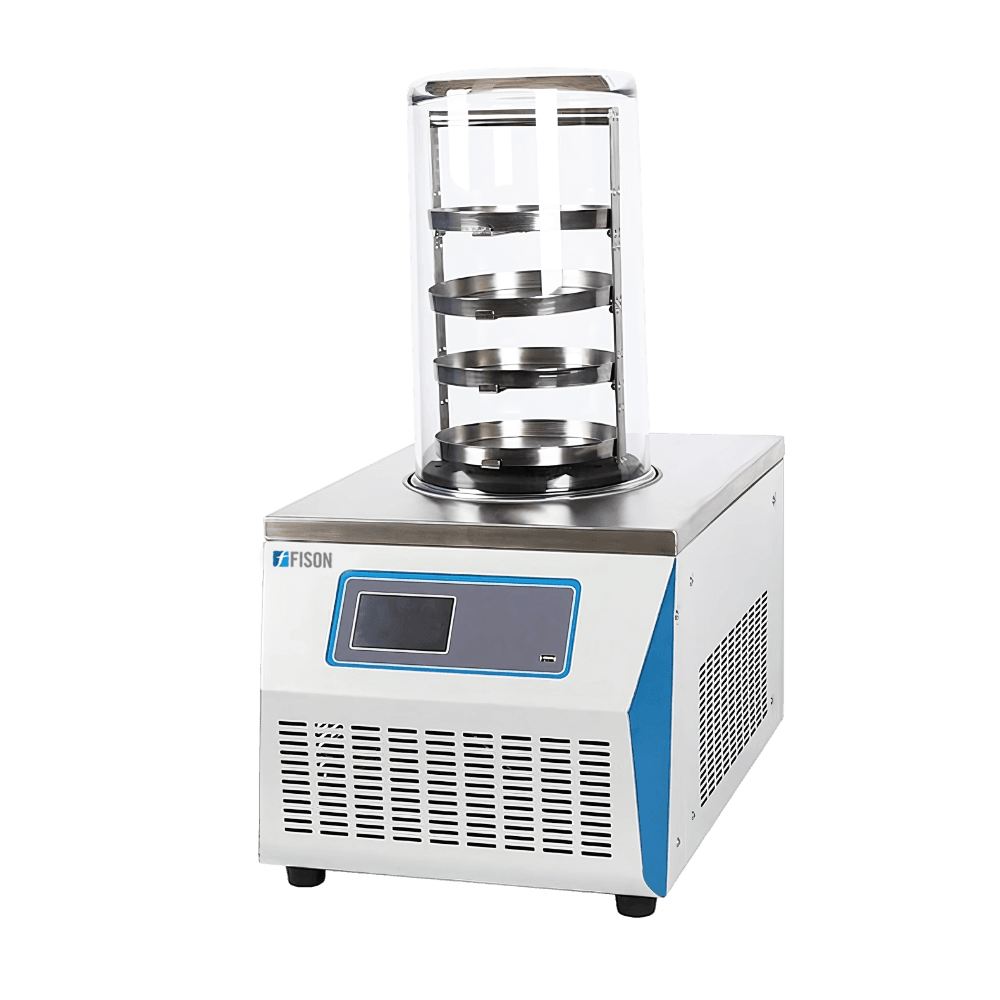

Lyophilizer Freeze Dryer FM-FD-B100 features a compact freeze-drying area of 0.12m², ideal for small-scale pharmaceutical applications, biotechnology, and food industries. This includes automatic data saving for accurate monitoring of temperature and vacuum levels. It is equipped with a high-speed vacuum pump for fast and efficient drying performance. Our Lyophilizer Freeze Dryer offers an off-cycle defrosting system for easy and efficient maintenance.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Lyophilizer Freeze Dryer FM-FD-B100 is ideal for small-scale applications in the pharmaceuticals, biotechnology, and food industries. It is used for preserving and stabilizing sensitive materials through freeze-drying processes.
| Freeze Drying Area | 0.12m² |
| Ice Condenser Capacity | 3 to 4 kg /24h |
| Condenser Temperature | -50℃ |
| Final Vacuum | < 10 Pa |
| Tray | Ф200mm,4 layers,Spacing 70mm |
| Bulk Capacity | 1.2L, 10mm thickness |
| Vial Capacity Φ12mm | 820 pcs |
| Vial Capacity Φ16mm | 460 pcs |
| Vial Capacity Φ22mm | 244 pcs |
| Condenser Size | Ф215mm, 140mm deep |
| Drying Chamber Size | Ф260×430mm |
| Vacuum Pump Flow Rate | 2 L/S, 7.2 m3/h |
| Defrosting | Off-Cycle Defrosting |
| Cooling | Air cooling, ambient temperature ≤ 25℃ |
| Power Consumption | 970 W |
| Power Supply | 220V /50 Hz, single phase |
| Packaging Dimensions (W×D×H) | 610 × 450 × (370+430) mm |
| Weight | 70 kg |
