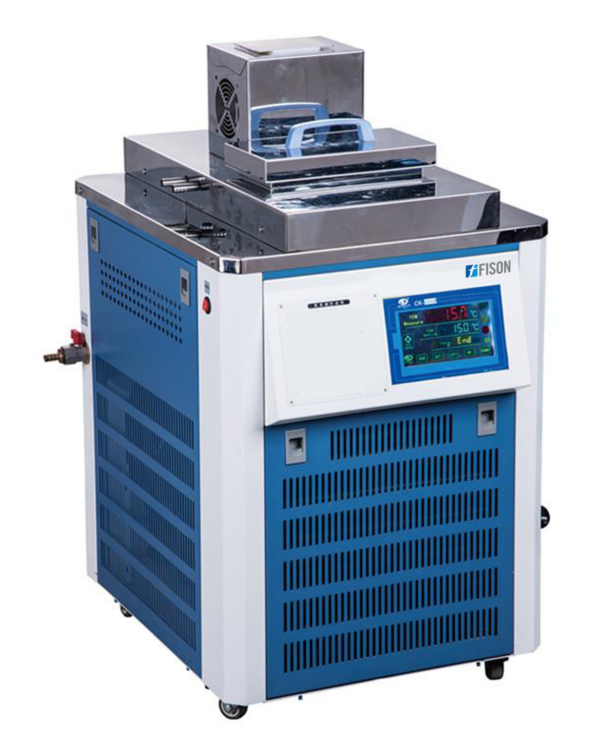

Low Temperature Circulating Bath FM-LCB-A101 is a rapid low temperature cooling circulating bath with a microcomputer PID automatic controller. Designed with 7 L capacity, -40°C to 200°C temperature range and double window (red and green) LED display. It has internal and external cycles with external cycles discharging thermostatic liquid outside the bath to lower or raise the temperature of the external vessel. Pump for external circulation with maximum flow rate of 20 L/min and drainage system. Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.
| Capacity | 7 L |
| Temperature range | -40°C to 200°C |
| Temperature stability | ± 0.1°C |
| Head of delivery pump | 10 m |
| Pump flow | 20 L/min |
| Temperature control tier | 32 controls points |
| Timer range | 0 to 9999 min |
| Display | Dual window LED display |
| Display resolution | 0.1°C |
| Drainage | Yes |
| Cooling power | 2329 W |
| Heating power | 1200 W |
| Power supply | 220 V, 50 Hz |
| Net weight | 55 kg |
| Gross weight | 70 kg |
| Packaging Dimension | 580 ×620 × 730 mm |
