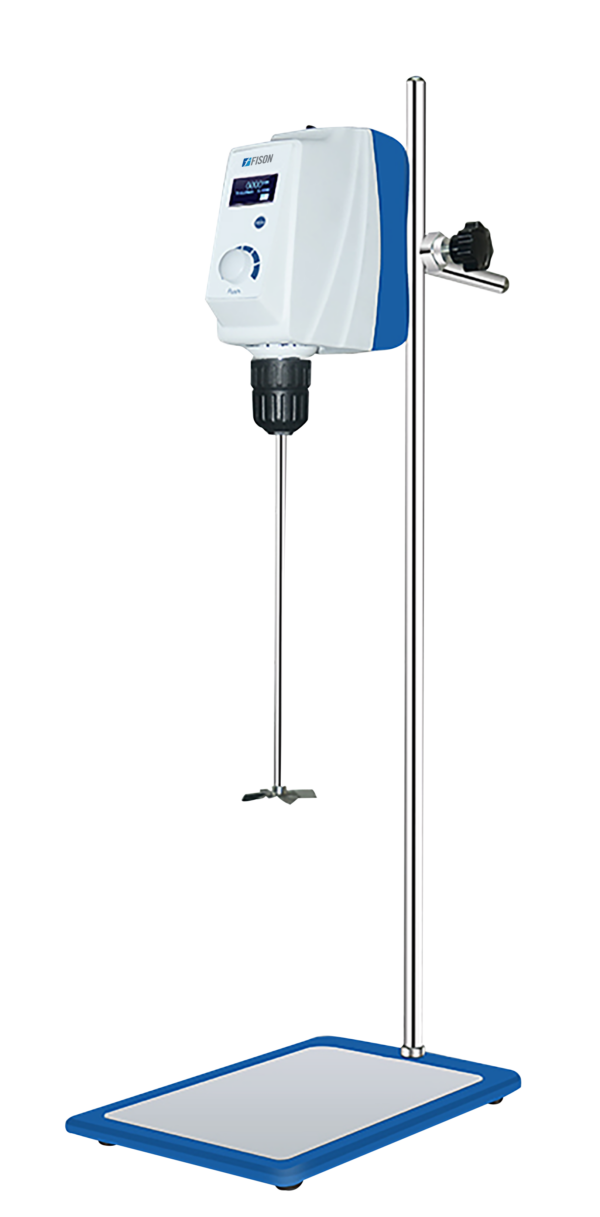

LCD Electric Overhead Stirrer FM-EOS-A100 offers adjustable speed range of 100 to 2200 rpm and 0.4 Nm adjustable torque. The LCD display allow the user to set the required torque and speed, and observe the true values of torque and speed. It is applicable for maximum 20 L capacity of the sample liquid. Enclosed chuck prevents liquid from splashing into the internal circuit of machine. Designed with Impeller changing hole for easy changing of sample vessel, self-locking drill clip, brushless DC motor and base with protected resist layer. Used in scientific research, colleges, chemical, pharmaceutical and medical units etc.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in scientific research, colleges, chemical, pharmaceutical and medical units etc.
| Capacity | 20 L |
| Speed range | 30 to 2200 rpm |
| Max viscosity | 10000 mPas |
| Diameter | 0.5 to 10 mm |
| Speed display | LCD |
| Speed resolution | ±1rpm |
| Torque | 0.4 Nm |
| Time setting | ≤ 9999 m |
| Ambient temperature | 5 to 40°C |
| Ambient humidity | 0.8 |
| Overload&protection | Yes |
| Motor protection | Yes |
| Protect class | IP42 |
| Interface | RS232 |
| Input power | 60 W |
| Output power | 50 W |
| Power | 70 W |
| Power supply | AC 220 V 50 Hz |
| Exterior dimension | 186 × 83 × 220 mm |
| Net weight | 2.6 kg |
