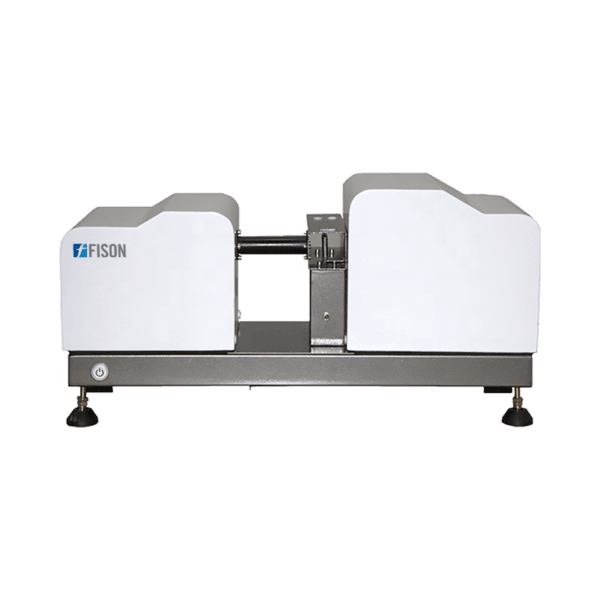

Laser Particle Size Analyzer FM-LPA-A401 is a portable spray laser particle size analyzer, adopted with Fraunhofer diffraction principle and typical parallel light path design. With single optical path multi lens technology and unique high-density detection unit, features 0.1 to 360 µm of measuring range with 54 detector channels. Integrated design with high-power fiber output semiconductor laser, open injection mode and software automated operation, offers <1 min of test time with different analysis mode, statistic comparison and methods, supports intelligent operation mode with different test reports format.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Laser Particle Size Analyzer is used for droplet size detection of small spray equipment such as medical atomizer, aerosol, aerosol and spray etc.
| Dispersion Type | Spray |
| Measurement Range | 0.1 to 360 µm |
| Channel number | 54 |
| Accuracy Error | <1% (National Standard Sample D50) |
| Repeatability Error | <1% (National Standard Sample D50) |
| Light Source | Semiconductor laser, λ = 650 nm P > 10 mW |
| Measuring Area | 60 mm |
| Injection Mode | Open |
| Optical Path Protection | Multiple |
| Operation mode | Software automated operation |
| Standard | ISO 13320:2009 |
| Test Speed | <1 min/time |
| Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. |
| Statistic Method | Size Distribution |
| Test Report | Word, Excel, Photo( Bmp), Text etc. |
| Intelligent Operation Mode | Yes |
| Dimension (L×W×H) | 612×230×325 mm |
| Package Dimension (L×W×H) | 710×430×440 mm |
| Net Weight | 13 kg |
| Gross Weight | 25 kg |
