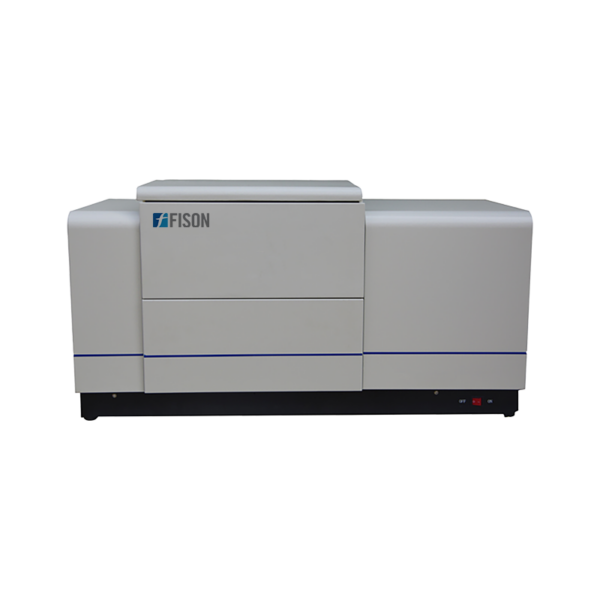

Laser Particle Size Analyzer FM-LPA-A202 is an intelligent unit, designed as per ISO 13320-1:1999 standard configurations, adopted with MIE scattering principle and converging light Fourier transform light path. With highly stable He-Ne semiconductor laser and high-sensitive ring photoelectric detector, features 97 detector channels with 0.1 to 1200 µm of measuring range and dry-turbulence dispersion mode. Designed with manual and fully automatic operation modes, automatic vibration feeding and automatic optical path calibration system, offers different analysis modes, statistic comparison and method, and user-defined analysis. With <1 min of test time and results in various formats, supports intelligent data analysis with unconstrained free fitting technology and Windows operating software.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Laser Particle Size Analyzer is used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries etc.
| Dispersion Type | Dry |
| Measurement Range | 0.1 to 1200 µm |
| Channel number | 97 |
| Accuracy Error | <1% (National Standard Sample D50) |
| Repeatability Error | <1% (National Standard Sample D50) |
| Light Source | Semiconductor laser, λ = 632.8 nm P > 2 mW |
| Detector | High-sensitive ring photoelectric detector |
| Dispersion Mode | Dry-turbulence dispersion mode |
| Dispersion Technique | Normal shock wave shear technique |
| Feeding | Automatic vibration feeding |
| Optical Path Alignment | Fully automatic |
| Operation mode | Automatic/ Manual (Switchable) |
| Standard | ISO 13320-1:1999 |
| Test Speed | <1 min/time |
| Software Running | WIN 7/10/XP, 64 bits |
| Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. |
| Statistic Method | Volume Distribution, Quantity Distribution |
| Test Report | Word, Excel, Photo( Bmp), Text etc. |
| Dimension (L×W×H) | 1040×440×540 mm |
| Box 01 Packaging Dimension (L×W×H) | 1250×650×650 mm |
| Box 02 Packaging Dimension (L×W×H) | 860×450×750 mm |
| Box 03 Packaging Dimension (L×W×H) | 410×410×550 mm |
| Net Weight | 58 kg |
| Box 01 Gross Weight | 93 kg |
| Box 02 Gross Weight | 60 kg |
| Box 03 Gross Weight | 10 kg |
